855748

Description
36.15 MHz Bandpass Filter
File Size27KB,1 Pages
ManufacturerTriQuint Semiconductor Inc. (Qorvo)
Websitehttp://www.triquint.com
Download Datasheet View All

855748 Online Shopping

Suppliers Part Number Price MOQ In stock
855748 - - View Buy Now

855748 Overview

36.15 MHz Bandpass Filter

36.15 MHz Bandpass Filter
Data Sheet

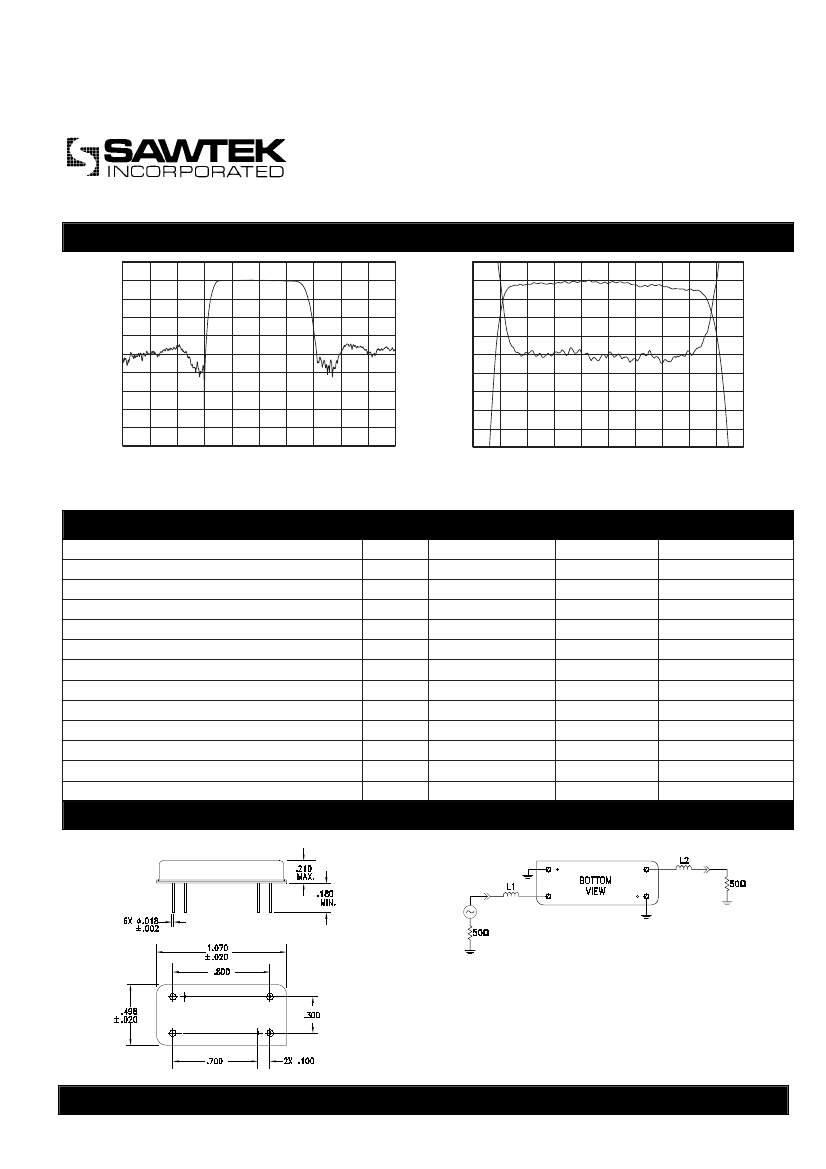

Typical Performance
10
0
-10
-20
-30
-40
-50
-60
-70
-80
-90
23.65
26.15
28.65
1
0
-1
-2
-3
-4
-5
-6
-7
-8
-9
43.65
46.15
48.65
31.15
32.15
33.15
10
8
6
4
2
0
-2
-4
-6
-8
-10
39.15
40.15
-
22
32.15
-
-
10.226
0.7
3
60
-
-
-
41.15
8 MHz Bandwidth
Part Number 855748
31.15
33.65
36.15
38.65
41.15
34.15
35.15
36.15
37.15
Specifications
Parameter
Center Frequency
Insertion Loss at 36.15 MHz
3 dB Lower Frequency
3 dB Upper Frequency
3 dB Bandwidth
38 dB Bandwidth
Passband Variation (70% of 3 dB BW)
Phase Linearity (70% of 3 dB BW)
Group Delay Variation (70% of 3 dB BW)
Absolute Delay
Triple Transit Suppression
Ambient Temperature
Unit
MHz
dB
MHz
MHz
MHz
MHz
dB p-p
deg p-p
nsec
µsec
dB
°C
Minimum
-
-
-
40.15
-
-
-
-
-
-
42
-
Typical
36.15
20.59
-
-
8.14
10.13
0.51
0.91
30.69
1.75
50.83
25
38.15
Horizontal: 2.5 MHz/Div
Vertical: 10 dB/Div
Horizontal: 1 MHz/Div
Vertical: 1 dB/Div
Vertical: 2 deg/Div
Maximum
Package Outline
Specifications subject to change or obsolescence without notice.
Matching Configuration
L1 = 150 nH , L2 =150 nH
Nominal Source/Load Impedance = 50Ω
Package Style O
1/11/00
Sawtek Inc.
Telephone: (407) 886-8860
Fax: (407) 886-7061
