856055 Overview

942.5 MHz SAW Filter

Data Sheet

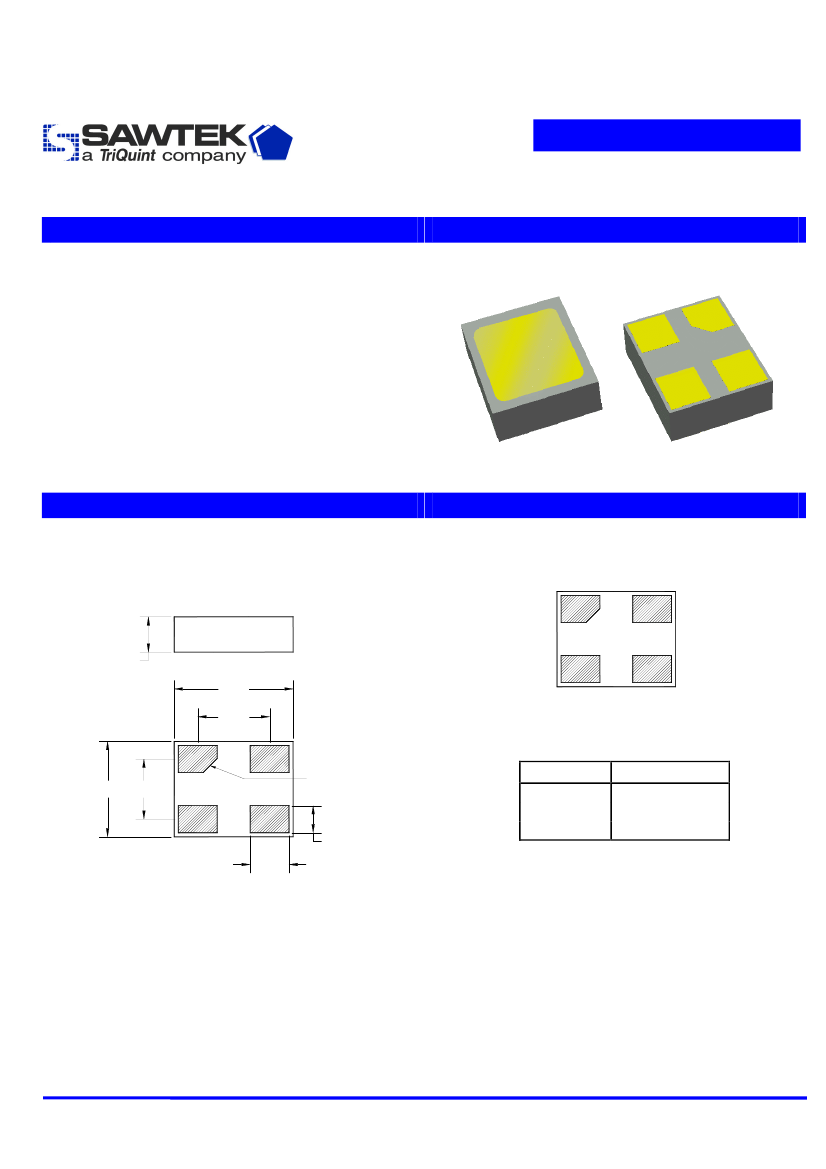

Features
For EGSM applications
Usable bandwidth 35 MHz
High attenuation
No impedance matching required for operation
at 50
Single-ended operation
Ceramic Surface Mount Package (SMP)
Small size
Part Number 856055
942.5 MHz SAW Filter
Package
Surface Mount 2.50 x 2.00 x 0.76 mm
Pin Configuration
Bottom View
1
2
0.76 NOM.
0.84 MAX.
2.50
1.54
4
3
2.00
1.30
0.3X45°
CHAMFER
0.58
0.84
Pin No.
1
3
2,4
Description
Input
Output
Case ground
Dimensions shown are nominal in millimeters
All tolerances are
±0.10mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar
or
Alloy 42, Au
over
Ni
plated
Terminations:
Au
plating 0.5 - 1.0µm,
over a 2 - 6µm
Ni
plating
Subject to change or obsolescence without notice
Rev C
04-Sep-2002
Page 1 of 5
