MOSPEC
Switchmode
Full Plastic Dual Schottky Barrier Power Rectifiers
Using the Schottky Barrier principle with a Molybdenum barrier metal.
These state-of-the-art geometry features epitaxial construction with oxide
passivation and metal overlay contact. Ideally suited for low voltage, high
frequency rectification, or as free wheeling and polarity protection diodes.
* Low Forward Voltage.
* Low Switching noise.
* High Current Capacity
* Guarantee Reverse Avalanche.
* Guard-Ring for Stress Protection.
* Low Power Loss & High efficiency.
* 125℃ Operating Junction Temperature
* Low Stored Charge Majority Carrier Conduction.
* Plastic Material used Carries Underwriters Laboratory
SRF3070 Thru SRF30100
SCHOTTKY BARRIER
RECTIFIERS
30 AMPERES
70-100 VOLTS
ITO-220AB
MAXIMUM RATINGS
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectifier Forward Current
Total Device (Rated V
R
),T
C
=100℃
Peak Repetitive Forward Current
(Rate V
R
, Square Wave, 20kHz)
Non-Repetitive Peak Surge Current
(Surge applied at rate load conditions
halfware, single phase, 60Hz)
Operating and Storage Junction
Temperature Range
Symbol
70
V
RRM
V
RWM
V
R
V
R(RMS)
I
F(AV)
70
80
80
SRF30
90
90
100
100
V
Unit
49
56
15
30
30
63
70
V
DIM
A
I
FM
A
I
FSM
250
A
T
J
, T
STG
-65 to +125
℃
A
B
C
D
E
F
G
H
I
J
K
L
M
N
P
O
Q
MILLIMETERS
MIN
MAX
15.05
15.15
13.35
13.45
10.00
10.10
6.55
6.65
2.65
2.75
1.55
1.65
1.15
1.25
0.55
0.65
2.50
2.60
3.00
3.20
1.10
1.20
0.55
0.65
4.40
4.60
1.15
1.25
2.65
2.75
3.35
3.45
3.15
3.25
ELECTRIAL CHARACTERISTICS
Characteristic
Maximum Instantaneous Forward Voltage
( I
F
=15 Amp T
C
= 25℃)
( I
F
=15 Amp T
C
= 125℃)
Maximum Instantaneous Reverse Current
( Rated DC Voltage, T
C
= 25℃)
( Rated DC Voltage, T
C
= 125℃)
Symbol
70
V
F
0.75
0.68
80
SRF30
90
0.85
0.72
100
V
Unit
I
R
1.0
30
mA
SRF3070-SRF30100

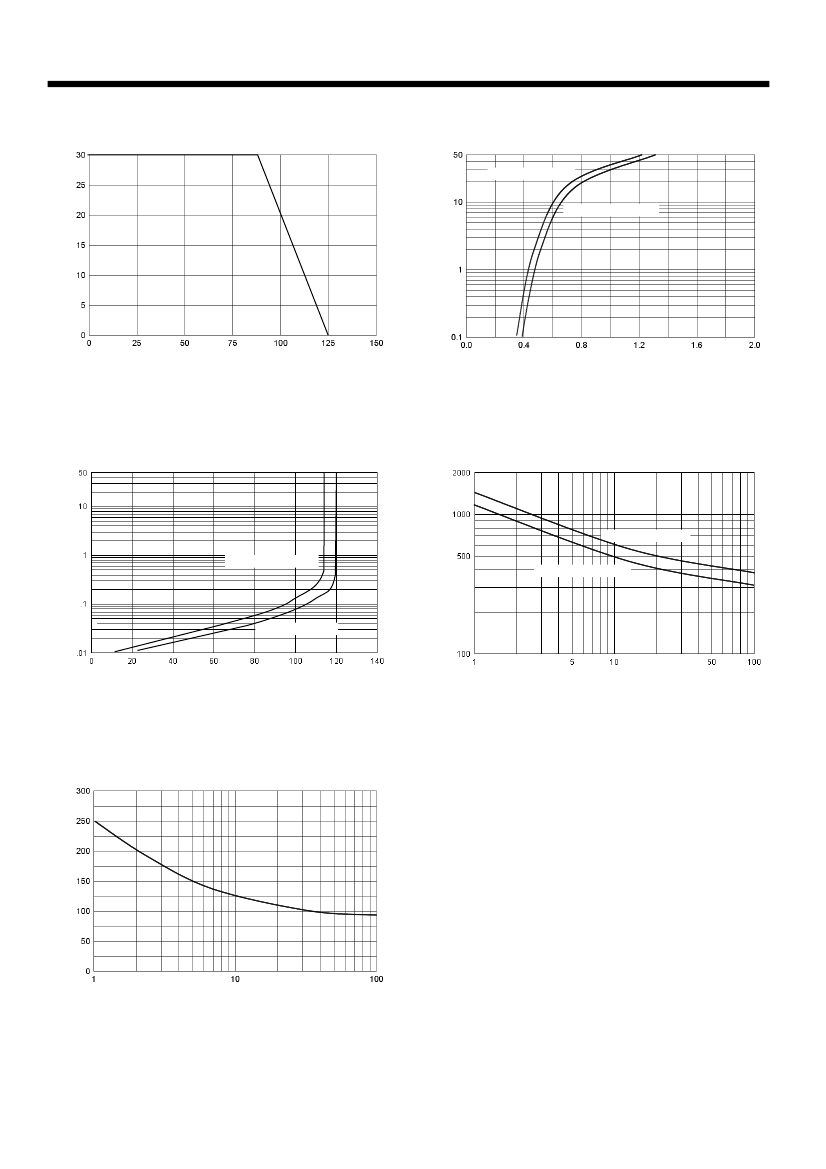

FIG-1 FORWARD CURRENT DERATING CURVE
AVERAGE FORWARD RECTIFIED CURRENT (Amp.)
NSTANTANEOUS FORWARD CURRENT (Amp.)
FIG-2 TYPICAL FORWARD CHARACTERISITICS
SRF3070-SRF3080
SRF3090-SRF30100
CASE TEMPERATURE (℃)
FORWARD VOLTAGE (Volts)
FIG-3 TYPICAL REVERSE CHARACTERISTICS
INSTANTANEOUS REVERSE CURRENT (mA.)
FIG-4 TYPICAL JUNCTION CAPACITANCE
JUNCTION CAPACITANCE (
P
F)
SRF3070-SRF3080
SRF3090-SRF30100
SRF3090-SRF30100
SRF3070-SRF308
PERCENT OF RATED REVERSE VOLTAGE (﹪)
REVERSE VOLTAGE (Volts)
FIG-5 PEAK FORWARD SURGE CURRENT
CURRENT (Amp.)
PEAK FORWARD SURGE
NUMBER OF CYCLES AT 60 Hz
