854653-EVB

Description
Signal Conditioning 70MHz BW 1.5MHz Eval Board
CategoryPassive components
File Size496KB,5 Pages
ManufacturerQorvo
Websitehttps://www.qorvo.com
Download Datasheet Parametric Compare View All

854653-EVB Online Shopping

Suppliers Part Number Price MOQ In stock
854653-EVB - - View Buy Now

854653-EVB Overview

Signal Conditioning 70MHz BW 1.5MHz Eval Board

854653-EVB Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerQorvo
Product CategorySignal Conditioning
Shipping RestrictionsThis product may require additional documentation to export from the United States.
RoHSDetails
PackagingBulk
Factory Pack Quantity1
Data Sheet
Features
Usable bandwidth of 1.5 MHz
Typical 3 dB bandwidth of 1.52 MHz
Low loss
High attenuation
Single-ended operation, 50Ω
Ceramic Surface Mount Package (SMP)
Hermetic
Part Number 854653

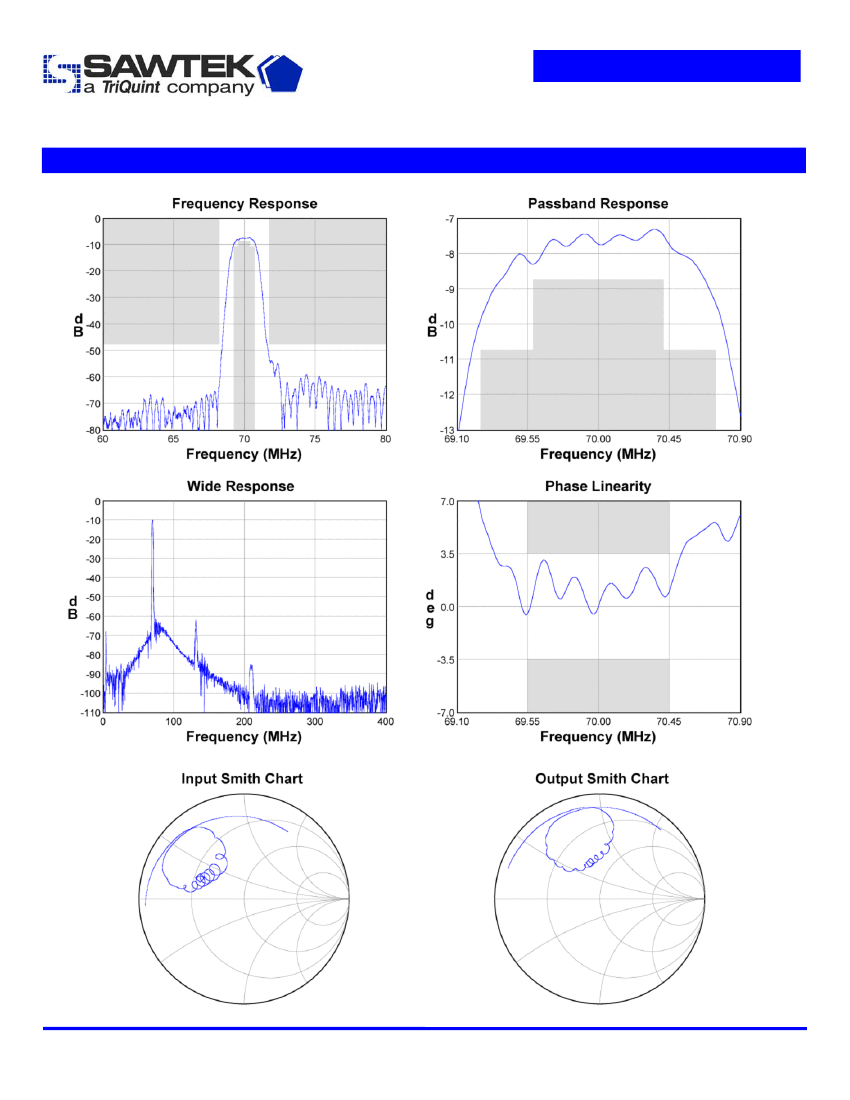

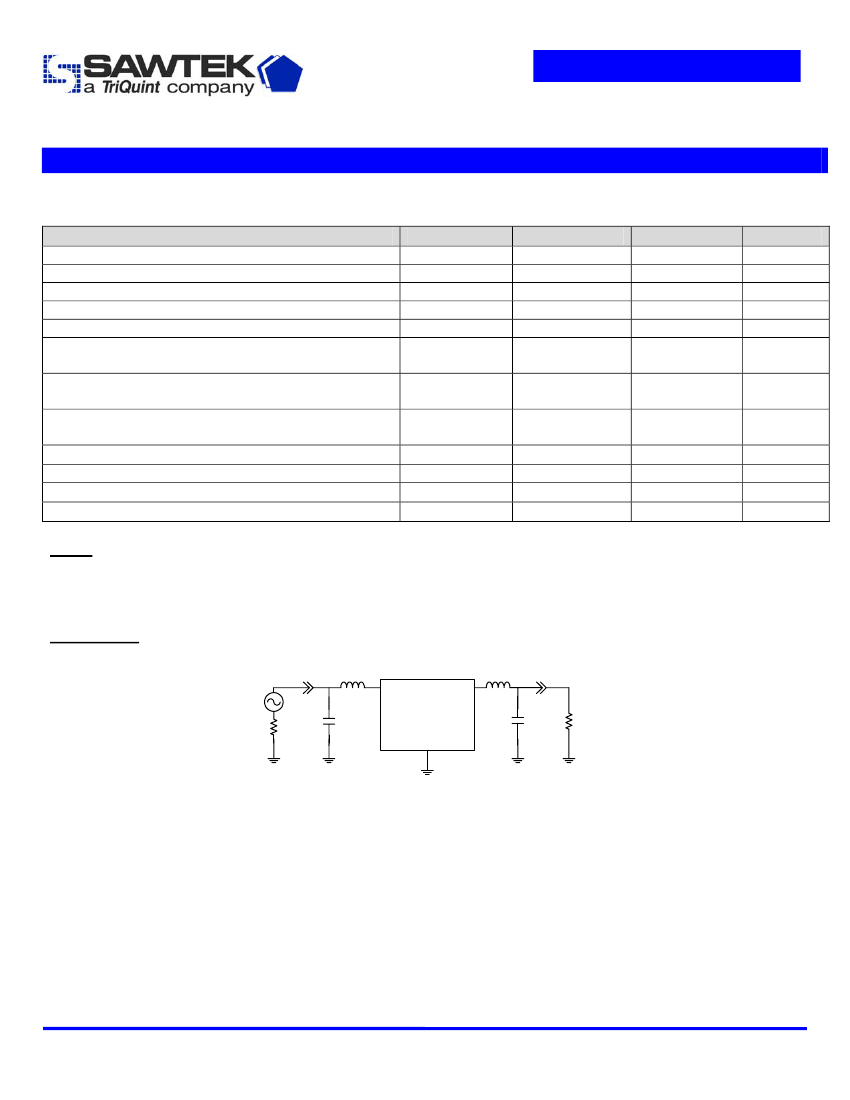

70 MHz SAW Filter
Package
Surface Mount 19.00 x 6.50 x 1.75 mm
Pin Configuration
Bottom View
1
2
3
4
5
1.75 NOM.
1.96 MAX.
0.76
10 9
8
7
6
19.0
1.80
1.91
R0.51
6.50
2.31
1.02
Pin No.
5
10
1,6
2,3,4
7,8,9
Description
Output
Input
Ground
Case ground
Case ground
Dimensions shown are nominal in millimeters
All tolerances are
±0.15mm
except overall
length and width +0.15mm/-0.10mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0µm,
over a 2 - 6µm
Ni
plating
Subject to change or obsolescence without notice
Rev -
31-Jan-2005
Page 1 of 5

854653-EVB Related Products

854653-EVB 854653
Description Signal Conditioning 70MHz BW 1.5MHz Eval Board Signal Conditioning 70MHz BW 1.5MHz SAW Filter
