CYStech Electronics Corp.
Three Terminal Positive Voltage Regulators
Spec. No. : C511J3
Issued Date : 2003.03.25
Revised Date :2005.09.15
Page No. : 1/3
LM78D05XJ3
These voltage regulators are monolithic integrated circuits designed as fixed
voltage regulators for a wide variety of applications including local, on-card
regulation. These regulators employ internal current limiting, thermal shutdown,
and safe-area compensation. With adequate heatsinking they can deliver output
currents in excess of 1.0A. Although designed primarily as fixed voltage regulator,
these devices can be used with external components to obtain adjustable
voltages and currents.
TO-252
Maximum Ratings
Rating
Input Voltage
Output Current
Power Dissipation
Operating Junction
Temperature Range
Symbol
V
IN
Io
P
D
T
J
Value
35
1
15
0 to +125
Unit
V
A
W
℃
Ordering Information
Device
LM78D05AJ3
LM78D05BJ3
Output Voltage Tolerance Package
3%
TO-252
5%
TO-252
LM78D05XJ3
CYStek Product Specification
CYStech Electronics Corp.
unless otherwise specified
Characteristics
Output Voltage
LM78D05A
LM78D05B
Output Voltage
LM78D05A
LM78D05B
Line Regulation
Load Regulation
Quiescent Current
Quiescent Current Change
Dropout Voltage
Peak Output Current
Symbol Test Condition
Vo
Spec. No. : C511J3
Issued Date : 2003.03.25
Revised Date :2005.09.15
Page No. : 2/3
Electrical Characteristics
V
IN
=10V,I
OUT
=500mA,T
J
=25℃,C
IN
=0.33µF,C
OUT
=0.1µF,
Min
4.85
4.75
5.0mA≤I
OUT
≤1.0A,P
D
≤15W
4.85
4.75
-
-
-
-
-
-
-
-
1.7
Typ
5.0
5.0
5.0
5.0
-
-
-
-
-
-
-
2
-
Max Unit
5.15
5.25
5.15
5.25
50
25
100
50
8
0.5
1.3
-
-
V
V
mV
mV
mA
mA
V
A
Vo
7V≤V
IN
≤25V
8V≤V
IN
≤25V
ΔVo
5.0mA≤I
OUT
≤1.5A
250mA≤I
OUT
≤750mA
I
Q
I
OUT
≤1.0A
ΔI
Q
5.0mA≤I
OUT
≤1.5A
7V≤V
IN
≤25V
V
D
I
OUT
=1.0A
I
PK
ΔVo
LM78D05XJ3
CYStek Product Specification
CYStech Electronics Corp.

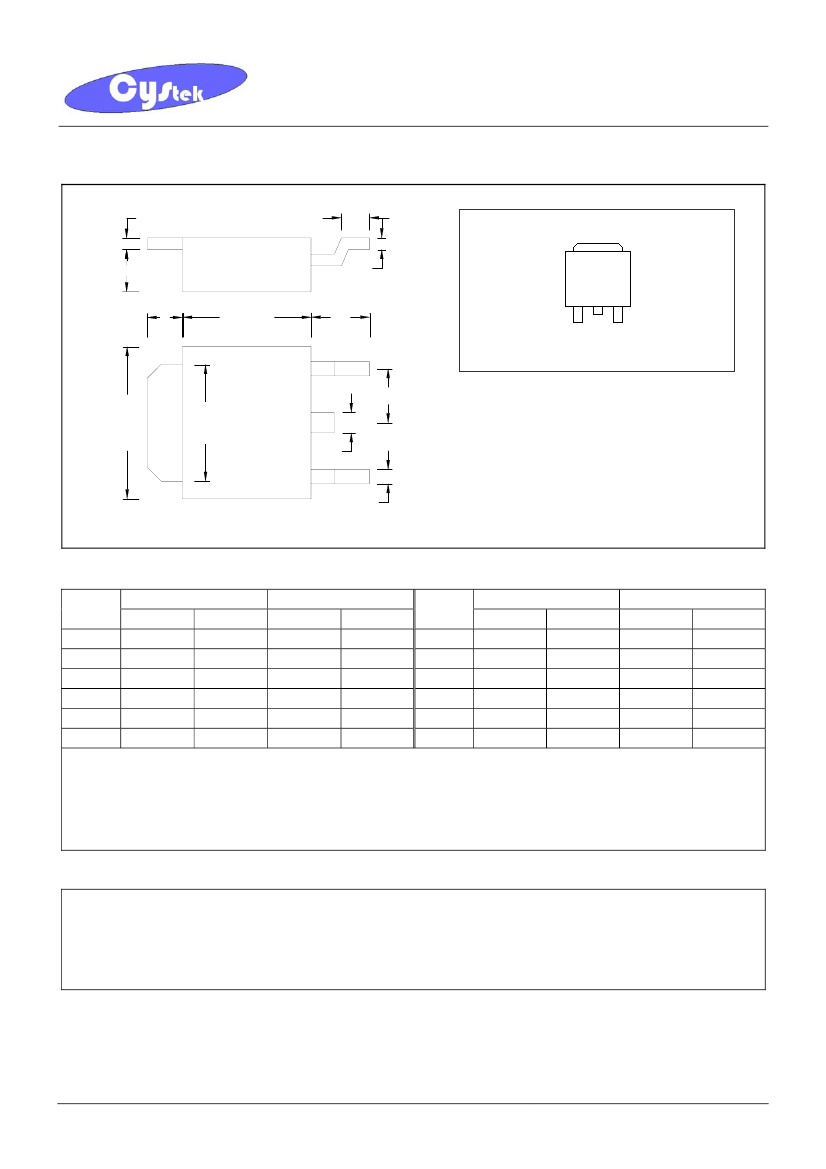

TO-252 Dimension
A
C
Spec. No. : C511J3
Issued Date : 2003.03.25
Revised Date :2005.09.15
Page No. : 3/3
Marking:
B
L
F
G
D
78D05
3
H
E
K
2
I
1
J
Style: Pin 1.Vin 2.Ground 3.Vout
3-Lead TO-252 Plastic Surface Mount Package
CYStek Package Code: J3
*: Typical
DIM
A
B
C
D
E
F
Inches
Min.
Max.
0.0177 0.0217
0.0650 0.0768
0.0354 0.0591
0.0177 0.0236
0.2520 0.2677
0.2125 0.2283
Millimeters
Min.
Max.
0.45
0.55
1.65
1.95
0.90
1.50
0.45
0.60
6.40
6.80
5.40
5.80
DIM
G
H
I
J
K
L
Inches
Min.
Max.
0.0866 0.1102
-
*0.0906
-
0.0354
-
0.0315
0.2047 0.2165
0.0551 0.0630
Millimeters
Min.
Max.
2.20
2.80
-
*2.30
-
0.90
-
0.80
5.20
5.50
1.40
1.60
Notes:
1.Controlling dimension: millimeters.
2.Maximum lead thickness includes lead finish thickness, and minimum lead thickness is the minimum thickness of base material.
3.If there is any question with packing specification or packing method, please contact your local CYStek sales office.
Material:
•
Lead: 42 Alloy; solder plating
•
Mold Compound: Epoxy resin family, flammability solid burning class: UL94V-0
Important Notice:
•
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written approval of CYStek.
•
CYStek reserves the right to make changes to its products without notice.
•
CYStek
semiconductor products are not warranted to be suitable for use in Life-Support Applications, or systems.
•
CYStek assumes no liability for any consequence of customer product design, infringement of patents, or application assistance.
LM78D05XJ3
