RPS0J820MCN1GS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> RPS0J820MCN1GS

RPS0J820MCN1GS: DescriptionAluminum Organic Polymer Capacitors 6.3V 82uF 20% Tol.; CategoryPassive components; File Size299KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric View All

RPS0J820MCN1GS Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RPS0J820MCN1GS	-	-	View	Buy Now

RPS0J820MCN1GS Overview

Aluminum Organic Polymer Capacitors 6.3V 82uF 20% Tol.

RPS0J820MCN1GS Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Nichicon
Product Category	Aluminum Organic Polymer Capacitors
RoHS	Details
Product	Can
Termination Style	SMD/SMT
Capacitance	82 uF
Voltage Rating DC	6.3 VDC
Tolerance	20 %
ESR	35 mOhms
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 105 C
Diameter	6.3 mm
Length	5.7 mm
Ripple Current	2.2 A
Life	1000 Hour
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Type	Organic Polymer Aluminum - SMD Capacitors
Leakage Current	103 uA
Dissipation Factor DF	0.12
Factory Pack Quantity	1000

Preview

Download Datasheet

View All

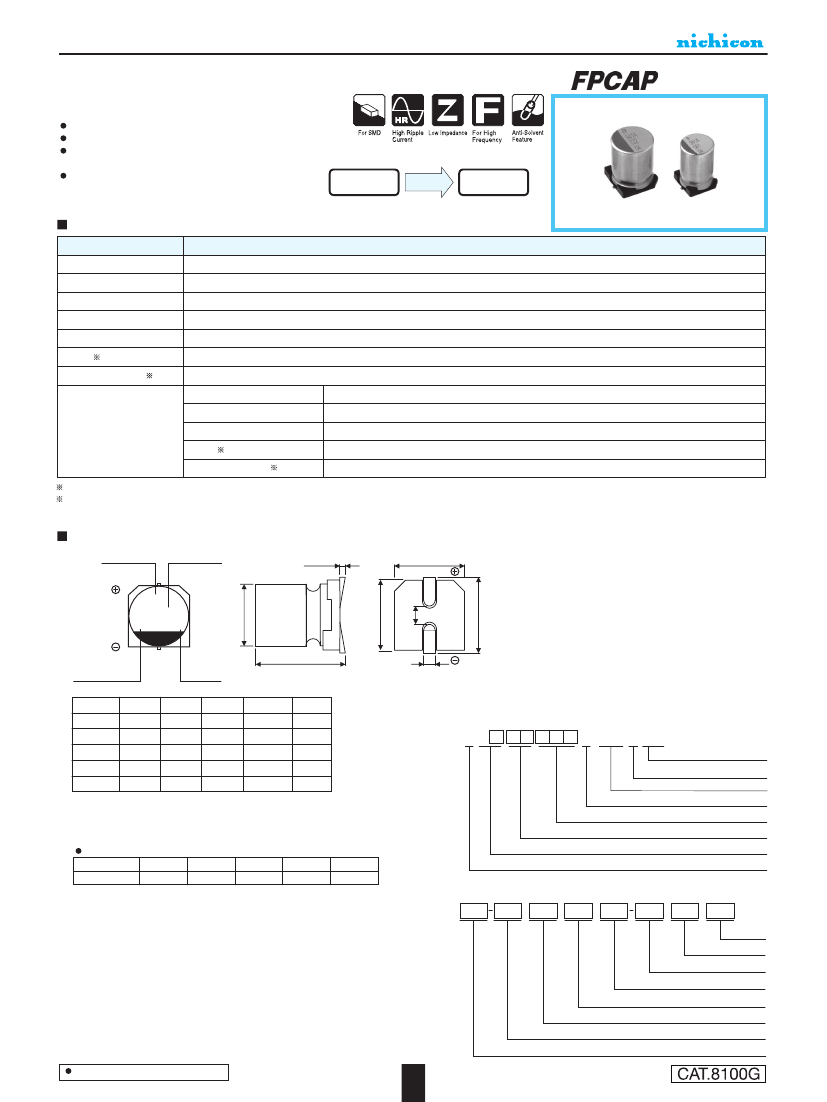

CONDUCTIVE POLYMER ALUMINUM SOLID ELECTROLYTIC CAPACITORS

RPS

/ RPA

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Tangent of loss angle (tan

δ)

ESR ( 1)

Leakage Current ( 2)

–55 to

+105°C

2.5 to 63V

8.2 to 1500µF

±20% at 120Hz, 20°C

Standard

(φ6.3,

φ8,φ10)

High voltage (to 63V), Low ESR, High ripple current.

Load life of 2000 hours at 105°C.

SMD type : Lead free reflow soldering condition at

260°C peak correspondence.

Compliant to the RoHS directive (2011/65/EU).

RPS

Lower ESR

RPA

Performance Characteristics

Less than or equal to the specified value at 120Hz, 20°C

Less than or equal to the specified value at 100kHz, 20°C

Less than or equal to the specified value.

Test condition

Capacitance change

After 2 minutes' application of rated voltage at 20°C

105°C, rated voltage 2000Hrs.

Within ±20% of initial value before test

150% or less than the initial specified value

Less than or equal to the initial specified value

Endurance

tan

ESR( 1)

Leakage current ( 2)

1 ESR should be measured at both of the terminal ends closest where the terminals protrude through the plastic platform.

2 Conditioning : If any doubt arises, measure the leakage current after the voltage treatment of applying DC rated voltage continuously to the capacitor for 120

minutes at 105°C.

Dimensions

Lot No.

Capacitance

0.2

MAX.

W±0.2

φD

±0.5

68AA

560

±0.2

L±0.3

Product Logo

φD×L

6.3×5.7

8×6.7

8×11.7

10×7.7

10×12.4

6.5

8.3

10.3

Voltage

(mm)

6.5

8.3

10.3

7.2

9.0

11.0

0.5 to 0.9

0.8 to 1.1

2.1

3.2

4.6

Type numbering system (Example : 63V 56µF)

Nichicon part number

RPS 1 J 5 6 0 M CN 1 GS

Taping code

Control code

±0.2

10 11 12 13 14

Configuration

Capacitance tolerance (±20%)

Rated capacitance (56µF)

Rated voltage (63V)

Frequency coefficient of rated ripple current

Frequency

Coefficient

120 Hz

0.10

1 kHz

0.45

10 kHz

0.50

100 kHz

1.00

300 kHz

1.00

Series name

Type

FPCAP part number

063

560

Control code

Taping code

Series name

Capacitance tolerance (±20%)

Capacitance (56µF)

Configuration

Voltage(63V)

Type

Dimension table in next page.
