CYStech Electronics Corp.
NPN Digital Transistors
(
Built-in Resistors
)
Spec. No. : C351B3
Issued Date : 2003.08.20
Revised Date :
Page No. : 1/4
DTC114EB3
Features
•
Built-in bias resistors enable the configuration of an inverter circuit without connecting external input
resistors (see equivalent circuit).
•
The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the
input. They also have the advantage of almost completely eliminating parasitic effects.
•
Only the on/off conditions need to be set for operation, making device design easy.
•
Complements the DTA114EB3
Equivalent Circuit
DTC114EB3
R1=10kΩ , R2=10 kΩ
IN(B) : Base
OUT(C) : Collector
GND(E) : Emitter
Absolute Maximum Ratings
(Ta=25°C)
Parameter
Supply Voltage
Input Voltage
Output Current
Power Dissipation
Junction Temperature
Storage Temperature
Symbol
V
CC
V
I
I
O
I
O(max.)
Pd
Tj
Tstg
Limits
50
-10~+40
50
100
300
150
-55~+150
Unit
V
V
mA
mA
mW
°C
°C
DTC114EB3
CYStek Product Specification
CYStech Electronics Corp.
Electrical Characteristics
(Ta=25°C)
Parameter
Input Voltage
Output Voltage
Input Current
Output Current
DC Current Gain
Input Resistance
Resistance Ratio
Transition Frequency
Symbol
V
I(off)
V
I(on)
V
O(on)
I
I
I
O(off)
G
I
R
1
R
2
/R
1
f
T
Min.
-
3
-
-
-
30
7
0.8
-
Typ.
-
-
-
-
-
-
10
1
250
Max.
0.5
-
0.3
0.88
0.5
-
13
1.2
-
Unit
V
V
V
mA
µA
-
kΩ
-
MHz
Spec. No. : C351B3
Issued Date : 2003.08.20
Revised Date :
Page No. : 2/4
Test Conditions
V
CC
=5V, I
O
=100µA
V
O
=0.3V, I
O
=10mA
I
O
/I
I
=10mA/0.5mA
V
I
=5V
V
CC
=50V, V
I
=0V
V
O
=5V, I
O
=5mA
-
-
V
CE
=10V, I
C
=5mA, f=100MHz *
* Transition frequency of the device
DTC114EB3
CYStek Product Specification
CYStech Electronics Corp.

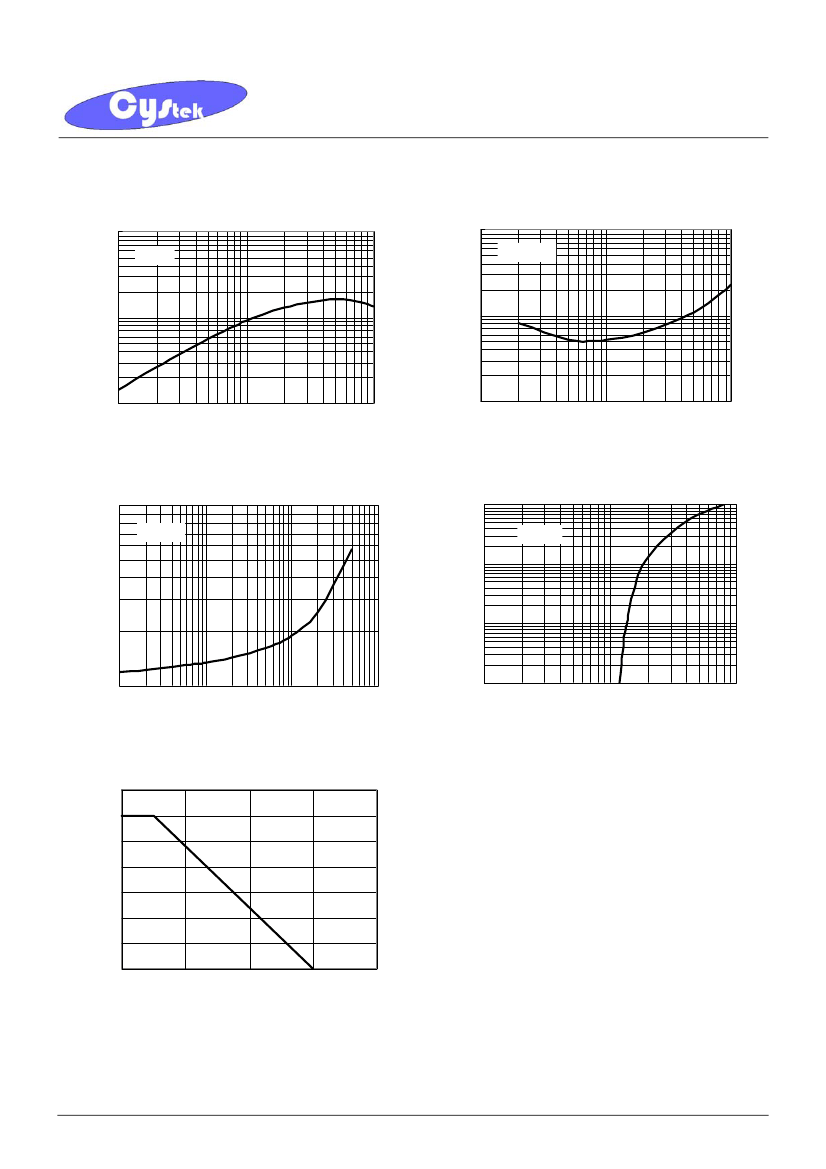

Characteristic Curves
Current Gain vs Output Current
1000
Output Voltage---V
O(on)
(mV)
Vo=5V
Spec. No. : C351B3
Issued Date : 2003.08.20
Revised Date :
Page No. : 3/4
Output Voltage vs Output Current
1000
Io / Ii=20
Current Gain---G
I
100
100
10
1
10
Output Current ---Io(mA)
100
10
1
10
Output Current ---Io(mA)
Output Current vs Input Voltage (OFF characteristics)
100
Output Current --- Io(mA)
Vo=0.3V
Vcc=5V
100
Input Voltage vs Output Current (ON characteristics)
10
Input Voltage --- V
I(on)
(V)
10
1
1
0.1
1
10
Output Current --- Io(mA)
100
0.1
0.1
1
Input Voltage --- V
I(off)
(V)
10
Power Derating Curve
350
Power Dissipation---P
D
(mW)
300
250
200
150
100
50
0
0
50
100
150
Ambient Temperature---T
A
(℃)
200
DTC114EB3
CYStek Product Specification
CYStech Electronics Corp.
TO-92SP Dimension
Spec. No. : C351B3
Issued Date : 2003.08.20
Revised Date :
Page No. : 4/4
E
3
A
2
1
B
C
D
F
Marking :
N4401
DTC114E
G
3-Lead TO-92SP Plastic Package
CYStek Package Code: B3
Style: Pin 1.GND 2.OUT 3.IN
*: Typical
DIM
A
B
C
D
Inches
Min.
0.1450
0.1063
0.5000
-
Max.
0.1650
0.1300
-
*0.1000
Millimeters
Min.
Max.
3.70
4.20
2.70
3.30
12.7
-
-
*2.54
DIM
E
F
G
Inches
Min.
0.0160
-
0.0800
Max.
0.0240
*0.0150
0.1050
Millimeters
Min.
Max.
0.41
0.61
-
*0.38
2.03
2.67
Notes:
1.Controlling dimension: millimeters.
2.Maximum lead thickness includes lead finish thickness, and minimum lead thickness is the minimum thickness of base material.
3.If there is any question with packing specification or packing method, please contact your local
CYStek
sales office.
Material:
•
Lead: 42 Alloy; solder plating
•
Mold Compound: Epoxy resin family, flammability solid burning class: UL94V-0
Important Notice:
•
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written approval of CYStek.
•
CYStek reserves the right to make changes to its products without notice.
•
CYStek
semiconductor products are not warranted to be suitable for use in Life-Support Applications, or systems.
•
CYStek assumes no liability for any consequence of customer product design, infringement of patents, or application assistance.
DTC114EB3
CYStek Product Specification
