CYStech Electronics Corp.
NPN Digital Transistors (Built-in Resistors)
Spec. No. : C378N3
Issued Date : 2004.01.15
Revised Date :
Page No. : 1/4
DTD143EN3
Features
•
Built-in bias resistors enable the configuration of an inverter circuit without connecting external input
resistors (see equivalent circuit).
•
The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the
input. They also have the advantage of almost completely eliminating parasitic effects.
•
Only the on/off conditions need to be set for operation, making device design easy.
•
Complements the DTB143EN3

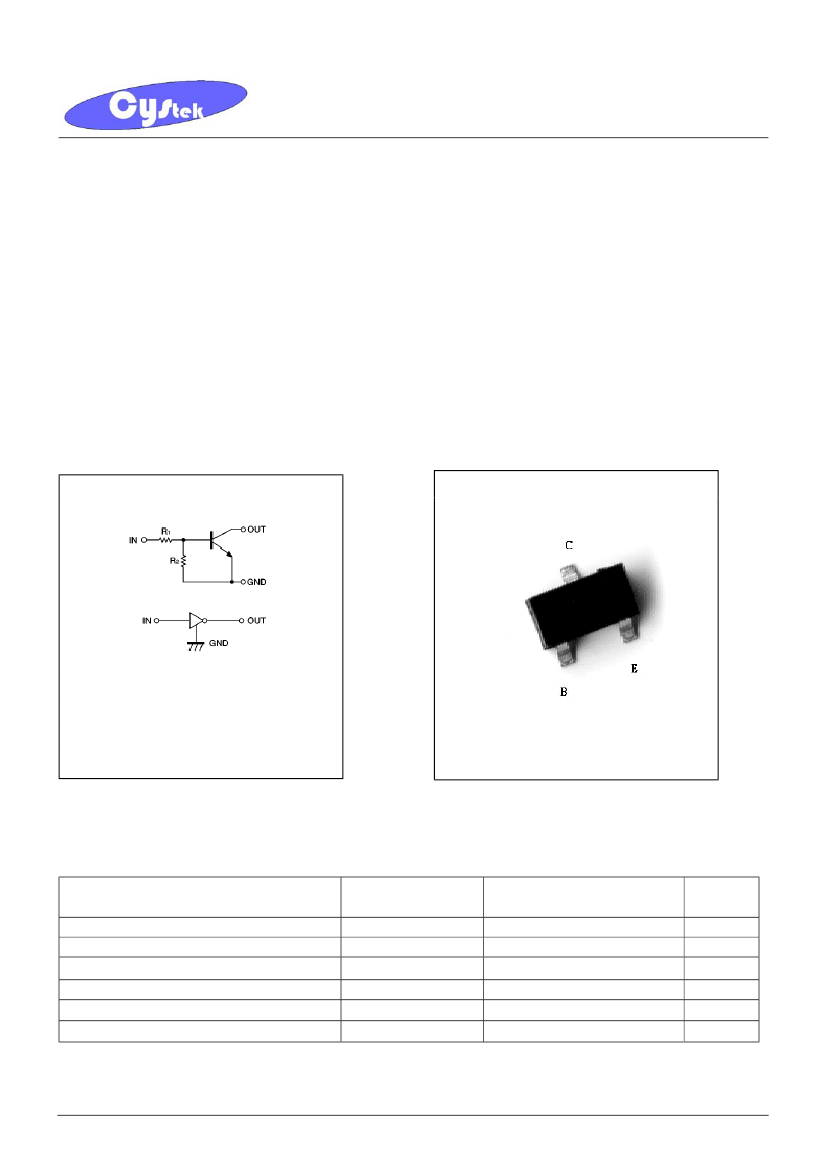

Equivalent Circuit
DTD143EN3
Outline
SOT-23
R1=4.7kΩ , R2=4.7 kΩ
IN(B) : Base
OUT(C) : Collector
GND(E) : Emitter
Absolute Maximum Ratings
(Ta=25℃)
Parameter
Supply Voltage
Input Voltage
Output Current
Power Dissipation
Junction Temperature
Storage Temperature
Symbol
V
CC
V
IN
I
O
Pd
Tj
Tstg
Limits
50
-10~+30
500
200
150
-55~+150
Unit
V
V
mA
mW
°C
°C
DTD143EN3
CYStek Product Specification
CYStech Electronics Corp.
Characteristics
(Ta=25℃)
Parameter
Input Voltage
Output Voltage
Input Current
Output Current
DC Current Gain
Input Resistance
Resistance Ratio
Transition Frequency
Symbol
V
I(off)
V
I(on)
V
O(on)
I
I
I
O(off)
G
I
R
1
R
2
/R
1
f
T
Min.
-
3
-
-
-
47
3.29
0.8
-
Typ.
-
-
0.1
-
-
-
4.7
1
200
Max.
0.5
-
0.3
1.8
0.5
-
6.11
1.2
-
Unit
V
V
V
mA
µA
-
kΩ
-
MHz
Spec. No. : C378N3
Issued Date : 2004.01.15
Revised Date :
Page No. : 2/4
Test Conditions
V
CC
=5V, I
O
=100µA
V
O
=0.3V, I
O
=20mA
I
O
/I
I
=50mA/2.5mA
V
I
=5V
V
CC
=50V, V
I
=0V
V
O
=5V, I
O
=50mA
-
-
V
CE
=10V, I
C
=50mA, f=100MHz *
* Transition frequency of the device
DTD143EN3
CYStek Product Specification
CYStech Electronics Corp.

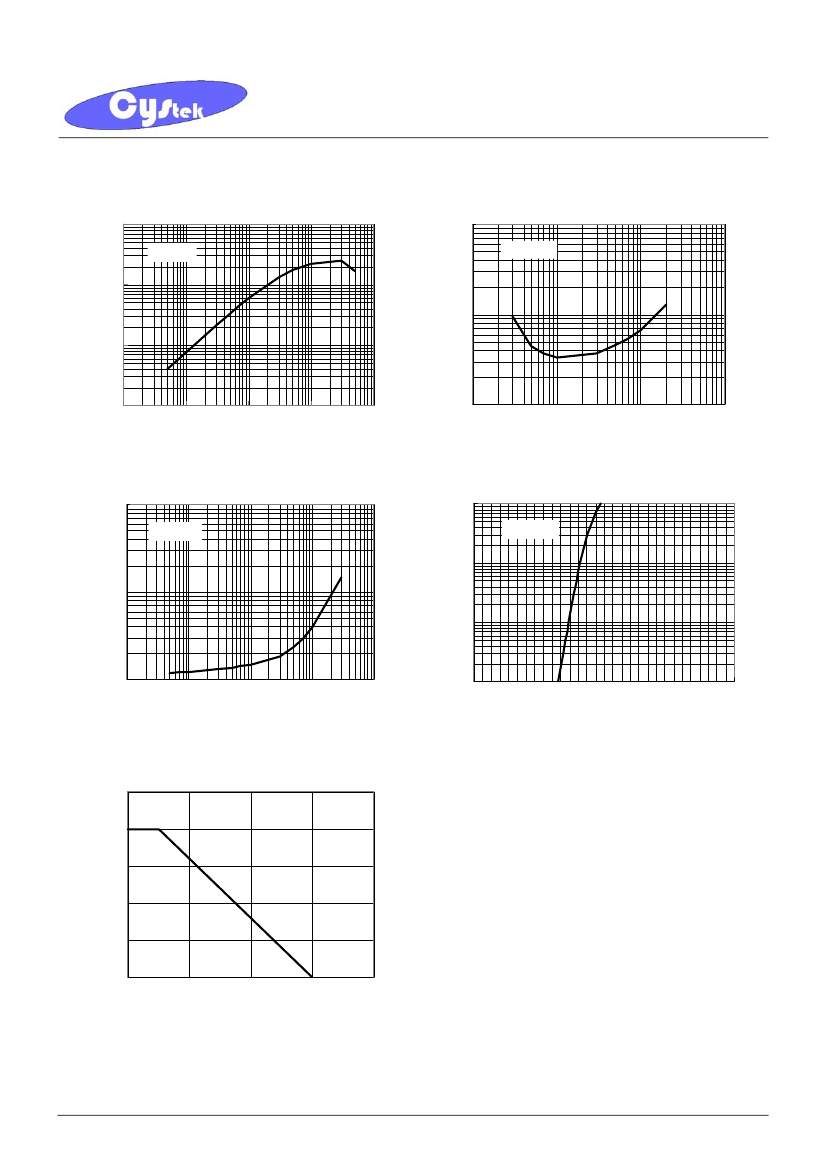

Characteristic Curves
Current Gain vs Output Current
1000
Output Voltage---V
O(ON)
(V)
1
Io / Ii = 20
Spec. No. : C378N3
Issued Date : 2004.01.15
Revised Date :
Page No. : 3/4
Output Voltage vs Output Current
Current Gain---G
I
100
0.1
10
1
0.1
1
10
100
Output Current---I
O
(mA)
1000
0.01
1
10
100
1000
Output Current---Io(mA)
Output Current vs Input Voltage(OFF characteristics)
10
Output Current---Io(mA)
Input Voltage vs Output Current(ON characteristics)
100
Input Voltage---V
I(ON)
(V)
Vo = 0.3V
Vcc = 5V
1
10
0.1
1
0.1
1
10
100
1000
0.01
0
0.5
1
1.5
2
2.5
3
Output Current---Io(mA)
Input Voltage---V
I(OFF)
(V)
Power Derating Curve
250
Power Dissipation---P
D
(mW)
200
150
100
50
0
0
50
100
150
200
Ambient Temperature---T
A
(℃)
DTD143EN3
CYStek Product Specification
CYStech Electronics Corp.
SOT-23 Dimension
Spec. No. : C378N3
Issued Date : 2004.01.15
Revised Date :
Page No. : 4/4
A
L
3
B
1
2
S
Marking:
F23
V
G
3-Lead SOT-23 Plastic
Surface Mounted Package
CYStek Package Code: N3
Style : Pin 1.IN 2.GND 3.OUT
D
H
K
J
C
*:Typical
DIM
A
B
C
D
G
H
Inches
Min.
Max.
0.1102 0.1204
0.0472 0.0630
0.0335 0.0512
0.0118 0.0197
0.0669 0.0910
0.0005 0.0040
Millimeters
Min.
Max.
2.80
3.04
1.20
1.60
0.89
1.30
0.30
0.50
1.70
2.30
0.013
0.10
DIM
J
K
L
S
V
Inches
Min.
Max.
0.0034 0.0070
0.0128 0.0266
0.0335 0.0453
0.0830 0.1083
0.0098 0.0256
Millimeters
Min.
Max.
0.085
0.177
0.32
0.67
0.85
1.15
2.10
2.75
0.25
0.65
Notes :
1.Controlling dimension : millimeters.
2.Maximum lead thickness includes lead finish thickness, and minimum lead thickness is the minimum thickness of base material.
3.If there is any question with packing specification or packing method, please contact your local CYStek sales office.
Material :
•
Lead : 42 Alloy ; solder plating
•
Mold Compound : Epoxy resin family, flammability solid burning class:UL94V-0
Important Notice:
•
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written approval of CYStek.
•
CYStek reserves the right to make changes to its products without notice.
•
CYStek
semiconductor products are not warranted to be suitable for use in Life-Support Applications, or systems.
•
CYStek assumes no liability for any consequence of customer product design, infringement of patents, or application assistance.
DTD143EN3
CYStek Product Specification
