DG213DY-T1 Overview

Analog Switch ICs Quad Comp CMOS

DG213DY-T1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Maker	Vishay
Parts packaging code	SOIC
package instruction	SOP, SOP16,.25
Contacts	16
Reach Compliance Code	unknown
Is Samacsys	N
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
length	9.9 mm
Maximum negative supply voltage (Vsup)	-22 V
Negative supply voltage minimum (Vsup)	-3 V
Nominal Negative Supply Voltage (Vsup)	-15 V
normal position	NO/NC
Number of channels	1
Number of functions	4
Number of terminals	16
Nominal off-state isolation	90 dB
On-state resistance matching specifications	1 Ω
Maximum on-state resistance (Ron)	60 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
output	SEPARATE OUTPUT
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240
power supply	5,12/+-15 V
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	22 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	100 ns
Maximum connection time	130 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	3.9 mm
Base Number Matches	1

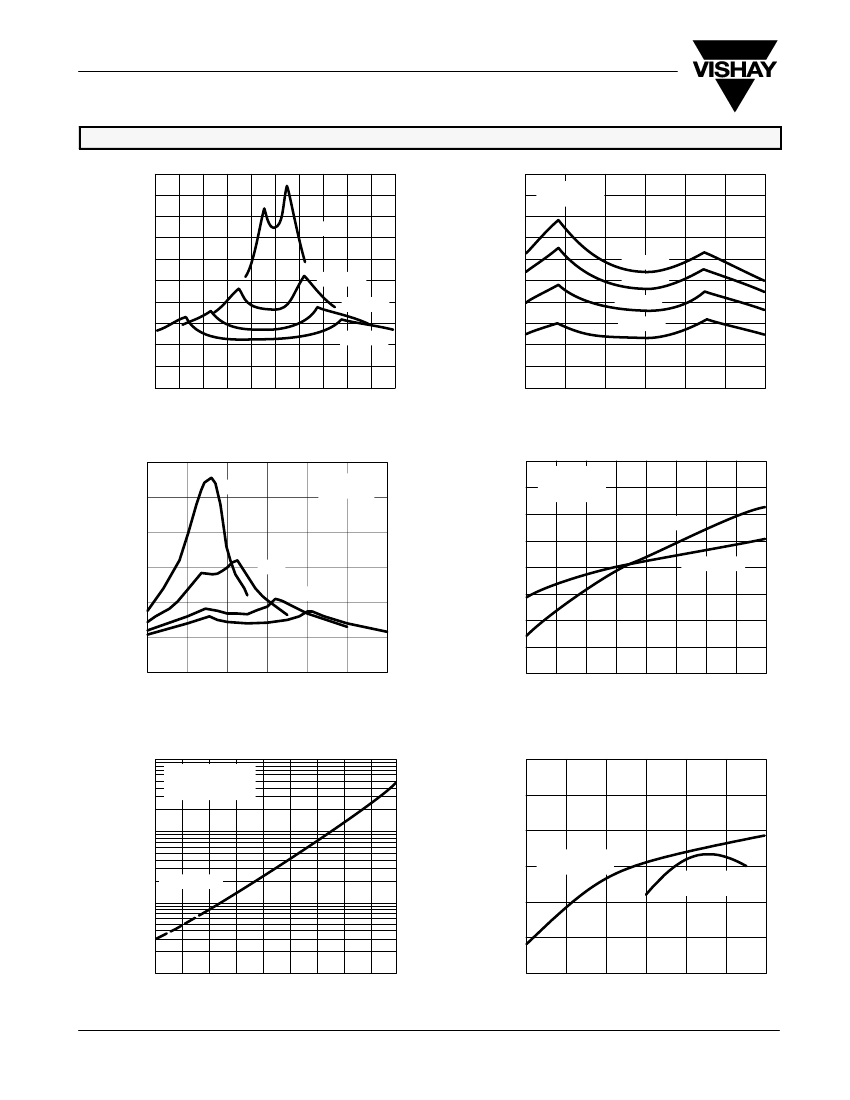

Preview

Download Datasheet

View All

DG213

Vishay Siliconix

Quad Complementary CMOS Analog Switch

FEATURES

"22-V

Supply Voltage Rating

TTL and CMOS Compatible Logic

Low On-Resistance—r

DS(on)

: 45

Low Leakage—I

D(on)

: 20 pA

Single Supply Operation Possible

Extended Temperature Range

Fast Switching—t

: 85 ns

BENEFITS

Low Charge Injection—Q: 1 pC

Wide Analog Signal Range

Simple Logic Interface

Higher Accuracy

Minimum Transients

Reduced Power Consumption

Low Cost

APPLICATIONS

Industrial Instrumentation

Test Equipment

Communications Systems

Computer Peripherals

Portable Instruments

Sample-and-Hold Circuits

DESCRIPTION

The versatile DG213 analog switch has two NC and two NO

switches. It can be used in various configurations, including

four single-pole single-throw (SPST), two single-pole

double-throw (SPDT), one “T” switch, one DPDT, etc. This

device is fabricated in a Vishay Siliconix’ proprietary

high-voltage silicon gate CMOS process, resulting in lower

on-resistance, lower leakage, higher speed, and lower power

consumption.

injection compensation design minimizes switching

transients. These switches can handle up to

"22

V, and have

an improved continuous current rating of 30 mA. An epitaxial

layer prevents latchup.

All switches feature true bi-directional performance in the on

condition, and will block signals to the supply levels in the off

condition.

This analog switch was designed for a wide variety of general

purpose applications in telecommunications, instrumentation,

process control, computer peripherals, etc. An improved charge

For additional information, please refer to Application Note

AN208 (FaxBack document #70606).

FUNCTIONAL BLOCK DIAGRAM AND PIN CONFIGURATION

TRUTH TABLE

V–

GND

Top View

Document Number: 70662

S-00787—Rev. F, 17-Apr-00

V+

Logic

, SW

OFF

Logic “0”

0.8 V

Logic “1”

2.4 V

, SW

OFF

ORDERING INFORMATION

Temp Range

Package

16-Pin Plastic DIP

–40 to 85_C

16-Pin Narrow SOIC

16-Pin TSSOP

Part Number

DG213DJ

DG213DY

DG213DQ

www.vishay.com

FaxBack 408-970-5600

4-1
