HC-49/U-FREQ3-3OT-STBY2-TOL3-SR-DL2 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> HC-49/U-FREQ3-3OT-STBY2-TOL3-SR-DL2

HC-49/U-FREQ3-3OT-STBY2-TOL3-SR-DL2: DescriptionSeries - 3Rd Overtone Quartz Crystal, 75MHz Min, 100MHz Max,; CategoryPassive components Crystal/resonator; File Size17KB，1 Pages; ManufacturerDaishinku Corp.; Websitehttp://www.kds.info/; Environmental Compliance

Download Datasheet Parametric View All

HC-49/U-FREQ3-3OT-STBY2-TOL3-SR-DL2 Overview

Series - 3Rd Overtone Quartz Crystal, 75MHz Min, 100MHz Max,

HC-49/U-FREQ3-3OT-STBY2-TOL3-SR-DL2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Daishinku Corp.
Reach Compliance Code	unknown
Other features	AT CUT CRYSTAL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	SERIES - 3RD OVERTONE
Drive level	50 µW
frequency stability	0.001%
frequency tolerance	15 ppm
JESD-609 code	e2
Manufacturer's serial number	HC-49/U
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	100 MHz
Minimum operating frequency	75 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L11.5XB5XH13.46 (mm)
surface mount	NO
Terminal surface	Tin/Copper (Sn/Cu)
Base Number Matches	1

Preview

Download Datasheet

View All

Resistance Weld Type

UM-4, UM-5, UM-1, HC-49/T, HC-50/T, HC-49/U, HC-50/U

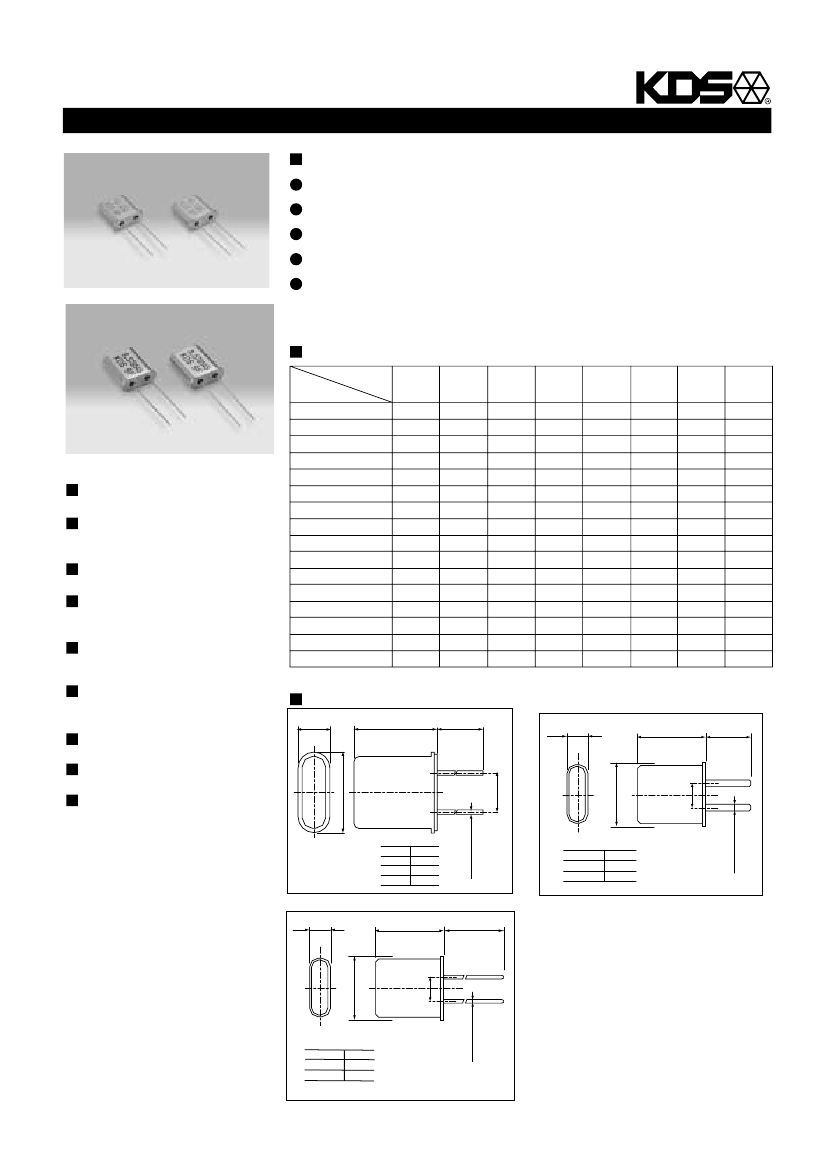

FEATURES

High frequency stability.

Ideal for mobile telecommunication devices (UM series).

Micro processor standard clock resonator application (HC series).

Excellent impact shock and vibration resistance.

Also available in taping for automatic surface mounting.

RESISTANCE OF SERIES RESONANCE

TYPE

FREQUENCY

1.8~2.0MHz

2.0~2.4MHz

2.4~3.0MHz

3.0~3.5MHz

3.5~4.0MHz

4.0~7.0MHz

7.0~10MHz

10~15MHz

15~20MHz

20~25MHz

25~30MHz

30~75MHz

75~100MHz

100~125MHz

125~150MHz

150~200MHz

Mode

F/3

3/5

UM-4

max.

50/-

70/-

100

UM-5 UM-1 HC-49/T HC-50/T HC-49/U HC-50/U

Ωmax. Ωmax. Ωmax. Ωmax. ΩXax. Ωmax.

50/-

70/80

100

120

70/80

100

120

150

25/60

25/40

-/60

150

25/60

25/40

-/60

600

450

350

150

25/50

25/40

-/60

600

450

350

150

25/50

25/40

-/60

ø0.35

±0.05

FREQUENCY RANGE

1.8~200MHz

MODE OF VIBRATION

AT-cut, Thickness-Shear

Fund, 3rd, 5th, 7th

DRlVE LEVEL

10µW, 50µW, 100µW, 500µW

LOAD CAPACITANCE

Series resonance,12pF, 16pF,

20pF, 32pF

FREQUENCY TOLERANCE

±5ppm, ±10ppm, ±15ppm,

±20ppm, ±30ppm

FREQUENCY STABILITY(TEMP.)

±5ppm, ±10ppm, ±20ppm,

±30ppm, ±50ppm

OPERATING TEMP. RANGE

–10˚C~±60˚C

STORAGE TEMP. RANGE

–30˚C~+80˚C

AGING

UM Series:

±1ppm,

2ppm, 3ppm/year(max.)

HC Series :

±5ppm/year(max.)

DIMENSIONS[mm]

3.5 max.

L max.

12.5

±1

Please contact your KDS sales representative to

discuss particular spec requirements.

5max.

L max.

6.05

–0.38

+ 0.25

11.5max.

*3.75

±0.2

4.88±0.2

8 max.

UM-4

UM-5

UM-1

4.5

5.8

8.5

HC-50/U

HC-50/T

13.46

11.0

5max.

L max.

20±1

*Lead pitch shall be

measured from the root of leads.

11.5max.

4.88±0.2

HC-49/U

HC-49/T

13.46

11.0

ø0.43

–0.02

+ 0.05

Ø1.02

+ 0.05

–0.07
