MC74HC14AF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> MC74HC14AF

MC74HC14AF: DescriptionInverters 2-6V Hex CMOS; Categorylogic logic; File Size134KB，10 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn; Environmental Compliance

Download Datasheet Parametric Compare View All

MC74HC14AF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MC74HC14AF	-	-	View	Buy Now

MC74HC14AF Overview

Inverters 2-6V Hex CMOS

MC74HC14AF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ON Semiconductor
Parts packaging code	SOIC
package instruction	SOP, SOP14,.3
Contacts	14
Reach Compliance Code	unknown
series	HC/UH
JESD-30 code	R-PDSO-G14
JESD-609 code	e4
length	10.2 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	INVERTER
MaximumI(ol)	0.004 A
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
method of packing	RAIL
Peak Reflow Temperature (Celsius)	260
power supply	2/6 V
Prop。Delay @ Nom-Sup	22 ns
propagation delay (tpd)	110 ns
Certification status	Not Qualified
Schmitt trigger	YES
Maximum seat height	2.05 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
width	5.275 mm
Base Number Matches	1

Preview

Download Datasheet

View All

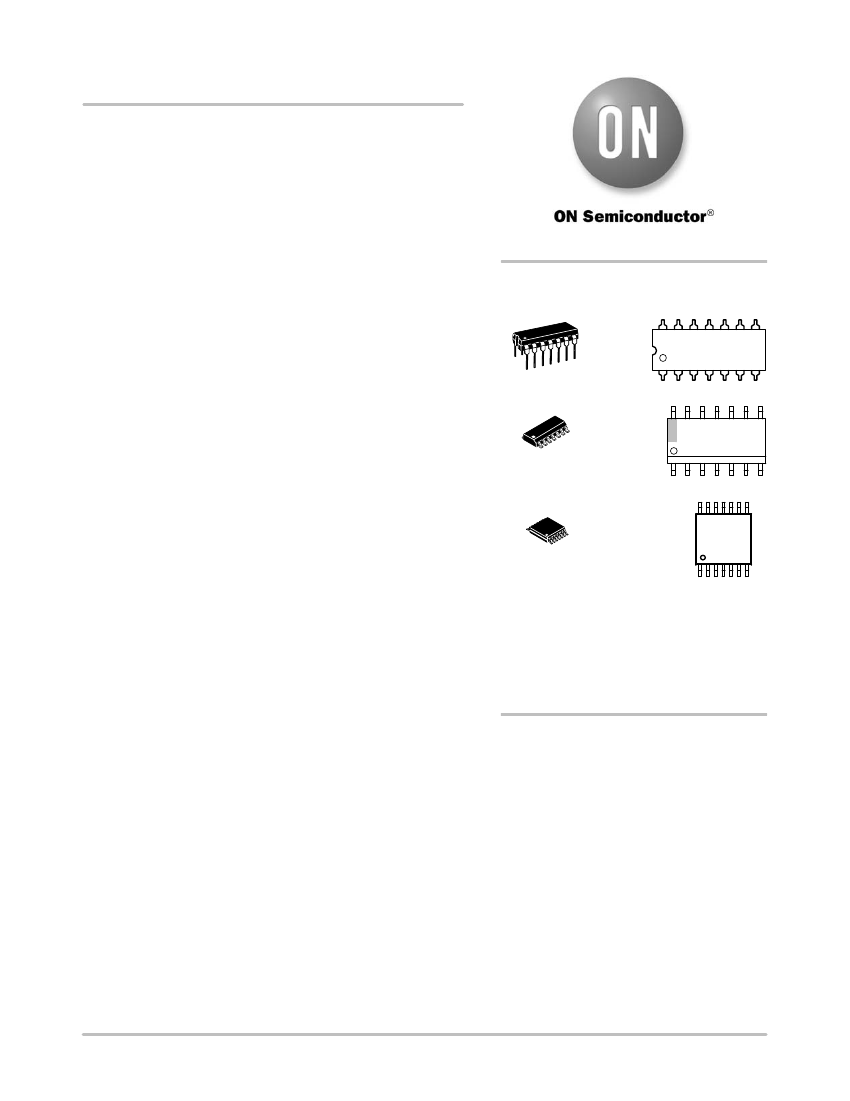

MC74HC14A

Hex Schmitt-Trigger

Inverter

High−Performance Silicon−Gate CMOS

The MC74HC14A is identical in pinout to the LS14, LS04 and the

HC04. The device inputs are compatible with Standard CMOS

outputs; with pullup resistors, they are compatible with LSTTL

outputs.

The HC14A is useful to “square up” slow input rise and fall times.

Due to hysteresis voltage of the Schmitt trigger, the HC14A finds

applications in noisy environments.

Features

http://onsemi.com

MARKING

DIAGRAMS

PDIP−14

N SUFFIX

CASE 646

SOIC−14

D SUFFIX

CASE 751A

TSSOP−14

DT SUFFIX

CASE 948G

14A

ALYWG

HC14AG

AWLYWW

MC74HC14AN

AWLYYWWG

•

Output Drive Capability: 10 LSTTL Loads

Outputs Directly Interface to CMOS, NMOS and TTL

Operating Voltage Range: 2.0 to 6.0 V

Low Input Current: 1.0

High Noise Immunity Characteristic of CMOS Devices

In Compliance With the JEDEC Standard No. 7.0 A Requirements

Chip Complexity: 60 FETs or 15 Equivalent Gates

NLV Prefix for Automotive and Other Applications Requiring

Unique Site and Control Change Requirements; AEC−Q100

Qualified and PPAP Capable

•

These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS

Compliant

L, WL

Y, YY

W, WW

G or

= Assembly Location

= Wafer Lot

= Year

= Work Week

= Pb−Free Package

(Note: Microdot may be in either location)

ORDERING INFORMATION

See detailed ordering and shipping information in the package

dimensions section on page 2 of this data sheet.

Semiconductor Components Industries, LLC, 2012

July, 2012

−

Rev. 13

Publication Order Number:

MC74HC14A/D

MC74HC14AF Related Products

	MC74HC14AF	MC74HC14ADR2	MC74HC14ADTR2	MC74HC14AD	MC74HC14AFEL	MC74HC14AN	MC74HC14ADT
Description	Inverters 2-6V Hex CMOS	Inverters 2-6V Hex CMOS	Inverters 2-6V Hex CMOS	Inverters 2-6V Hex CMOS	Inverters 2-6V Hex CMOS	Inverters 2-6V Hex CMOS	Inverters 2-6V Hex CMOS
Is it Rohs certified?	conform to	incompatible	conform to	incompatible	conform to	incompatible	conform to
Maker	ON Semiconductor	ON Semiconductor	ON Semiconductor	ON Semiconductor	ON Semiconductor	ON Semiconductor	ON Semiconductor
Parts packaging code	SOIC	SOIC	TSSOP	SOIC	SOIC	DIP	TSSOP
package instruction	SOP, SOP14,.3	SOIC-14	LEAD FREE, TSSOP-14	SOIC-14	SOP, SOP14,.3	DIP, DIP14,.3	LEAD FREE, TSSOP-14
Contacts	14	14	14	14	14	14	14
Reach Compliance Code	unknown	not_compliant	unknown	not_compliant	unknown	not_compliant	unknown
Base Number Matches	1	1	1	1	1	1	1
Is it lead-free?	Lead free	Contains lead	Lead free	Contains lead	Lead free	-	Lead free
series	HC/UH	HC/UH	HC/UH	HC/UH	-	HC/UH	HC/UH
JESD-30 code	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	-	R-PDIP-T14	R-PDSO-G14
JESD-609 code	e4	e0	e4	e0	-	e0	e4
length	10.2 mm	8.65 mm	5 mm	8.65 mm	-	18.86 mm	5 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	-	50 pF	50 pF
Logic integrated circuit type	INVERTER	INVERTER	INVERTER	INVERTER	-	INVERTER	INVERTER
MaximumI(ol)	0.004 A	0.004 A	0.004 A	0.004 A	-	0.004 A	0.004 A
Number of functions	6	6	6	6	-	6	6
Number of entries	1	1	1	1	-	1	1
Number of terminals	14	14	14	14	-	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	-	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	TSSOP	SOP	-	DIP	TSSOP
Encapsulate equivalent code	SOP14,.3	SOP14,.25	TSSOP14,.25	SOP14,.25	-	DIP14,.3	TSSOP14,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE	-	IN-LINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
method of packing	RAIL	TAPE AND REEL	TAPE AND REEL	RAIL	-	-	RAIL
Peak Reflow Temperature (Celsius)	260	240	260	235	-	235	260
power supply	2/6 V	2/6 V	2/6 V	2/6 V	-	2/6 V	2/6 V
Prop。Delay @ Nom-Sup	22 ns	22 ns	22 ns	22 ns	-	22 ns	22 ns
propagation delay (tpd)	110 ns	110 ns	110 ns	110 ns	-	110 ns	110 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified
Schmitt trigger	YES	YES	YES	YES	-	YES	YES
Maximum seat height	2.05 mm	1.75 mm	1.2 mm	1.75 mm	-	4.69 mm	1.2 mm
Maximum supply voltage (Vsup)	6 V	6 V	6 V	6 V	-	6 V	6 V
Minimum supply voltage (Vsup)	2 V	2 V	2 V	2 V	-	2 V	2 V
Nominal supply voltage (Vsup)	3 V	3 V	3 V	3 V	-	3 V	3 V
surface mount	YES	YES	YES	YES	-	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	-	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	-	MILITARY	MILITARY
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)	Tin/Lead (Sn/Pb)	Nickel/Palladium/Gold (Ni/Pd/Au)	Tin/Lead (Sn85Pb15)	-	Tin/Lead (Sn80Pb20)	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	-	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	1.27 mm	0.65 mm	1.27 mm	-	2.54 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	-	DUAL	DUAL
Maximum time at peak reflow temperature	40	30	40	30	-	30	40
width	5.275 mm	3.9 mm	4.4 mm	3.9 mm	-	7.62 mm	4.4 mm
Humidity sensitivity level	-	1	1	1	-	-	1
