ESI-4AGL1.765G01: Description4mm SQUARE THIN TYPE ISOLATOR; File Size20KB，1 Pages; ManufacturerHitachi Metals; Websitehttp://www.hitachi-metals.co.jp/e/

Download Datasheet View All

ESI-4AGL1.765G01 Overview

4mm SQUARE THIN TYPE ISOLATOR

Preview

Download Datasheet

View All

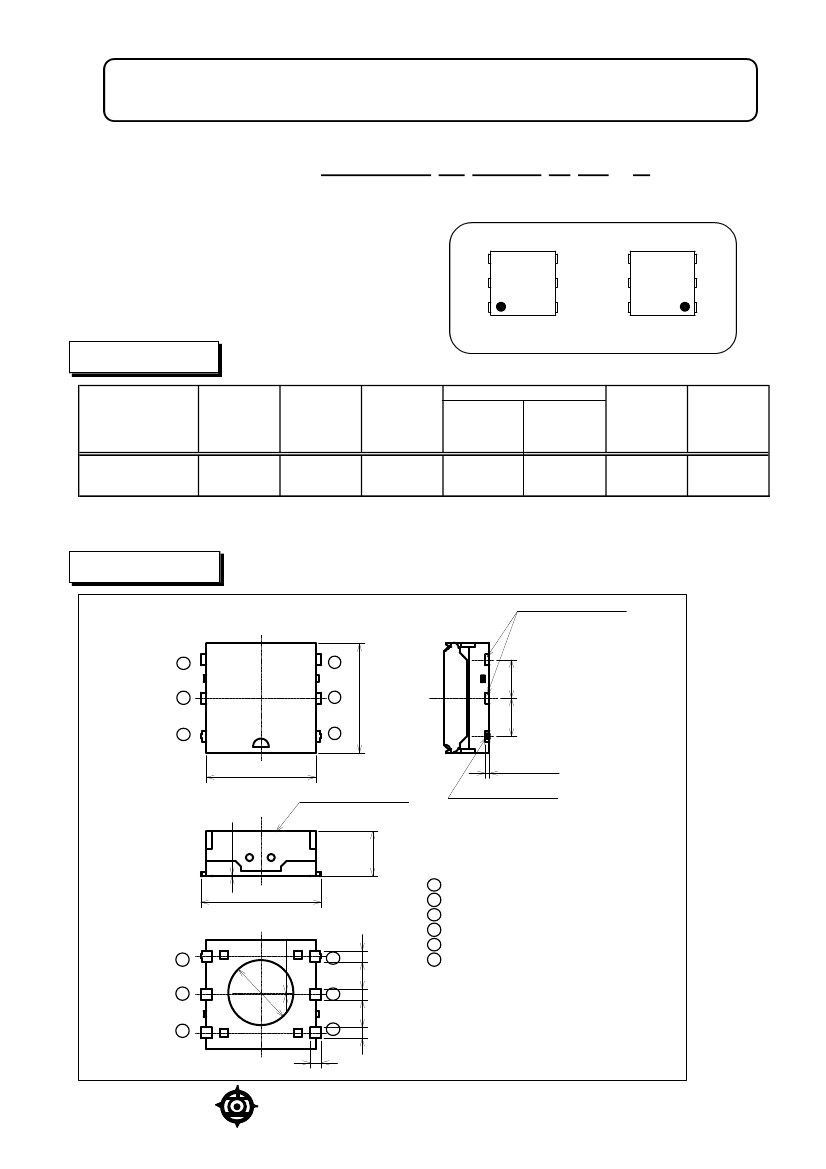

4mm SQUARE THIN TYPE ISOLATOR

MODEL

ESI-4AG [ ] 1.489 G 01 - T

(1)

(2)

(3)

(4) (5) (6)

(1) Series ESI-4AG ; 1.6 +/-0.1mm Height

(2) Rotating Direction (R or L)

(3) Center Frequency

(4) G ; GHz

(5) Control No.

I N

OUT

(6) T ; Taping

ro ta t ion

Blank ; Bulk

Specification

Frequency

(GHz)

Ins. Loss

Max.

(dB)

Isolation

Min.

(dB)

V.S.W.R.

Max.

Attenuation

at 2f

at 3f

Min.

(dB)

Handling

Power

Max.

(W)

Reflection

Power

Max.

(W)

1.477-1.501

0.50

1.5

5.0

1.0

Operating Temperature(deg.C) ; -35 to +85

Impedance ; 50 ohms Typ.

Shape & Size

GROUND

SI L VER PL ATI NG

4. 0

0. 15+/ - 0. 01

STEEL CASE

SI LVER PLATI NG

STRI PL I NE

SI LVER PLATI NG

0 . 0 2

+0. 05

- 0

1. 6+/ -0. 1

4. 4

0. 05+/ -0. 05

0. 4

I N or

OU T

GR OU N D

OU T o r

I N

UNLESS OTHERWISE SPECIFIED

ALL DIMENSIONS ARE IN mm

TOLERANCES ARE +/-0.2mm

1. 4+/ -0. 05 1. 4+/ -0. 05

2 5

0 0

+ 0.

TAE817

Hitachi Metals, Ltd. Tottori Works
