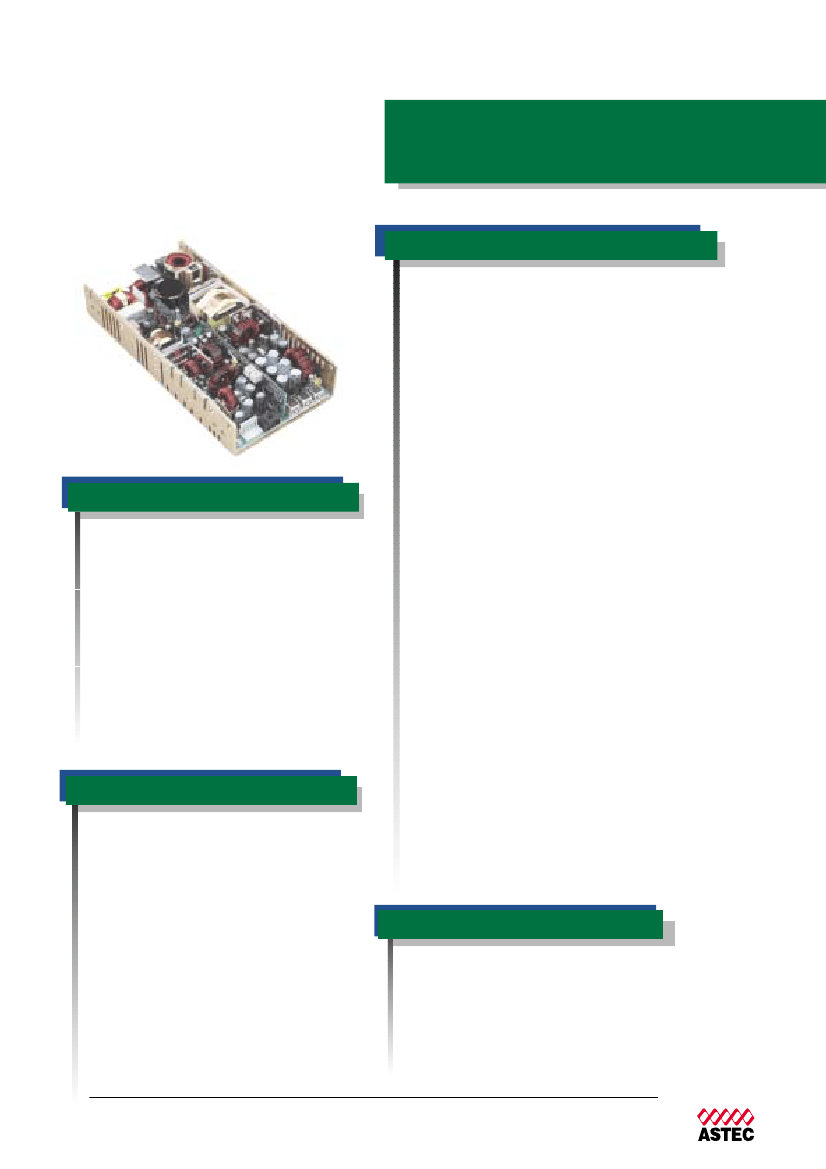

50-165 Watts
NTQ160 Series
Total Power:
50-165 Watts
Input Voltage:
85-264 VAC
# of Outputs:
Quad
Electrical Specs
Input
Input range
Frequency
Inrush current
Efficiency
EMI filter
85-264 VAC
47-63 Hz
38 A max., cold start @ 25°C
65% typical at full load @ 115 VAC
input
FCC Class B conducted and radiated,
CISPR 22 Class B conducted and
radiated, EN55022 Class B conducted
and radiated, VDE 0878 PT3 Class B
conducted and radiated.
0.99 typical
<1 mA @ 50/60 Hz, 264 VAC input
Power factor
Safety ground leakage
current
Special Features
• Active power factor correction
• EN61000-3-2 compliance
• Remote sense on outputs
one and two
• Power fail and remote inhibit
• 5V Standby output
• DC Power good
• Single wire current sharing on
outputs one and two
• Wide range adjustable on outputs 1 & 2
• Built-in Class B EMI filter
• Overvoltage protection
• Overload protection
• Thermal overload protection
• Outputs 3 & 4 are floating
Output
Maximum power
Adjustment range
Hold-up time
Overload protection
50W convection, 165 W with 30 CFM
forced air
1.8V - 3.5V; 3.0V - 5.5V on outputs
one and two
20 ms @ 165 W load
Short circuit protection on all outputs.
Case overload protected @ 110-145%
above peak rating. Latching type
recycle AC to reset.
Tracks outputs 1 & 2: 20% to 35%
above output setting
5V@ 2 A regulated ±5%
Overvoltage protection
Standby output
Logic Control
Power failure
Remote Inhibit
Remote sense
TTL logic signal goes high 100-500
msec after V1 output; it goes low at
least 4 msec before loss of regulation
Requires contact closure to inhibit
outputs
Compensates for 0.5 V lead drop
minimum, will operate without
remote sense connected. Reverse
connection protection.
TTL logic signal goes high after main
output is in regulation. It goes low
when there is a loss of regulation.
Environmental
Operating temperature: 0° to 50°C ambient; derate
each output at 2.5% per degree from
50° to 70°C
Electromagnetic susceptibility: Designed to meet
EN61000-4, -2, -3, -4, -5, -6, -8, -11 Level 3
Humidity: Operating; non-condensing
10% to 95%
Vibration: Three orthogonal axes, sweep at
1 oct/min, 5 min. dwell at four major resonances 0.7
G peak 5 Hz to 500 Hz, operational
Storage temperature: -40° to 85°C
Temperature coefficient: ± .04% per °C
MTBF demonstrated: >1 million hours at full load and
25°C ambient conditions
DC O
Safety
VDE
UL
CSA
NEMKO
BABT
CB
CE
0805/EN60950 (IEC950)
UL1950
CSA 22.2-234 Level 3
EN 60950/EMKO-TUE
(74-sec) 203
EN60950/EN41003
Certificate and report
Mark (LVD)
21310-3336-0021
(129066)
E186249
LR109492C
P00100493
650251, NC/00069
9661, 9662, 8788
rev 04.29.04
116
Americas: (760) 930-4600
Support: (888) 41-ASTEC or (407) 241-2752
Europe (UK) 44 (1384) 842-211
Asia (HK) 852-2437-9662
AMERICAS
5810 Van Allen Way
Carlsbad, CA 92008
Telephone: 760-930-4600
Facsimile: 760-930-0698
EUROPE
Astec House, Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX, UK
Telephone: 44 (1384) 842-211
Facsimile: 44 (1384) 843-355
ASIA
Units 2111-2116, Level 21
Tower1, Metroplaza
223, Hing Fong Road
Fwai Fong, New Territories
Hong Kong
Telephone: 852-2437-9662
Facsimile: 852-2402-4426
NTQ160 Series
Ordering Information
Model
Number
NTQ162
Output
Voltage
+3.3 V(1.8 - 3.5V)
+5 V (3 - 5.5V)
12 V*
12 V*
+5 V (3 - 5.5V)
+3.3 V (1.8 - 3.5V)
12 V*
12 V*
Minimum
Load
2A
0A
0A
0A
2A
0A
0A
0A
Maximum Load with
Convection Cooling
15 A
10 A
2A
2A
15 A
10 A
2A
2A
Maximum Load with
30 CFM Forced Air
30 A
20 A
4.5 A
4.5 A
30 A
20 A
4.5 A
4.5 A
Peak
Load1
38 A
22 A
5A
5A
32 A
22 A
5A
5A
Regulation2
±2%
±2%
±3%
±3%
±2%
±2%
±3%
±3%
Ripple
P/P (PARD)3
50 mV
50 mV
120 mV
120 mV
50 mV
50 mV
120 mV
120 mV
50 mV
50 mV
120 mV
120 mV
NTQ163
+3.3 V (3 - 5.5V)
2A
15 A
30 A
32 A
±2%
+2.5 V (1.8 - 3.5V) 0 A
10 A
20 A
22 A
±2%
5 V*
0A
2A
4A
5A
±3%
12 V*
0A
2A
4A
5A
±3%
* outputs are floating
1. Peak current lasting <30 seconds with a maximum 10% duty cycle.
2. At 25°C including initial tolerance, line voltage, load currents and output voltages adjusted to factory settings.
3. Peak-to-peak with 20 MHz bandwidth and 10 µF in parallel with a 0.1 µF capacitor at rated line voltage and load ranges.
4. Minimum loads are required. In parallel minimum loads are 2.5 A on the V1 output and 1 A on the V2 output for each power supply.
5. Total output current between V1 and V2 is 40A maximum.
SK5
6
7
8
9
10
NTQ165
Ordering Information
1
2
3
4
5

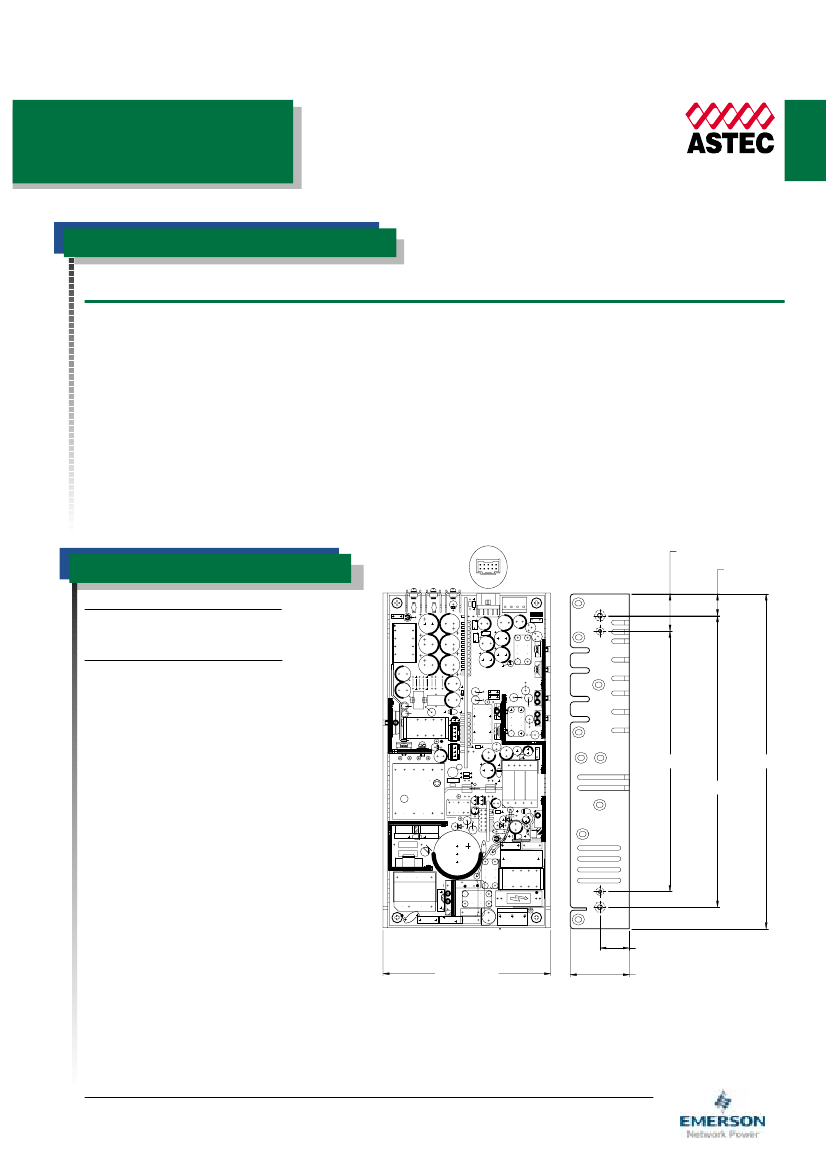

0.95 [24.0]
0.55 [14.0]
SK2
SK3
SK3
SK4
SK6
R41
4
10 1
SK4
Connector
C89
3
2
1
SK6
C86 C84
SK2
C91
D9
a
VR2
VR1
R46
SK5
THR3
C77
SK1
C33
C47
PIN 1
PIN 3
PIN 5
Ground
Neutral
Live
V1
Common
V2
V4 Common
V4
V3 Common
V3
V2 SWP
5V Standby
+V2 Sense
V1 SWP
COMMON
+V1 Sense
Sense COMMON
Remote Inhibit
DC Power Good
Power Fail
Molex: 09-50-8051 (USA)
Molex: 09-91-0500 (UK)
PINS: 08-58-0111
Molex BB-124-08
C85 R78
+
C29
THR4
+
+
C46 C43
C48
C27
+
C38
THR2
+
C42
b
L15
C41
R24
R25
R26
R87
HTSK-SEC1
Z4
C40
SEC_DB
C72
R30
L10
R27
R66
R89
R80
Q8
Q7
R35
L5
D13
HTSK-SEC2
+
+
C23
SO1
T1-W1
Q4
T3
T2
1
10
4
1
1
6
T1-W1A
D17 R63
Q3
Q2
R64
C20 D11
C11
C70
R31
HTSK-PRI2
B+
C9
B-
L4
HTSK-RECT
F4A
250V
L2
L1
VDR1
4
C3
C71
THR1
C2
C3
L3
5
3
1
SK2,3,4:
SK1
SK1
F1
(SK6) ±12V Molex:09-50-8041 (USA)
Molex: 09-91-0400 (UK)
PINS: 08-58-0111
(SK5)
Control Signals:
Molex: 90142-0010
PINS: 90119-2110
or
Amp: 87977-3
PINS: 87309-8
Astec Connector Kit #70-841-014, includes all of the above

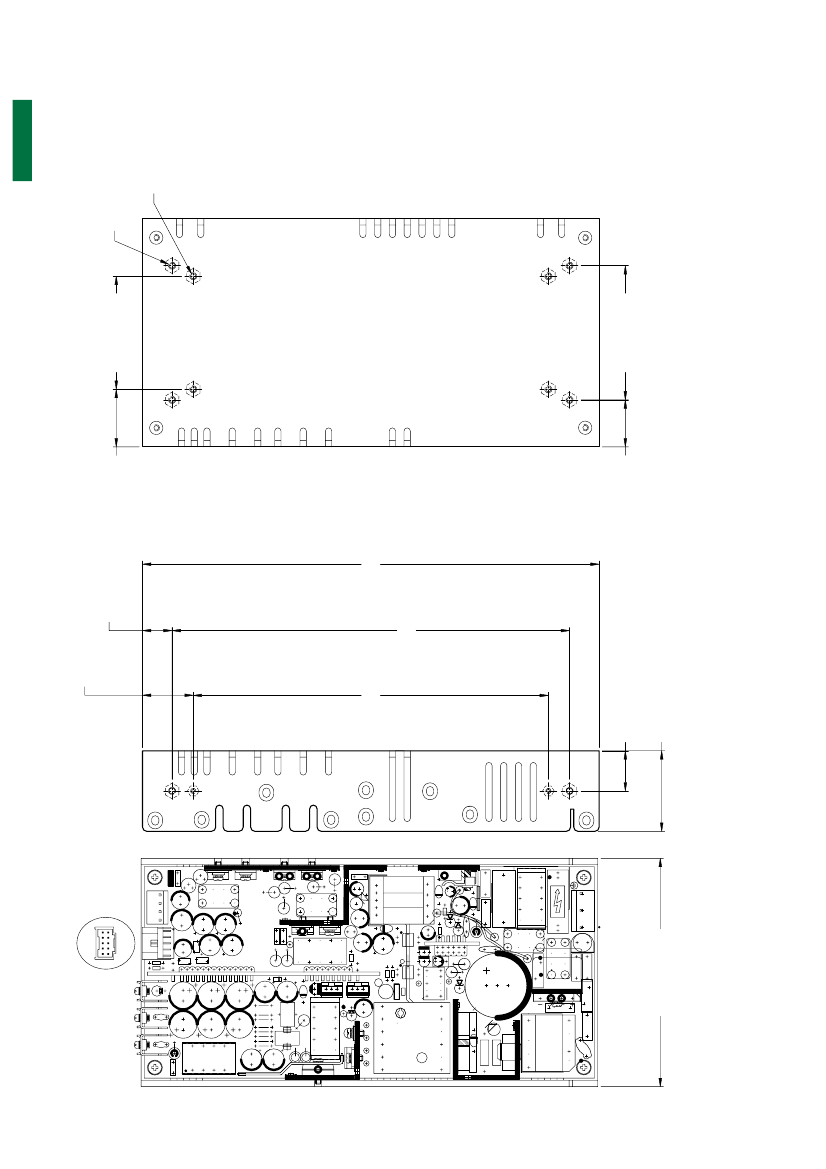

4.25 [108.0]
Notes:
1. Specifications subject to change without notice.
2. All dimensions in inches (mm), tolerance ±.02”.
3. Remote inhibit requires an external contact closure to
activate
4. Mounting maximum insertion depth is 0.12”.
5. Warranty: 1 year
6. Weight: 2.38 lb. /1.08 kg
www.astecpower.com
C10
Z2
+
C60
R47
R34
D1
D16
R5
R6
PIN 1
PIN 2
PIN 3
PIN 4
PIN 5
PIN 6
PIN 7
PIN 8
PIN 9
PIN 10
Mating Connectors
(SK1)
AC Input:
SK5
VR3
9
5
R48
C 1999 ASTEC
Q5 CUSTOM POWER (PHIL.)
C21
12
TP1
+
D12
C24
7
R65
042-66102310D
C26
R39
C18
C19
Z1
C94
R68
3
D1
L8
R42
P401
THR5
PIN 1
PIN 2
PIN 3
PIN 4
R73
L12
D23
SCR1
D22
D19
L6
HTSK-SEC3
R67
D24
R84
+
+
+
+
SK2
SK3
SK4
SK6
C68
R77
L11
R32
L7
+
IC8
+
C28
C67
IC7
L9
C36
R94
R58
R57
R56
R55
R95
C66
D27
C37
L13
R7
9
D21
D18
D20
+
+
C22
IC6
C31
6.61 [168.0]
7.40 [188.0]
8.50 [216.0]
IC9
HTSK-PRI1
C5
Q1
DB1
C4
+
C63
PRI_DB
IC2
B+
D10
+
B-
+
+
b
C1
a
0.75 [19.0]
