PIC16F877-04-P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> The embedded processor and controller> PIC16F877-04-P

PIC16F877-04-P: Description8-bit Microcontrollers - MCU 14KB 368 RAM 33 I/O; Categorysemiconductor The embedded processor and controller; File Size2MB，219 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com

Download Datasheet Parametric View All

PIC16F877-04-P Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PIC16F877-04-P	-	-	View	Buy Now

PIC16F877-04-P Overview

8-bit Microcontrollers - MCU 14KB 368 RAM 33 I/O

PIC16F877-04-P Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Microchip
Product Category	8-bit Microcontrollers - MCU
RoHS	Details
Mounting Style	Through Hole
Package / Case	PDIP-40
Core	PIC16
Data Bus Width	8 bit
Maximum Clock Frequency	20 MHz
Program Memory Size	8 kB
Data RAM Size	368 B
ADC Resolution	10 bit
Number of I/Os	33 I/O
Operating Supply Voltage	2 V to 5.5 V
Maximum Operating Temperature	+ 70 C
Interface Type	MSSP, PSP, USART
Packaging	Tube
Height	3.81 mm
Length	52.26 mm
Product	MCU
Program Memory Type	Flash
Width	13.84 mm
Data ROM Size	256 B
Data ROM Type	EEPROM
Minimum Operating Temperature	0 C
Number of ADC Channels	8
Number of Timers/Counters	3 Timer
Processor Series	PIC16
Factory Pack Quantity	10
Supply Voltage - Max	5.5 V
Supply Voltage - Min	4 V
Unit Weight	0.210004 oz

Preview

Download Datasheet

View All

PIC16F87X

28/40-Pin 8-Bit CMOS FLASH Microcontrollers

Devices Included in this Data Sheet:

• PIC16F873

• PIC16F874

• PIC16F876

• PIC16F877

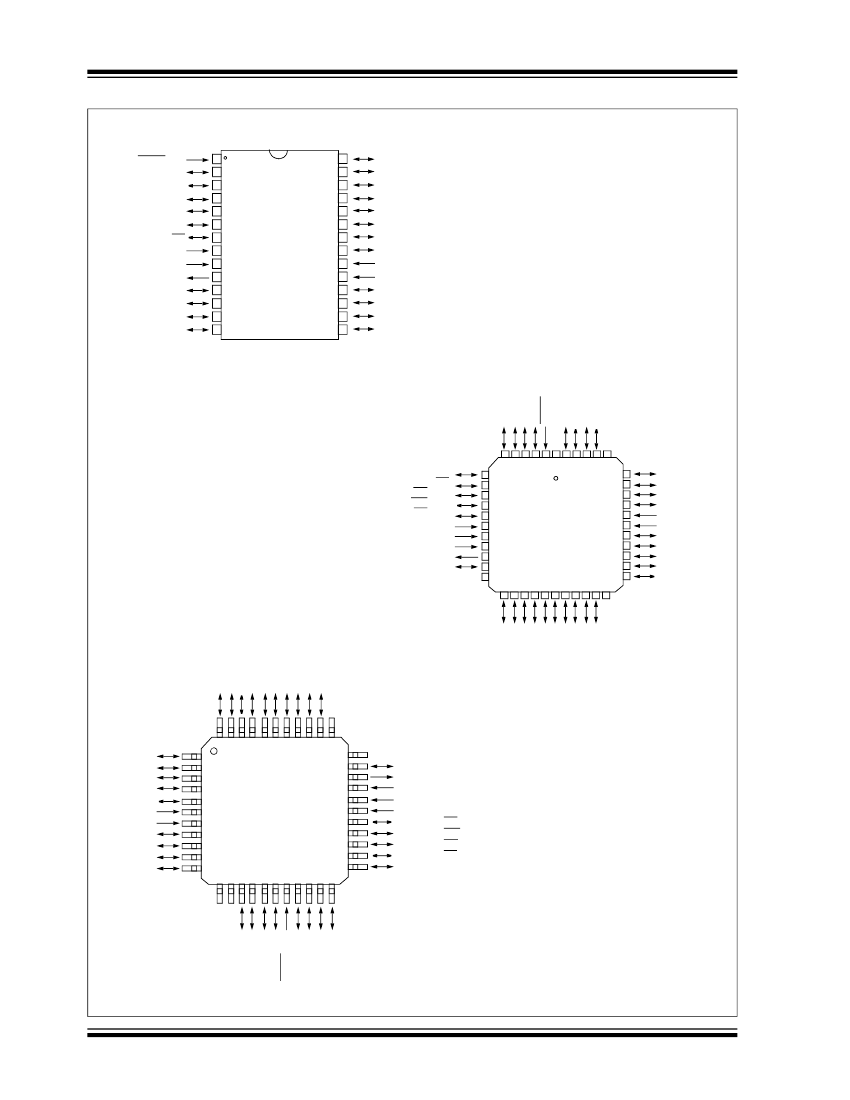

Pin Diagram

PDIP

MCLR/V

RA0/AN0

RA1/AN1

RA2/AN2/V

REF

RA3/AN3/V

REF

RA4/T0CKI

RA5/AN4/SS

RE0/RD/AN5

RE1/WR/AN6

RE2/CS/AN7

OSC1/CLKIN

OSC2/CLKOUT

RC0/T1OSO/T1CKI

RC1/T1OSI/CCP2

RC2/CCP1

RC3/SCK/SCL

RD0/PSP0

RD1/PSP1

RB7/PGD

RB6/PGC

RB5

RB4

RB3/PGM

RB2

RB1

RB0/INT

RD7/PSP7

RD6/PSP6

RD5/PSP5

RD4/PSP4

RC7/RX/DT

RC6/TX/CK

RC5/SDO

RC4/SDI/SDA

RD3/PSP3

RD2/PSP2

Microcontroller Core Features:

• High performance RISC CPU

• Only 35 single word instructions to learn

• All single cycle instructions except for program

branches which are two cycle

• Operating speed: DC - 20 MHz clock input

DC - 200 ns instruction cycle

• Up to 8K x 14 words of FLASH Program Memory,

Up to 368 x 8 bytes of Data Memory (RAM)

Up to 256 x 8 bytes of EEPROM Data Memory

• Pinout compatible to the PIC16C73B/74B/76/77

• Interrupt capability (up to 14 sources)

• Eight level deep hardware stack

• Direct, indirect and relative addressing modes

• Power-on Reset (POR)

• Power-up Timer (PWRT) and

Oscillator Start-up Timer (OST)

• Watchdog Timer (WDT) with its own on-chip RC

oscillator for reliable operation

• Programmable code protection

• Power saving SLEEP mode

• Selectable oscillator options

• Low power, high speed CMOS FLASH/EEPROM

technology

• Fully static design

• In-Circuit Serial Programming(ICSP)via two

pins

• Single 5V In-Circuit Serial Programming capability

• In-Circuit Debugging via two pins

• Processor read/write access to program memory

• Wide operating voltage range: 2.0V to 5.5V

• High Sink/Source Current: 25 mA

• Commercial, Industrial and Extended temperature

ranges

• Low-power consumption:

- < 0.6 mA typical @ 3V, 4 MHz

- 20

A

typical @ 3V, 32 kHz

- < 1

A

typical standby current

PIC16F877/874

Peripheral Features:

• Timer0: 8-bit timer/counter with 8-bit prescaler

• Timer1: 16-bit timer/counter with prescaler,

can be incremented during SLEEP via external

crystal/clock

• Timer2: 8-bit timer/counter with 8-bit period

• Two Capture, Compare, PWM modules

- Capture is 16-bit, max. resolution is 12.5 ns

- Compare is 16-bit, max. resolution is 200 ns

- PWM max. resolution is 10-bit

• 10-bit multi-channel Analog-to-Digital converter

• Synchronous Serial Port (SSP) with SPI (Master

mode) and I



(Master/Slave)

• Universal Synchronous Asynchronous Receiver

Transmitter (USART/SCI) with 9-bit address

detection

• Parallel Slave Port (PSP) 8-bits wide, with

external RD, WR and CS controls (40/44-pin only)

• Brown-out detection circuitry for

Brown-out Reset (BOR)



1998-2013 Microchip Technology Inc.

DS30292D-page 1
