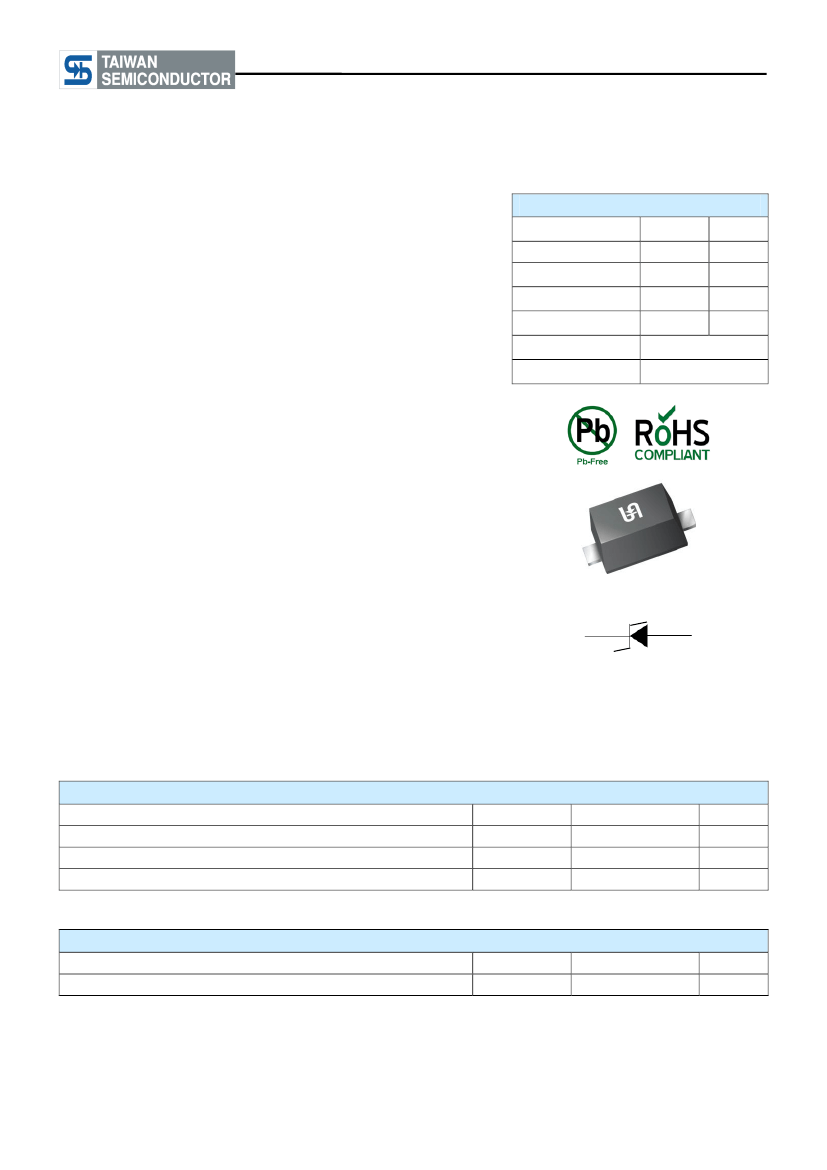

BZT52C2V7K - BZT52C75K
Taiwan Semiconductor
200mW 2% Zener Diodes
FEATURES
●
●
●
●
Wide zener voltage range selection: 2.7V to 75V
VZ Tolerance Selection of ± 2%
Surface device type mountin
Compliant to RoHS directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
● Halogen-free according to IEC 61249-2-21
KEY PARAMETERS
PARAMETER
V
Z
Test current I
ZT
P
tot
T
J
Max.
Package
Configuration
VALUE
2.2-75
5
200
150
UNIT
V
mA
mW
°C
APPLICATIONS
● Constant Voltage control
SOD-523F
Single dice
MECHANICAL DATA
● Case: SOD-523F
● Molding compound: UL flammability classification
rating 94V-0
● Moisture sensitivity level: level 1, per J-STD-020
● Packing code with suffix "G" means green compound
(halogen-free)
● Terminal: Matte tin plated leads, solderable per J-STD-002
● Meet JESD 201 class 1A whisker test
● Polarity: Indicated by cathode band
● Weight: 1.68 mg (approximately)
ABSOLUTE MAXIMUM RATINGS
(T
A
= 25°C unless otherwise noted)
PARAMETER
Total power dissipation
Junction temperature range
Storage temperature range
SYMBOL
P
tot
T
J
T
STG
PART NUMBER
200
-65 ~ 150
-65 ~ 150
UNIT
mW
°C
°C
THERMAL PERFORMANCE
PARAMETER
Junction-to-ambient thermal resistance
SYMBOL
R
ӨJA
LIMIT
625
UNIT
°C/W
1
Version:E1701
BZT52C2V7K - BZT52C75K
Taiwan Semiconductor
Notes:
1. The Zener Voltage (VZ) is tested under pulse condition of 20ms
2. The device numbers listed have a standard tolerance on the nomial zener voltage of ±2%
3. For detailed information on price, availability and delivery of nominal zener voltages between the voltages
shown and tighter voltage tolerances, contact your nearest Taiwan Semiconductor representative
4. The zener impedance is derived from the 60-cycle ac voltage, which results when an ac current having an
RMS value equal to 10% of the dc zener current(IZT or IZK) is superimposed to IZT or IZK
ORDERING INFORMATION
PART NO.
BZT52CxxxK
(Note1)
PACKING
CODE
RK
G
RS
SOD-523F
8K / 7" Reel
PACKING CODE
SUFFIX(*)
PACKAGE
PACKING
3K / 7" Reel
Notes:
1. "xxx" defines voltage from 2.7V (BZT52C2V7K) to 75V (BZT52C75K)
*: optional available
EXAMPLE
EXAMPLE P/N
PART NO.
PACKING CODE
RS
PACKING CODE
SUFFIX
G
DESCRIPTION
Green compound
BZT52C2V7K RSG BZT52C2V7K
3
Version:E1701
