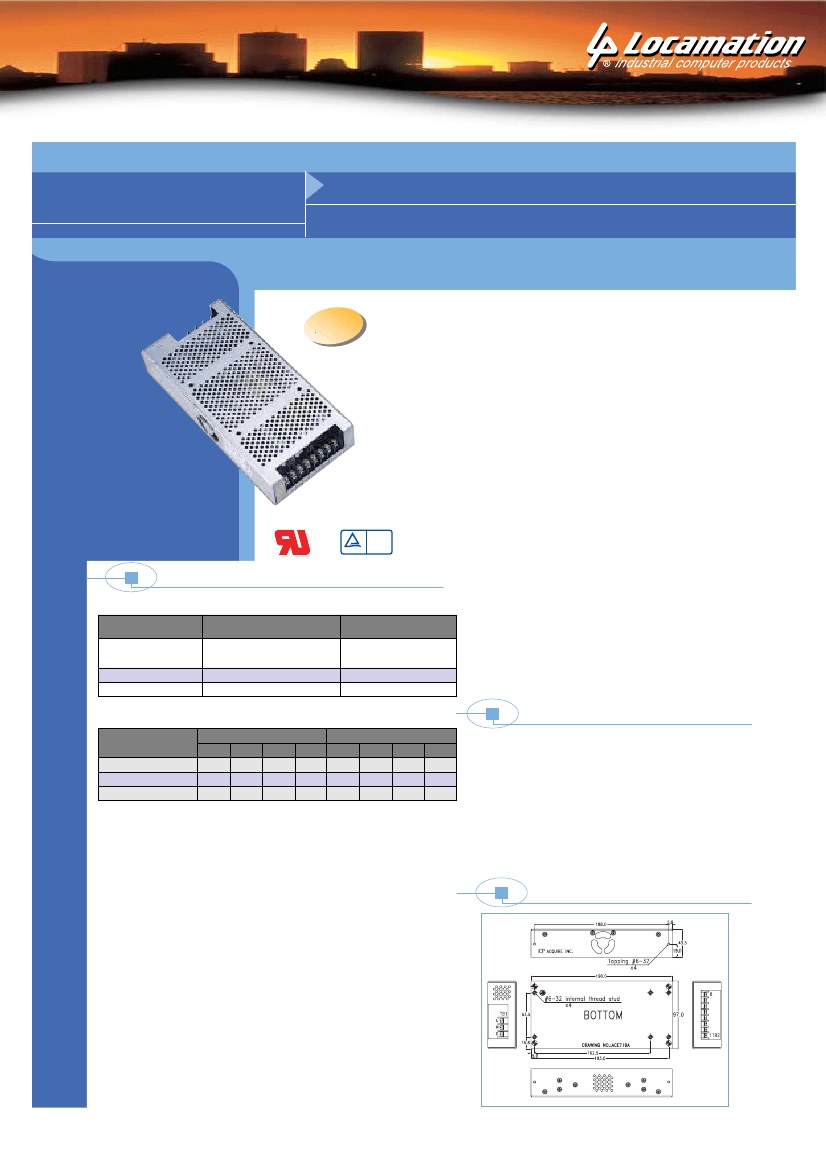

www.locamation.com
ACE-716
Rugged AC/DC Input 150W Power Supply
PFC
BAUART
GEPR FT
¤
T V Rheinland
SPECIFICATIONS
●
Input
Table :
Input Range
85~135V AC or
180~265V AC, 47~440Hz
-36 ~ -72V DC
+19 ~ +30V DC
Model
ACE-716A/716AP
ACE-716T
ACE-716C
●
Output
Input Current
4A@115V AC or
2A@230V AC
6A@-48V DC
12A@+24V DC
isolation :
— 4300V DC, input to output for one minute
— 2200V DC, input to ground for one minute
●
MTBF :
— ACE-716A : 188,800 hours
— ACE-716T : 212,050 hours
— ACE-716C : 187,490 hours
●
Safety :
Meets UL 478, 1012, 1950;
CSA 22.2 No. 234, VDE EN 60950
●
EMI :
— Meets FCC docket 20780 curve "A",
EN50081-2 : CISPR22 "A"
— Harmonic EN 61000-3-2 for ACE-716AP
●
EMS Standard (Designed to meet the
following limits) :
— EN 50082-2
— IEC 801-1 8KV (Air Discharge) criteria
B (ACE-716A/716AP)
— IEC 801-3, 10V/M criteria A
— IEC 801-4, 2KV criteria B
(ACE-716A/716AP)
— IEC 801-5, 2KV criteria B
(ACE-716A/716AP)
●
Built-in cooling fan
●
Operating Temperature :
-20
o
~ 70
o
C
(Derating curve will occur 50
o
~ 70
o
C)
●
Storage Temperature :
-20
o
~ 85
o
C
●
Dimensions :
97(W) x 40.5(H) x 198(D)mm;
(3.8" x 1.6" x 7.8")
●
Hi-pot
Table
(at 50
o
C) :
Rated Load
Max. Output
-12V
1A
1.5A
1.5A
+5V +12V -5V -12V +5V +12V -5V
18A 4A 0.5A 1A 25A 10A 1A
18A 4A 0.5A 1A 25A 10A 1A
18A 4A 0.5A 1A 25A 10A 1A
ORDERING INFORMATION
ACE-716AP
Rugged AC input 150W PFC power supply
ACE-716A
Rugged AC input 150W power supply
ACE-716T
Rugged 48V DC input 150W power supply
ACE-716C
Rugged 24V DC input 150W power supply
Model
ACE-716A/716AP
ACE-716T
ACE-716C
●
Inrush
Current (ACE-716A/716AP)
: Not exceed 15A@115V AC
or 30A@230V AC
●
Ripple and Noise :
Less than 100mV
●
Line Regulation :
The line regulation for each outputs are less
than –1%, while measuring at rated loading and –10% of input
voltage changing
●
Load Regulation :
— ACE-716A/716AP : Less than –3%@–5V and -12V, –6%@+12V
— ACE-716T/C : Less than –1%@–5V and -12V, –4%@+12V
●
Efficiency :
— ACE-716A/716AP : Higher than 75%
— ACE-716T/C : Higher than 70%
●
Hold-up Time (ACE-716A/716AP) :
20ms (typical)@115V AC
●
Altitude :
0 ~ 10,000ft
●
Protection :
Over voltage protection. The trip point is around
5.9V ~ 7.0V output
●
Thermal Protection :
Built in 110–5
o
C thermal switch in HS1
●
Vibration :
10 ~ 55Hz at 2G 3min. period, 30 min. along X, Y
and Z axis
●
Impact :
10G for 20ms once on each X, Y and Z axis
DIMENSIONS
Auke Vleerstraat 26 7521 PG Enschede The Netherlands Phone +31 (0)53 480 33 66 Fax +31 (0)53 435 32 91 Email sales@locamation.nl
8-13
