39-00-0184

Description
Headers & Wire Housings SOCKET 28-22AWG BULK
CategoryThe connector    Connector bracket
File Size78KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

39-00-0184 Online Shopping

Suppliers Part Number Price MOQ In stock
39-00-0184 - - View Buy Now

39-00-0184 Overview

Headers & Wire Housings SOCKET 28-22AWG BULK

39-00-0184 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time13 weeks
Other featuresMATING: GOLD OVER NICKEL (50), TERMINATION: TIN (100) OVER NICKEL (50)
Assembly nameCONTACT
Maximum number of cable entries0.071 inch
Minimum cable entry0.035 inch
Connector bracket typeCONNECTOR ACCESSORY
Contactor designLOOSE
Contact point genderFEMALE
Contact styleSQUARE SOCKET
DIN complianceNO
designed usagePOWER
Finished thickness30
IEC complianceNO
MIL complianceNO
MaterialPHOSPHOR BRONZE
Installation methodSTRAIGHT
Terminal length0.169 inch
Terminal typeCRIMP
used for5557, 30067, 44516 OR 42474 HOUSING
Maximum wire diameter22 AWG
Minimum wire diameter28 AWG

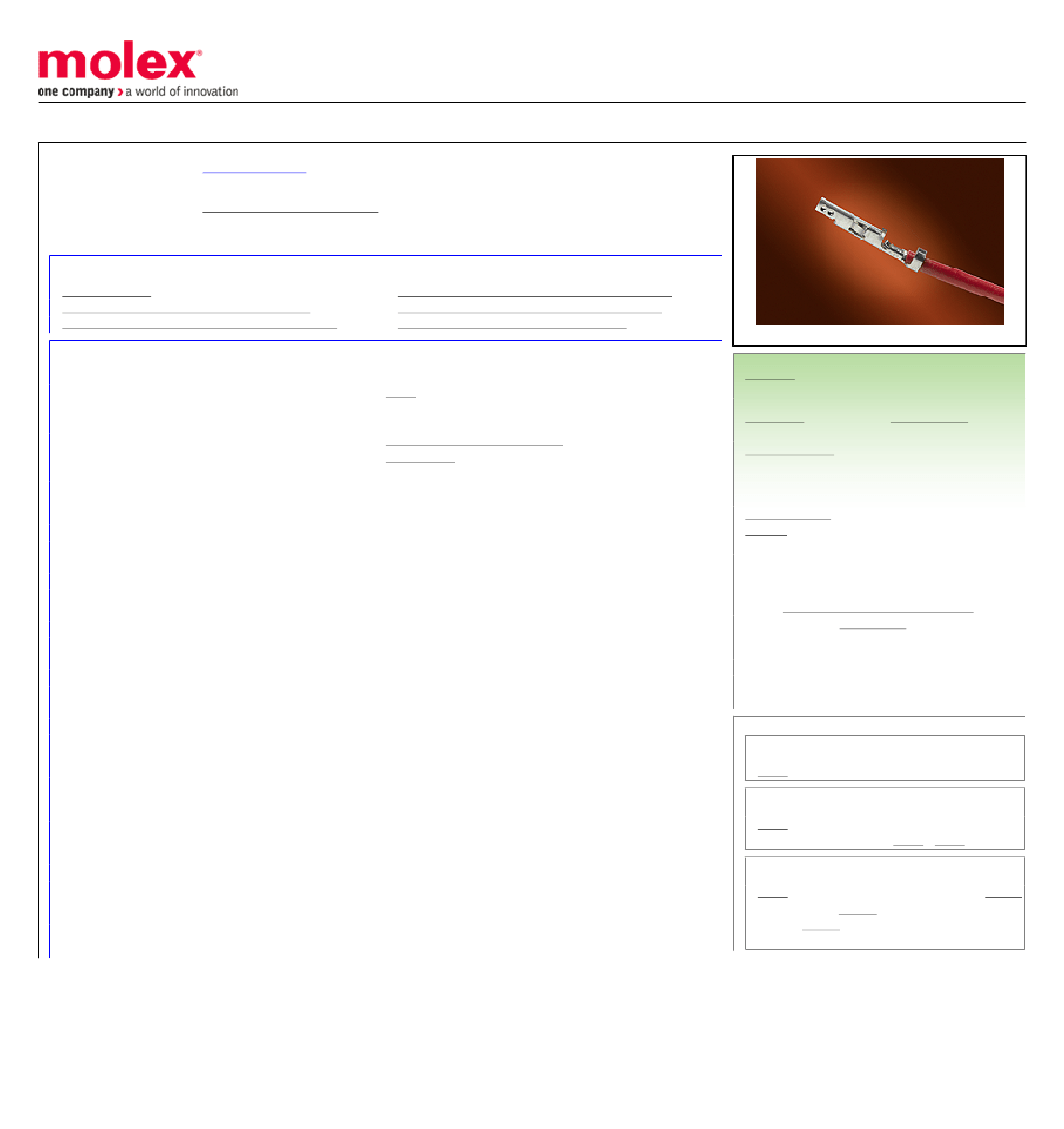

This document was generated on 02/19/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0039000184
Active
Mini-Fit Jr. Power Connectors
Mini-Fit Female Crimp Terminal, Selective Gold (Au) over Phosphor Bronze, 22-28
AWG, Loose-piece in bag
Documents:
Drawing (PDF)
Product Specification PS-5556-001 (PDF)
Product Specification PS-5556-002-001 (PDF)
General
Product Family
Series
Application
Crimp Quality Equipment
Overview
Packaging Alternative
Product Name
UPC
Physical
Durability (mating cycles max)
Gender
Material - Metal
Material - Plating Mating
Material - Plating Termination
Net Weight
Packaging Type
Plating min - Mating
Plating min - Termination
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Electrical
Current - Maximum per Contact
Voltage - Maximum
Solder Process Data
Lead-freeProcess Capability
Material Info
Engineering Number
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
Product Specification TS-5556-002-001 (PDF)
Packaging Specification PK-5556-003 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/01/2018 (15
January 2018)
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
Crimp Terminals
5556
Power
Yes
Mini-Fit Jr. Power Connectors
39-00-0183 (Reel)
Mini-Fit
800754395908
30
Female
Phosphor Bronze
Gold
Tin
0.130/g
Bag
0.762µm
0.762µm
Crimp or Compression
0.90-1.80mm
22, 24, 26, 28
N/A
9.0A
600V
N/A
5556-PBGS2PL
PK-5556-003
PS-5556-001, PS-5556-002-001, TS-5556-002-001
SD-5556-006-001
Search Parts in this Series
5556 Series
Mates With
5558 Mini-Fit Crimp Male Terminals. Mini-Fit
Jr. Header, Dual Row, 5566 , 5569
Use With
5557 Mini-Fit Jr. Receptacle Housing, 30067
Mini-Fit TPA, 42474 Mini-Fit BMI Panel
Mount, 44516 Mini-Fit BMI Slide and Lock
Panel Mount
This document was generated on 02/19/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
