39730-0006 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 39730-0006

Preview

39730-0006: DescriptionPluggable Terminal Blocks 7.62mmEURO HDR HORIZ OPEN ENDS 6C-GRN; CategoryThe connector; File Size372KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

39730-0006 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39730-0006	-	-	View	Buy Now

39730-0006 Overview

Pluggable Terminal Blocks 7.62mmEURO HDR HORIZ OPEN ENDS 6C-GRN

39730-0006 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Molex
Product Category	Pluggable Terminal Blocks
RoHS	Not Applicable
Product	Headers
Number of Positions	6 Position
Pitch	7.62 mm
Factory Pack Quantity	960

Preview

Download Datasheet

View All

13

12

11

10

9

8

7

6

5

4

3

2

1

J

I

H

G

F

E

D

C

B

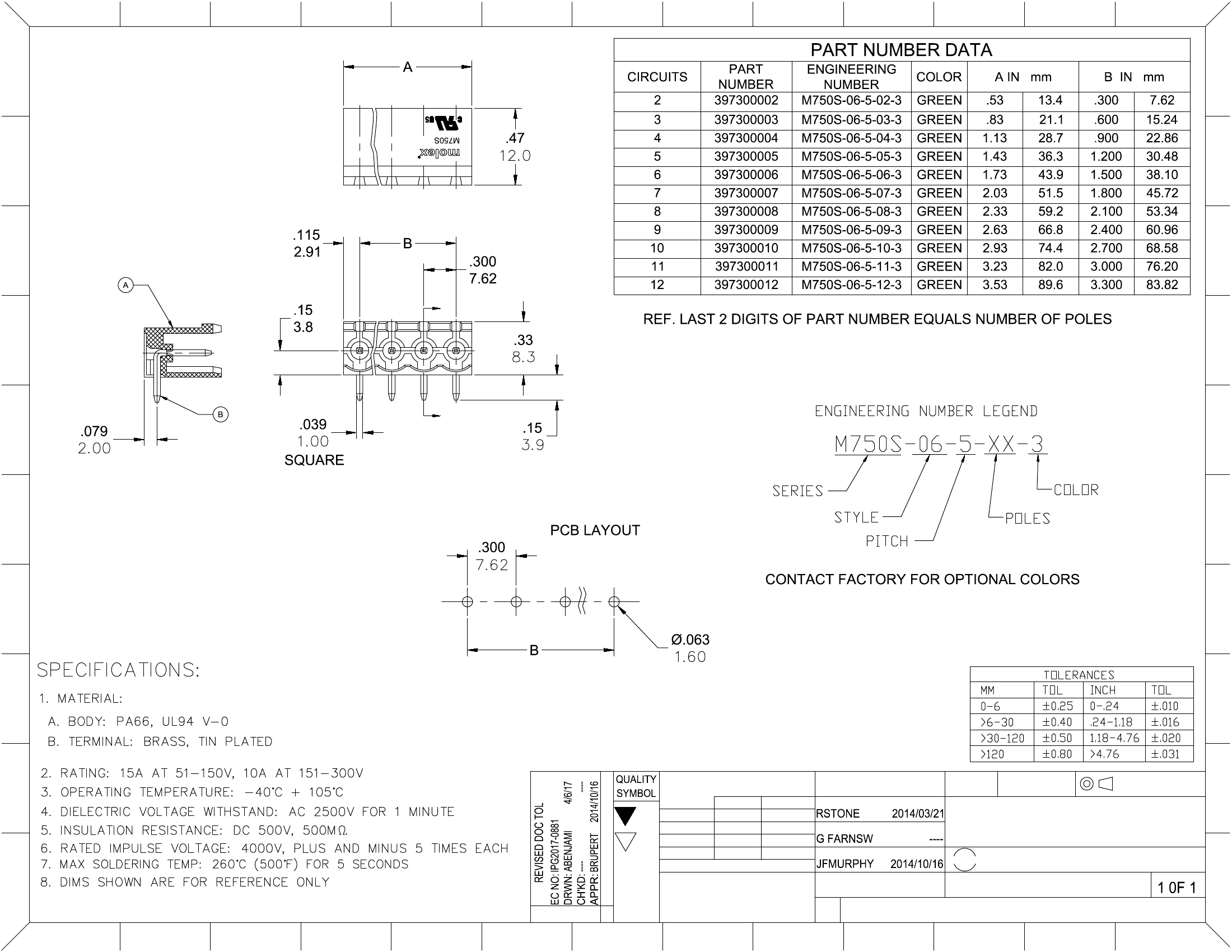

DESCRIPTION
