5307

Description
RF Connectors / Coaxial Connectors BNC 50OHM FOR RG1
CategoryThe connector    The connector
File Size28KB,2 Pages
ManufacturerPomona Electronics Inc.
Websitehttps://www.pomonaelectronics.com/
Environmental Compliance
Download Datasheet Parametric View All

5307 Online Shopping

Suppliers Part Number Price MOQ In stock
5307 - - View Buy Now

5307 Overview

RF Connectors / Coaxial Connectors BNC 50OHM FOR RG1

5307 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerPomona Electronics Inc.
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresAPPLICABLE CABLES: RG 174/U; RG 174A/U; RG 179B/U; RG 187/U; RG 187A/U; RG 188/U
subject depth1.05 inch
Body diameter0.55 inch
Body/casing typePLUG
Cable typeRG-174
Characteristic impedance50 Ω
Connector typeRF BNC CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGold (Au)
Contact point genderMALE
Contact materialBRASS
Contact styleCOAX
Coupling typeBAYONET
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialPOLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeCABLE
Number of ports1
OptionsGENERAL PURPOSE
Panel mountingNO
reliabilityCOMMERCIAL
Shell materialBRASS
Termination typeCLAMP SOLDER
Total number of contacts1
Pomona
®

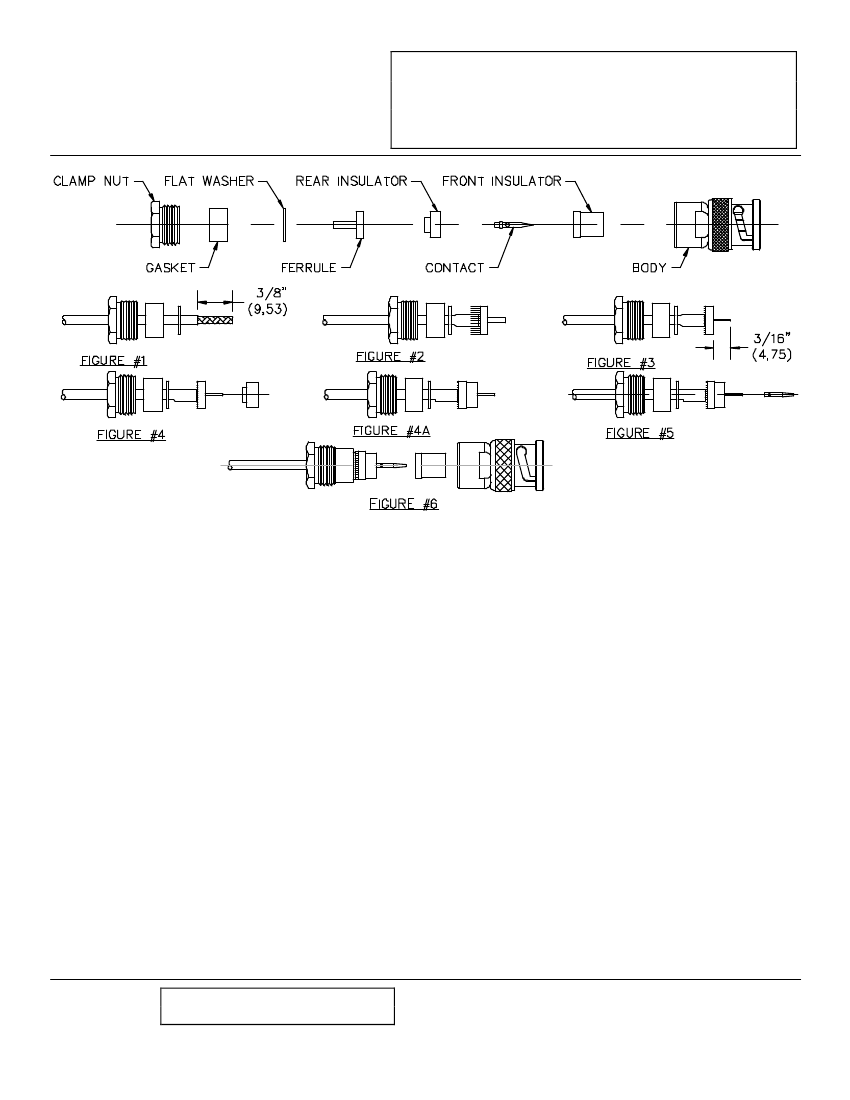

Model 5307 & Assembly Instructions
Connector
BNC (M), RG174 With Hardware
FEATURES:
Connector to accept Types RG: 174, 179A, 179B, 187, 187A, 188, 188A and 316/U
Connector shall meet interface requirements of MIL-STD-348
MATERIALS:
Body and Hardware – Brass
Center Contact – Gold Plated Brass
Dielectric – PTFE
Gasket – Silicone Rubber
Finish:
Body and Hardware – Tarnish Resistant
Center Contact – Gold Plated
RATINGS:
Operating Voltage: 500 VRMS Max.
Nominal Impedance: 50 Ohms
ORDERING INFORMATION:
Model 5307
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies.
Made in USA
6/9/99
SY/EH/LS
Sales: 800-490-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
PomonaACCESS
90119
(800) 444-6785 or (425) 446-6010
More drawings available at www.pomonaelectronics.com
Page 1 of 2
S:\Engineering \Release\DataSheets\FlukeDataSheet\d_AI_5307_1_01.doc
