MODULAR JACKS AND PLUGS:

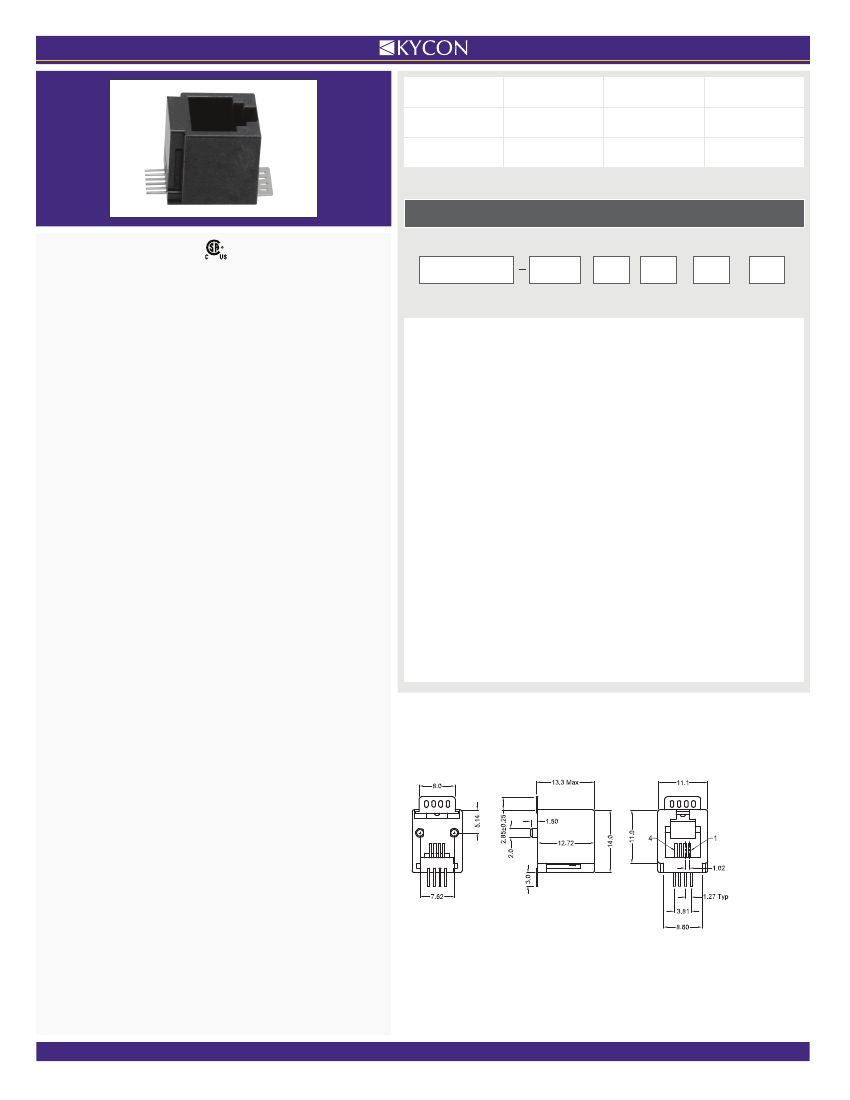

GTVX-SMT Series (4 & 6 Positions)
Vertical Surface Mount Modular Jack
GTVX
Series
SMT
Mounting
Option
N
Shield
Option
44
No. of
Position
Contacts
Plating
Option
Packaging
Option
Product Features:
Series
GTVX
- Vertical Modular Jack
Low Profile Design Suitable for PC Add-On
Board Applications
Available in 4 and 6 Positions Housings
CSA/NRTL Certified File No. LR78160
Mounting Option
SMT
- Surface Mount with Peg
SMT2
- Surface Mount without Peg
Performance Specifications
Materials and Finish
Housing Material
High Temperature Thermoplastic, UL 94V-0 Rated,
Black Color
Design meets UL 1863 Sec.8 Electrical Probe and
Sec. 20 Child Finger Test Requirements
Contact Material
Phosphor Bronze
Plating Options
Standard:
Nickel Underplating, Gold Flash Plating on
Contact Area, Tin Plated on Solder Area
50 Option:
Nickel Underplating, Contact Area Plated with
50u” Gold to Comply with ANSI/TIA-1096-A,
Tin Plated on Solder Area
Number of Positions/Contacts
44
- 4 Positions / 4 Contacts
64
- 6 Positions / 4 Contacts
66
- 6 Positions / 6 Contacts
Shield Option
N
- Non Shielded
Plating Option
Blank
- Gold Flash (Standard)
50
- 50µ” Gold
Packaging Option
Blank
- Bulk
TR
- Tape & Reel
Contact Kycon for Other Options
GTVX Series
Dimensions in mm
GTVX-SMT-N-44
Electrical Characteristics
Rated Current
1.5A
Rated Voltage
125V DC
Insulation Resistance
500 Megohms Min.
Contact Resistance
30 milliohms Max.
Dielectric Withstanding Voltage
1000V AC for 1 Minute
Mechanical Characteristics
Durability Rating
500 Mating Cycles Min.
Operating Temperature
-40°C to +85°C
