• Early mate late break (EMLB) grounding contacts for
hot swapping
• Select load capability
• Expanded pin counts
• Optional press-fit or solder tail termination
• Mates with C-form and R-form sockets
• Optional retention clip
• See the Regulatory Information Appendix (RIA) in
the “RoHS compliance” section of
www.3M.com/Interconnects for compliance
information (RIA E1 & C1 apply)
Date Modified: February 2, 2010
TS-2307-E
Sheet 1 of 3
Physical
Insulation:
Material: Glass Filled Polyester (PBT)
Flammability: UL 94V-0
Color: Gray
Contact:
Material: Copper Alloy
Plating:
Underplating: 50 μ” Min.Nickel
Wiping Area: See Ordering Information
Termination: See Ordering Information
Electrical
Current Rating: 3.0A at 30°C T-rise above Ambient
Contact Resistance:
≤20
mΩ
Insulation Resistance:
≥1,000
MΩ, 100V
DC
Withstanding Voltage: 1,000 V
AC
for 1 minute
Environmental
Temperature Rating:
-55°C to 125°C
Process Temperature Rating:
Maximum Insulator Temperature 191°C (solder wave process only)
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

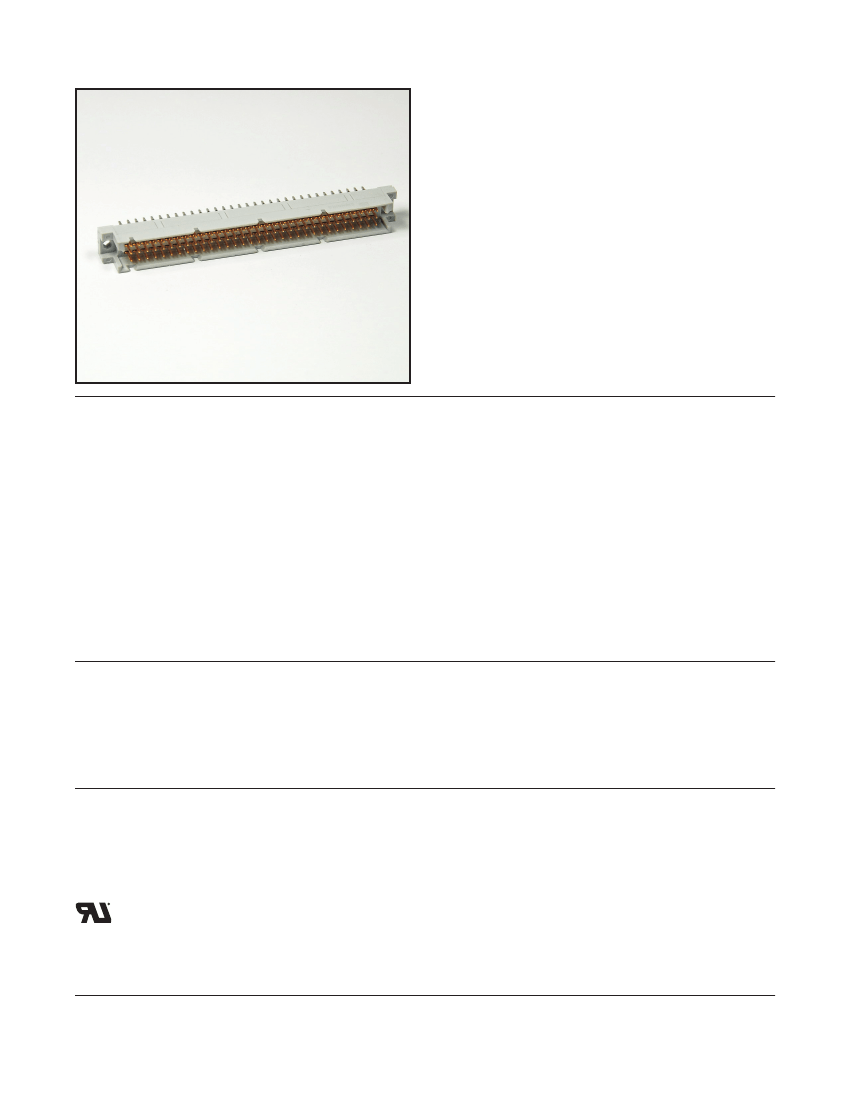

DIN R-Form Plug
Vertical, Solder Tail or Press-Fit Termination
Table 1
Contact
Quantity
16
32
48
32
16
32
64
96
64
32
40
80
120
80
40
DIN 41612 Series
Part Number
DIN-016RPA-XXX-XXXX
DIN-032RPB-XXX-XXXX
DIN-048RPC-XXX-XXXX
DIN-032RPD-XXX-XXXX
DIN-016RPE-XXX-XXXX
DIN-032RPA-XXX-XXXX
DIN-064RPB-XXX-XXXX
DIN-096RPC-XXX-XXXX
DIN-064RPD-XXX-XXXX
DIN-032RPE-XXX-XXXX
DIN-040RPA-XXX-XXXX
DIN-080RPB-XXX-XXXX
DIN-120RPC-XXX-XXXX
DIN-080RPD-XXX-XXXX
DIN-040RPE-XXX-XXXX
A
54.40 [2.142]
54.40 [2.142]
54.40 [2.142]
54.40 [2.142]
54.40 [2.142]
95.00 [3.740]
95.00 [3.740]
95.00 [3.740]
95.00 [3.740]
95.00 [3.740]
115.40 [4.543]
115.40 [4.543]
115.40 [4.543]
115.40 [4.543]
115.40 [4.543]
B
44.60 [1.756]
44.60 [1.756]
44.60 [1.756]
44.60 [1.756]
44.60 [1.756]
85.20 [3.354]
85.20 [3.354]
85.20 [3.354]
85.20 [3.354]
85.20 [3.354]
105.52 [4.154]
105.52 [4.154]
105.52 [4.154]
105.52 [4.154]
105.52 [4.154]
D
50.00 [1.969]
50.00 [1.969]
50.00 [1.969]
50.00 [1.969]
50.00 [1.969]
90.00 [3.543]
90.00 [3.543]
90.00 [3.543]
90.00 [3.543]
90.00 [3.543]
110.32 [4.343]
110.32 [4.343]
110.32 [4.343]
110.32 [4.343]
110.32 [4.343]
E
38.10 [1.500]
38.10 [1.500]
38.10 [1.500]
38.10 [1.500]
38.10 [1.500]
78.74 [3.100]
78.74 [3.100]
78.74 [3.100]
78.74 [3.100]
78.74 [3.100]
99.06 [3.900]
99.06 [3.900]
99.06 [3.900]
99.06 [3.900]
99.06 [3.900]
11.10
[.437]
11.60
[.457]
4.90 ± 0.10
[.193]
2.90
[.114]
C
PRESS-FIT TAILS
SOLDER TAILS
C
2.54
[.100]
5.08
[.200]
A
D
5.08
[.200]
B
POSITION A1
POSITION B1
POSITION C1
2-Ø2.80
[Ø.110]
0.30
[.012]
E
1.00
[.039]
mm
[inch]
Tolerance Unless Noted
X.
mm
± 0.50
.X
± 0.25
.XX
± 0.15
[ ] Dimension for Reference Only
3.80
(.150)
R1 with Retention Clip
TS-2307-E
Sheet 2 of 3
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
DIN R-Form Plug
Vertical, Solder Tail or Press-Fit Termination
DIN 41612 Series
2.54
[.100]
Ø0.94-1.09
PLATED THROUGH HOLE
[.037-.043]
2 1
2.54
[.100]
5.08
[.200]
0.30
[.012]
E
D
a
b
c
Ø2.8-2.9
[.110-.114]
RECOMMENDED PCB LAYOUT
Ordering Information
Contact Quantity
SEE TABLE 1
A = A Row only (see note)
B = Rows A & C Filled
C = Rows A, B & C Filled
D = Rows A & B Filled
E = B Row only (see note)
DIN - XXXRP X - XXX - XX
Plating Options:
SH = 1 - 3 μ” Gold on Contact
120 - 200 μ” Matte Tin on Terminal
FJ = 10 - 20 μ” Gold on Contact
120 - 200 μ” Matte Tin on Terminal
KR = 30 - 40 μ” Gold on Contact
120 - 200 μ” Matte Tin on Terminal
HM = 3 μ” Gold on Contact, 7 μ” Min. PdNi
120 - 200 μ” Matte Tin on Terminal
KV = 30 μ” Gold on contact area, 1 - 3 μ” Gold
on Board Termination
Termination Options:
SEE TABLE 2
TABLE 2
SOLDER TERMINATION OPTION NO.
DIM “C” mm ( in)
3.75 (.148)
3.75 (.148)
14.70 (.579)
5.00 (.197)
13.25 (.522)
Comment
with retention
no retention
no retention
R1
S1
W
PRESS-FIT TERMINATION OPTION NO.
DPS
DPW1
Note: A and E options are currently not covered in UL File No. E68080.
• This diagram serves only for Part Number descriptive definitions.
PLEASE CONTACT YOUR LOCAL SALES REPRESENTATIVE FOR CUSTOMER SPECIFIC PRODUCT CONFIGURATIONS.
TS-2307-E
Sheet 3 of 3
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES NO OTHER WARRANTIES
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the
warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except
where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
