MICRO SWITCH™ SX Series
Premium Subminiature Basic Switches
The industry-defining name in snap-action switches, Honeywell MICRO SWITCH™ premium subminiature switches are
designed for repeatability and enhanced product life. The MICRO SWITCH™ SX Series delivers consistent performance
within a range of conditions.
Offering enhanced repeatability, the MICRO SWITCH™ SX Series’ lower operating force provides for application versatility.
Like the MICRO SWITCH™ SM Series, the SX Series (which is a smaller package) offers gold contacts for low energy
switching and bifurcated gold contacts for maximum reliability. Bifurcated contacts provide parallel redundancy within the
SX switch.
What makes our switches better?
•
Industry-leading life cycle rating reduces the need to replace
switches over life in an OEM platform – reducing total
system cost
Very wide temperature range allows for years of reliable
performance in the harshest of conditions
MIL-PRF-8805 qualified listings
Operating forces as low as 0,147 N [15 g] and differential
travel as low as 0,025 mm [0.001 in] delivers consistent
precise switch characteristics

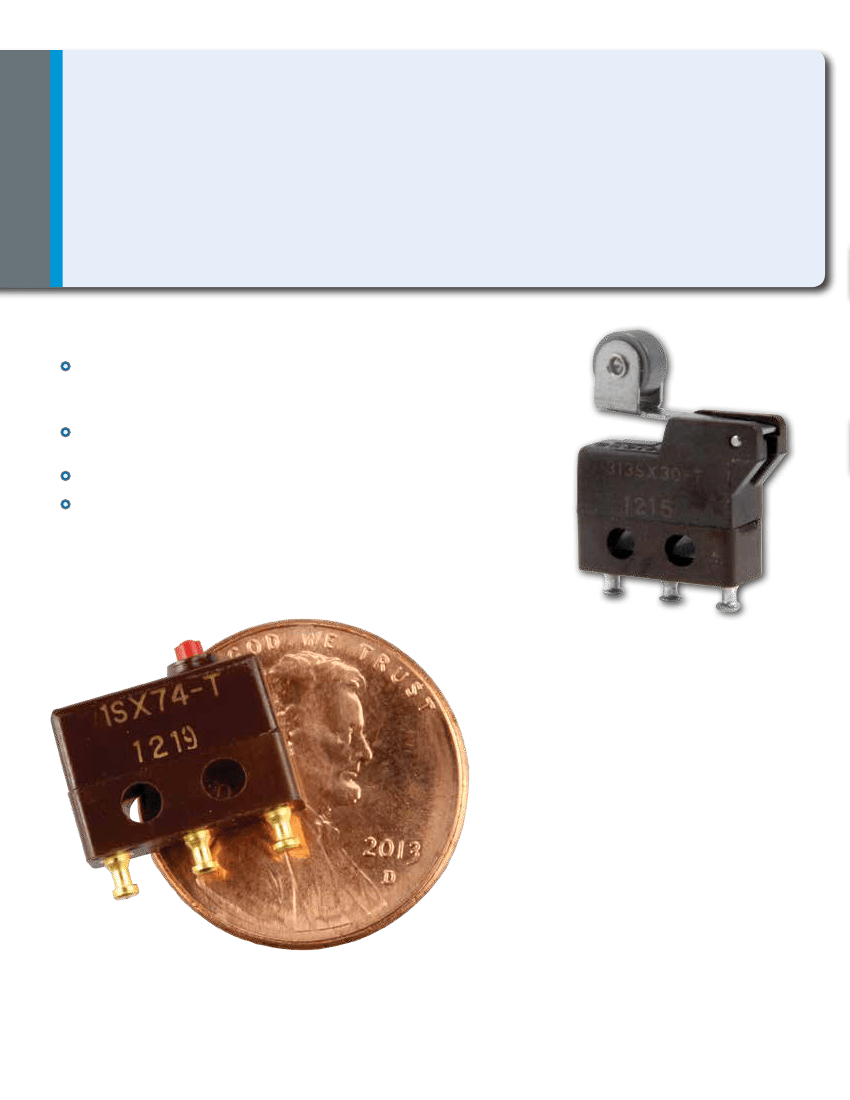

Small in size,
large in capability!
COST OPTIMIZATION • PERFORMANCE
RELIABILITY • GLOBAL ACCEPTANCE
2
sensing.honeywell.com
Features
and Benefits
LONG LIFE
With a mechanical life of up to
10,000,000 operations,
SX Series switches boast
an industry-leading life cycle.
APPLICATION FLEXIBILITY
MICRO SWITCH™ SX Series delivers a selection of actuation, electrical
termination, and operating characteristics along with
high-temperature
construction options.
Life of up to 10,000,000 cycles
INDUSTRY-LEADING TEMERATURE RANGE
With a wide temperature range of -54 °C to 204 °C [-65 °F to 400 °F],
SX Series switches allow for
years of reliable performance in harsh
conditions.
Precision switch characteristics
COMPACT AND ROBUST
Built from
military-grade components,
MICRO SWITCH™ SX switches
deliver MIL-PRF-8805 qualified listings in a lightweight, subminiature package.
SX switches are available with
FAA-PMA approvals
for commercial aircraft
applications.
EASILY CONTROLS LOW-VOLTAGE DC APPLICATIONS
Switches available with a choice of
silver, gold-plated, or bifurcated gold
contacts
to handle a variety of electrical load requirements.
GLOBAL APPROVALS
UL/CSA, cUL, ENEC, and CE approvals allows the customer to
utilize switches
in products sold across the globe
- in some of the most regulated regions.
sensing.honeywell.com
3
MICRO SWITCH™ Premium Subminiature Basic Switches
Table 1. Specifications
Characteristic
Differentiator
Ampere rating
Circuitry
Operating force
Termination
Actuator
Voltage
Circuitry
Agency approvals
Agency file information
Operating temperature
Contacts
Housing
Sealing
Mechanical life
Size
Parameter
low operating force to 0,147 N [15 g] max; sensitive differential travel as low as 0,025 mm [0.001 in] max.;
power load switching capability to 7 A
1 A to 7 A
SPDT, SPNO
0.71 oz to 6 oz
quick connect, solder, pcb
pin plunger, straight lever, roller lever, simulated roller lever, offset flag lever, crossed roller lever
125 Vac, 250 Vac, 28 Vdc
SPNO, SPDT, DPDT
UL, CE, CSA, ENEC, MIL-PRF-8805, FAA-PMA
UL: E12252; CSA: LR41372
-54 °C to 121 °C [-65 °F to 250 °F]; select catalog listings 204 °C [400 °F]
silver, gold-plated, bifurcated gold
phenolic or thermoplastic polyester
not weather sealed
up to 10,000,000 operations for 11SX Series
up to 1,000,000 operations for 1SX Series
10,2 mm H x 5,08 mm W x 12,7 mm L [0.4 in H x 0.20 in W x 0.5 in L]
ELECTRICAL DATA AND UL CODES
Table 2. UL Electrical Ratings
Code
A
Circuitry
SPDT
Electrical data and UL codes
5 A res., 3 A ind., (sea level),
4 A res., 2 A ind., (50,000 feet), 28 Vdc
5 A res. or ind. 115 Vac, 60 Hz. UL/CSA rating: 5 A, 250 Vac
7 A res., 4 A ind., (sea level),
7 A res., 2.5 A ind., (50,000 feet), 28 Vdc. UL/CSA rating: 7 A, 250 Vac
3.5 A res., 2 A ind., (sea level),
3.5 A res., 1.5 A ind., (50,000 feet), 28 Vdc. UL rating: 7 A, 250 Vac
1 A res., 0.5 amp ind., (sea level and 50,000 feet), 28 Vdc.
UL/CSA rating: 1 amp, 125 Vac
3 A res., 2 A ind., (sea level), 28 Vdc.
UL rating: 3 A, 250 Vac
7 A res., 4 A ind., 2.5 A lamp load, (sea level),
4 A res., 2.5 A ind., 2.5 A lamp load, (50,000 feet), 28 Vdc.
7 A res., 7 A ind., 2 A lamp load, 115 Vac, 60 Hz (sea level)
2 A res., lamp ind., (sea level) 28 Vdc
.010 A res. and ind., (sea level). 28 Vdc.
UL/CSA rating: 1 A, 125 Vac
7 A res., 4 A ind., (sea level), 28 Vdc
1 A res., 1/2 A ind., (sea level) 28 Vdc
B
C
D
E
SPDT
SPDT
SPDT
SPDT
F
G
H
I
L
SPDT
SPDT
SPDT
SPDT
SPDT
sensing.honeywell.com
5
