DLVR Series Low Voltage Digital Pressure Sensors
Features
• 1 to 60 inH2O Pressure Ranges
• 3.3V Supply Voltage Standard / 5V Option
• I2C Standard Interface / SPI Interface Option
• Better than 1.0% Accuracy Over Temperature Typical
R
www.allsensors.com
R
Applications
• Medical Breathing
• Environmental Controls
• HVAC
• Industrial Controls
• Portable/Hand-Held Equipment
www.allsensors.com
Signed Original On File
General Description
Signed Original On File
The supply voltage options ease integration of the sensors into a wide range of process control and measurement sys-
tems, allowing direct connection to serial communications channels. For battery-powered systems, the sensors can enter
very low-power modes between readings to minimize load on the power supply.
These calibrated and compensated sensors provide accurate, stable output over a wide temperature range. This series
is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like. A protective parylene
coating is optionally available for moisture/harsh media protection.
all sensors
f
408 225 2079
e
www.allsensors.com
p
408 225 4314
a
16035 Vineyard Blvd. Morgan Hill, CA 95037
The DLVR Series Mini Digital Output Sensor is based on All Sensors’ CoBeam
2 TM
Technology. This reduces package stress
susceptibility, resulting in improved overall long term stability. The technology also vastly improves position sensitivity
compared to single die devices.
R
www.allsensors.com
R
Standard Pressure Ranges
Device
DLVR-L01D
DLVR-L02D
DLVR-L05D
Operating Range
±1 inH2O
±2 inH2O
±5 inH2O
±10 inH2O
±30 inH2O
±60 inH2O
0 to 1 inH2O
0 to 2 inH2O
0 to 5 inH2O
0 to 10 inH2O
0 to 30 inH2O
0 to 60 inH2O
Proof Pressure
100 inH2O
100 inH2O
200 inH2O
200 inH2O
200 inH2O
200 inH2O
100 inH2O
100 inH2O
200 inH2O
200 inH2O
200 inH2O
200 inH2O
Burst Pressure
300 inH2O
300 inH2O
300 inH2O
300 inH2O
500 inH2O
800 inH2O
300 inH2O
300 inH2O
300 inH2O
300 inH2O
500 inH2O
800 inH2O
Nominal Span
±6,553 counts
±6,553 counts
±6,553 counts
±6,553 counts
±6,553 counts
±6,553 counts
13,107 counts
13,107 counts
13,107 counts
13,107 counts
13,107 counts
13,107 counts
Equivalent Circuit
Vs
SCL
I2C
SDA
INT
Gnd
Vs
SPI
Option
SCLK
MISO
SS
Gnd
www.allsensors.com
Signed Original On File
DLVR-L10D
DLVR-L30D
DLVR-L60D
DLVR-L01G
DLVR-L02G
DLVR-L05G
DLVR-L10G
DLVR-L30G
DLVR-L60G
Signed Original On File
R
www.allsensors.com
R
Pressure Sensor Maximum Ratings
Supply Voltage (Vs)
Common Mode Pressure
Lead Temperature (soldering 2-4 sec.)
6 Vdc
10 psig
270 °C
Environmental Specifications
Temperature Ranges
Compensated:
Operating
Storage
Humidity Limits (non condensing)
Commercial
Industrial
0°C
to 70°C
-20°C
to 85°C
Original On File
-25°C to 85 °C
-40°C to 125 °C
0 to 95% RH
www.allsensors.com
Signed Original O
All Sensors
DS-0300 Rev A
Page 1
R
ors.com
R
Signed Original On File
w.allsensors.com
Signed Original On F
R
www.allsensors.com
Performance Characteristics for DLVR Series - Commercial and Industrial Temperature Range
R
A
ll pArAmeters Are meAsured At
3.3V ±5%
or
5.0V ±5% (
depending on selected VoltAge option
)
excitAtion And room temperAture unless otherwise specified
.
p
ressure meAsurements Are with positiVe pressure Applied to
port B.
Parameter
Output Span
LxxD
LxxG
Min
-
-
Typ
±6,553
13,107
8,192
1,638
±1.5
±1.0
±0.5
±0.2
±0.5
±0.2
±0.25
±0.15
±0.10
±0.05
±0.25
±0.15
±0.25
±0.10
0.40
1.10
0.40
1.30
6.5
14
13
11
2
3.5
3.6
0.72
0.5
5.0
5.2
1.1
0.5
Max
-
-
Units
Dec count
Dec count
Notes
1
Offset Output @ Zero Diff. Pressure
LxxD
LxxG
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
12
-
-
-
-
-
-
-
-
-
-
-
-
±2.0
±1.5
-
-
-
-
-
-
-
-
-
-
-
-
0.50
1.40
1.0
3.1
9.5
-
-
-
-
4.3
4.5
0.90
5.0
6.0
6.2
1.3
5.0
Dec count
Dec count
Signed Original On File
Total Error Band
L01x, L02x
L05x, L10x, L30x, L60x
%FSS
%FSS
2
www.allsensors.com
Signed Original On File
Span Temperature Shift
L01x, L02x
L05x, L10x, L30x, L60x
%FSS
%FSS
3
Offset Temperature Shift
L01x, L02x
L05x, L10x, L30x, L60x
%FSS
%FSS
3
R
R
www.allsensors.com
Offset Warm-up Shift
L01x, L02x
L05x, L10x, L30x, L60x
%FSS
%FSS
4
Offset Position Sensitivity (±1g)
L01x, L02x
L05x, L10x, L30x, L60x
%FSS
%FSS
-
Offset Long Term Drift (One Year)
L01x, L02x
L05x, L10x, L30x, L60x
%FSS
%FSS
-
Linearity, Hysteresis Error
6
%FSS
%FSS
Signed Original On File
LxxD
LxxG
www.allsensors.com
Response Delay
Sleep - Wake Pressure
Sleep - Wake All
ms
ms
5
Signed Original On File
Update Rate
Fast
Noise Reduced
Low Power
ms
ms
ms
5
Digital Resolution
Output Resolution
No Missing Codes
bit
bit
-
R
www.allsensors.com
R
Temperature Output
Resolution
Overall Accuracy
bit
°C
7
Current Requirement (3.3V Option)
Fast
Noise Reduced
Low Power
Sleep (Idle)
mA
mA
mA
uA
mA
mA
mA
uA
5
Current Requirement (5.0 Option)
Original On File
Fast
Noise Reduced
Low Power
Sleep (Idle)
5
www.allsensors.com
Signed Original O
See following page for performance characteristics table notes
Page 2
R
ors.com
R
Signed Original On File
w.allsensors.com
Signed Original On F
R
Specification Notes
note
www.allsensors.com
R
1: the spAn is the AlgeBrAic difference Between full scAle decimAl counts And the offset decimAl counts.
note
2: totAl error BAnd comprises of offset And spAn temperAture And cAliBrAtion errors, lineAritY And pressure hYsterisis errors, offset wArm-up shift,
offset position sensitiVitY And long term offset drift errors.
www.allsensors.com
Signed Original On File
note
note
note
note
note
3: shift is relAtiVe to 25c.
4: shift is within the first hour of excitAtion Applied to the deVice.
6: meAsured At one-hAlf full scAle rAted pressure using BesY stAright line curVe fit.

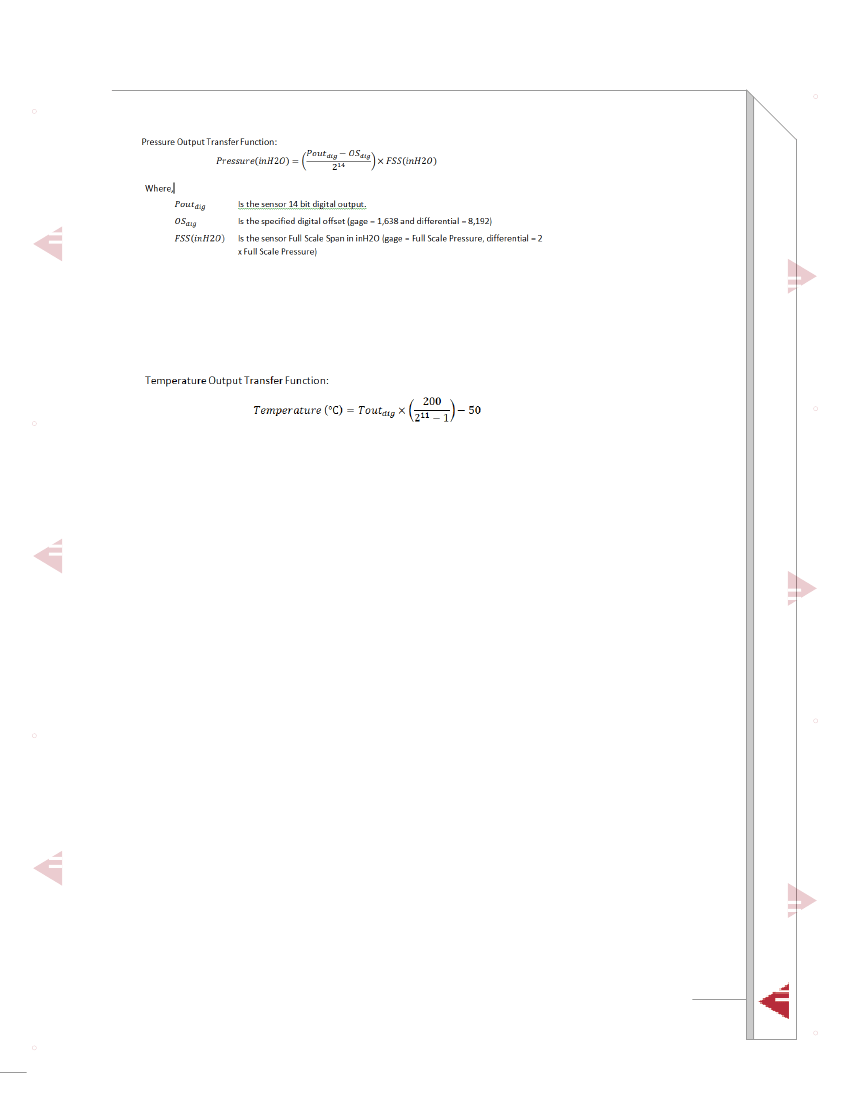

7: temperAture output conVersion function:
5: pArAmeter is chArActeriZed And not 100% tested.
Signed Original On File
all sensors
f
408 225 2079
e
www.allsensors.com
p
408 225 4314
a
16035 Vineyard Blvd. Morgan Hill, CA 95037
R
www.allsensors.com
R
www.allsensors.com
Signed Original On File
Signed Original On File
R
www.allsensors.com
R
www.allsensors.com
Original On File
Signed Original O
All Sensors
DS-0300 Rev A
Page 3
R
ors.com
R
Signed Original On File
w.allsensors.com
Signed Original On F
R
www.allsensors.com
I2C / SPI Electrical Parameters for DLVR Series
R
Parameter
Input High Level
Input Low Level
Output Low Level
I2C Pull-up Resistor
I2C Load Capacitance on SDA, @ 400 kHz
I2C Input Capacitance (each pin)
Symbol
-
-
-
-
C
SDA
C
I2C_IN
Min
80.0
0
-
1000
-
-
Typ
-
-
-
-
-
-
Max
100
20.0
10.0
-
200
10.0
Units
% of Vs
% of Vs
% of Vs
Ω
pF
pF
www.allsensors.com
Signed Original On File
Device Options
The following is a list of factory programmable options. Consult the factory to learn more about the options.
Signed Original On File
Interface
I2C and SPI interfaces are available. NOTE: SPI interface is only available with eight (8) lead packages.
Supply Voltage
R
R
www.allsensors.com
Devices are characterized at either 3.3V or 5.0V depending on the options selected. It is suggested to select
the option that most closely matches the application supply voltage for best possible performance.
Speed/Power
There are four options of Speed/Power. These are Fast(F), Noise Reduced(N), Low Power(L) and Sleep mode(S).
Fast Mode(F)
Is the fastest operating mode where the device operates with continuous sampling at the
fastest internal speed.
Signed Original On File
Noise Reduced(N):
Also operates with continuous samples however the ADC is set for over sampling
for noise reduction. The conversion times are resultantly longer than the Fast(F) mode however, there is
approximately 1/2 bit reduction in noise.
Low Power(L): Is similar to the Fast(F) mode with exception that the device uses an internal timer to
delay between pressure conversions. The internal timer time-out triggers the next conversion cycle. The
update rate is commensurately lower for this mode as a result.
Sleep(S):
Is similar to the Low Power(L) mode however the trigger to initiate a sample comes from the
user instead of an internal timer. This is ideal for very low update rate applications that requirelow
power usage. It is also ideal for synchronizing the data conversions with the host microprocessor.
www.allsensors.com
R
Signed Original On File
www.allsensors.com
R
Coating
Parylene Coating: Parylene coating provides a moisture barrier and protection form some harsh media. Con-
sult factory for applicability of Parylene for the target application and sensor type.
www.allsensors.com
Original On File
Signed Original O
Page 4
R
ors.com
R
Signed Original On File
w.allsensors.com
Signed Original On F
R
www.allsensors.com
Operation Overview
The DLVR is a digital sensor with a signal path that includes a sensing element, a 14 bit analog to digital converter, a DSP and
an IO block that supports either an I2C or SPI interface (see Figure 1 below). The sensor also includes an internal temperature
reference and associated control logic to support the configured operating mode. The sensing element is powered down
while not being sampled to conserve power. Since there is a single ADC, there is also a multiplexer at the front end of the
ADC that selects the signal source for the ADC.
Figure 1 - DLVR Essential Model
R
Vs
Zero
2
1
0
Signed Original On File
T
o
Sensor
A
D
Sample
rawP/
rawT
Over
Sample
Enable
Pressure
DSP
Temperature
I/O
I2C/SPI
www.allsensors.com
Signed Original On File
P/T/Z
Select
Control
Logic
Wake
all sensors
f
408 225 2079
e
www.allsensors.com
p
408 225 4314
a
16035 Vineyard Blvd. Morgan Hill, CA 95037
R
R
www.allsensors.com
Gnd
The ADC performs conversions on the raw sensor signal (P), the temperature reference (T) and a zero reference (Z) during an
ADC zero cycle. It also has an oversampling mode for a noise reduced output. A conversion cycle that is mesuring pressure
is called a Normal cycle. A cycle where either a temperature measurement or zeroing is being performed is called a Special
cycle.
The DSP receives the converted pressure and temperature information and applies a multi-order transfer function to
compensate the pressure output. This transfer function includes compensation for span, offset, temperature effects of span,
temperature effects of offset and second order temperautre effects of both span and offset. There is also linearity compensa-
tion for gage devices and front to back linearity compensation for differential devices.
There are two effective operating modes of the sensor 1) Free Running and 2) Triggered. The control logic performs the
synchronization of the internal functions according the factory programmed Power/Speed option (see Table 1). The Control
Logic also determines the Delay between ADC samples, the regularity of the Special cycles and whether or not the ADC per-
forms the Over Sampling. Refer to Figure 2 for the communication model associated with the operating modes listed below.
Free Running Mode:
In the free running mode, conversion cycles are initiated internally at regular intervals. There are
three options available that operate in the Free Running mode (F, N and L). Two of these (F and N) run continuously while
the third option (L) has an approximate 6 ms delay between conversion cycles. All three options have Special cycles
inserted at regular intervals to accomplish the ADC zeroing and temperature measurements. Two of the options utilize
oversampling. Refer to Table 1 for specific option controls.
Triggered Mode:
In the Triggered Mode, a conversion cycle is initiated by the user (or host uP). There are two availabe
methods to wake the sensor from sleep mode. The first method (Wake All) is to wake the sensor and perform all three
measurement cycles (Z, T and P). This provides completely fresh data from the sensor. The second method (Wake P) is
to wake the sensor from sleep and only perform the pressure measurement (P).When using this second method, it is up
to the user to interleave Wake All commands at regular intervals to ensure there is sufficiently up to date temperature
information. Also, the Wake Pressure method is only available from the I2C interface (not available using a SPI interface).
www.allsensors.com
Signed Original On File
Signed Original On File
R
www.allsensors.com
R
www.allsensors.com
Original On File
Signed Original O
All Sensors
DS-0300 Rev A
Page 5
R
ors.com
R
京公网安备 11010802033920号
EEWORLD
