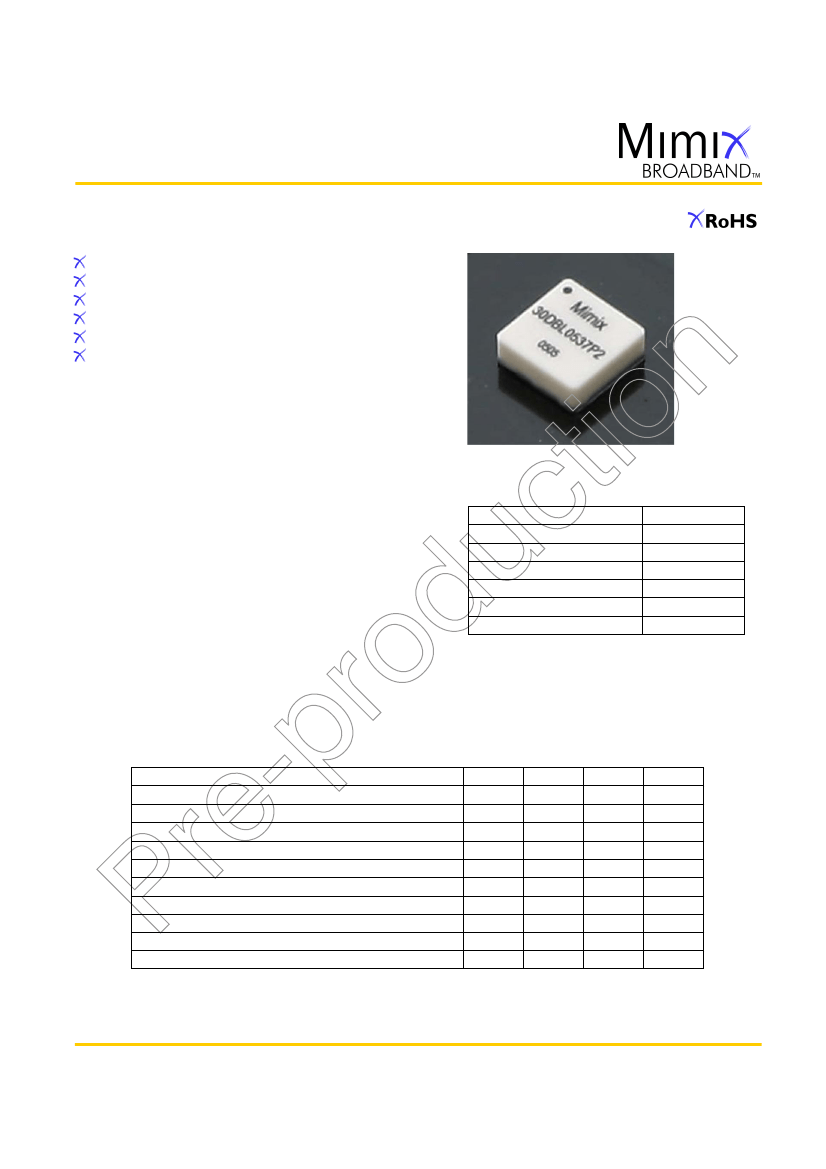

14.0-17.0/28.0-34.0 GHz Active Doubler
QFN, 5x5mm
April 2006 - Rev 10-Apr-06
30DBL0537-QC
Features
Integrated Gain, Doubler and Driver Stages
Self-biased Architecture
+21.0 dBm Output Power
35.0 dBc Fundamental Suppression
RoHS Compliant
100% On-Wafer RF, DC and Output Power Testing
General Description
Mimix Broadband's 14.0-17.0/28.0-34.0 GHz SMD Active
Doubler delivers +21dBm of output power. The device
integrates a gain stage, passive doubler and driver amplifier
into a single device. The device provides better than
+21dBm of saturated output power and has over 20dB of
doubled gain with excellent harmonic rejection. The part is
designed with a self-biased architecture which requires a
single 5V supply. The device comes in a 5x5 mm QFN
surface mount package offering excellent RF and thermal
properties and is RoHS compliant. This device is well suited
for Millimeter-Wave Point-to-Point, LMDS, SATCOM and
VSAT applications.
Absolute Maximum Ratings
Supply Voltage (Vd)
Supply Current (Id)
Gate Bias Voltage (Vg)
Input Power (RF Pin)
Storage Temperature (Tstg)
Operating Temperature (Ta)
Channel Temperature (Tch)
+6.0 VDC
300 mA
+0.3 VDC
TBD
-65 to +165
O
C
-55 to MTTF Table
1
MTTF Table
1
(1) Channel temperature affects a device's MTTF. It is
recommended to keep channel temperature as low as
possible for maximum life.
Electrical Characteristics (Ambient Temperature T = 25
o
C)
Parameter
Input Frequency Range (fin)
Output Frequency Range (fout)
Input Return Loss (S11)
Output Return Loss (S22)
Fundamental Leakage (fin)
Third Harmonic Leakage (3 x fin)
RF Input Power (RF Pin)
Output Power at +4.0 dBm Pin (Pout)
Drain Bias Voltage (Vd)
Supply Current (Id) (Vd=5.0V Typical)
Units
GHz
GHz
dB
dB
dBc
dBc
dBm
dBm
VDC
mA
Min.
14.0
28.0
-
-
-
-
-
-
-
-
Typ.
-
-
TBD
TBD
-35.0
-30.0
+4.0
+21.0
+5.0
200
Max.
17.0
34.0
-
-
-
-
-
-
+5.5
240
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 1 of 5
Characteristic Data and Specifications are subject to change without notice.
©2006
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
14.0-17.0/28.0-34.0 GHz Active Doubler
QFN, 5x5mm
April 2006 - Rev 10-Apr-06
30DBL0537-QC

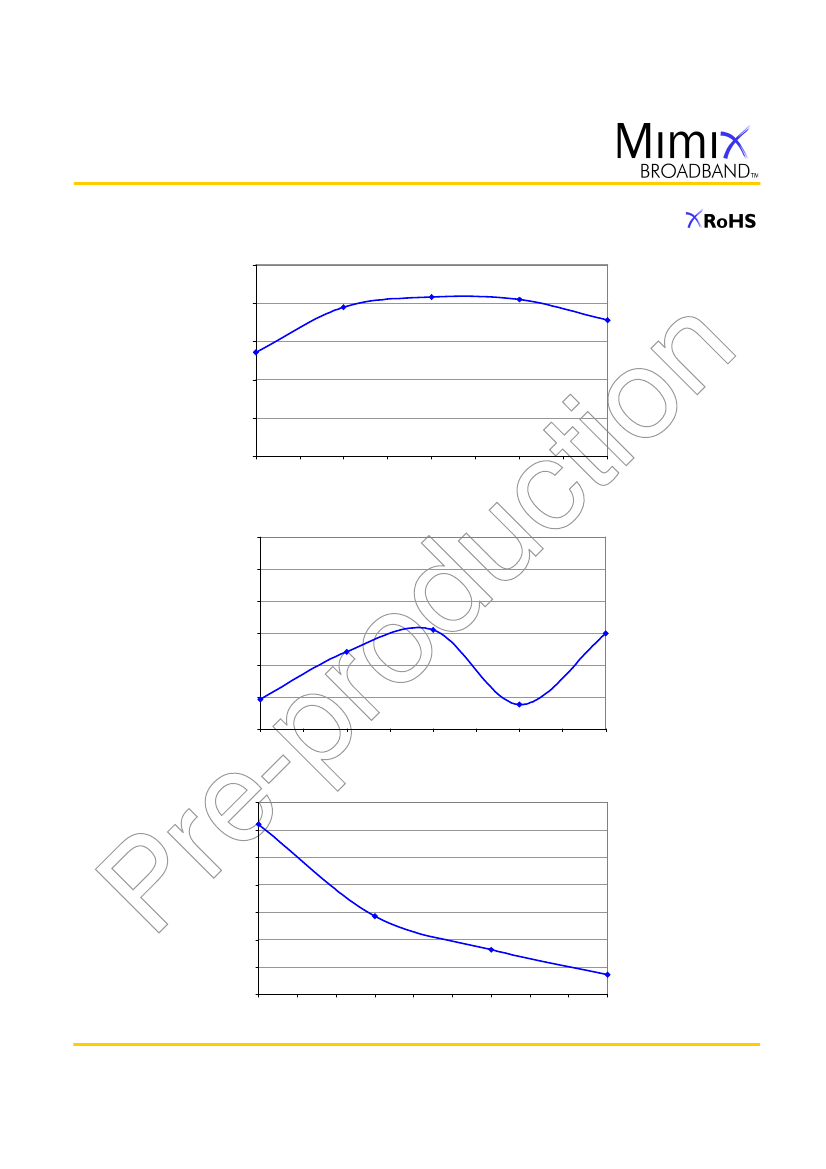

2xFin Output Power (dBm), Pin = 4 dBm
25
Doubler Measurements
20
2xFin Pout (dBm)
15
10
5
0
26
27
28
29
30
31
32
33
34
Fout = 2xFin (GHz)
Fundamental Leakage (dBm), Pin = 4 dBm
0
-5
Fund. Pout (dBm)
-10
-15
-20
-25
-30
13
13.5
14
14.5
15
15.5
16
16.5
17
Fout = Fin (GHz)
3xFin Output Power (dBm), Pin = 4 dBm
10
5
0
3xFin Pout (dBm)
-5
-10
-15
-20
-25
39
40
41
42
43
44
45
46
47
48
Fout = 3xFin (GHz)
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 2 of 5
Characteristic Data and Specifications are subject to change without notice.
©2006
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
14.0-17.0/28.0-34.0 GHz Active Doubler
QFN, 5x5mm
April 2006 - Rev 10-Apr-06
30DBL0537-QC

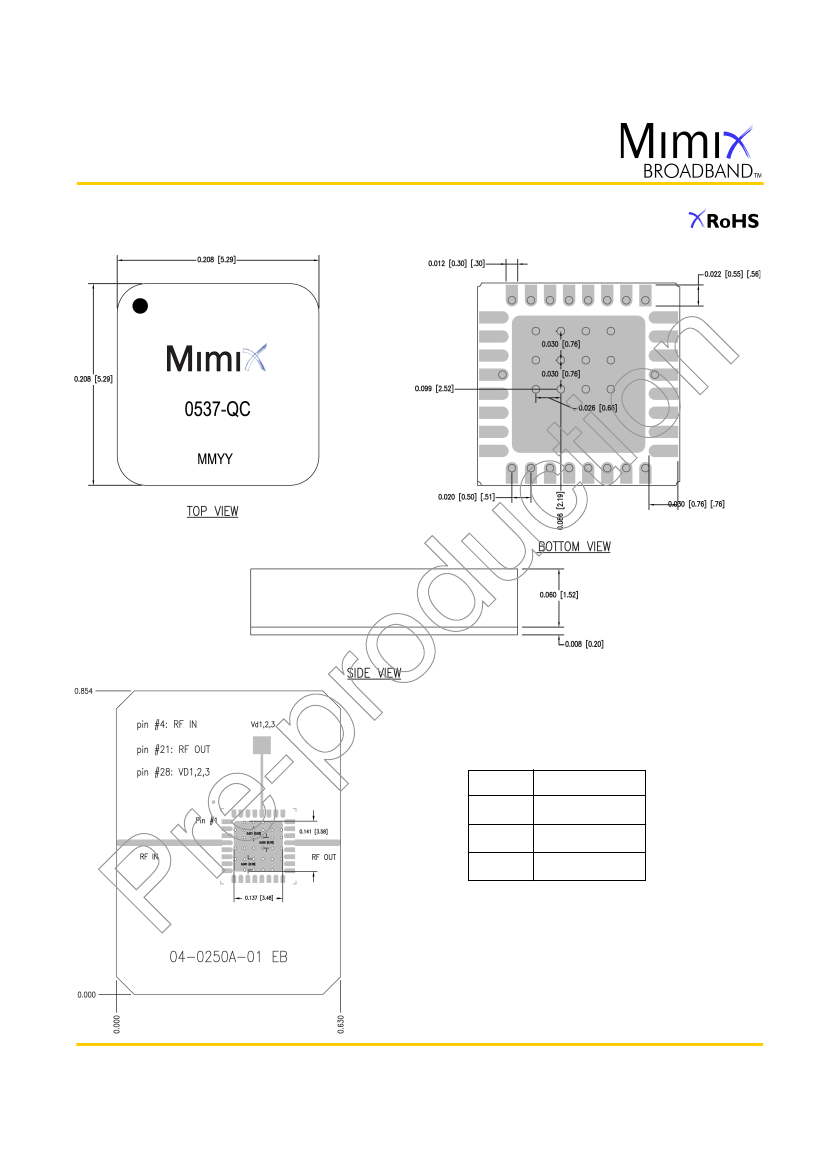

Package Outline
PCB Layout
Pin Designation
Pin
4
21
28
Description
RF In
RF Out
Bias
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 3 of 5
Characteristic Data and Specifications are subject to change without notice.
©2006
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
14.0-17.0/28.0-34.0 GHz Active Doubler
QFN, 5x5mm
April 2006 - Rev 10-Apr-06
30DBL0537-QC
App Note [1] Biasing
-
This device is operated by biasing Vd with +5.0 V and Id=200mA.
MTTF Tables (TBD)
Backplate
Temperature
55 deg Celsius
75 deg Celsius
95 deg Celsius
These numbers were calculated based on accelerated life test information and thermal model analysis received from the fabricating foundry.
Channel
Temperature
deg Celsius
deg Celsius
deg Celsius
Rth
MTTF Hours
FITs
C/W
C/W
C/W
E+
E+
E+
E+
E+
E+
Bias Conditions:
Vd=5.0V, Id=200mA
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 4 of 5
Characteristic Data and Specifications are subject to change without notice.
©2006
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
14.0-17.0/28.0-34.0 GHz Active Doubler
QFN, 5x5mm
April 2006 - Rev 10-Apr-06
30DBL0537-QC
Handling and Assembly Information
CAUTION!
- Mimix Broadband MMIC Products contain gallium arsenide (GaAs) which can be hazardous to the human
body and the environment. For safety, observe the following procedures:
Do not ingest.
Do not alter the form of this product into a gas, powder, or liquid through burning, crushing, or chemical
processing as these by-products are dangerous to the human body if inhaled, ingested, or swallowed.
Observe government laws and company regulations when discarding this product. This product must be
discarded in accordance with methods specified by applicable hazardous waste procedures.
Life Support Policy
- Mimix Broadband's products are not authorized for use as critical components in life support
devices or systems without the express written approval of the President and General Counsel of Mimix Broadband. As
used herein: (1) Life support devices or systems are devices or systems which, (a) are intended for surgical implant into
the body, or (b) support or sustain life, and whose failure to perform when properly used in accordance with instructions
for use provided in the labeling, can be reasonably expected to result in a significant injury to the user. (2) A critical
component is any component of a life support device or system whose failure to perform can be reasonably expected
to cause the failure of the life support device or system, or to affect its safety or effectiveness.
Package Attachment
- This packaged product from Mimix Broadband is provided as a rugged surface mount package
compatible with high volume solder installation. Vacuum tools or other suitable pick and place equipment may be used
to pick and place this part. Care should be taken to ensure that there are no voids or gaps in the solder connection so
that good RF, DC and ground connections are maintained. Voids or gaps can eventually lead not only to RF performance
degradation, but reduced reliability and life of the product due to
thermal stress.
Mimix Lead-Free RoHS Compliant Program -
Mimix has an active program in place to meet customer and governmental
requirements for eliminating lead (Pb) and other environmentally hazardous materials from our products. All Mimix
RoHS compliant components are form, fit and functional replacements for their non-RoHS equivalents. Lead plating of
our RoHS compliant parts is 100% matt tin (Sn) over copper alloy and is backwards compatible with current standard
SnPb low-temperature reflow processes as well as higher temperature (260°C reflow) “Pb Free” processes.
Part Number for Ordering
Description
30DBL0537-QC-0N00
30DBL0537-QC-0N0T
PB- 30DBL0537-QC
Ni/Cu plated RoHS compliant QFN 5x5 32L surface mount package in bulk quantity
Ni/Cu plated RoHS compliant QFN 5x5 32L surface mount package in tape and reel
30DBL0537-QC Evaluation Board
We also offer this part with alternative plating options. Please contact your regional sales manager for more information
regarding different plating types.
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 5 of 5
Characteristic Data and Specifications are subject to change without notice.
©2006
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
