HR702-2812 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> HR702-2812

HR702-2812: Description2-OUTPUT 70 W DC-DC REG PWR SUPPLY MODULE; CategoryAnalog mixed-signal IC The signal circuit; File Size96KB，9 Pages; ManufacturerInterpoint （ Crane Aerospace & Electronics ）; Websitehttp://www.interpoint.com

Download Datasheet Parametric Compare View All

HR702-2812 Overview

2-OUTPUT 70 W DC-DC REG PWR SUPPLY MODULE

HR702-2812 Parametric

Parameter Name	Attribute value
Maker	Interpoint （ Crane Aerospace & Electronics ）
Parts packaging code	MODULE
package instruction	, FLANGE MT,3.2X2.5
Contacts	10
Reach Compliance Code	unknow
Maximum input voltage	40 V
Minimum input voltage	19 V
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Maximum output current	5.5 A
Nominal output voltage	12 V
Package body material	METAL
Encapsulate equivalent code	FLANGE MT,3.2X2.5
Certification status	Not Qualified
technology	HYBRID
Temperature level	COMMERCIAL

Preview

Download Datasheet

View All

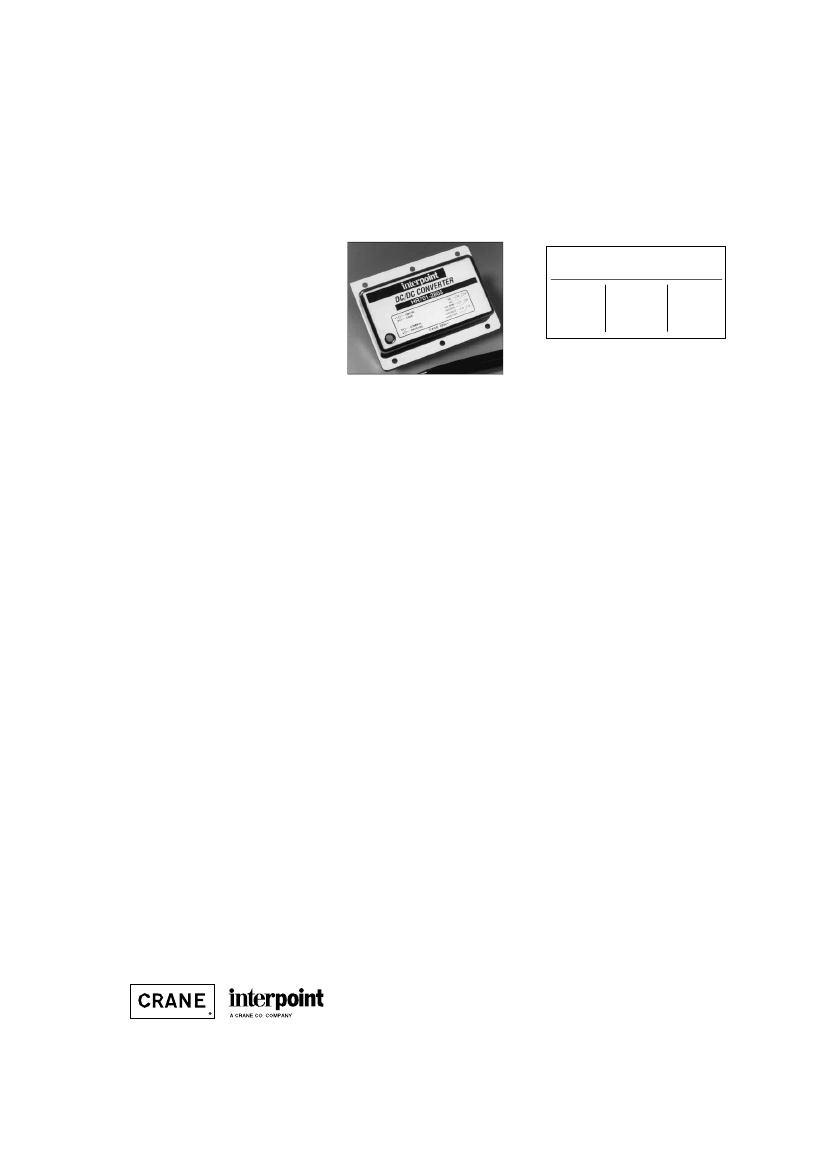

EATURES

•

–40°C to + 85°C operation

19 to 40 VDC input

Fully Isolated

Optocoupler feedback

Fixed frequency, 245 kHz typical

Topology – Push-Pull Forward

50 V for up to 50 ms transient protection

Inhibit/sync function

Indefinite short circuit protection

Remote sense on single models

Up to 84% efficiency

DC/DC C

ONVERTERS

28 V

OLT

NPUT

SINGLE

HR700 SERIES

70 WATT

MODELS

VDC O

UTPUT

DUAL

±12

±15

TRIPLE

+5 & ±12

+5 & ±15

Size (max.): 3.20 x 2.46 x 0.595 inches

(81.3 x 62.5 x 15.11 mm)

See Section B8, case L, for dimensions.

Weight:

140 grams typical

Screening: Standard only.

See Section B9 for screening description.

DESCRIPTION

HR700 Series DC/DC converters offer up to 70 watts of power from

single, dual, or triple outputs in one package. The converters

combine the small size and high reliability of hybrid-based compo-

nents, the high efficiency of switching regulators, and the isolation,

regulation, and low noise characteristics of linear regulators.

provided by detecting peak primary switching current on a cycle

basis and limiting it to approximately 130% of the full load input

current. This method results in quick and positive current limiting

under short circuit conditions.

HR700 Series DC/DC converters are designed to provide full power

operation over the input voltage range of 19 to 40 VDC. Operation

below an input of 19 volts is possible with derated output power.

Outputs are available as 5, 12, and 15 VDC single, dual and triple

outputs. The converters typically provide greater than 80% effi-

ciency over the entire input range. Line regulation is typically within

0.1% and load regulation within 0.2%.

SMALL SIZE

The HR700 converters are manufactured using techniques that

provide very small size and low profile components. Each converter

uses less than eight square inches of board areas and is 0.595

inches high or less. The overall power density is 20 watts per cubic

inch.

LOW NOISE

The HR700 Series converters offer low noise on both the input and

output lines. A two section, four pole, LC input filter is included to

provide very low reflected line ripple current. Output ripple is main-

tained at less than 50 mV p-p for single and dual models and 85 mV

p-p for triple output models.

HIGH RELIABILITY

Assembled using thick-film technology, the HR700 parts use the

same manufacturing procedures and quality controls that we apply

to converters designed for commercial airliners, the space shuttle,

advanced fighter aircraft, and other high reliability applications. The

steel cases are hermetically sealed in a dry nitrogen environment

and are guaranteed a maximum leak rate of less than 10

-3

atm-

cc/sec. All devices are 100% electrically tested.

INHIBIT

SYNC FEATURE

An inhibit/sync pin is standard on all models of the HR700 Series

converters. The pin serves as both an output inhibit and as a

synchronization input. In the inhibit mode an open collector TTL

compatible low (<0.8 V) will disable internal switching thereby

inhibiting the unit’s output. Inhibiting in this manner results in an

extremely low quiescent current.

HIGH PERFORMANCE

The HR700 series parts are high efficiency, low noise, pulse-width

modulated converters which use a quasi-square wave forward

converter design with a nominal switching frequency of 245 kHz.

Isolation between input an output is provided with a transformer in

the forward power loop and a wide band, temperature insensitive,

optical link in the feedback control loop. Short circuit protection is

B4-33

HR702-2812 Related Products

	HR702-2812	HR701-2805	HR701-2812	HR701-2815	HR703-28515	HR703-28512	HR703-2812	HR702-2815
Description	2-OUTPUT 70 W DC-DC REG PWR SUPPLY MODULE	1-OUTPUT 60 W DC-DC REG PWR SUPPLY MODULE	1-OUTPUT 70 W DC-DC REG PWR SUPPLY MODULE	1-OUTPUT 60 W DC-DC REG PWR SUPPLY MODULE	3-OUTPUT 60 W DC-DC REG PWR SUPPLY MODULE	1-OUTPUT 60 W DC-DC REG PWR SUPPLY MODULE	1-OUTPUT 60 W DC-DC REG PWR SUPPLY MODULE	1-OUTPUT 60 W DC-DC REG PWR SUPPLY MODULE
Maker	Interpoint （ Crane Aerospace & Electronics ）	Interpoint （ Crane Aerospace & Electronics ）	Interpoint （ Crane Aerospace & Electronics ）	Interpoint （ Crane Aerospace & Electronics ）	Interpoint （ Crane Aerospace & Electronics ）	Interpoint （ Crane Aerospace & Electronics ）	Interpoint （ Crane Aerospace & Electronics ）	Interpoint （ Crane Aerospace & Electronics ）
Parts packaging code	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE
package instruction	, FLANGE MT,3.2X2.5	, FLANGE MT,3.2X2.5	, FLANGE MT,3.2X2.5	, FLANGE MT,3.2X2.5	,	,	, FLANGE MT,3.2X2.5	, FLANGE MT,3.2X2.5
Contacts	10	10	10	10	10	10	10	10
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
Maximum input voltage	40 V	40 V	40 V	40 V	-	-	40 V	40 V
Minimum input voltage	19 V	19 V	19 V	19 V	-	-	19 V	19 V
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	-	-	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-	-	-20 °C	-20 °C
Maximum output current	5.5 A	12 A	5.83 A	4.67 A	-	-	-	4.4 A
Nominal output voltage	12 V	5 V	12 V	15 V	-	-	12 V	15 V
Package body material	METAL	METAL	METAL	METAL	-	-	METAL	METAL
Encapsulate equivalent code	FLANGE MT,3.2X2.5	FLANGE MT,3.2X2.5	FLANGE MT,3.2X2.5	FLANGE MT,3.2X2.5	-	-	FLANGE MT,3.2X2.5	FLANGE MT,3.2X2.5
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	-	Not Qualified	Not Qualified
technology	HYBRID	HYBRID	HYBRID	HYBRID	-	-	HYBRID	HYBRID
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	-	COMMERCIAL	COMMERCIAL
