Part Number

Search

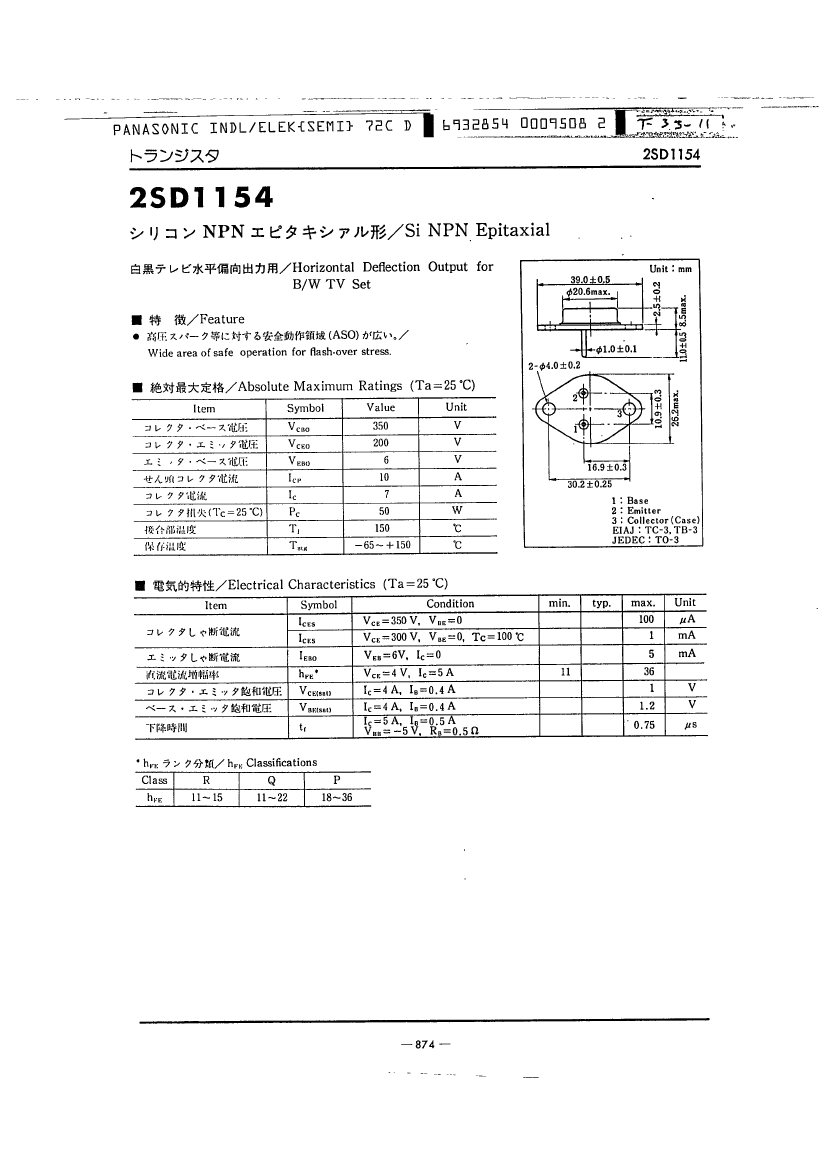

2SD1154

Description
NPN EPITAXIAL PLANAR
CategoryDiscrete semiconductor    The transistor
File Size281KB,6 Pages
ManufacturerPanasonic
Websitehttp://www.panasonic.co.jp/semicon/e-index.html
Download Datasheet Parametric Compare View All

2SD1154 Overview

NPN EPITAXIAL PLANAR

2SD1154 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
package instruction,
Reach Compliance Codeunknow
Maximum collector current (IC)7 A
ConfigurationSingle
Minimum DC current gain (hFE)11
JESD-609 codee0
Maximum operating temperature140 °C
Polarity/channel typeNPN
Maximum power dissipation(Abs)50 W
surface mountNO
Terminal surfaceTin/Lead (Sn/Pb)
Base Number Matches1

2SD1154 Related Products

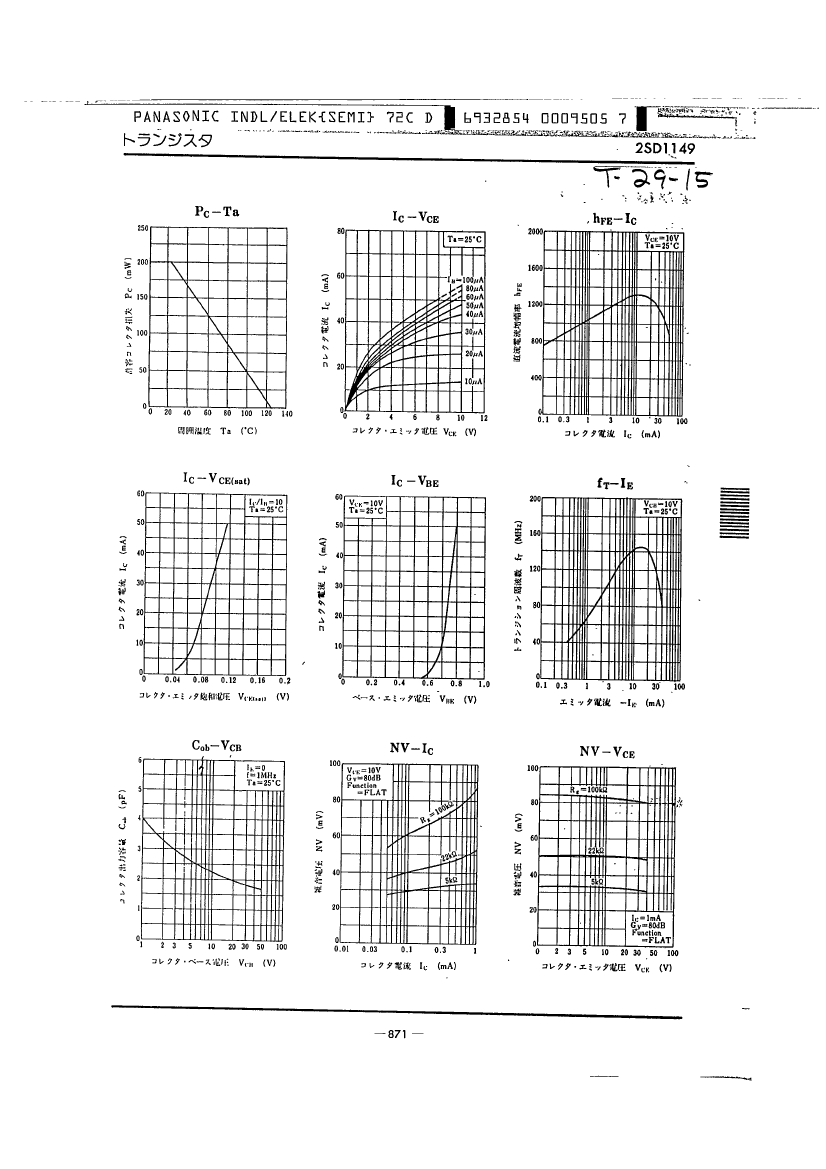

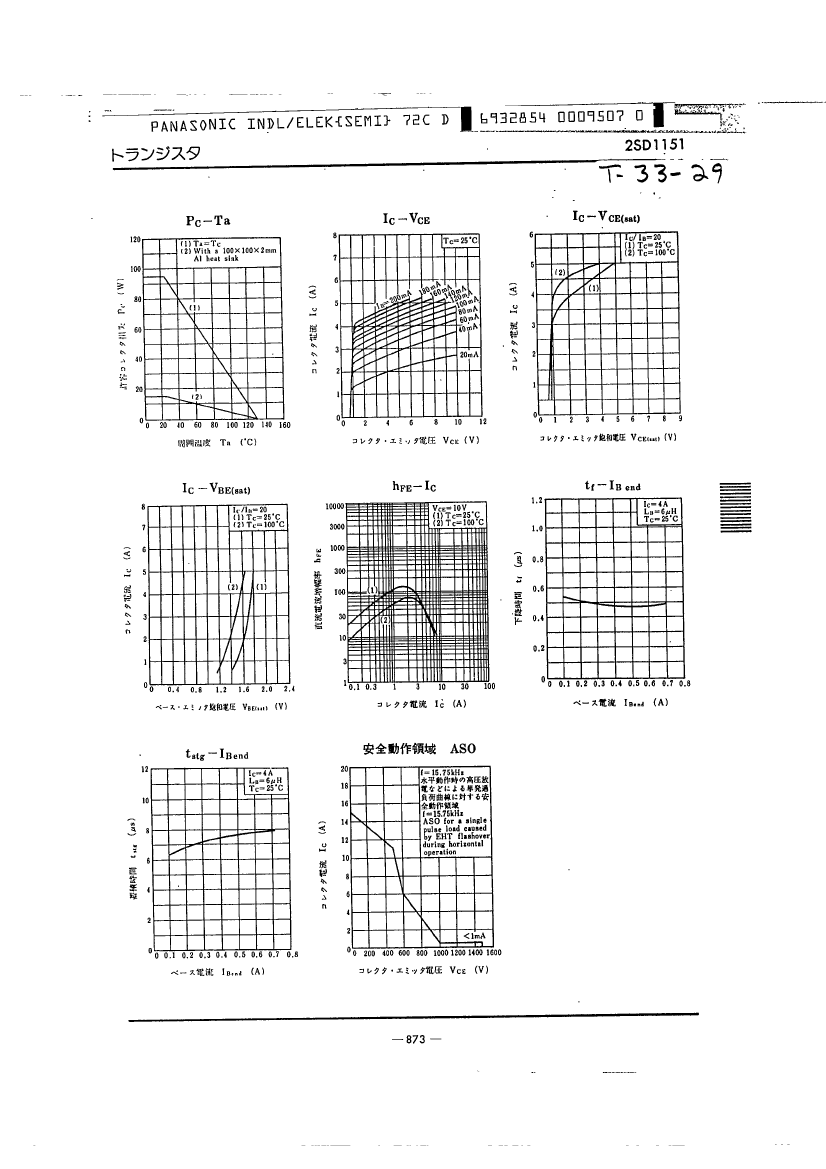

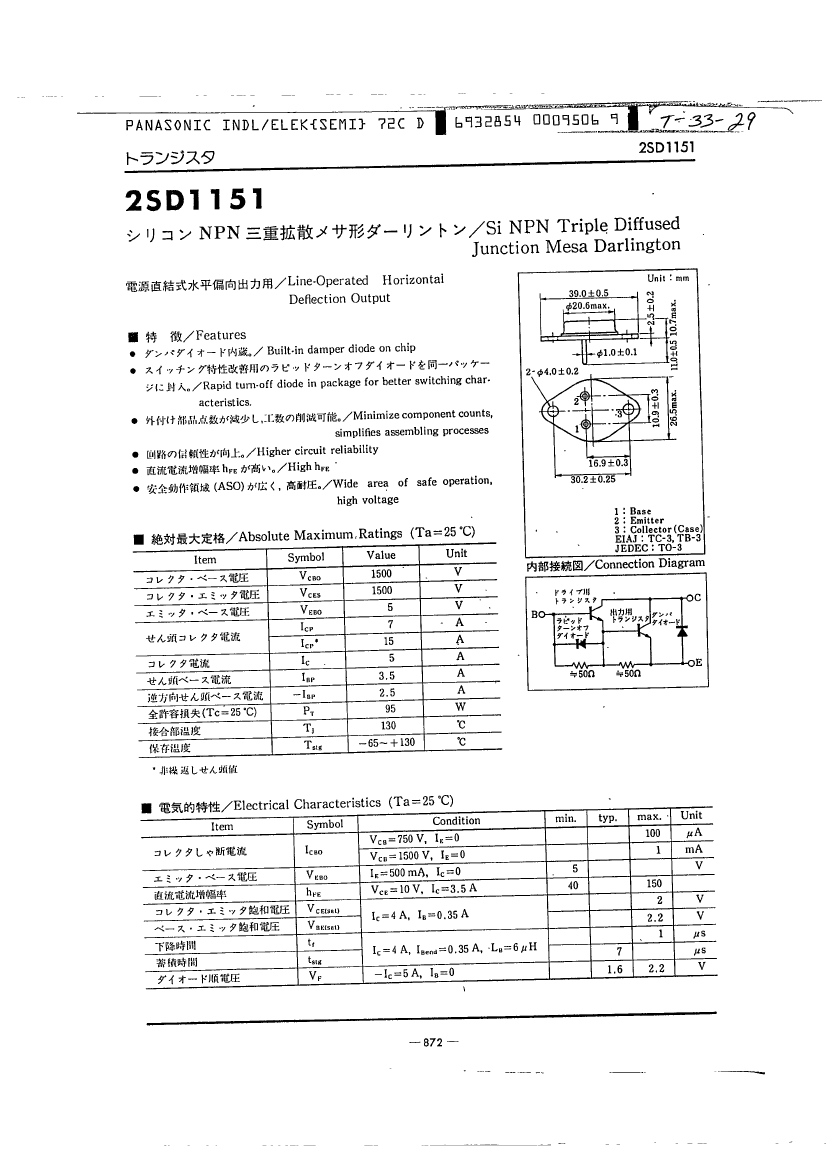

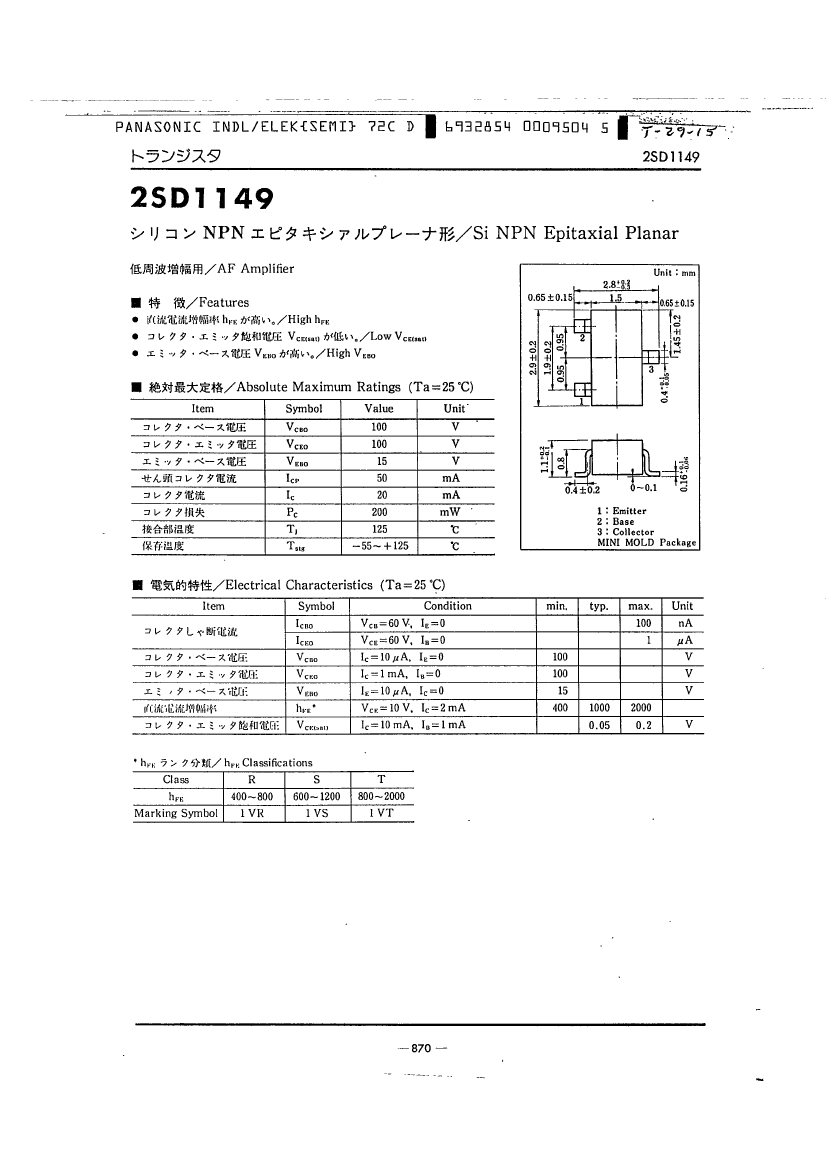

2SD1154 2SD1149 2SD1151
Description NPN EPITAXIAL PLANAR NPN EPITAXIAL PLANAR NPN EPITAXIAL PLANAR
Is it Rohs certified? incompatible incompatible incompatible
Reach Compliance Code unknow unknow unknow
Maximum collector current (IC) 7 A 0.02 A 5 A
Configuration Single SINGLE DARLINGTON
Minimum DC current gain (hFE) 11 400 40
JESD-609 code e0 e0 e0
Maximum operating temperature 140 °C 150 °C 150 °C
Polarity/channel type NPN NPN NPN
Maximum power dissipation(Abs) 50 W 0.2 W 95 W
surface mount NO YES NO
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Base Number Matches 1 1 1
