Kingbright
Features
®
3.0x1.5mm SMD CHIP LED LAMPS
KPL-3015
Package Dimensions
l
3.0mmx1.5mm SMT LED. 1.1mm THICKNESS.
l
LOW POWER CONSUMPTION.
l
WIDE VIEWING ANGLE.
l
IDEAL FOR BACKLIGHT AND INDICATOR.
l
VARIOUS COLORS AND LENS TYPES AVAILABLE.
l
INNER
LENS TYPE
Description
The Bright Red source color devices are made with Gallium
Phosphide Red Light Emitting Diode.
The Super Bright Green source color devices are made with
Gallium Phosphide Green Light Emitting Diode.
The High Efficiency Red source color devices are made with
Gallium Arsenide Phosphide on Gallium Phosphide Orange
Light Emitting Diode.
The Yellow source color devices are made with Gallium
Arsenide Phosphide on Gallium Phosphide Yellow Light
Emitting Diode.
The Super Bright Red source color devices are made with
Gallium Aluminum Arsenide Red Light Emitting Diodes.
The Super Bright Yellow source color devices are made with
DH InGaAlP on GaAs substrate Light Emitting Diode.
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0
.1(0.004") unless otherwise noted.
3. Lead spacing is measured where the lead emerge package.
4. Specifications are subjected to change without notice.
Selection Guide
Part No.
KPL-3015HD
KPL-3015HC
KPL-3015HT
KPL-3015ID
KPL-3015EC
KPL-3015IT
KPL-3015YD
KPL-3015YC
KPL-3015YT
KPL-3015SRD
KPL-3015SRC
KPL-3015SRT
KPL-3015SGD
KPL-3015SGC
KPL-3015SGT
KPL-3015SYD
KPL-3015SYC
KPL-3015SYT
Dice
BRIGHT RED (GaP)
BRIGHT RED (GaP)
BRIGHT RED (GaP)
HIGH EFFICIENCY RED (GaAsP/GaP)
HIGH EFFICIENCY RED (GaAsP/GaP)
HIGH EFFICIENCY RED (GaAsP/GaP)
YELLOW (GaAsP/GaP)
YELLOW (GaAsP/GaP)
YELLOW (GaAsP/GaP)
SUPER BRIGHT RED (GaAlAs)
SUPER BRIGHT RED (GaAlAs)
SUPER BRIGHT RED (GaAlAs)
SUPER BRIGHT GREEN (GaP)
SUPER BRIGHT GREEN (GaP)
SUPER BRIGHT GREEN (GaP)
SUPER BRIGHT YELLOW (InGaAlP)
SUPER BRIGHT YELLOW (InGaAlP)
SUPER BRIGHT YELLOW (InGaAlP)
Lens Type
RED DIFFUSED
WATER CLEAR
RED TRAS.
RED DIFFUSED
WATER CLEAR
RED TRANS.
YELLOW DIFFUSED
WATER CLEAR
YELLOW TRANS.
RED DIFFUSED
WATER CLEAR
RED TRANS.
GREEN DIFFUSESD
WATER CLEAR
GREEN TRNS.
YELLOW DIFFUSESD
WATER CLEAR
YELLOW TRNS.
Iv (mcd)
@ 20 mA
Min.
0.8
0.8
0.8
5
5
5
5
5
5
3.2
3.2
3.2
40
40
40
40
40
40
Typ.
2
2
2
16
16
16
16
16
16
12.5
12.5
12.5
80
80
80
80
80
80
Viewing
Angle
2θ1/2
90°
90°
90°
90°
90°
90°
90°
90°
90°
90°
90°
90°
90°
90°
90°
90°
90°
90°
Note:
1.
θ
1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.

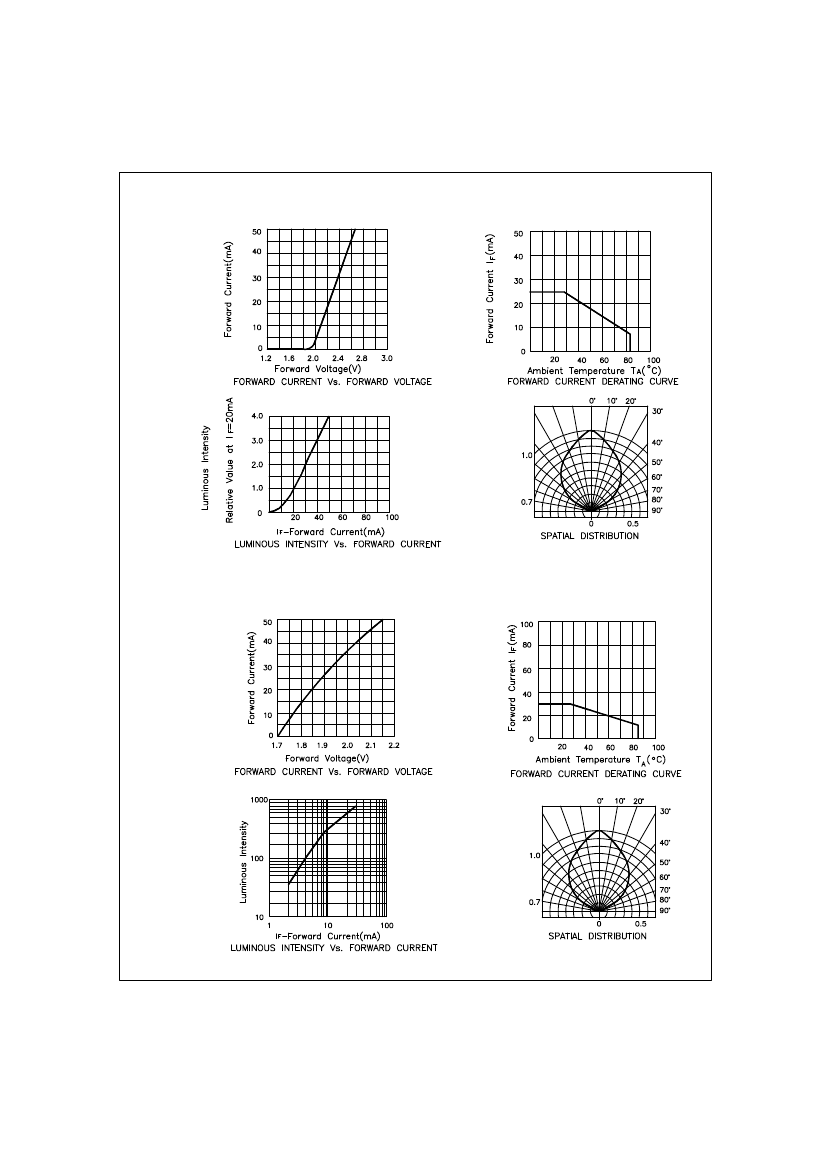

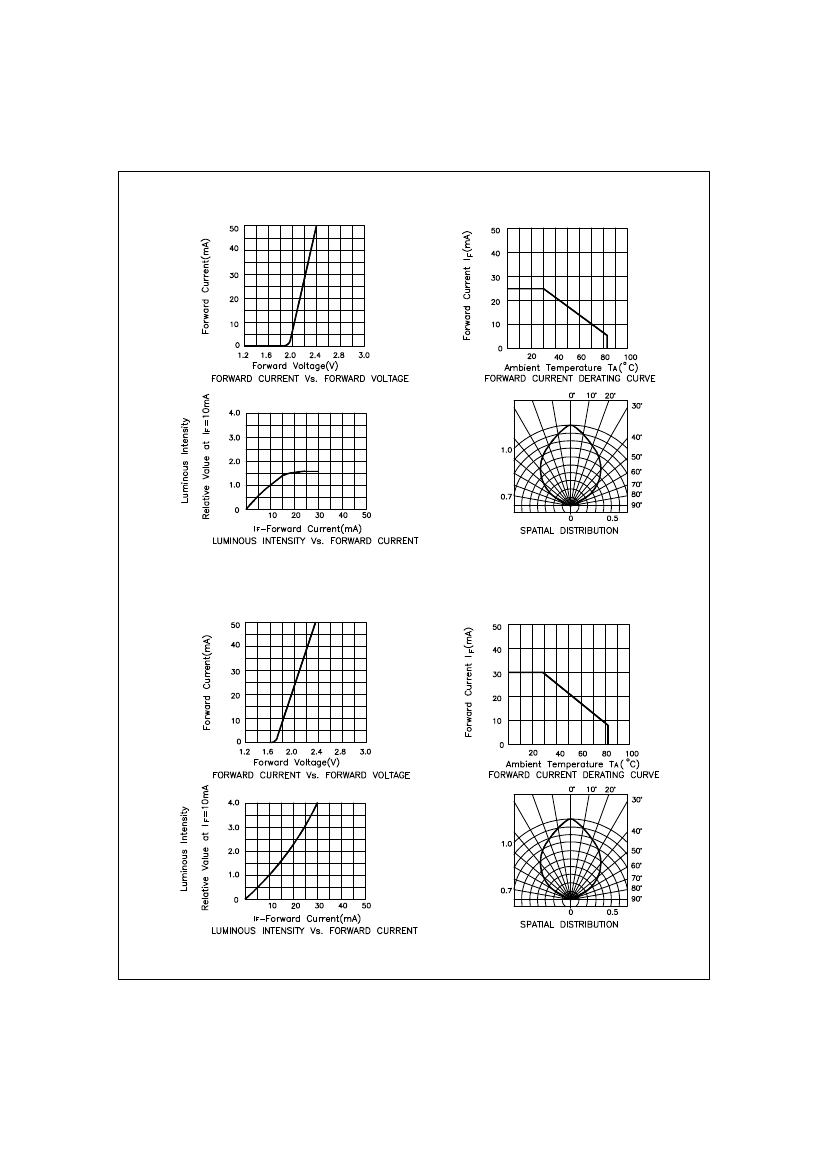

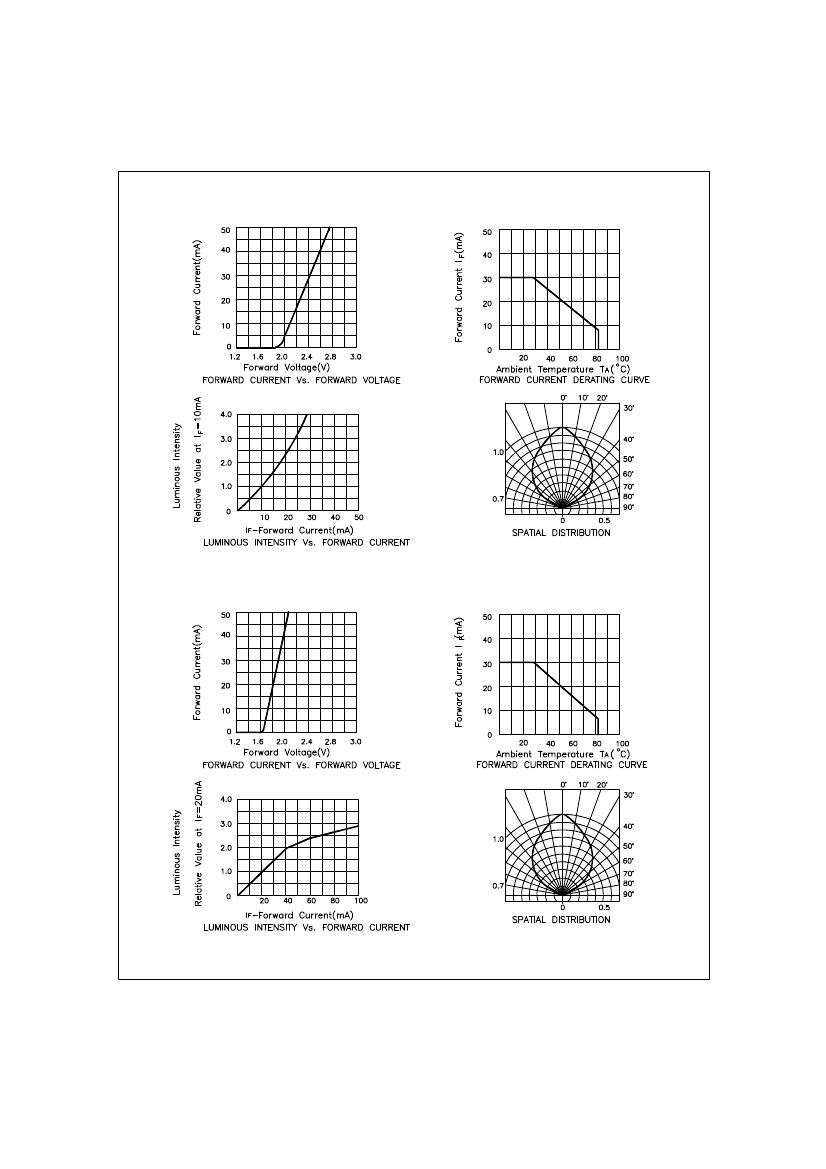

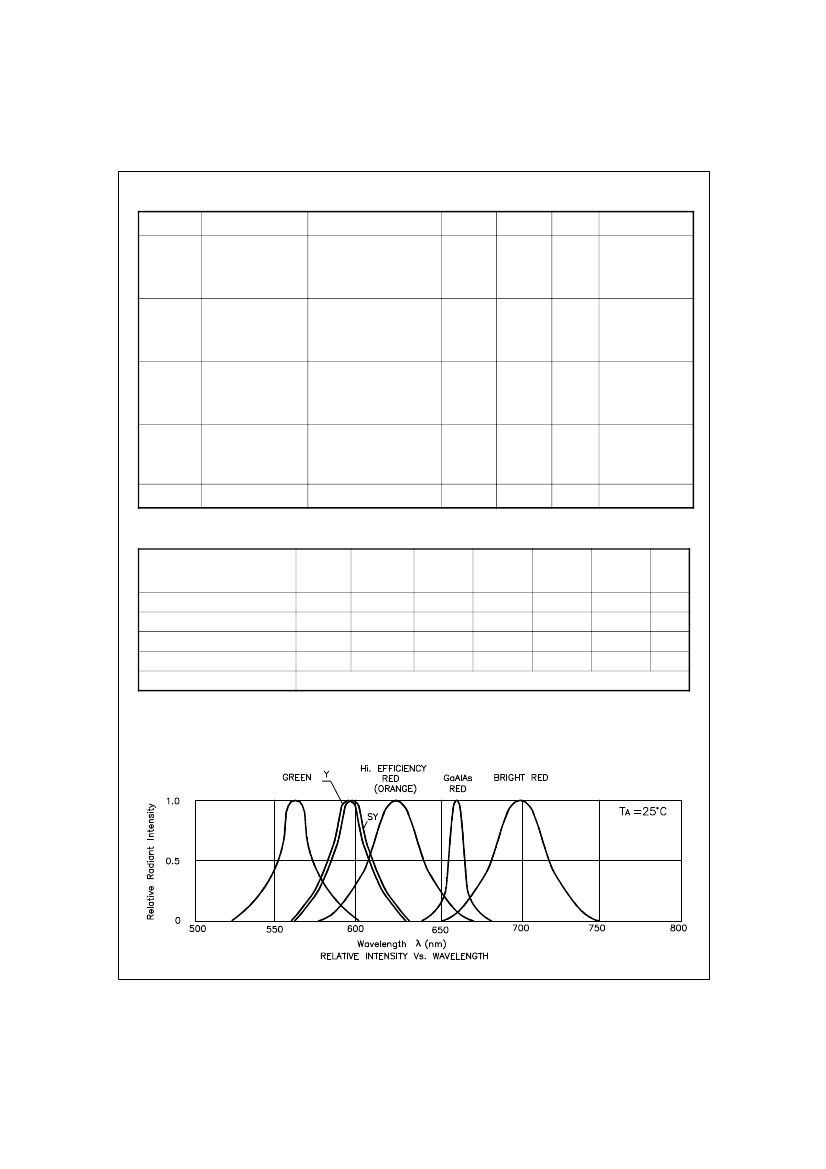

1-KPL3015-1
