1658-G21-01-P10-17A: DescriptionCircuit Breakers Single pole thermal reset circuit breaker in a miniature design intended for threadneck or snap-in mounting, dimensions: 32.0 x 27.0 x 13.6 mm.; CategoryCircuit protection; File Size271KB，4 Pages; ManufacturerE-T-A [E-T-A Circuit Breakers]

Download Datasheet Parametric View All

1658-G21-01-P10-17A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1658-G21-01-P10-17A	-	-	View	Buy Now

1658-G21-01-P10-17A Overview

Circuit Breakers Single pole thermal reset circuit breaker in a miniature design intended for threadneck or snap-in mounting, dimensions: 32.0 x 27.0 x 13.6 mm.

1658-G21-01-P10-17A Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	E-T-A [E-T-A Circuit Breakers]
Product Category	Circuit Breakers
RoHS	Details
Product	Thermal Circuit Breakers
Type	Thermal Overcurrent
Current Rating	17 A
Voltage Rating AC	240 VAC
Voltage Rating DC	28 VDC
Number of Poles	1 Pole
Actuator Type	Button
Operating Temperature Range	- 20 C to + 60 C
Illuminated	Not Illuminated
Height	14 mm
Length	27 mm
Termination Style	Blade
Voltage Rating	28 VDC, 240 VAC
Width	32 mm
Mounting Style	Panel
Factory Pack Quantity	1

Preview

Download Datasheet

View All

Thermal Overcurrent Circuit Breaker 1658-...

Description

Very cost effective design to meet international requirements. No

exposed metal parts which are, or could become, current-carrying

except for terminals. R-type TO CBE to EN 60934.

●

Manual reset, cycling trip free mechanism

●

Extremely small and lightweight

●

UL, CSA, VDE and EN 60934 (IEC 60934) approved

Typical applications

Battery chargers, consumer products, power supplies, motors.

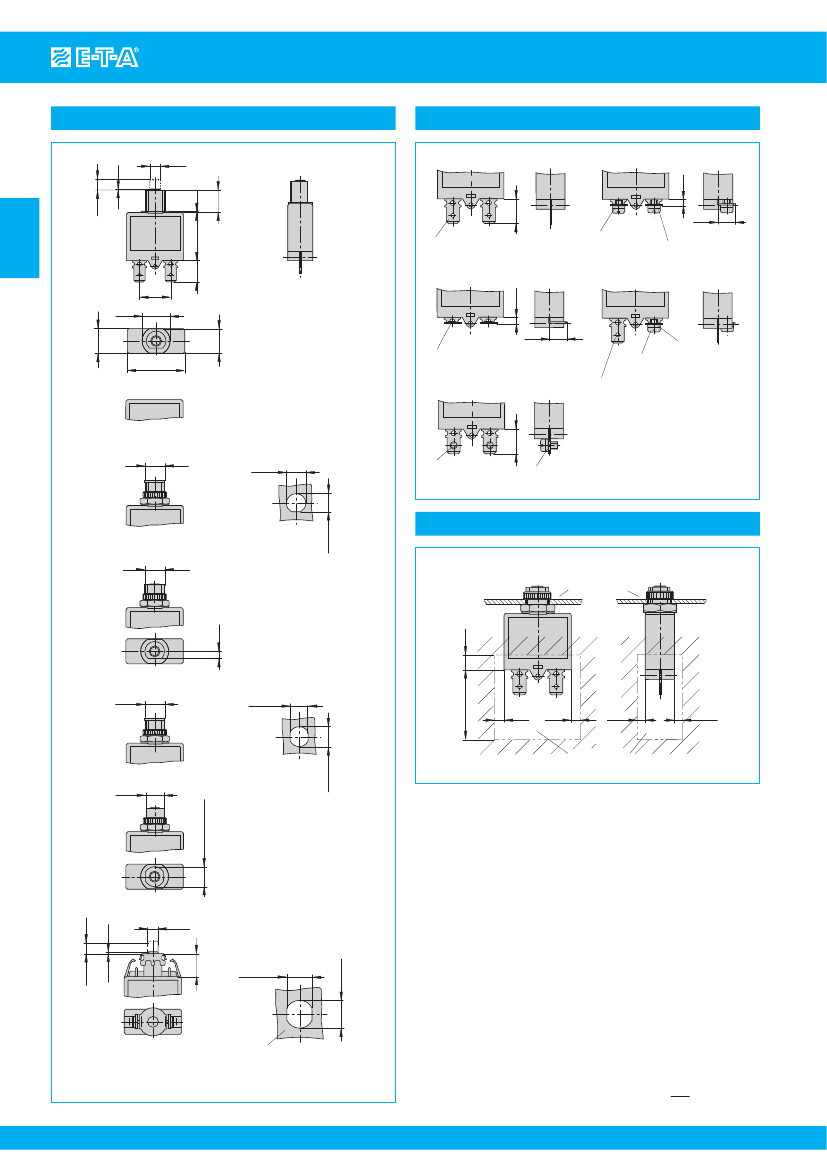

Ordering information

Type No.

1658

single pole thermal circuit breaker

Threadneck design

G21

manual reset type, 3/8“-27 threadneck

G41

manual reset type, 7/16“-28 threadneck

A21

auto reset type, 3/8“-27 threadneck

A41

auto reset type, 7/16“-28 threadneck

A00

auto reset type, without threadneck

F01

snap in

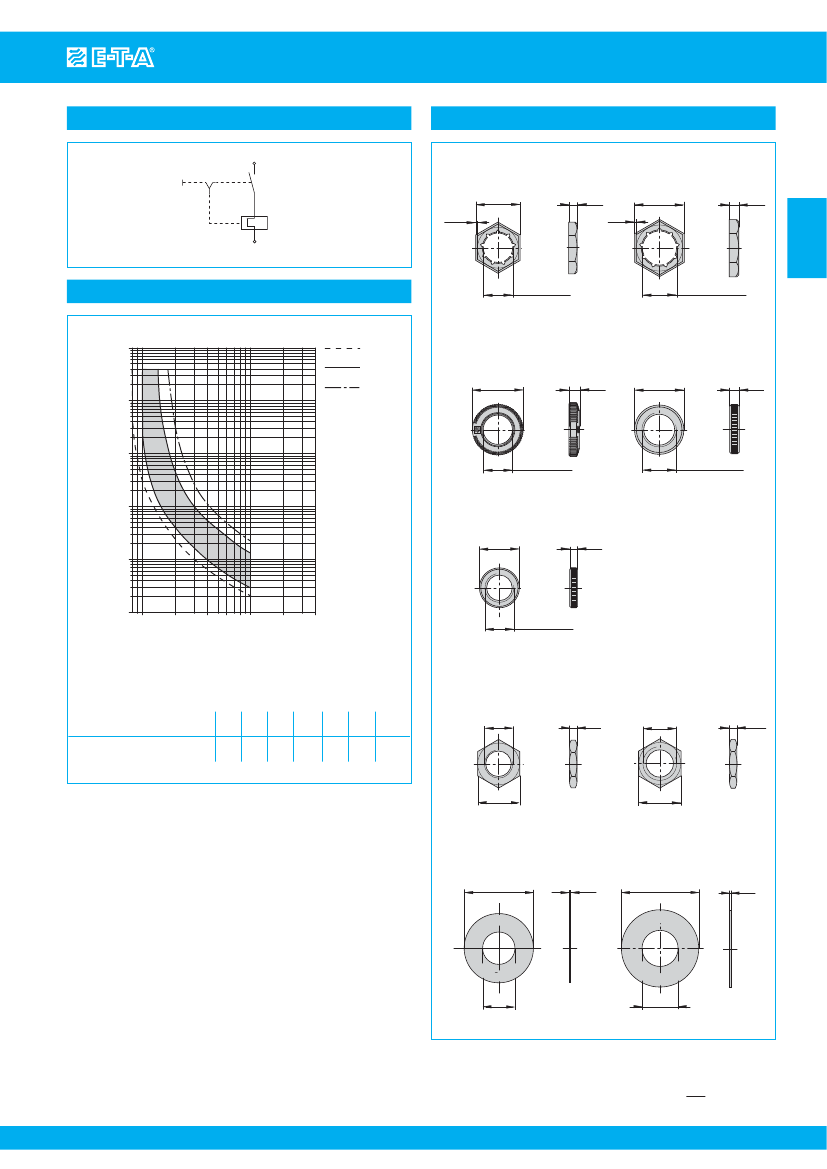

Hardware

no hardware

one PAL nut, bulk

one PAL nut, one knurled nut, bulk

one PAL nut mounted

one PAL nut, one knurled nut, mounted

one PAL nut mounted, one knurled nut, bulk

one knurled nut, bulk

one hex nut, bulk

two hex nuts, bulk

Terminals

P10

blade terminals A6.3-0.8 (QC .250)

P13

blade terminals A6.3-0.8 (QC .250), 90°

S80

straight screw terminals*

S83

90° bent screw terminals*

Current ratings

5 ...30 A

1658 - G21 - 02 - P10 - 5 A

Ordering example

1658-...

Technical data

For further details please

Voltage rating

Current ratings

Typical life

AC + DC

5...16 A

17...25 A

Ambient temperature

Insulation co-ordination

(IEC 60664 and 60664 A)

see chapter: Technical Information

AC 240 V; DC 28 V

5...30 A

1,000 operations at 2 x I

, inductive

1,000 operations at 2 x I

, resistive

-20...+60 °C (-4...+140 °F),

≤ 7 A max. +40 °C (+104 °F)

rated impulse

pollution

withstand voltage

degree

2.5 kV

reinforced insulation in operating area

Dielectric strength

(IEC 60664 and 60664A)

operating area

Insulation resistance

Interrupting capacity I

* Screws and lock washers bulk shipped

Standard current ratings and typical voltage drop values

Current

rating (A)

Voltage

drop (mV)

≤ 250

Current

rating (A)

Voltage

drop (mV)

≤ 250

test voltage

AC 3,000 V

> 100 MΩ (DC 500 V)

5...7 A

180 A

8...30 A

200 A

Interrupting capacity

(UL 1077/EN 60934 PC1) 5...16 A

AC 240 V 2,000 A

17...30 A AC 120 V 2,000 A

5...30 A

DC 32 V 2,500 A

5...30 A

DC 28 V 2,000 A (1658-A..)

Degree of protection

operating area IP40

(IEC 60529/DIN 40050)

terminal area IP00

Vibration

8 g (57-500 Hz) ± 0.61 mm (10-57 Hz),

to IEC 60068-2-6, test Fc,

10 frequency cycles/axis

Shock

30 g (11 ms)

to IEC 60068-2-27, test Ea

Corrosion

96 hours at 5 % salt mist,

to IEC 60068-2-11, test Ka

Humidity

240 hours at 95 % RH

to IEC 60068-2-78, test Cab

Mass

approx. 16 g

Approvals

Authority

VDE (EN 60934)

Voltage rating

AC 240 V; DC 28 V

AC 240 V

AC 120 V

DC 32 V

DC 28 V

Current ratings

5...25 A

5...16 A

1658-G../F..

18...30 A 1658-G../F..

5...30 A

1658-A...

5...30 A

1658-G../F..

5...30 A

1658-A..

Issue B

(020810)

www.e-t-a.com

- 63
