SENSITRON
SEMICONDUCTOR
TECHNICAL DATA
DATA SHEET 378, REV. A
SHD116044
SHD116044B
HERMETIC POWER SCHOTTKY RECTIFIER
200°C Maximum Operation Temperature
DESCRIPTION:
100 VOLT, 3 AMP, HERMETIC POWER SCHOTTKY RECTIFIER IN A SHD-1/1A/1B
PACKAGE.
MAXIMUM RATINGS
RATING
PEAK INVERSE VOLTAGE
MAXIMUM DC OUTPUT CURRENT (With Cathode Maintained @ T
C
=100
O
C)
MAXIMUM NONREPETITIVE FORWARD SURGE CURRENT
(t=8.3ms, Sine)
MAXIMUM JUNCTION CAPACITANCE
(V
r
=5V)
C
T
Rθ
JC
Top/Tstg
100
3.7
-65 to
+ 200
pF
°C/W
°C
ALL RATINGS ARE @ T
C
= 25
°C
UNLESS OTHERWISE SPECIFIED.
SYMBOL
PIV
I
O
I
FSM
MAX.
100
3.0
55
UNITS
Volts
Amps
Amps
MAXIMUM THERMAL RESISTANCE (Junction to Mounting Surface, Cathode)
MAXIMUM OPERATING AND STORAGE TEMPERATURE RANGE
ELECTRICAL CHARACTERISTICS
CHARACTERISTIC
MAXIMUM FORWARD VOLTAGE DROP, Pulsed (I
f
= 3.0 Amps)
T
J
= 25
°C
T
J
= 125
°C
MAXIMUM REVERSE CURRENT (I
r
@ 100V PIV)
T
J
= 25
°C
T
J
= 125
°C
I
r
0.07
1.6
mA
V
f
0.84
0.68
Volts
•
221 WEST INDUSTRY COURT
•
DEER PARK, NY 11729-4681
•
PHONE (631) 586-7600
•
FAX (631) 242-9798
•
•
World Wide Web - http://www.sensitron.com
•
E-mail Address - sales@sensitron.com
•
SHD116044
SHD116044B
SENSITRON
DATA SHEET 378, REV. A

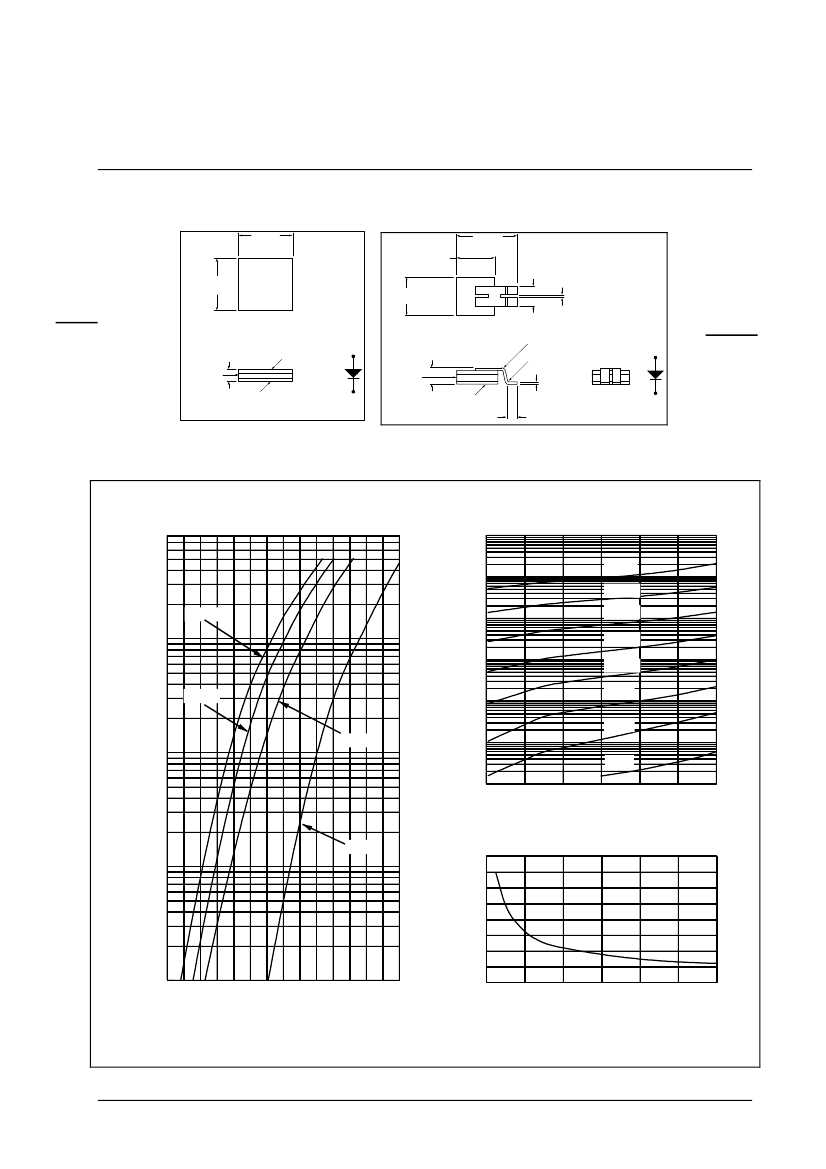

MECHANICAL DIMENSIONS: In Inches / mm
.225±.010
(5.71±.254)
.375±.020
(9.52±.508)
.225±.010
(5.71±.254)
.225±.010
(5.71±.254)
.150±.010
(3.81±.254)
.225±.010
(5.71±.254)
.015±.005
(.381±.127)
SHD-1
.075 (1.91) M ax
A lum ina R ing
M oly B ase
M oly Lid
SHD-1B
Copper Anode
.090 (2.29) Max
Alumina Ring
Moly Base
(Cathode)
.015±.002
(.381±.051)
.060±.010
(1.52±.254)
.020±.005 R
(.508±.127 )
Typical Forward Characteristics
10
1
Instantaneous Reverse Current - I
R
(mA)
Typical Reverse Characteristics
10
0
200°C
175 °C
200 °C
10
0
Instantaneous Forward Current - I
F
(A)
10
-1
150 °C
125 °C
10
-2
100 °C
75 °C
50 °C
175 °C
10
-3
10
-1
125 °C
10
-4
25 °C
10
-5
0
20
40
60
80
Reverse Voltage - V
R
(V)
100
120
Junction Capacitance - C
T
(pF)
25 °C
10
-2
Typical Junction Capacitance
90
80
70
60
50
40
30
20
10
0
20
40
60
80
Reverse Voltage - V
R
(V)
100
120
10
-3
0.1
0.2
0.3
0.4
0.5
0.6
0.7
Forward Voltage Drop - V
F
(V)
0.8
•
221 WEST INDUSTRY COURT
•
DEER PARK, NY 11729-4681
•
PHONE (631) 586-7600
•
FAX (631) 242-9798
•
•
World Wide Web - http://www.sensitron.com
•
E-mail Address - sales@sensitron.com
•
SHD116044
SHD116044B
SENSITRON
DATA SHEET 378, REV. A
DISCLAIMER:
1- The information given herein, including the specifications and dimensions, is subject to change without prior notice to improve product
characteristics. Before ordering, purchasers are advised to contact the Sensitron Semiconductor sales department for the latest version of the
datasheet(s).
2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment, medical
equipment , and safety equipment) , safety should be ensured by using semiconductor devices that feature assured safety or by means of users’
fail-safe precautions or other arrangement .
3- In no event shall Sensitron Semiconductor be liable for any damages that may result from an accident or any other cause during operation of
the user’s units according to the datasheet(s). Sensitron Semiconductor assumes no responsibility for any intellectual property claims or any
other problems that may result from applications of information, products or circuits described in the datasheets.
4- In no event shall Sensitron Semiconductor be liable for any failure in a semiconductor device or any secondary damage resulting from use at
a value exceeding the absolute maximum rating.
5- No license is granted by the datasheet(s) under any patents or other rights of any third party or Sensitron Semiconductor.
6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed written permission of Sensitron
Semiconductor.
7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their application will hinder
maintenance of international peace and safety nor are they to be applied to that purpose by their direct purchasers or any third party. When
exporting these products (technologies), the necessary procedures are to be taken in accordance with related laws and regulations.
•
