WJ850SM
Distributor: Electro-Stock www.electrostock.com Tel: 630-682-1542 Fax: 630-682-1562
FEATURES:
•
Monostable
•
Passes FCC part 68
•
Ultra low profile, 5.00mm height
•
UL/CUL certified
E197851
14.0 x 9.0 x 5.0 mm
CONTACT DATA
Contact Arrangement
Contact Rating
Contact Resistance
Contact Material
Maximum Switching Power
Maximum Switching Voltage
Maximum Switching Current
2C = DPDT bifurcated contact
1A @ 30VDC
.5A @ 125VAC
< 50 milliohms initial
AgPd stationary contact Au plated
30W
250VAC, 220VDC
1A
COIL DATA - Monostable
Coil Voltage
VDC
(Monostable)
Rated
Max.
Coil
Resistance
Ω ±
10%
Pick Up Voltage
VDC (max)
75%
of rated voltage
Release Voltage
VDC (min)
10%
of rated voltage
Coil Power
W
Operate Time
ms
Release Time
ms
3
4.5
5
6
9
12
24
3.9
5.7
6.5
7.8
11.7
15.6
31.2
64.3
145
178
257
579
1028
2880
2.25
3.38
3.75
4.50
6.75
9.00
18.00
0.3
0.45
0.5
0.6
0.9
1.2
2.4
.14
2
1
.20
CAUTION:
1. The use of any coil voltage less than the rated coil voltage may compromise the operation of the relay.
GENERAL DATA
Electrical Life @ rated load
Mechanical Life
Capacitance: Between open contacts
Between coil and contacts
Between contact poles
Insulation Resistance
Dielectric Strength: Coil to Contact
Contact to Contact
Shock Resistance
Vibration Resistance
Terminal (Copper Alloy) Strength
Operating Temperature
Storage Temperature
Solderability
Weight
200K cycles, typical
100M cycles, typical
0.4pF
0.9pF
0.2pF
100MΩ min @ 500VDC
1000V rms min. @ sea level
1000V rms min. @ sea level
500m/s
2
for 11ms
3mm double amplitude 10-40Hz
5N
-40
°C
to + 85
°C
-40
°C
to + 155
°C
230
°C ±
2
°C
for 10
±
0.5s
1.5g
WJ850SM
Distributor: Electro-Stock www.electrostock.com Tel: 630-682-1542 Fax: 630-682-1562
ORDERING INFORMATION
1. Series:
WJ850SM
2.Contact Arrangement:
2C = DPDT
3. Sealing Options:
S = Sealed
4. Operating Function:
Blank = Monostable
5. Coil Voltage:
3VDC
4.5VDC
5VDC
6VDC
9VDC
12VDC
24VDC
WJ850SM
2C
S
L1
6VDC

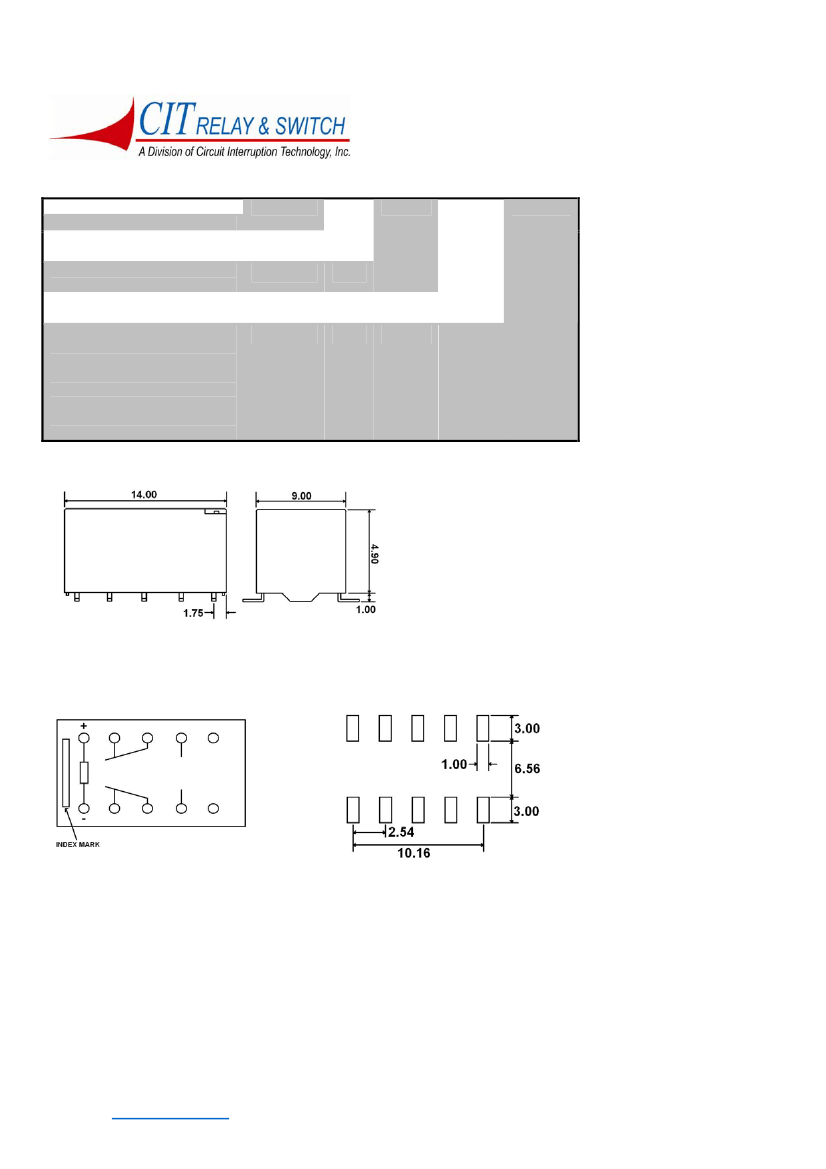

DIMENSIONS (Units = mm)
SCHEMATICS & PC LAYOUTS (BOTTOM VIEWS)
MONOSTABLE
