UL high SCCR surge protective devices
BUSSMANN
SERIES
Surge protection for UL 508A applications
Eaton’s Bussmann
TM
series UL
®
Listed
open Type 1 modular surge arresters
feature local,
easyID™
visual indication
and standard remote contact signaling.
The unique locking system fixes the
protection module to the base part.
Modules can be easily replaced without
tools by simply depressing the release
buttons.
Features and benefits
•
UL 1449 4
th
Edition Listed open
Type 1 and CSA
®
component
assembly SPD devices provide
optimum surge protection for the
United States and Canadian panel
markets.
200 kA SCCR for demanding
applications.
Modular DIN-Rail design with
module rejection feature makes it
easy to install and maintain.
•
•
Comprehensive UL Listed
open Type 1 1449 4
th
Edition
surge protection solutions for
North American applications.
Integrated mechanical keying between
the base and protection module helps
prevent against installing an incorrect
replacement module.
•
easyID
visual indication and
standard remote contact signaling
make status monitoring simple.
When properly installed, IP20
finger-safe design improves
electrical safety.
•
The need for surge protection
Today’s world is full of electronic products and devices that are
susceptible to damage from overvoltage surges.
Whether the cause is static discharge, lightning, or inductive load
switching, overvoltage surges can quickly destroy industrial and
commercial electronics such as computers and industrial controls.
Bussmann series surge protection products help provide power
quality that’s free from damaging surges.

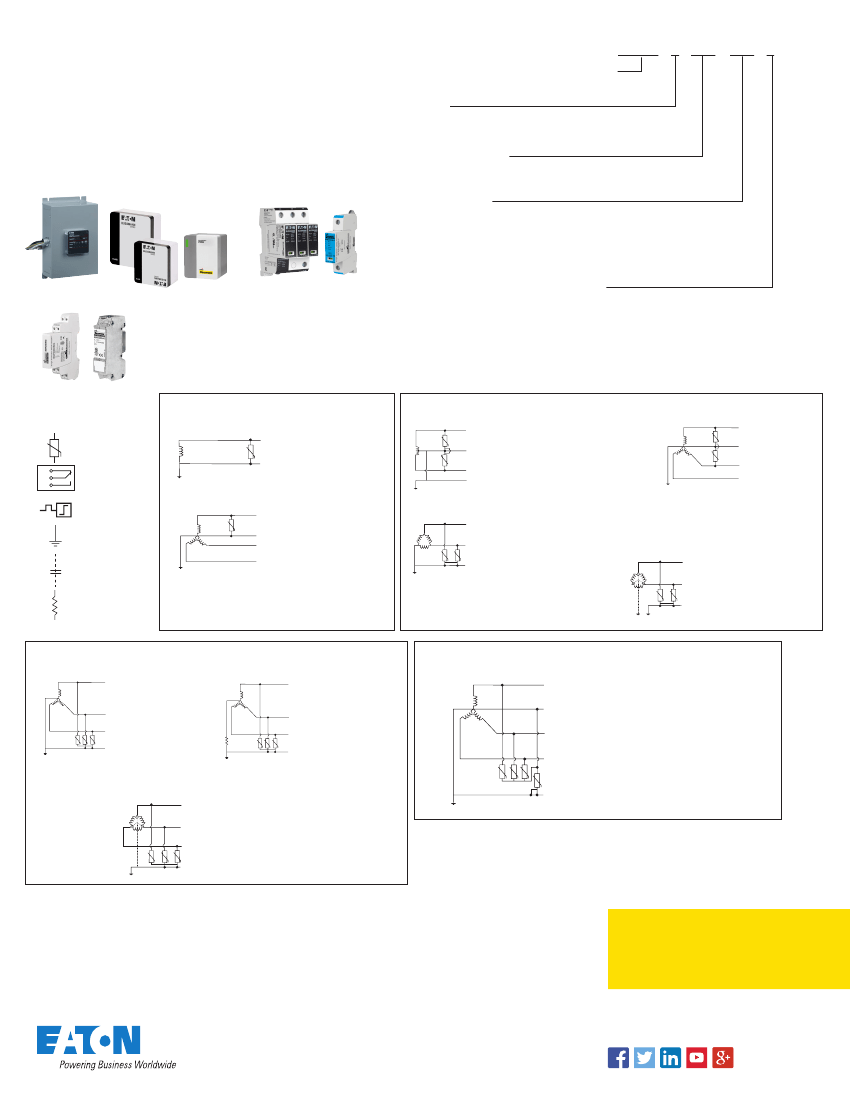

UL-SPD part number explanation*
BSPMA
BSPMA = product series/technology
M = MOV
Poles
1 = 1-pole, 1 wire, 2 = 2-pole, 2 or 3 wire
3 = 3-pole, 3 wire, 4 = 4-pole, 4 wire
System voltage
120 = 120 Vac, 208 = 208 Vac
240 = 240 Vac, 480 = 480 Vac, 600 = 600 Vac
System type
S2G = Single-phase, 2 Wire
S3G = Single-phase (Split), 3 Wire
DLG = Delta
WYG = Wye
WYNG = Wye with neutral and ground
X
XXX
XXX
R
Complete line of surge protection solutions
Power distribution
Control panel
Standard remote contact signaling
R = Remote contact signaling
*
This is not a catalog number system for configuring and ordering an SPD for a particular application.
It is an explanation of the available black label high SCCR DIN-Rail SPD catalog numbers.
Data signal
Legend
MOV Varistor
1-pole (2 wire) and single-phase
two (2) connection points
L1
2-pole (2 wire / 3 wire) three (3) connection points
L1
N
12
11
14
Optional remote
contact signaling
Thermodynamic
element
Ground
L1
L2
Capacitive
N
120, 240 Vac 2 wire systems
L1
N
L2
L3
120/240 V, 240/480 Vac
Single-phase (split) center tap
BSPMA2240S3GR, BSPMA2480S3GR
L1
N
L2
L3
L2
Gnd
L1
L2
Gnd
120/208 V, 277/480 Vac
3 wire Wye system
BSPMA2240S3GR, BSPMA2480S3GR
2 wire corner grounded delta
L1
L2
coupling
120, 277 Vac 2 wire Wye systems
Part numbers for all systems
BSPMA1120S2GR, BSPMA1240S2GR
240, 480 Vac
BSPMA2240S3GR, BSPMA2480S3GR
2 wire ungrounded delta
L3
Resistor
Gnd
3-pole (3 wire) 3-phase four (4) connection points
L1
4-pole (4 wire) 3-phase five (5) connection points
L1
L1
L2
L3
Gnd
208, 480, 600 Vac
L2
L3
Gnd
208 V, 480 V, 600 Vac
N
L2
L3
120/208 V, 127/220 V, 277/480 V
Wye 3-phase, 4 wire + ground
BSPMA4208WYNGR, BSPMA4480WYNGR
Wye 3-phase, 3 wire + ground
BSPMA3208WYGR, BSPMA3480WYGR, BSPMA3600WYGR
Gnd
L1
L2
L3
Gnd
240, 480 Vac
Delta 3-phase, 3 wire + ground
BSPM3240DLG, BSPM3480DLG
Eaton
1000 Eaton Boulevard
Cleveland, OH 44122
United States
Eaton.com
Bussmann Division
114 Old State Road
Ellisville, MO 63021
United States
Eaton.com/bussmannseries
© 2018 Eaton
All Rights Reserved
Printed in USA
Publication No. 3190
November 2018
Eaton, Bussmann and
easyID
are
valuable trademarks of Eaton in the US
and other countries. You are not permitted
to use the Eaton trademarks without prior
written consent of Eaton.
CSA is a registered trademark of the
Canadian Standards Group.
UL is a registered trademark of the
Underwriters Laboratories, Inc.
For Eaton’s Bussmann series
product information,
call
1-855-287-7626
or visit:
Eaton.com/bussmannseries
Follow us on social media to get the
latest product and support information.
