2P25U3H-38 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> 2P25U3H-38

2P25U3H-38: DescriptionCircuit Breaker Accessories Busbar, 2Phase+1/2pole, 25sqmm, PIN Type, 38 Lugs, UL/cUL listed; CategoryCircuit protection; File Size148KB，1 Pages; ManufacturerAltech; Websitehttp://www.altechcorp.com/

Download Datasheet Parametric View All

2P25U3H-38 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2P25U3H-38	-	-	View	Buy Now

2P25U3H-38 Overview

Circuit Breaker Accessories Busbar, 2Phase+1/2pole, 25sqmm, PIN Type, 38 Lugs, UL/cUL listed

2P25U3H-38 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Altech
Product Category	Circuit Breaker Accessories
RoHS	Details
Product	Busbars
Type	2 Phase Busbar
Current Rating	100 A
Number of Poles	2 Poles
Termination Style	Lug
Voltage Rating	480 V
Mounting Style	Press Fit
Factory Pack Quantity	1

Preview

Download Datasheet

View All

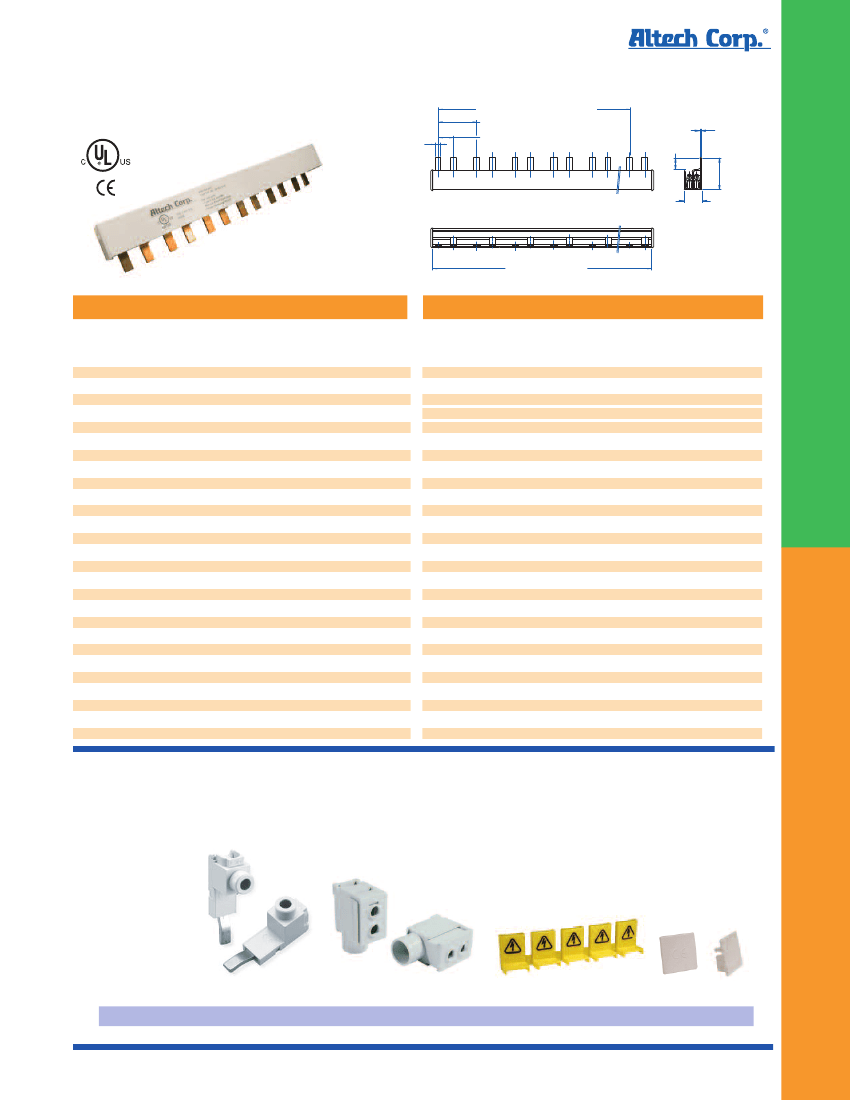

2 PHASE BUSBAR - 1/2 pole spacing

18mm

for 80A

25mm

for 100A

22 x 44.5 = 979 mm (38.54 in.)

44.5 mm (1.75 in.)

17.8 mm (0.70 in.)

13 mm (.51 in.)

21 mm

(0.83 in.)

1009 mm (39.72 in.)

18mm

for 80A

Type/

Cat. No.

2P18U3H/4

2P18U3H/6

2P18U3H/8

2P18U3H/10

2P18U3H/12

2P18U3H/14

2P18U3H/16

2P18U3H/18

2P18U3H/20

2P18U3H/22

2P18U3H/24

2P18U3H/26

2P18U3H/28

2P18U3H/30

2P18U3H/32

2P18U3H/34

2P18U3H/36

2P18U3H/38

2P18U3H/40

2P18U3H/42

2P18U3H/44

2P18U3H/46

2P18U3H/48

2P18U3H/50

2P18U3H/52

2P18U3H/54

2P18U3H/56

No. of

Pins

No. of MMC

to Jumper

2x2 pole

3x2 pole

4x2 pole

5x2 poles

6x2 pole

7x2 pole

8x2 pole

9x2 pole

10x2 pole

11x2 pole

12x2 pole

13x2 pole

14x2 pole

15x2 pole

16x2 pole

17x2 pole

18x2 pole

19x2 pole

20x2 pole

21x2 pole

22x2 pole

23x2 pole

24x2 pole

25x2 pole

26x2 pole

27x2 pole

28x1 pole

Length

[mm]

75.3

119.8

164.3

208.8

253.3

297.8

342.3

386.8

431.3

475.8

520.3

564.8

609.3

653.8

698.3

742.8

787.3

831.8

876.3

920.8

965.3

1009.8

1054.3

1098.8

1143.3

1187.8

1232.3

Type/

Cat. No.

2P25U3H/4

2P25U3H/6

2P25U3H/8

2P25U3H/10

2P25U3H/12

2P25U3H/14

2P25U3H/16

2P25U3H/18

2P25U3H/20

2P25U3H/22

2P25U3H/24

2P25U3H/26

2P25U3H/28

2P25U3H/30

2P25U3H/32

2P25U3H/34

2P25U3H/36

2P25U3H/38

2P25U3H/40

2P25U3H/42

2P25U3H/44

2P25U3H/46

2P25U3H/48

2P25U3H/50

2P25U3H/52

2P25U3H/54

2P25U3H/56

25mm

for 100A

No. of

Pins

No. of MMC

to Jumper

2x2 pole

3x2 pole

4x2 pole

5x2 pole

6x2 pole

7x2 pole

8x2 pole

9x2 pole

10x2 pole

11x2 pole

12x2 pole

13x2 pole

14x2 pole

15x2 pole

16x2 pole

17x2 pole

18x2 pole

19x2 pole

20x2 pole

21x2 pole

22x2 pole

23x2 pole

24x2 pole

25x2 pole

26x2 pole

27x2 pole

28x2 pole

Length

[mm]

75.3

119.8

164.3

208.8

253.3

297.8

342.3

386.8

431.3

475.8

520.3

564.8

609.3

653.8

698.3

742.8

787.3

831.8

876.3

920.8

965.3

1009.8

1054.3

1098.8

1143.3

1187.8

1232.3

37 mm

(1.46 in.)

UL508 listed

E205412

7 mm

(0.28 in.)

2 mm

(.079 in.)

ACCESSORIES

Type/Cat. No:

Description:

P50UT

Power Feed Lug

P50UB

Modular Direct Power Feed

BRS5

Insulation Cap

18/25CAP3P

End Cap

Altech UL508

Altech UL1077
