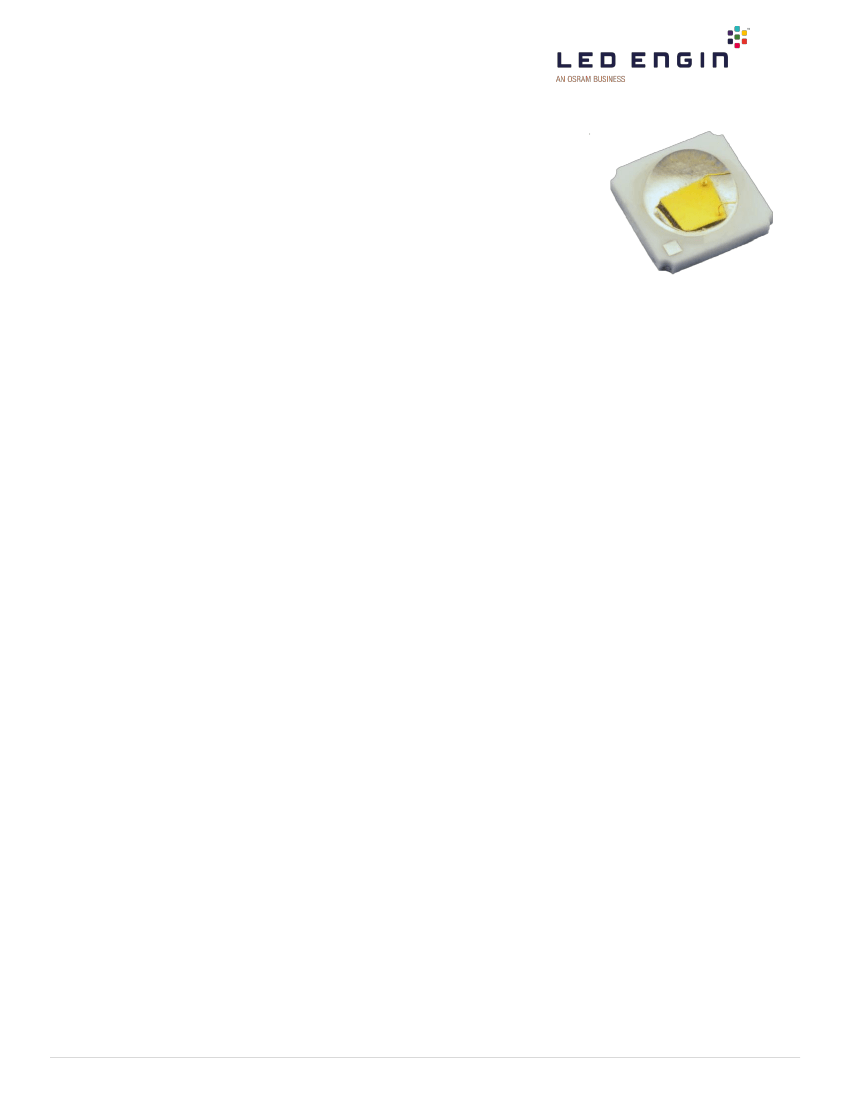

High Luminous Efficacy Cool White LED Emitter
LZ1-00CW02
Key Features
High Luminous Efficacy Cool White LED
Ultra-small foot print – 4.4mm x 4.4mm
Surface mount ceramic package with integrated glass lens
Low Thermal Resistance (6.0°C/W)
Electrically neutral thermal path
Spatial color uniformity across radiation pattern
JEDEC Level 1 standard for Moisture Sensitivity Level
Lead (Pb) free and RoHS compliant
Reflow solderable
Available on tape and reel or with MCPCB
Typical Applications
Architectural lighting
Street lighting
Display Backlighting
Flashlight and Portable lighting
Signaling
Automotive
Horticulture
Description
The LZ1-00CW02 Cool White LED emitter provides 315 lumens at 3.2W power dissipation in an extremely small
package. With a 4.4mm x 4.4mm footprint, this package provides exceptional luminous flux density. LED Engin’s
patent-pending thermally insulated phosphor layer provides a spatially uniform color across the radiation pattern
and a consistent CCT over time and temperature. The high quality materials used in the package are chosen to
optimize light output and minimize stresses which results in monumental reliability and lumen maintenance. The
robust product design thrives in outdoor applications with high ambient temperatures and high humidity.
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZ1-00CW02 (1.2 – 01/05/18)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
Part number options
Base part number
Part number
LZ1-00CW02-xxxx
LZ1-10CW02-xxxx
Description
LZ1 emitter
LZ1 emitter on Standard Star MCPCB
Bin kit option codes
CW, Cool White (5000K – 6500K)
Kit number
suffix
0055
0065
Min
flux
Bin
P
P
Chromaticity bins
2U, 2Y, 3U, 2A, 2D, 3A, 2B, 2C, 3B, 2V, 2X, 3V
1U, 1A, 1B, 1V, 1Y, 1D, 1C, 1X, 2U, 2A, 2B, 2V
Description
Flux bin P and above; full distribution
flux; 5500K bin
Flux bin P and above; full distribution
flux; 6500K bin
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
2
LZ1-00CW02 (1.2 – 01/05/18)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
Cool White Chromaticity Groups
0.40
0.38
3V
2X
3C
3B
2C
2B
3A
2D
2A
1D
2Y
2U
3U
3Y
3D
3X
0.36
1X
2V
Planckian Locus
CIEy
0.34
1V
1B
1C
0.32
1A
1U
1Y
0.30
0.28
0.28
0.30
0.32
CIEx

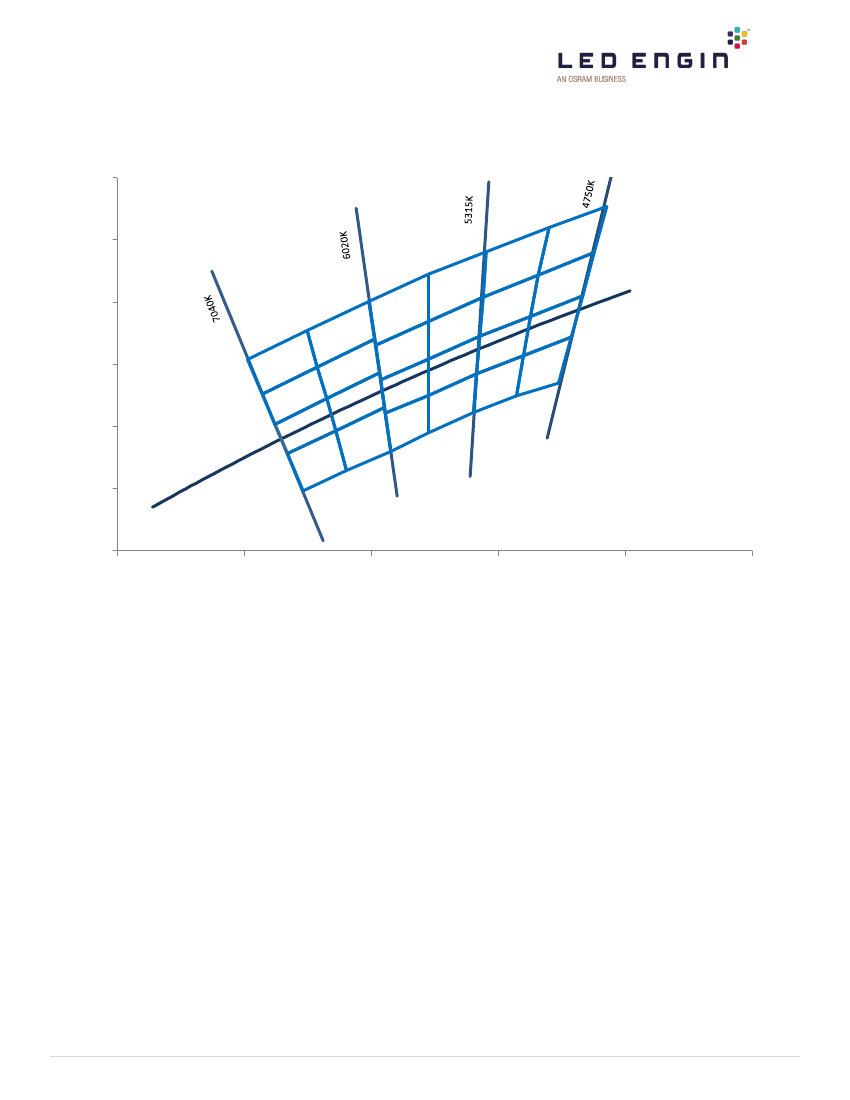

Standard Chromaticity Groups plotted on excerpt from the CIE 1931 (2°) x-y Chromaticity Diagram.
Coordinates are listed below in the table.
0.34
0.36
0.38
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
3
LZ1-00CW02 (1.2 – 01/05/18)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
Cool White Bin Coordinates
Bin code
CIEx
0.3068
0.3144
0.3161
0.3093
0.3068
0.3144
0.3221
0.3231
0.3161
0.3144
0.3222
0.329
0.329
0.3231
0.3222
0.329
0.3366
0.3361
0.329
0.329
0.3366
0.344
0.3429
0.3361
0.3366
0.344
0.3515
0.3495
0.3429
0.344
CIEy
0.3113
0.3186
0.3059
0.2993
0.3113
0.3186
0.3261
0.312
0.3059
0.3186
0.3243
0.33
0.318
0.312
0.3243
0.33
0.3369
0.3245
0.318
0.33
0.3369
0.3428
0.3299
0.3245
0.3369
0.3428
0.3487
0.3339
0.3299
0.3428
Bin code
CIEx
0.3048
0.313
0.3144
0.3068
0.3048
0.313
0.3213
0.3221
0.3144
0.313
0.3215
0.329
0.329
0.3222
0.3215
0.329
0.3371
0.3366
0.329
0.329
0.3371
0.3451
0.344
0.3366
0.3371
0.3451
0.3533
0.3515
0.344
0.3451
CIEy
0.3207
0.329
0.3186
0.3113
0.3207
0.329
0.3373
0.3261
0.3186
0.329
0.335
0.3417
0.33
0.3243
0.335
0.3417
0.349
0.3369
0.33
0.3417
0.349
0.3554
0.3427
0.3369
0.349
0.3554
0.362
0.3487
0.3427
0.3554
Bin code
CIEx
0.3028
0.3115
0.313
0.3048
0.3028
0.3115
0.3205
0.3213
0.313
0.3115
0.3207
0.329
0.329
0.3215
0.3207
0.329
0.3376
0.3371
0.329
0.329
0.3376
0.3463
0.3451
0.3371
0.3376
0.3463
0.3551
0.3533
0.3451
0.3463
CIEy
0.3304
0.3391
0.329
0.3207
0.3304
0.3391
0.3481
0.3373
0.329
0.3391
0.3462
0.3538
0.3417
0.335
0.3462
0.3538
0.3616
0.349
0.3417
0.3538
0.3616
0.3687
0.3554
0.349
0.3616
0.3687
0.376
0.362
0.3554
0.3687
Bin code
CIEx
0.3005
0.3099
0.3115
0.3028
0.3005
0.3099
0.3196
0.3205
0.3115
0.3099
0.3196
0.329
0.329
0.3207
0.3196
0.329
0.3381
0.3376
0.329
0.329
0.3381
0.348
0.3463
0.3376
0.3381
0.348
0.3571
0.3551
0.3463
0.348
CIEy
0.3415
0.3509
0.3391
0.3304
0.3415
0.3509
0.3602
0.3481
0.3391
0.3509
0.3602
0.369
0.3538
0.3462
0.3602
0.369
0.3762
0.3616
0.3538
0.369
0.3762
0.384
0.3687
0.3616
0.3762
0.384
0.3907
0.376
0.3687
0.384
1U
1A
1B
1V
1Y
1D
1C
1X
2U
2A
2B
2V
2Y
2D
2C
2X
3U
3A
3B
3V
3Y
3D
3C
3X
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
4
LZ1-00CW02 (1.2 – 01/05/18)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
Luminous Flux Bins
Table 1:
Bin
Code
P
Q
Minimum
Luminous Flux
(Φ
V
)
@ I
F
= 1000mA
[1,2]
(lm)
182
228
Maximum
Luminous Flux
(Φ
V
)
@ I
F
= 1000mA
[1,2]
(lm)
228
285
Typical
Luminous Flux
(Φ
V
)
@ I
F
= 1200mA
[2]
(lm)
229
282
Notes for Table 1:
o
1.
Luminous flux performance is measured at 10ms pulse, T
C
= 25 C. LED Engin maintains a tolerance of ± 10% on flux measurements.
Forward Voltage Bins
Table 2:
Bin
Code
0
Minimum
Forward Voltage (V
F
)
@ I
F
= 1000mA
[1]
(V)
2.8
Maximum
Forward Voltage (V
F
)
@ I
F
= 1000mA
[1]
(V)
3.8
Notes for Table 2:
o
1.
Forward voltage is measured at 10ms pulse, T
C
= 25 C. LED Engin maintains a tolerance of ± 0.04V for forward voltage measurements.
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
5
LZ1-00CW02 (1.2 – 01/05/18)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
