L36BHD

Description
Standard LEDs - Through Hole RED DIFFUSED
CategoryLED optoelectronic/LED    photoelectric
File Size362KB,6 Pages
ManufacturerKingbright
Websitehttp://www.us.kingbright.com
Environmental Compliance
Download Datasheet Parametric View All

L36BHD Online Shopping

Suppliers Part Number Price MOQ In stock
L36BHD - - View Buy Now

L36BHD Overview

Standard LEDs - Through Hole RED DIFFUSED

L36BHD Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerKingbright
package instructionROHS COMPLIANT PACKAGE-2
Reach Compliance Codeunknown
colorBRIGHT RED
ConfigurationSINGLE
Maximum forward current0.025 A
JESD-609 codee1
Lens typeDIFFUSED RED
Nominal luminous intensity2.0 mcd
Installation featuresRADIAL MOUNT
Number of functions1
Number of terminals2
Maximum operating temperature70 °C
Minimum operating temperature-40 °C
Optoelectronic device typesSINGLE COLOR LED
total height5 mm
method of packingBULK
peak wavelength700 nm
shapeROUND
size3 mm
surface mountNO
T codeT-1
Terminal surfaceTIN SILVER COPPER
Terminal pitch2.54 mm
perspective60 deg
T-1 (3mm) BLINKING LED LAMP
Part Number: L-36BHD
Bright Red
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Features
T-1 package with rectangular base.
With built-in blinking IC.
Operation voltage from 3.5V to 14V.
Blinking frequency from 3.0Hz to 1.5Hz.
RoHS compliant.
Descriptions
The Bright Red source color devices are made with Gal
lium Phosphide Red Light Emitting Diode.
Electrostatic discharge and power surge could damage
the LEDs.
It is recommended to use a wrist band or anti-
electrostatic glove when handling the LEDs.
All devices, equipments and machineries must be
electrically grounde

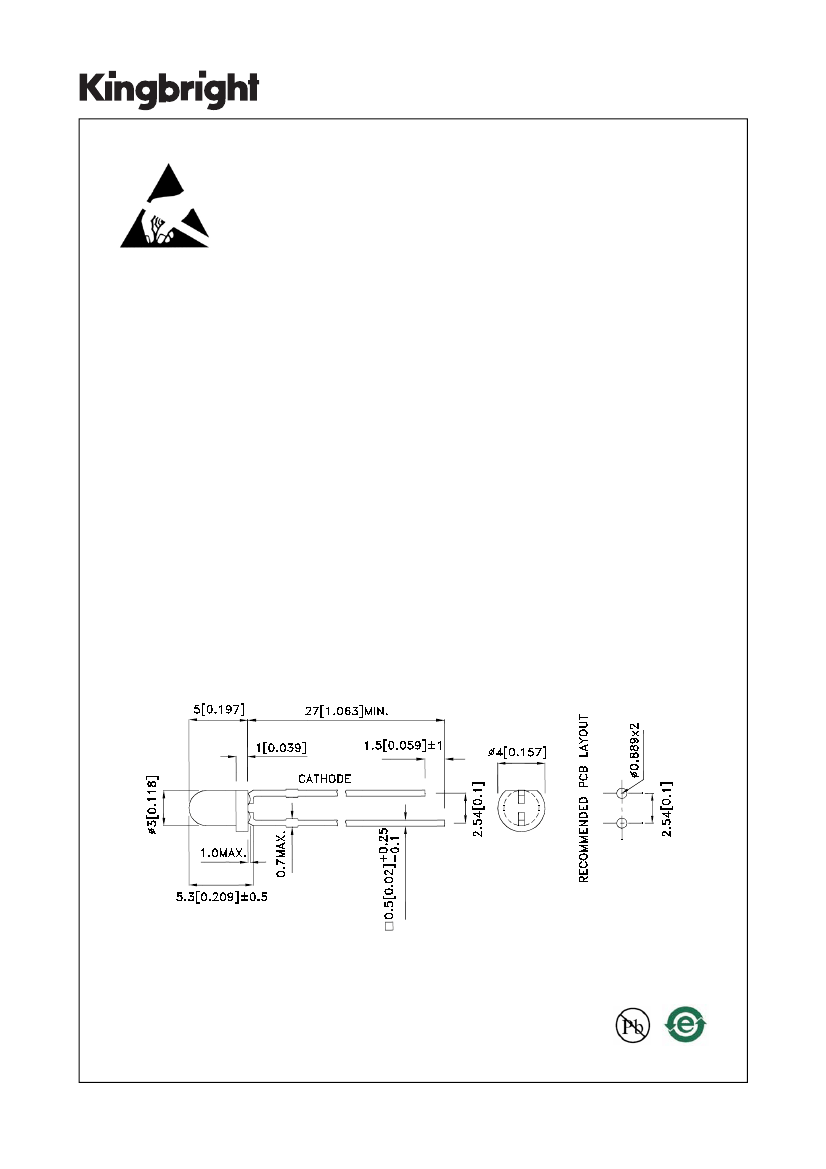

Package Dimensions
K
g
in
ig
r
b
t
h
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25(0.01") unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
SPEC NO: DSAA9012
APPROVED: WYNEC
REV NO: V.10B
CHECKED: Allen Liu
DATE: NOV/13/2014
DRAWN: Q.M.Chen
PAGE: 1 OF 6
ERP: 1101003773
