SURFACE MOUNT DISPLAY
APDA02-41MBWA
BLUE
Features
!
0.2INCH
Description
The Blue source color devices are made with GaN
on SiC Light Emitting Diode.
Static electricity and surge damage the LEDS. It is
recommended to use a wrist band or anti-
electrostatic glove when handling the LEDs.
All devices, equipment and machinery must be
electrically grounded.
DIGIT HEIGHT.
!
LOW CURRENT OPERATION.
!
EXCELLENT
CHARACTER APPEARANCE.
!
I.C. COMPATIBLE.
!
MECHANICALLY RUGGED.
!
GRAY FACE,WHITE SEGMENT.
!
PACKAGE
: 600PCS / REEL.

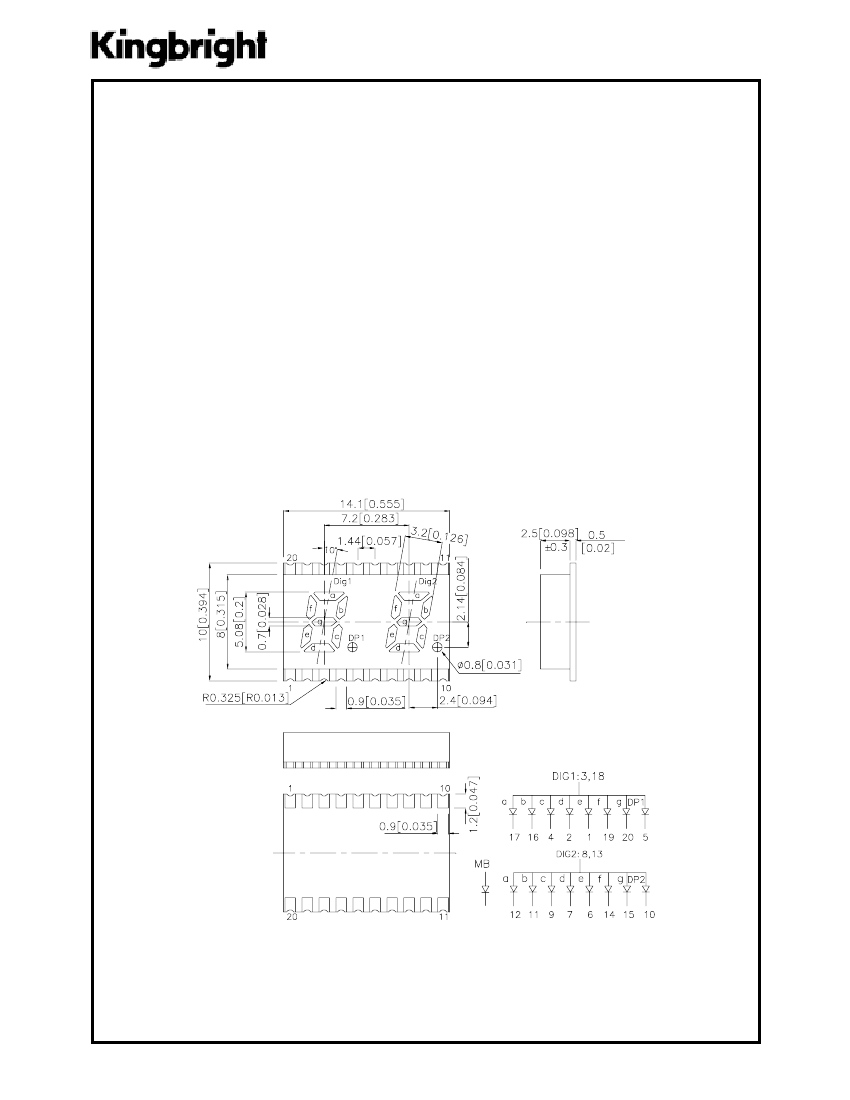

Package Dimensions& Internal Circuit Diagram
Notes:
1. All dimensions are in millimeters (inches),Tolerance is
±0.25(0.01")
unless otherwise noted.
2. Specifications are subject to change without notice.
SPEC NO:DSAB2868
APPROVED : J. Lu
REV NO: V.3
CHECKED :Joe Lee
DATE: DEC/03/2002
DRAWN: X.T.HU
PAGE: 1 OF 4
Selection Guide
P ar t N o .
Dic e
L en s Ty p e
Iv (u c d )
@ 10 m A
Min .
APDA02-41MBWA
BLUE(GaN)
WHITE DIFFUSED
800
Ty p .
3700
Common Anode,Rt. Hand
Decimal
D es c r i p t i o n
Electrical / Optical Characteristics at T
A
=25°C
°
Sy m b o l
λ
p e a k
λ
D
∆λ
1/2
C
V
F
I
R
P ar am et er
Peak Wavelength
Dominate Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Blue
Blue
Blue
Blue
Blue
Blue
D ev i c e
Ty p .
430
466
60
100
3.8
4.5
10
Max .
Un its
nm
nm
nm
pF
V
uA
Tes t Co n d it io n s
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Absolute Maximum Ratings at T
A
=25°C
°
P ar am et er
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating / Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
B lu e
105
30
150
5
-40
°
C To +85
°C
Un its
mW
mA
mA
V
SPEC NO:DSAB2868
APPROVED : J. Lu
REV NO: V.3
CHECKED :Joe Lee
DATE: DEC/03/2002
DRAWN: X.T.HU
PAGE: 2 OF 4

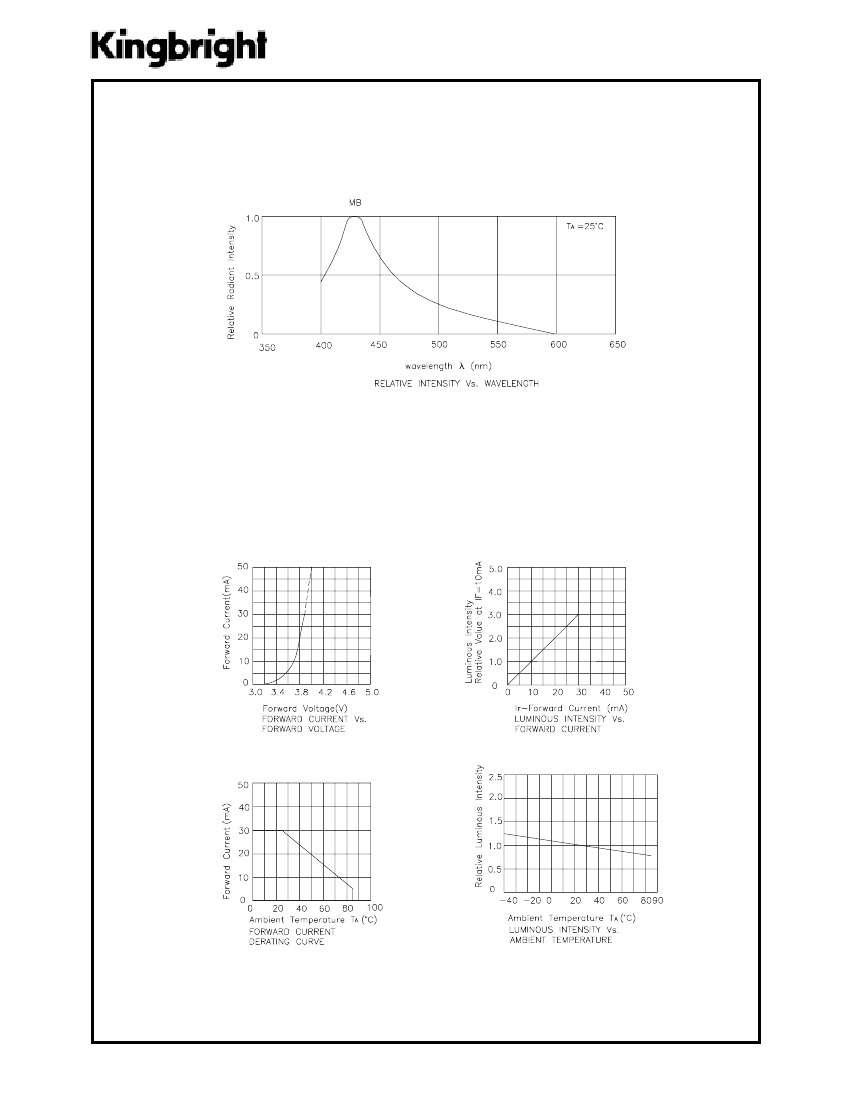

APDA02-41MBWA

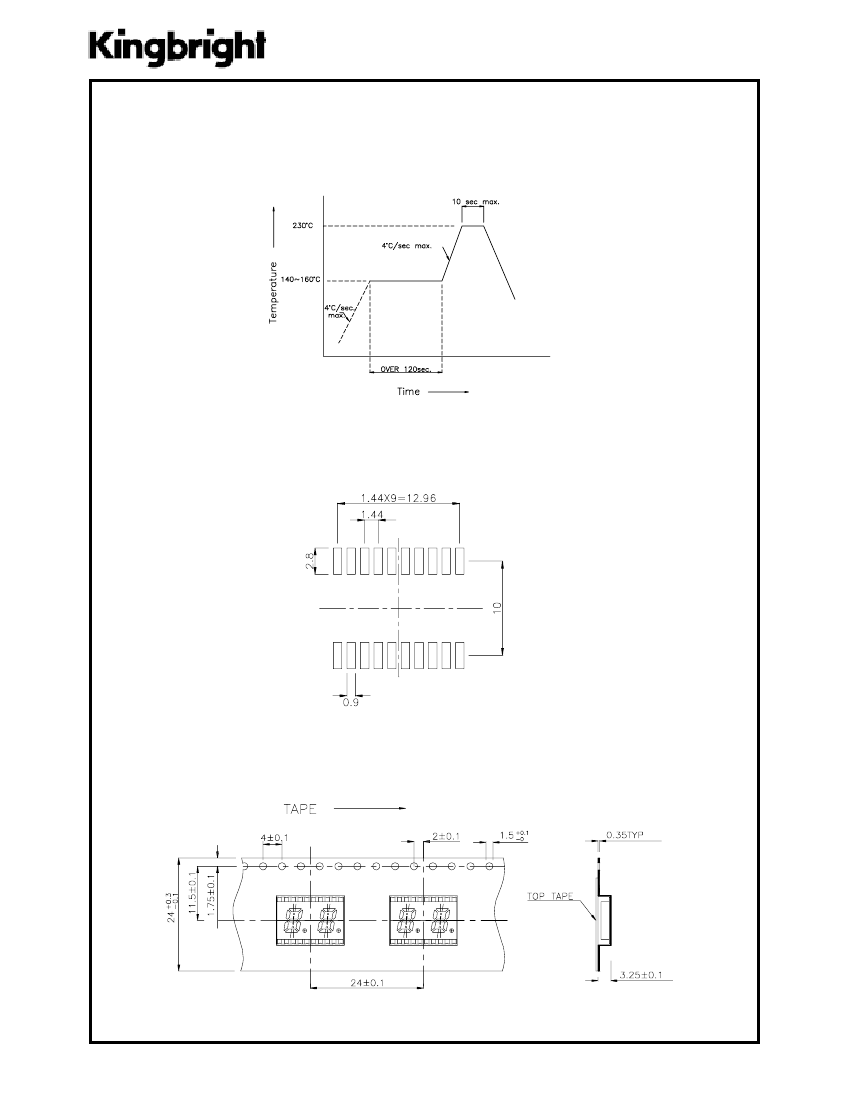

SMT Reflow Soldering Instruction
Number of reflow process shall be less than 2 times and cooling
process to normal temperature is required between first and
second soldering process.
Recommended Soldering Pattern
(Units : mm)
Tape Specification
(Units : mm)
SPEC NO:DSAB2868
APPROVED : J. Lu
REV NO: V.3
CHECKED :Joe Lee
DATE: DEC/03/2002
DRAWN: X.T.HU
PAGE: 4 OF 4
