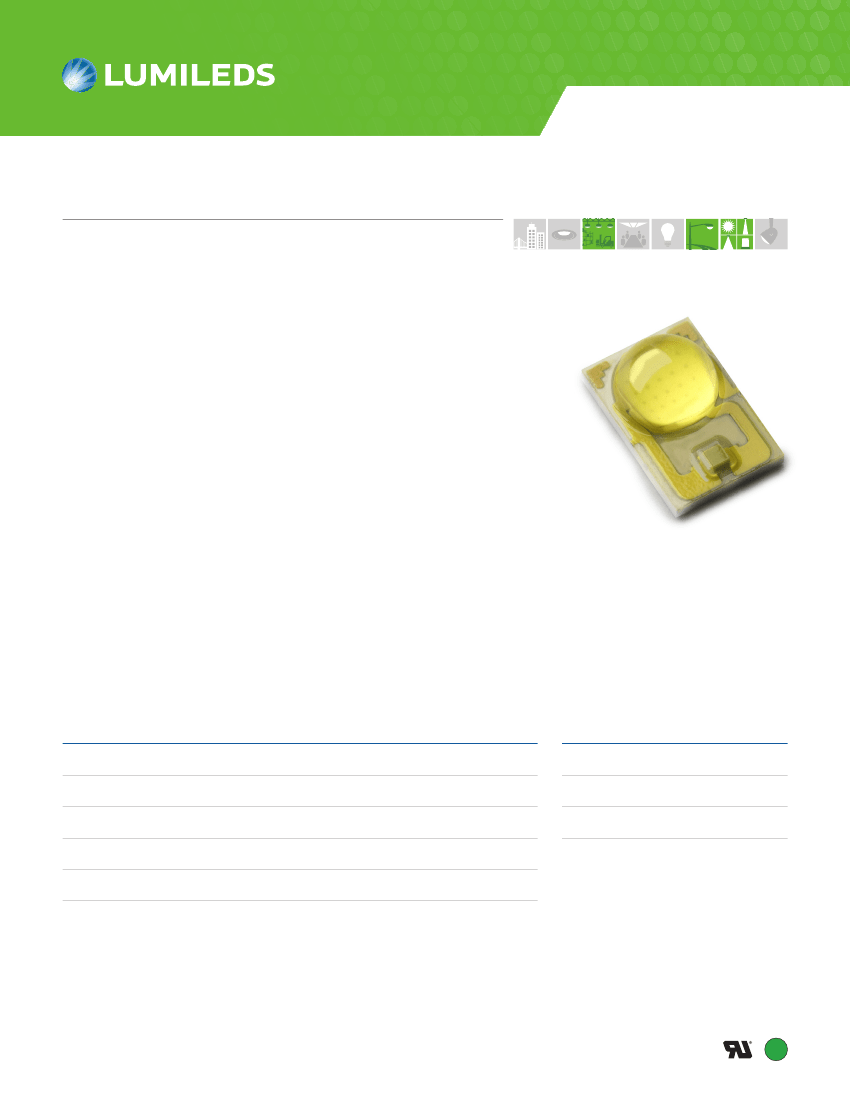

LUXEON Rebel ES
High value and easy design-in
LUXEON Rebel ES is a high flux LED that gives you the flexibility you
need to design luminaires and lamps for outdoor and industrial lighting
applications and bring them to market. Tested and binned at 700mA,
confidently design LUXEON Rebel ES into high lumen applications or
create more energy efficient devices using the same emitter. Luminaire
manufacturers and designers count on LUXEON Rebel ES for quality,
reliability and in-device performance.
FEATURES AND BENEFITS
High lm/$ for cost competitive applications
Broad portfolio of emitters for indoor and outdoor applications
CCT and CRI combinations to support a wide range of applications
Extensive applications ecosystem for easy design-in and quick ROI
LM-80 test report available
PRIMARY APPLICATIONS
High Bay & Low Bay
Outdoor
Specialty Lighting
COMPLIANT
RoHS
DS061 LUXEON Rebel ES Product Datasheet ©2016 Lumileds Holding B.V. All rights reserved.
Table of Contents
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Product Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Average Lumen Maintenance Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Environmental Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Product Selection Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Optical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
JEDEC Moisture Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Reflow Soldering Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Mechanical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Pad Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Solder Pad Design. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Relative Spectral Distribution vs. Wavelength Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Typical Light Output Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Typical Forward Current Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Typical Luminous Efficacy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Current Derating Curves. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Typical Radiation Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Emitter Pocket Tape Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Emitter Reel Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Product Binning and Labeling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Luminous Flux Bins. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
LUXEON Rebel ES ANSI 1/4th Quadrant Bin Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Forward Voltage Bins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
DS061 LUXEON Rebel ES Product Datasheet 20160628 ©2016 Lumileds Holding B.V. All rights reserved.
i
General Information
Product Nomenclature
LUXEON Rebel ES is tested and binned at 700mA, with current pulse duration of 20 ms. All characteristic charts
where the thermal pad is kept at constant temperature (25°C typically) are measured with current pulse duration of
20 ms. Under these conditions, junction temperature and thermal pad temperature are the same.
The LUXEON Rebel ES family of emitters contain a series of LEDs designed for Illumination applications.
The part number designation for the LXML series is explained as follows:
LXML-ABCD
Where:
A — designates radiation pattern (value P for Lambertian)
B — designates color (W for White)
C — designates color variant (C for Cool-White, N for Neutral-White)
D — designates test current (value 2 for 700mA)
The part number designation for the LXH7 series is explained as follows:
LXHA-BCDE
Where:
A — designates minimum CRI performance (value 7 = 70 minimum)
B — designates radiation pattern (value P for Lambertian)
C — designates color (value W = White)
D & E — designates nominal ANSI CCT (value 40 = 4000K))
Therefore products tested and binned at 700mA follow the part numbering scheme:
L X M L - P W x 2 and L X H 7 - P W x x
DS061 LUXEON Rebel ES Product Datasheet 20160628 ©2016 Lumileds Holding B.V. All rights reserved.
2
Average Lumen Maintenance Characteristics
Lumen maintenance for solid state lighting devices (LEDs) is typically defined in terms of the percentage of initial
light output remaining after a specified period of time. Lumileds projects that LUXEON Rebel ES products will
deliver, on average, 70% lumen maintenance (L70) at 50,000 hours of operation at a forward current of 1000mA.
This projection is based on constant current operation with junction temperature maintained at or below 135°C. This
performance is based on independent test data, Lumileds historical data from tests run on similar material systems,
and internal LUXEON reliability testing. Observation of design limits included in this data sheet is required in order to
achieve this projected lumen maintenance.
Environmental Compliance
Lumileds LLC is committed to providing environmentally friendly products to the solid-state lighting market. LUXEON
Rebel ES is compliant to the European Union directives on the restriction of hazardous substances in electronic
equipment, namely the RoHS Directive 2011/65/EU and REACH Regulation (EC) 1907/2006. Lumileds LLC will not
intentionally add the following restricted materials to its products: lead, mercury, cadmium, hexavalent chromium,
polybrominated biphenyls (PBB) or polybrominated diphenyl ethers (PBDE).
DS061 LUXEON Rebel ES Product Datasheet 20160628 ©2016 Lumileds Holding B.V. All rights reserved.
3
Product Selection Guide for LUXEON Rebel ES
Thermal Pad Temperature = 25°C
Table 1.
Performance at Test Current (700mA)
Nominal
CCT/Color
4100K Neutral White
5650K Cool White
4000K
Part
Number
LXML-PWN2
LXML-PWC2
LXH7-PW40
Minimum
CRI
60
60
70
Typical
CRI
65
70
75
Min Luminous
Flux (lm)
[1]
200
200
180
Note for Table 1:
1. Minimum luminous flux performance within published operating conditions. Lumileds maintains a tolerance of ± 6.5% on luminous flux measurements and ± 2 on
CRI measurements..
Typical Luminous Flux Characteristics at 350mA, 700mA and 1000mA for
LUXEON Rebel ES, Thermal Pad Temperature = 25°C
Table 2.
Nominal
CCT/Color
4100K Neutral White
5650K Cool White
4000K
Part
Number
LXML-PWN2
LXML-PWC2
LXH7-PW40
Typical Luminous Flux (lm)
@ 350mA Forward Current
[1]
130
135
114
Typical Luminous Flux (lm)
@ 700mA Forward Current
[1]
230
235
205
Typical Luminous Flux (lm)
@ 1000mA Forward Current
[1]
310
320
279
Note for Table 2:
1. Typical luminous flux performance within published operating conditions. Lumileds maintains a tolerance of ± 6.5% on luminous flux measurments.
Optical Characteristics for LUXEON Rebel ES at Test Current
[1]
Thermal Pad Temperature = 25°C
Table 3.
Part Number
LXML-PWN2
LXML-PWC2
LXH7-PW40
Nominal
CCT
4100K Neutral White
5650K Cool White
4000K
Color Temperature CCT
Minimum
3500K
4500K
3710K
Typical
4100K
5650K
3985K
Maximum
4500K
10000K
4260K
Typ Total
Included Angle
[2]
u
0.90V
160°
160°
160°
Typ Viewing
Angle
[3]
2u 1/2
120°
120°
120°
Notes for Table 3:
1. Test current is 700mA for all LXML-PWx2 and LXH7-PWxx emitters.
2. Total angle at which 90% of total luminous flux is captured.
3. Viewing angle is the off axis angle from lamp centerline where the luminous intensity is 1/2 of the peak value.
DS061 LUXEON Rebel ES Product Datasheet 20160628 ©2016 Lumileds Holding B.V. All rights reserved.
4
