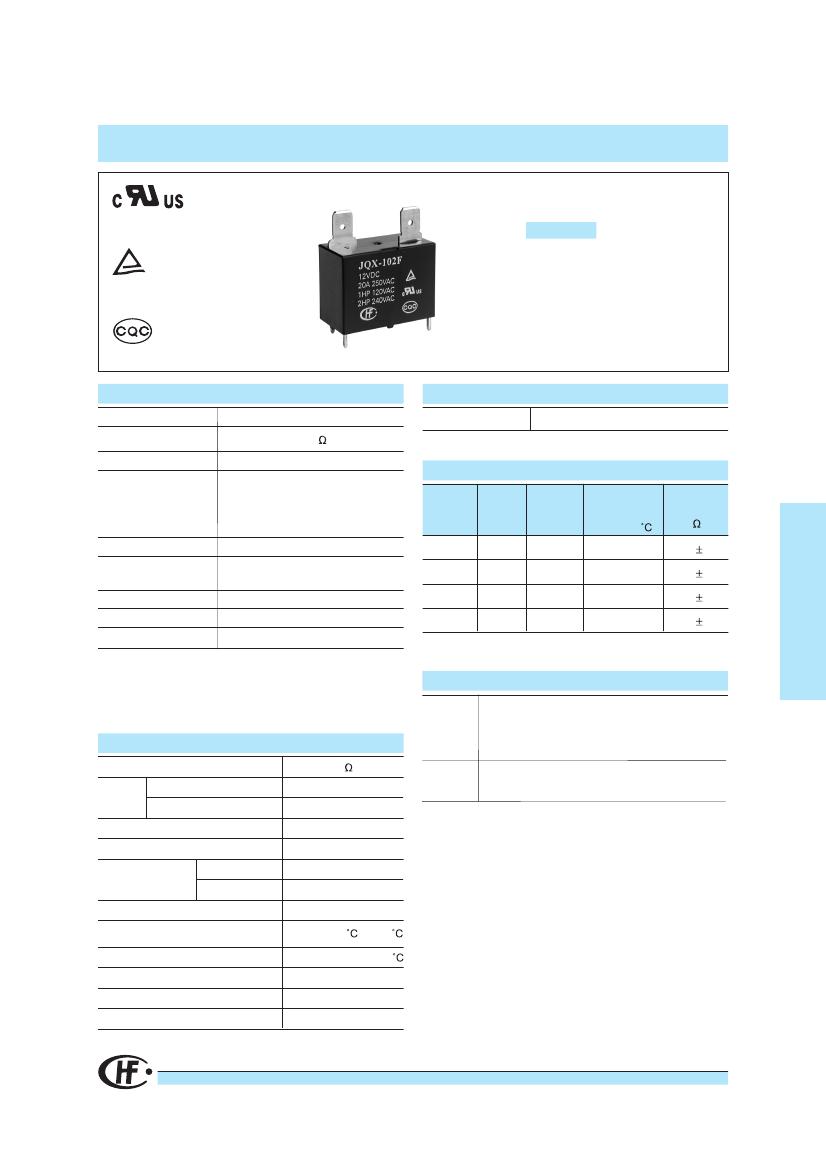

JQX-102F
MINIATURE HIGH POWER RELAY
File No.:E134517
Features
*
4.5KV dielectric coil to contact
*
Heavy load up to 5000VA
File No.:R9933807
*
Ideal for motor switching
*
Withstand inrush currentof 80 A
File No.:CQC02001001955
CONTACT DATA
Contact Arrangement
Initial Contact
Resistance
Contact Material
1A
30m (at 1A 24VDC)
Silver Alloy
COIL
Coil power
DC:0.9W
COIL DATA
Rated Load: 20A
Inrush: 80A,0.3s(cosø=0.7)
Break: 20A(cosø=0.9)
250VAC
Rated Load:20A
Motor Load:80A
5000VA
2 x 10
6
OPS
1 x 10
OPS
5
Contact Rating
Max. switching voltage
Max. switching current
Max. switching power
Mechanical life
Electrical life
Nominal
Voltage
VDC
5
12
24
48
Pick-up
Voltage
VDC
3.5
8.4
16.8
33.6
Drop-out
Voltage
VDC
0.5
1.2
2.4
4.8
Max.
allowable
Voltage
VDC(at 20 )
120%
120%
120%
120%
Coil
Resistance
General Purpose Power Relays JQX-102F
27.8
160
640
2560
10%
10%
10%
10%
SAFETY APPROVAL RATINGS
20A 250VAC
UL
1HP 120VAC
2HP 240VAC
1000M , 500VDC
4500VAC 1min.
1000VAC 1min.
Max. 20ms
Max. 10ms
196 m/s
2
980 m/s
2
DA: 1.5mm, 10 to 55Hz
-25
to +70
T
ü
V
20A 250VAC
CHARACTERISTICS
Initial Insulation Resistance
Dielectric Between coil and Contacts
Strength Between open contacts
Operate time (at nomi. Volt.)
Release time (at nomi. Volt.)
Shock Resistance
Vibration Resistance
Ambient temperature
Humidity
Termination
Unit weight
Construction
Functional
Destructive
85%, +40
PCB & QC
Approx. 23g
Dust Cover
HONGFA RELAY
ISO9001*ISO/TS16949
*ISO14001
CERTIFIED
VERSION: EN02-20040601
149
ORDERING INFORMATION
JQX-102F /
Type
Termination
P:
PCB
Nil:
PCB & QC
T:
AgSnO
2
5, 12, 24, 48VDC
Nil:
AgCdO
P
T
012
Contact matcrial
Coil voltage
OUTLINE DIMENSIONS, WIRING DIAGRAM AND PC BOARD LAYOUT
Outline Dimensions
PCB layout
JQX-102F
30.5max.
3.4
6.35
0.81
JQX-102F-P
4-1.8
+0.1
0
6.25
+0.1
-0.1
30.5max.
50
AC resistive load
250VAC
INDUCTIVE LOAD
(cosØ=0.4)
Operations (X10000 OPS)
Contact Current (A)
General Purpose Power Relays JQX-102F
8
2
23.5max.
26.5max.
23.3
12
+0.05
-0.05
3.5
0.3
1.5
22
+0.1
-0.1
27.6
+0.1
-0.1
5.75
+0.1
-0.1
1.5
0.81
3.5
0.3
1.5
1.5
0.81
16max.
3
9.4
4
16max.
Wiring Diagram
4
1
N.O
COM.
3
2
CHARACTERISTICS CURVE
MAXIMUM SWITCHING POWER
100
500
LIFE CURVE
100
10
5
50
1
0.5
250VAC
resistive load
250VAC
INDUCTIVE LOAD
(cosØ=0.4)
10
0.1
0
2
4
6
8
10 12
14 16 18 20 22
Contact Voltage (V)
Contact Current (A)
150
