KA9259EDTF Overview

5-Channel Motor Driver

KA9259EDTF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Fairchild
Parts packaging code	SOIC
package instruction	HSSOP,
Contacts	28
Reach Compliance Code	compli
Drive type	OPTICAL
Interface integrated circuit type	CD MOTOR DRIVER
JESD-30 code	R-PDSO-G28
length	18.4 mm
Number of functions	1
Number of terminals	28
Maximum operating temperature	75 °C
Minimum operating temperature	-25 °C
Package body material	PLASTIC/EPOXY
encapsulated code	HSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	2.5 mm
Maximum supply voltage	13.2 V
Minimum supply voltage	6 V
Nominal supply voltage	8 V
surface mount	YES
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.5 mm

Preview

Download Datasheet

View All

www.fairchildsemi.com

KA9259D

5-Channel Motor Driver

Features

•

1-phase, full-wave, linear DC motor driver

Built-in TSD (Thermal shutdown) circuit

Built-in 5V regulator (With an external PNP Transistor)

Built-in mute circuit

Built-in loading motor speed control circuit

Wide operating supply voltage range: 6V~13.2V

Description

The KA9259D is a monolithic integrated circuit, suitable for

5-ch motor driver which drives focus actuator, tracking actu-

ator, sled motor, spindle motor and loading motor of CD sys-

tem.

28-SSOPH-375

Typical Applications

•

Compact disk player (CDP)

Video compact disk player (VCD)

Automotive compact disk player (CDP)

Other compact disk media

Ordering Information

Device

KA9259CD

KA9259ED

Package

28-SSOPH-375

Operating Temp.

−25°C

~ +75°C

−25°C

~ +75°C

−25°C

~ +75°C

−25°C

~ +75°C

KA9259CDTF 28-SSOPH-375

KA9259EDTF 28-SSOPH-375

Rev. 1.0.1

February. 2000.

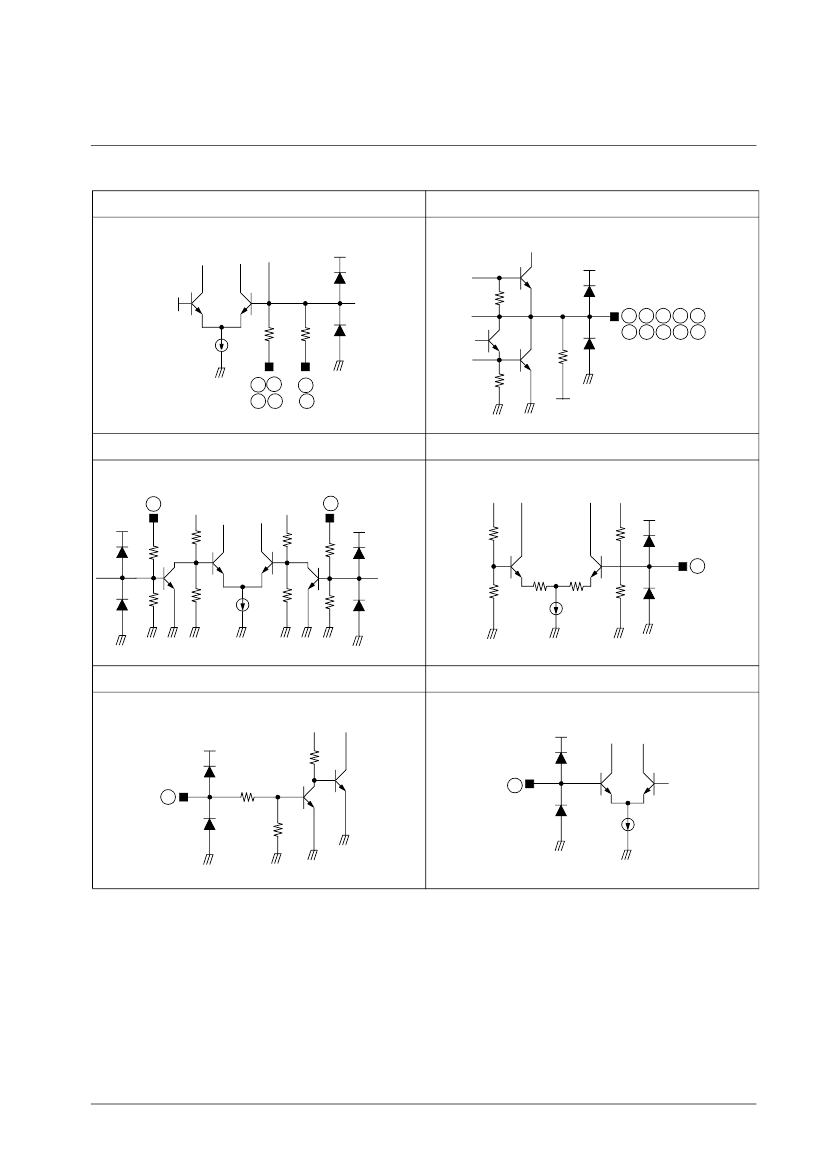

KA9259EDTF Related Products

	KA9259EDTF	KA9259CDTF	KA9259ED	KA9259CD
Description	5-Channel Motor Driver	5-Channel Motor Driver	5-Channel Motor Driver	5-Channel Motor Driver
Is it Rohs certified?	conform to	incompatible	conform to	incompatible
Parts packaging code	SOIC	SSOP	SOIC	SSOP
package instruction	HSSOP,	HSSOP,	HSSOP,	HSSOP,
Contacts	28	28	28	28
Reach Compliance Code	compli	unknow	compli	unknow
Interface integrated circuit type	CD MOTOR DRIVER	CD MOTOR DRIVER	CD MOTOR DRIVER	CD MOTOR DRIVER
JESD-30 code	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28
length	18.4 mm	18.4 mm	18.4 mm	18.4 mm
Number of functions	1	1	1	1
Number of terminals	28	28	28	28
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	HSSOP	HSSOP	HSSOP	HSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.5 mm	2.5 mm	2.5 mm	2.5 mm
surface mount	YES	YES	YES	YES
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.5 mm	7.5 mm	7.5 mm	7.5 mm
