AN5850 datasheet, PDF - EEWORLD Datasheet

AN5850: DescriptionAN5850 TV Signal Switching Circuit; CategoryOther integrated circuit (IC) Consumption circuit; File Size176KB，4 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric View All

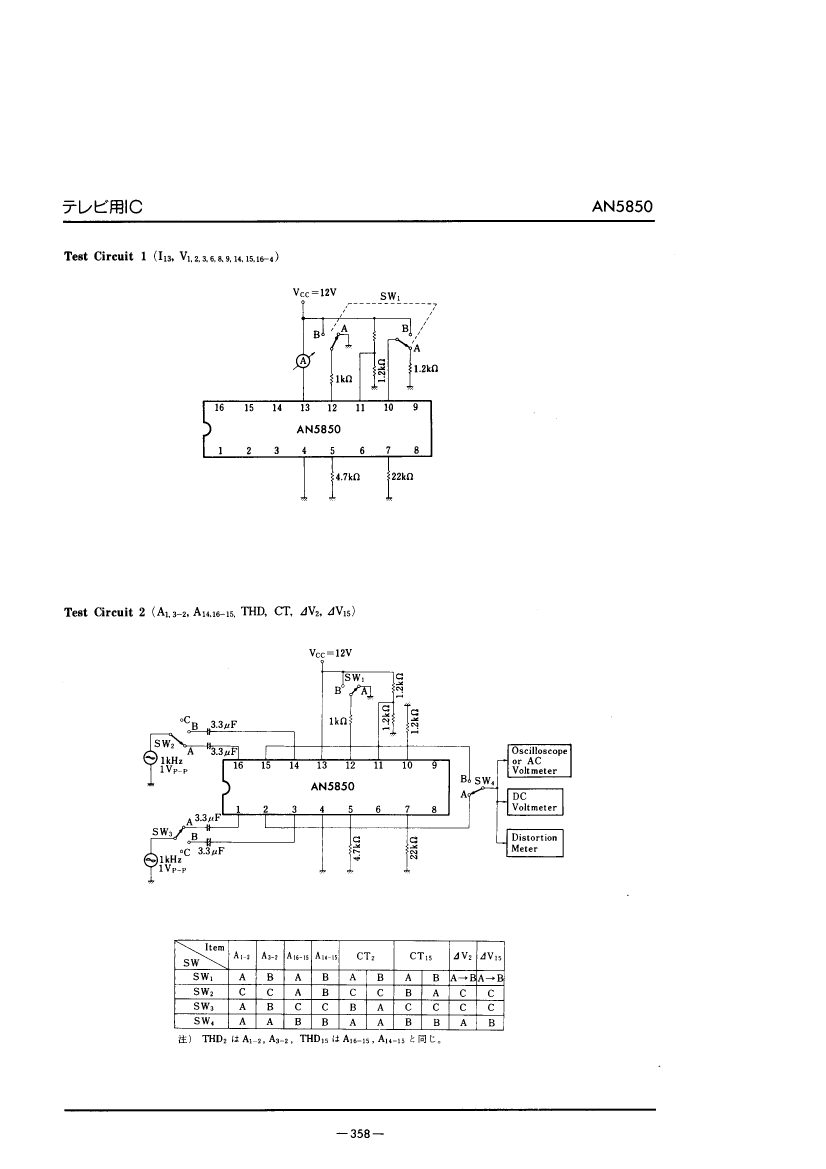

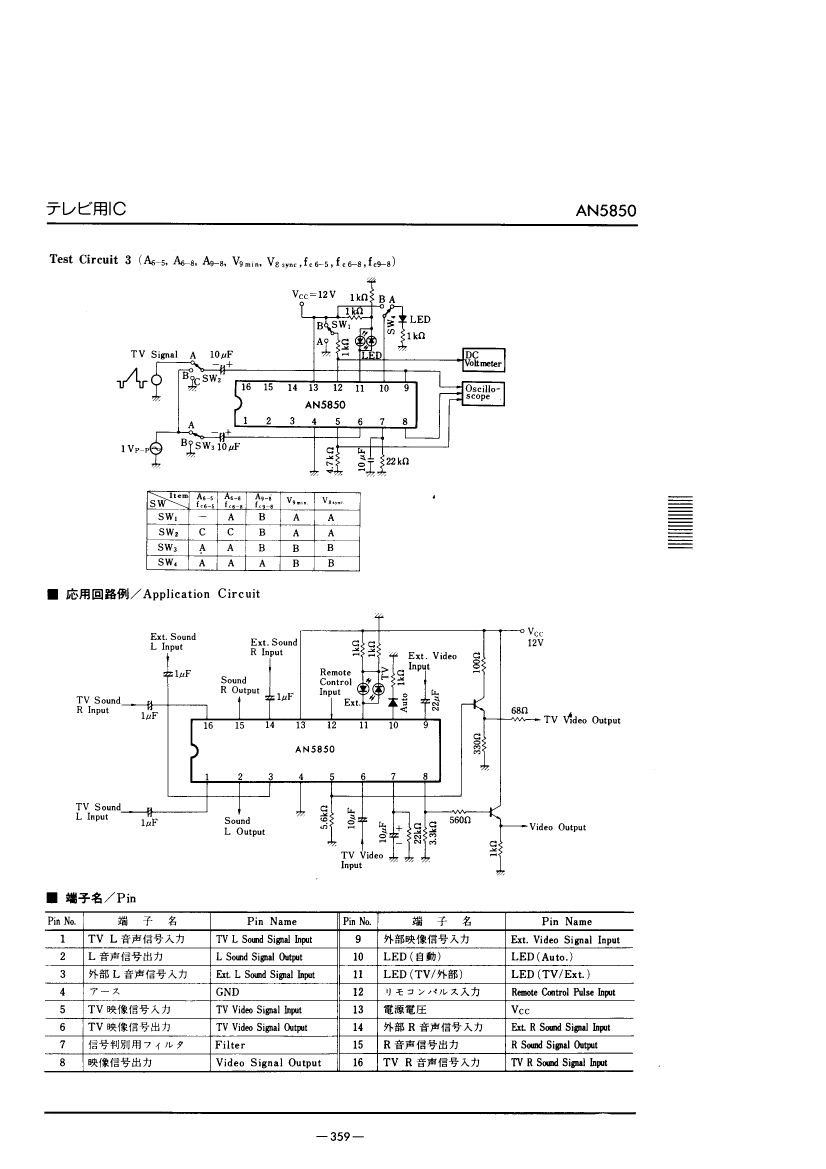

AN5850 Overview

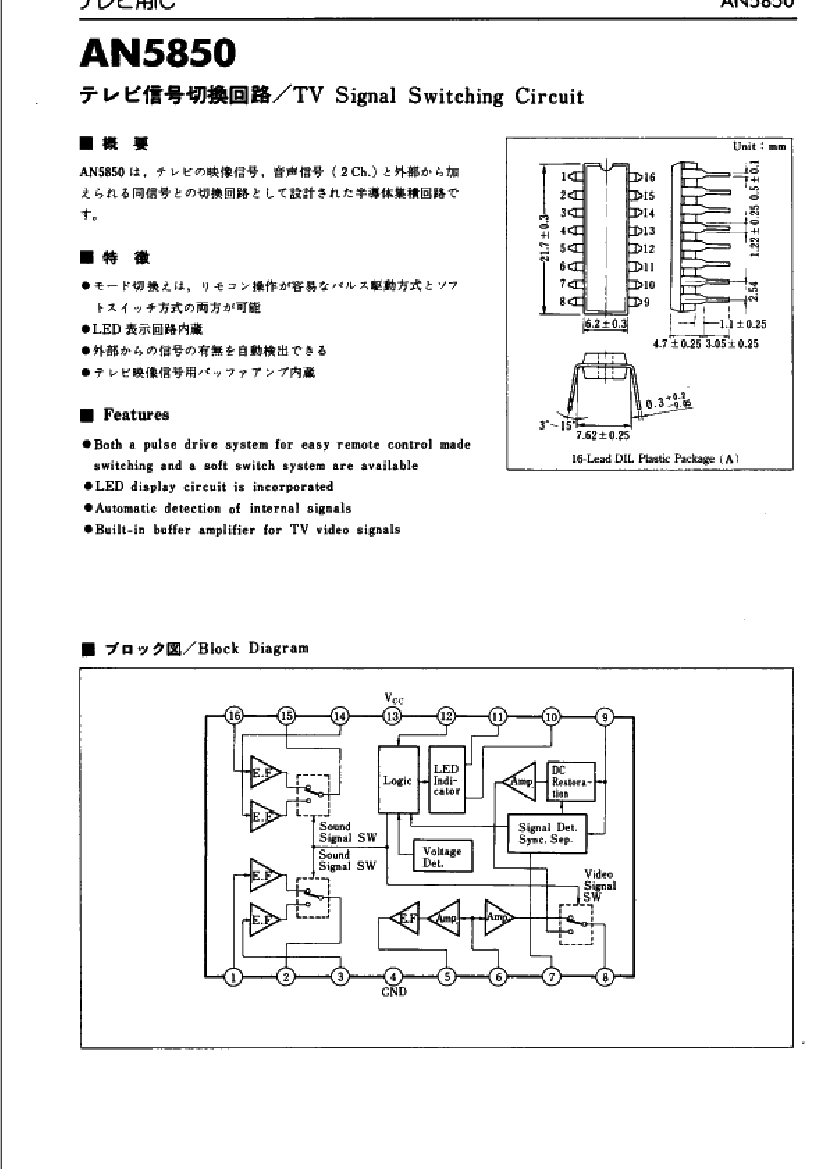

AN5850 TV Signal Switching Circuit

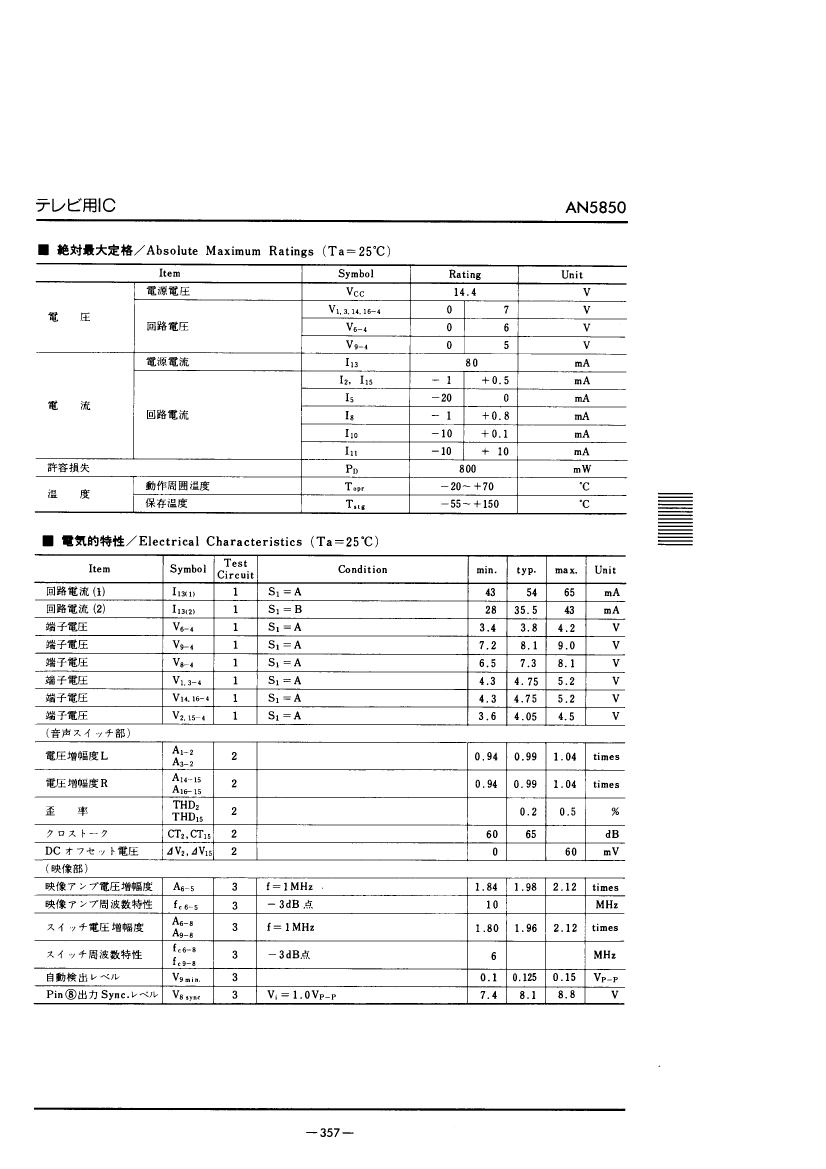

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknow
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
length	21.7 mm
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	12 V
Certification status	Not Qualified
Maximum seat height	4.95 mm
Maximum slew rate	65 mA
surface mount	NO
technology	BIPOLAR
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1
