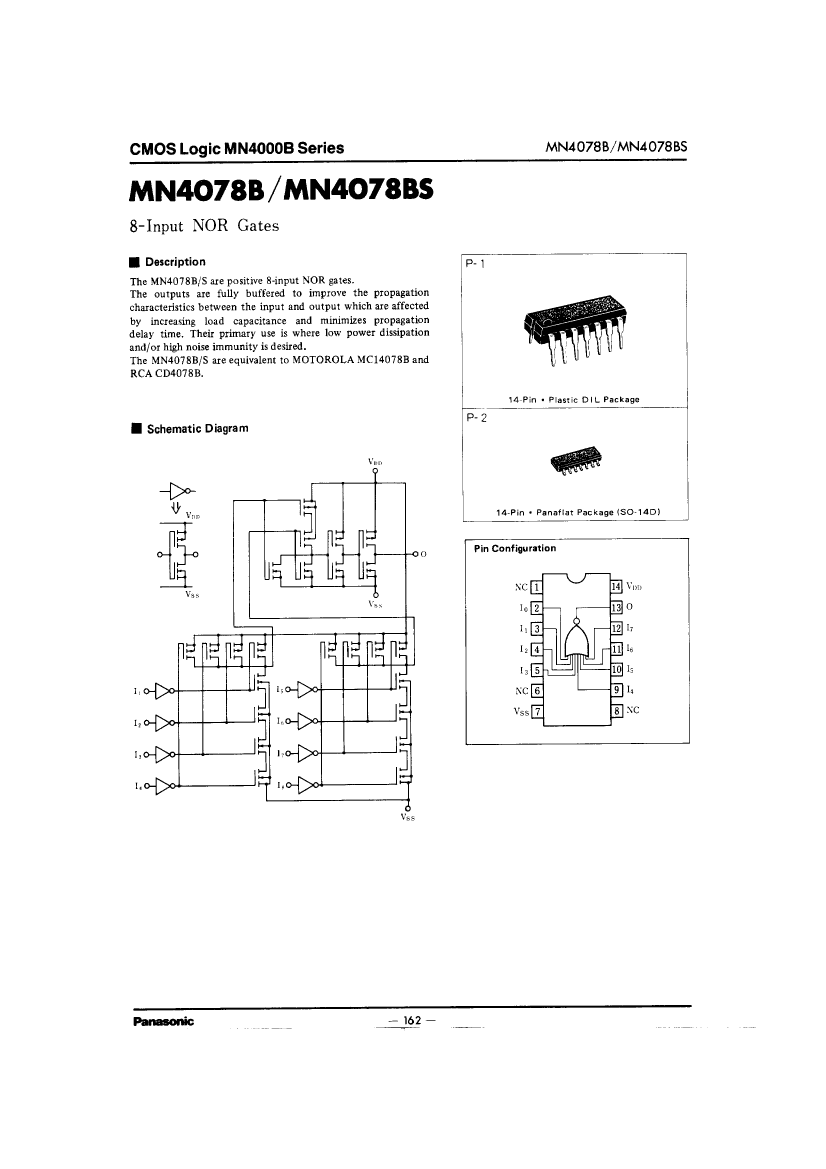

MN4078BS datasheet, PDF - EEWORLD Datasheet

MN4078BS: Description8-INPUT NOR GATES; Categorylogic logic; File Size130KB，3 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

MN4078BS Overview

8-INPUT NOR GATES

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	SOP, SOP14,.25
Contacts	14
Reach Compliance Code	unknow
series	4000/14000/40000
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
Logic integrated circuit type	NOR GATE
Number of functions	1
Number of entries	8
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5/15 V

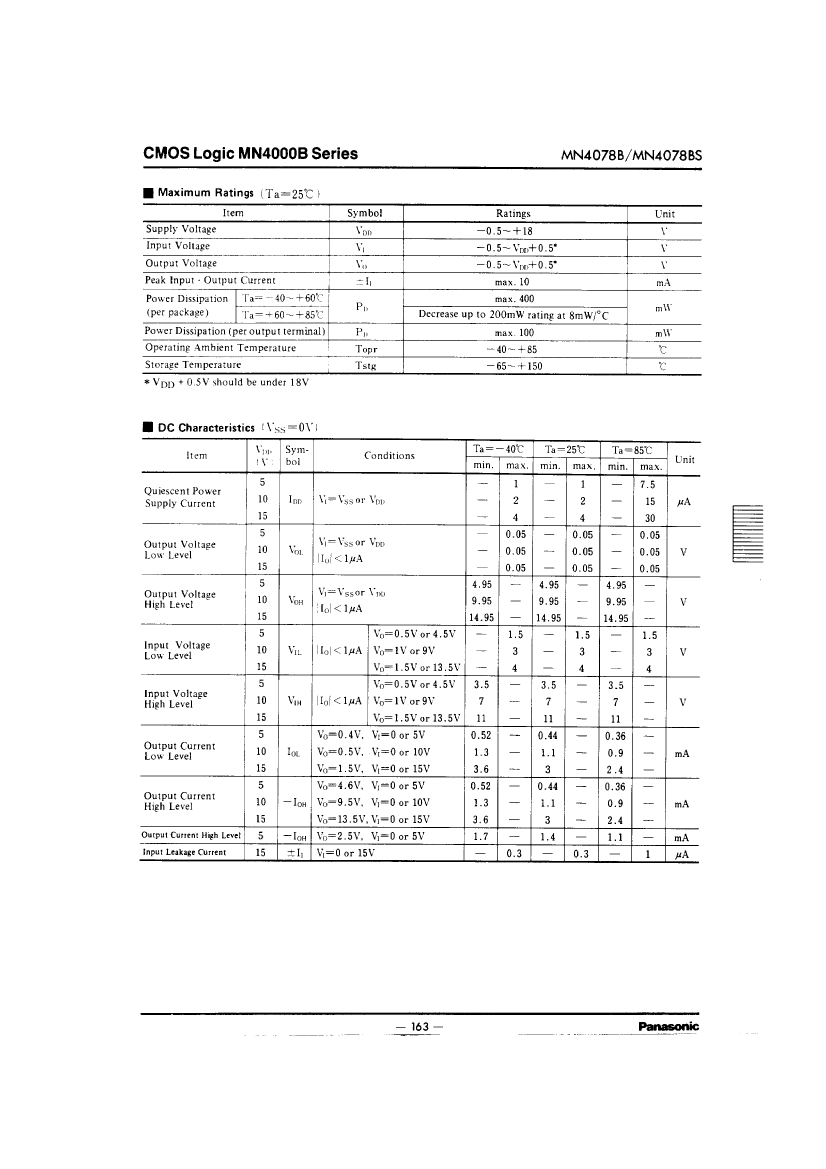

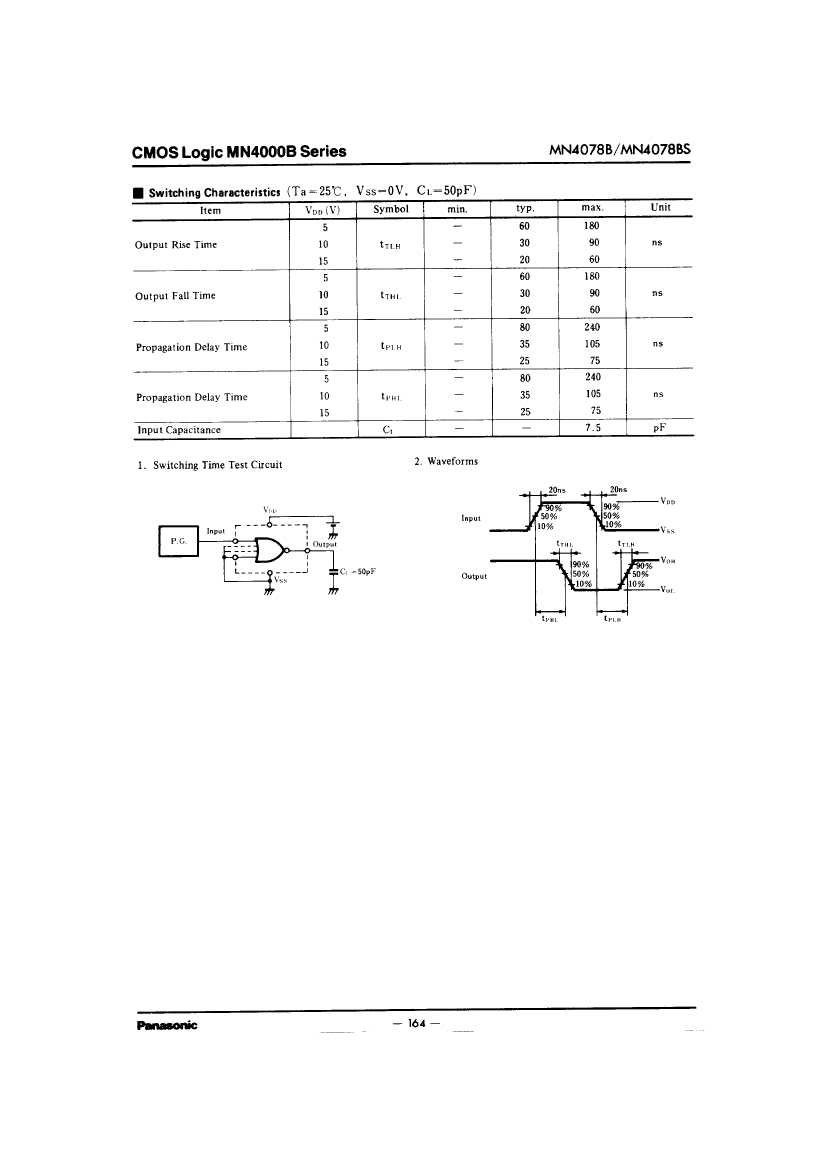

propagation delay (tpd)	240 ns
Certification status	Not Qualified
Schmitt trigger	NO
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

	MN4078BS	MN4078B
Description	8-INPUT NOR GATES	8-INPUT NOR GATES
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	SOIC	DIP
package instruction	SOP, SOP14,.25	DIP, DIP14,.3
Contacts	14	14
Reach Compliance Code	unknow	unknow
series	4000/14000/40000	4000/14000/40000
JESD-30 code	R-PDSO-G14	R-PDIP-T14
JESD-609 code	e0	e0
Logic integrated circuit type	NOR GATE	NOR GATE
Number of functions	1	1
Number of entries	8	8
Number of terminals	14	14
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP
Encapsulate equivalent code	SOP14,.25	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	5/15 V	5/15 V
propagation delay (tpd)	240 ns	240 ns
Certification status	Not Qualified	Not Qualified
Schmitt trigger	NO	NO
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1
