IP68 General Purpose Enclosures
Technical Specification

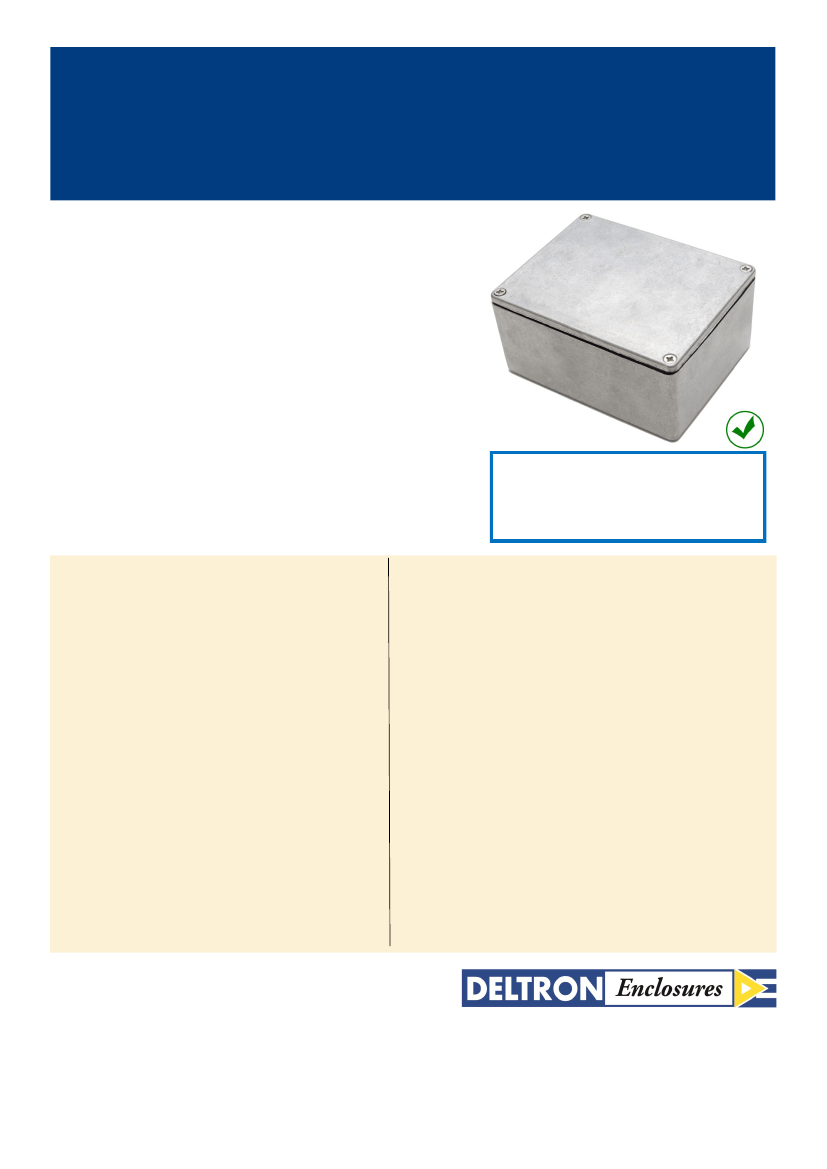

Sealed to IP68, this series is ideal for placement in
demanding environments where protection may be
required for complete immersion in water of up to 5
metres for 1 hour.
15 sizes are available, complete with captive screws,
earth screws and PCB guides on selected sizes. Nine
sizes are also available with flanges for easy mounting.
Deltron Enclosures can customise any enclosure in our
UK factory, including machining, painting, finishing,
component sourcing and installation to meet your
specification, save time and cut your costs. View our
Services page on our website for more information.
For more information:
Phone: +44 (0)1724 273206
Features:
Available Dimensions (mm):
90
x 36 x 30*
115 x
90
x 55*
172 x 121 x 55*
223 x 147 x 55*
275 x 176 x 65
166 x 128 x 76
251 x 251 x
99
61 x 56 x 30
115 x 64 x 30*
115 x 65 x 55*
172 x 121 x 106*
223 x 147 x 106
141 x 102 x 76*
121 x 101 x 35*
81 x 56 x 25
*= Available with Flanges
IP68 Rated
Manufactured from ADC12
Certified to BS EN 60529:1992
RoHS Compliant
Typical Applications:
Marine
Water Treatment
Security
Finishes:
Plain Aluminium, Powder or Nylon coat.
Coating Colours:
Grey, Blue or Black.
Or choose to have your enclosure customised for
bespoke finishes and colours.
Food Processing
Leisure Facilities
DEM Manufacturing
Deltron Emcon House,
Hargreaves Way,
Sawcliffe Industrial Park,
Scunthorpe, DN15 8RF.
Web: www.dem-uk.com/deltron-enclosures
Tel: +44 (0) 1724 273206
Fax: +44 (0) 1724 280353
Email: sales@dem-uk.com
REV
004
003
DATE
06 Jun 2017
06 Jun 2017
1
ECN NUMBER
C03614
C03614
ECR COMMENT
2
3
4
5
6
7
TORQUE SETTINGS ADDED
LENGTH WIDTH
A
HEIGHT
115
90
55
BOX DIMENSION IN MM
TORQUE
PLAIN
POWDER COAT NYLON COAT
SETTINGS
NONE
NONE
459-0030
461-0030*
462-0030*
IP66
0.3Nm
460-0030
453-0030*
454-0030*
IP68
0.7Nm
480-0030
481-0030*
482-0030*
IP68 EMI/RFI
1.0Nm
480-C030
481-C030*
482-C030*
COLOUR OPTION - COLOUR SUFFIX * GREY=A / BLUE=B / BLACK = E
SEAL
A
B
STANDARD DUTY ENCLOSURE
•
Material grade ADC12/LM2 Die Cast Alloy
•
IP Rated available
•
Min wall thickness 1.5mm
•
Min lid thickness 1.5mm
•
Fine textured powder coating and smooth nylon
•
Screws stainless steel
•
IP68 Tested to 5 metres for 1 hour
•
Enclosures can be supplied fully factory customised to your specification
B
55
C
7
51
A
90
52
MAX INTERNAL HEIGHT
85
73
C
109
MAX INTERNAL WIDTH
115
115
D
111
97
D
E
PROPRIETARY AND CONFIDENTIAL:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF
ALPHA 3 MANUFACTURING.
ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OF
ALPHA 3 MANUFACTURING
IS PROHIBITED.
DEM Manufacturing is a division of Alpha 3 Manufacturing LTD
DEM Manufacturing, Deltron Emcon House, Hargreaves Way,
Sawcliffe Ind. Park, Scunthorpe, North Lincolnshire, DN15 8RF, UK
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN MILLIMETRES
A

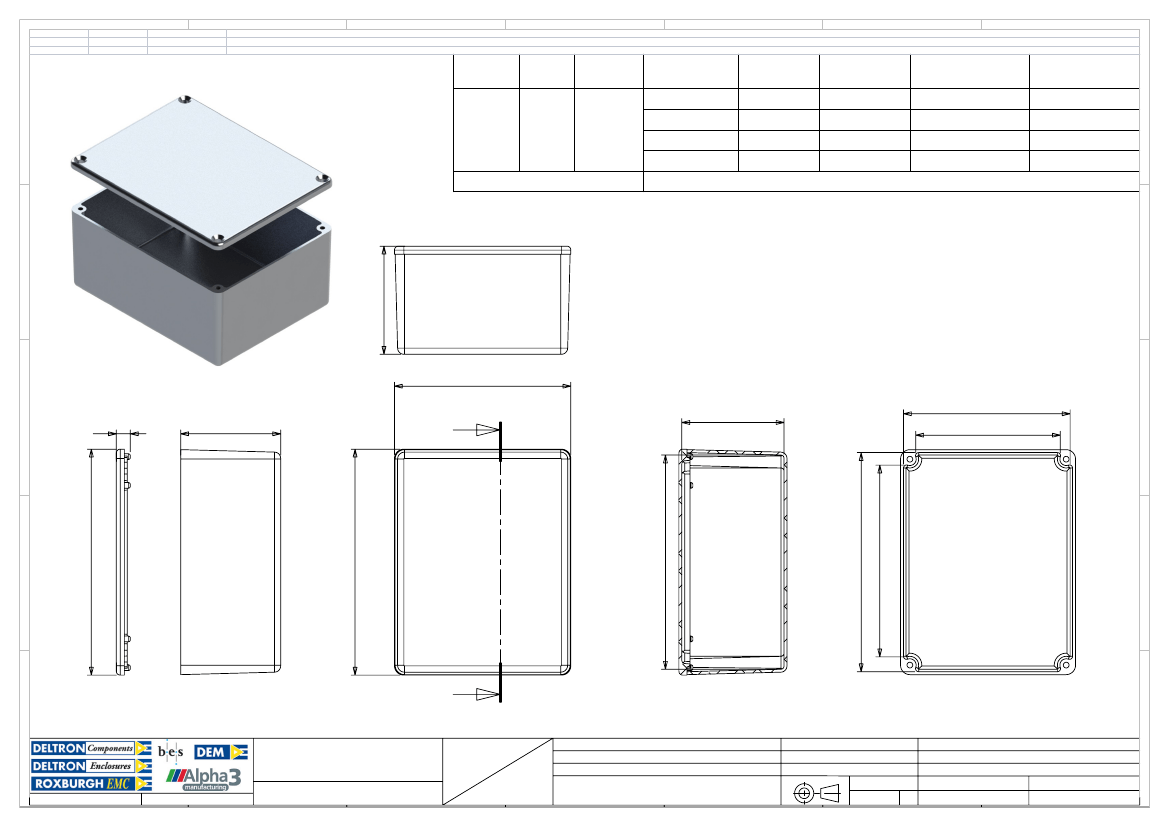

SECTION A-A
E
IF IN DOUBT ASK! DO NOT SCALE DRAWING!
FINISH
MATERIAL
AUTHOR
EDITOR
APPROVER
Alex Yau
DT
DT
SHEET 1 OF 1
+44(0)1724 273200
www.dem-uk.com
LINEAR & RADIAL TOLERANCE:
NO DECIMAL PLACES
1 DECIMAL PLACE
2 DECIMAL PLACES
ANGULAR TOLERANCE:
SEE NOTES
ALUMINIUM ALLOY
THIRD ANGLE PROJECTION
THE FINISHED PRODUCT SHOULD BE CLEAN AND FREE FROM ALL
LIQUIDS AND DEBRIS. SURFACES SHOULD BE OF UNIFORM
APPEARANCE FREE FROM SHARP EDGES, BURRS AND CORROSION
SCALE 1:2
A4
PLAIN ENCLOSURE
C ENCLOSURE
PART
BOX & LID ASSEMBLY
ISSUE/REV.
VERSION
004
16
EDIT DATE
RELEASED
06 Jun 2017
TITLE
FILE
