172043-0305 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 172043-0305

172043-0305: DescriptionHeaders & Wire Housings Super-Sabre R/A Hdr Assy 3ckt FgrPrf; CategoryThe connector; File Size28KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

172043-0305 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	172043-0305	-	-	View	Buy Now

172043-0305 Overview

Headers & Wire Housings Super-Sabre R/A Hdr Assy 3ckt FgrPrf

172043-0305 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Molex
Product Category	Headers & Wire Housings
RoHS	Details
Product	Headers
Type	Power
Number of Positions	3 Position
Pitch	7.5 mm
Number of Rows	1 Row
Mounting Style	Through Hole
Termination Style	Through Hole
Mounting Angle	Right Angle
Contact Gender	Pin (Male)
Contact Plating	Silver
Packaging	Tray
Accessory Type	-
Contact Type	-
Current Rating	30 A
Housing Material	Liquid Crystal Polymer (LCP)
Voltage Rating	600 VAC
Contact Material	Copper
Flammability Rating	UL 94 V-0
Row Spacing	-
Housing Gender	-
Factory Pack Quantity	385
Unit Weight	0.157463 oz

Preview

Download Datasheet

View All

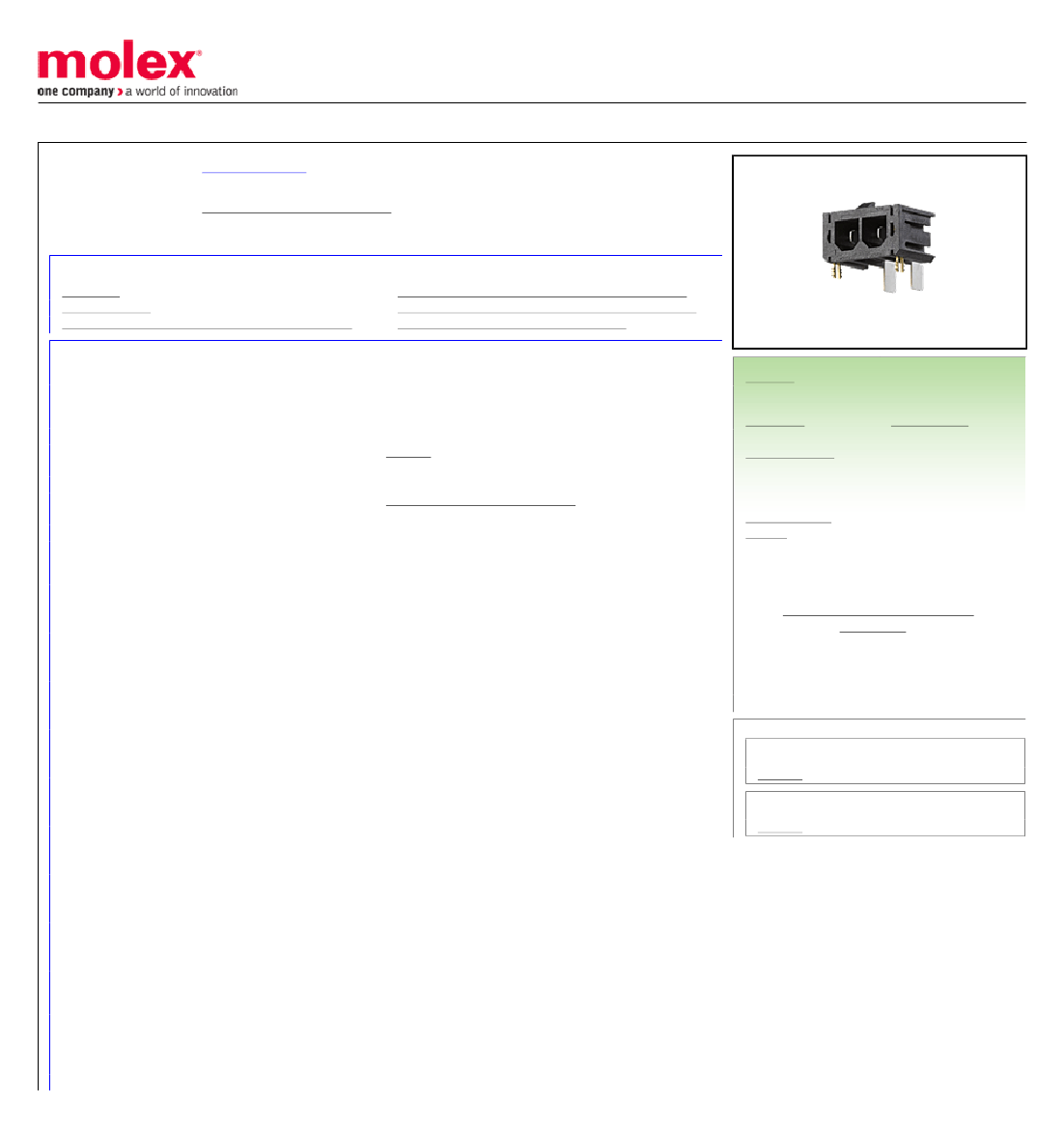

This document was generated on 03/02/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

1720430305

Active

Super Sabre Connector System

Super Sabre Right Angle Header, 3 Circuit, Long Solder Tail without Board Lock,

Complies with the UL1977 finger proof standards

Documents:

3D Model

Drawing (PDF)

Product Specification PS-171825-001-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Comments

Overview

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Capable

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Retention

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Solder Process Data

Duration at Max. Process Temperature (seconds)

Product Specification TS-171825-001-001 (PDF)

Packaging Specification PK-43789-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

LR19980

E29179

PCB Headers

172043

Power, Signal, Wire-to-Board

Operating Temperature Per USCAR-2; Class 3

Super Sabre Connector System

Super Sabre

887191565743

Black

94V-0

Yes

Copper

Silver

Matte Tin, Nickel

High Temperature Thermoplastic

4.464/g

Right Angle

5.33mm

None

Tray

7.50mm

0.025µm

Yes

-40°C to +125°C

Through Hole

30.0A per blade

600V AC (RMS)

030

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

172043 Series

Mates With

172672 Crimp Housing
