510-93-097-11-041001 datasheet, PDF

Datasheet> All Categories > The connector> socket> 510-93-097-11-041001

510-93-097-11-041001: DescriptionIC & Component Sockets; CategoryThe connector socket; File Size483KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

510-93-097-11-041001 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	510-93-097-11-041001	-	-	View	Buy Now

510-93-097-11-041001 Overview

IC & Component Sockets

510-93-097-11-041001 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PGA SOCKET
body width	1.1 inch
subject depth	0.165 inch
body length	1.1 inch
Contact structure	11X11
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED
Contact style	RND PIN-SKT
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	PGA97
Dielectric withstand voltage	1000VAC V
Shell material	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER
Insulation resistance	10000000000 Ω
JESD-609 code	e0
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	97
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.1 mm
Terminal pitch	2.54 mm
Termination type	SOLDER

Preview

Download Datasheet

View All

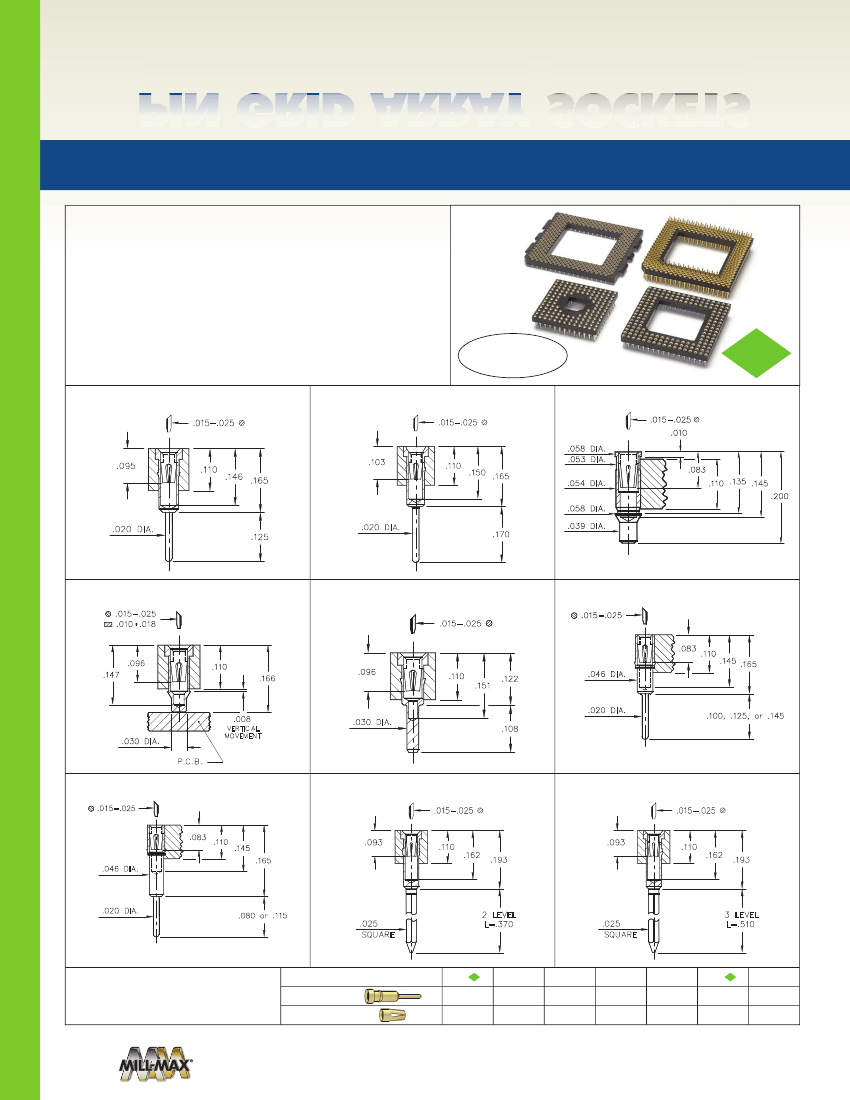

PIN GRID ARRAY

SOCKETS

SERIES 510,511,513,514,515,518,522,523 • .100” AND INTERSTITIAL GRID •

SURFACE MOUNT, THROUGH

HOLE AND WIREWRAP

•

Series 510, 511, 514, 515, 522 and 523 PGA sockets are available

on .100” centers

•

Series 513 and 518 PGA sockets are available for Interstitial patterns

•

Choice of three low force clips to cover all applications

•

High temperature PCT polyester insulator material suitable for all

forms of soldering including lead-free

details

•

For Electrical, Mechanical and Environmental Data, see page 137 for

SERIES 510

(Standard Solder Tail)

.015-.025

XX=Plating Code

See Below

2011/65/EU

RoHS - 2

SERIES 511

(Long Solder Tail)

.015-.025

SERIES 513

(SMT Receptacle)

.015-.025

.010

.058 DIA.

.053 DIA.

.095

.110

.103

.110

.146 .165

.150

.165

.083

.054 DIA.

.058 DIA.

.110 .135 .145

.200

.020 DIA.

.125

.020 DIA.

.170

.039 DIA.

Interstitial Patterns Only

SERIES 514

(SMT Receptacle)

.015-.025

.010 .018

SERIES 515

(Low Pro le Solder Tail)

.015-.025

SERIES 518

(Solder Tail No, Heatsink Tabs)

.015-.025

.083

.096

.147

.110

.166

.110

.096

.145 .165

.110

.151

.122

.046 DIA.

.008

.030 DIA.

P.C.B.

VERTICAL

MOVEMENT

.020 DIA.

.030 DIA.

.100, .125, or .145

.108

Interstitial Patterns Only

SERIES 518

(Solder Tail w/ Heatsink Tabs)

PAGE 138 | IC SOCKETS / TO SOCKETS

.015-.025

SERIES 522

(2 Level Wrapost)

.015-.025

SERIES 523

(3 Level Wrapost)

.015-.025

.083

.110

.145

.165

.093

.110

.093

.162

.193

.110

.162

.046 DIA.

.193

.020 DIA.

.080 or .115

.025

SQUARE

2 LEVEL

L=.370

.025

SQUARE

3 LEVEL

L=.510

Interstitial Patterns Only

Visit www.mill-max.com/pga

to con gure a formal part number

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

µ”

100

µ”

Sn/Pb

200

µ”

200

µ”

Sn/Pb 200

µ”

Sn/Pb 200

µ”

Sn/Pb

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
