DTE150-0512FWX-F-W: DescriptionDesktop AC Adapters 150W 5/+5V 15A 12/+12V 8A; CategoryPower/power management; File Size424KB，2 Pages; ManufacturerETA-USA

Download Datasheet Parametric Compare View All

DTE150-0512FWX-F-W Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DTE150-0512FWX-F-W	-	-	View	Buy Now

DTE150-0512FWX-F-W Overview

Desktop AC Adapters 150W 5/+5V 15A 12/+12V 8A

DTE150-0512FWX-F-W Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	ETA-USA
Product Category	Desktop AC Adapters
RoHS	Details
Region	Universal
Input Voltage	90 VAC to 264 VAC
Number of Outputs	2 Output
Output Power	150 W
Output Voltage-Channel 1	5 V
Output Current-Channel 1	15 A
Industry	Commercial
DC Output Connector	Barrel Plug
AC Plug included/required	Required
Height	68 mm
Length	188.5 mm
Width	104.5 mm
Mounting Style	Desktop
Load Regulation	Regulated
Output Current-Channel 2	8 A
Output Current-Channel 3	1.5 A
Output Voltage-Channel 2	12 V
Output Voltage-Channel 3	- 12 V
Factory Pack Quantity	1
Unit Weight	2.205 lbs

Preview

Download Datasheet

View All

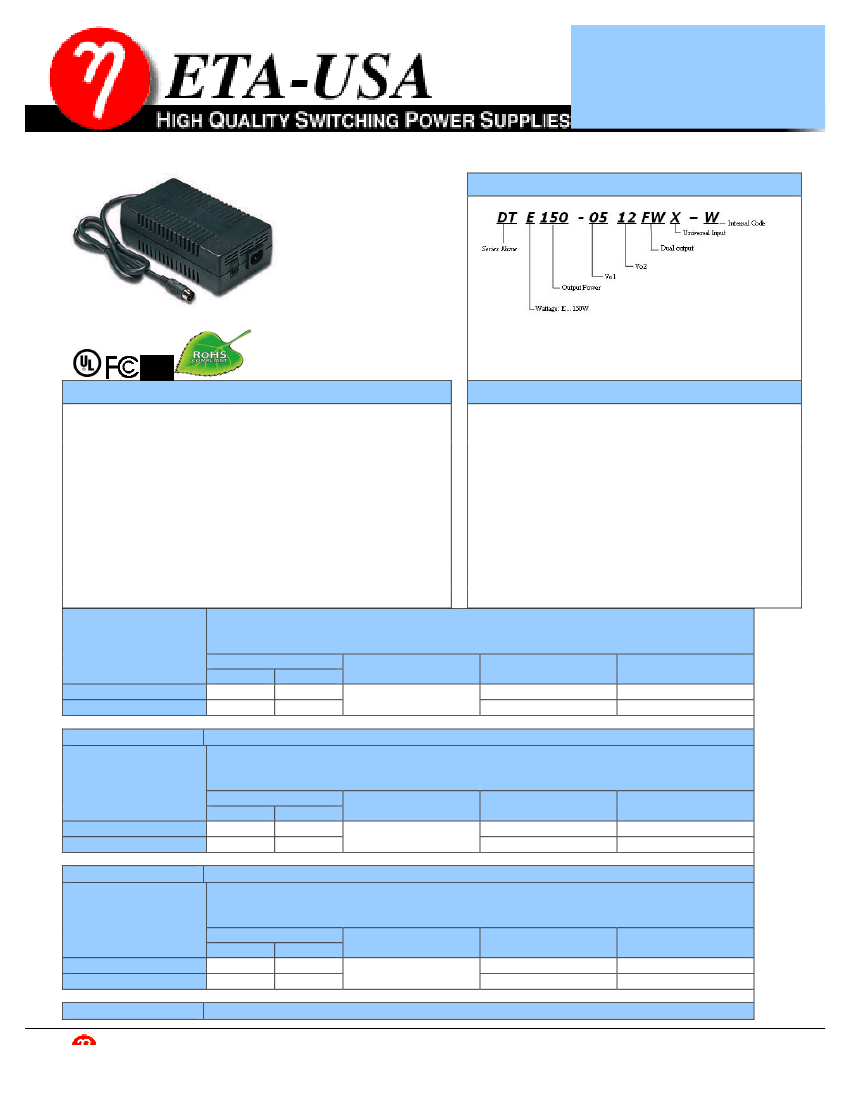

AC/DC SWITCHING POWER

SUPPLY

150 WATTS

DTE150-FWX-F-W

General Description

AC INPUT 90 - 264 VAC

DUAL OUTPUT

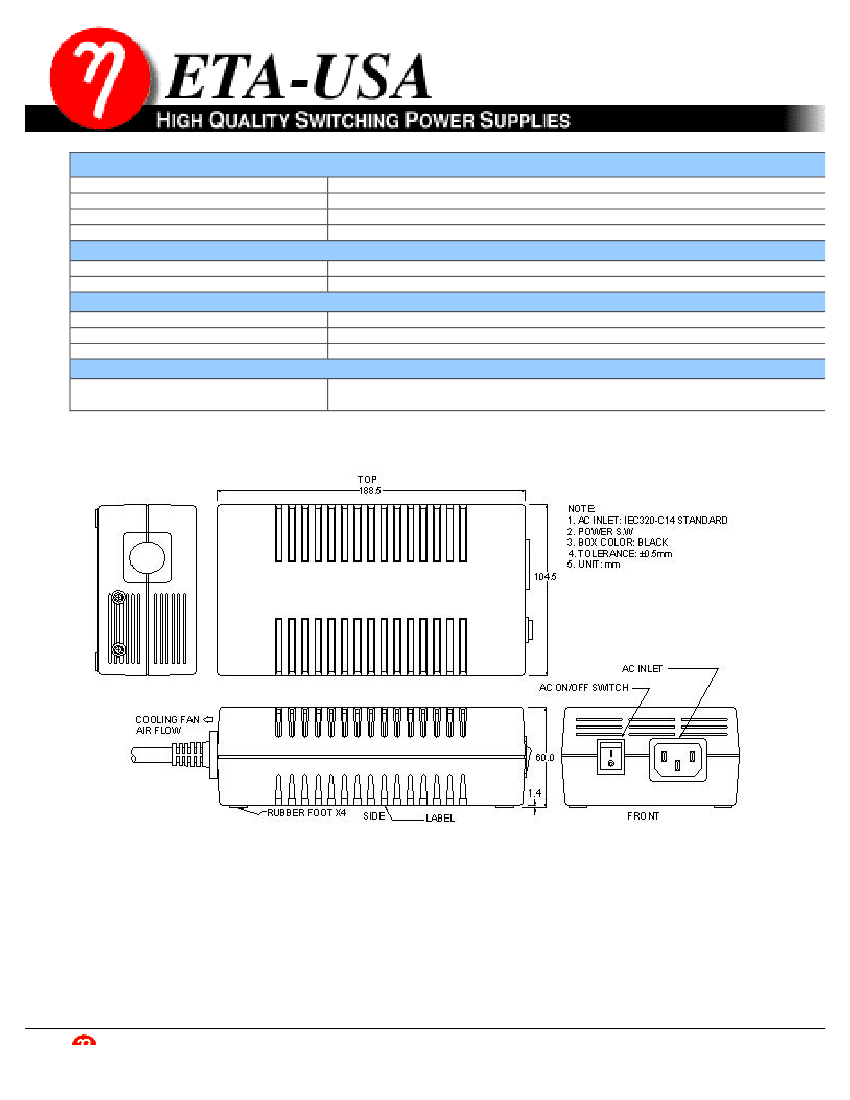

Dimension : L188.5×W104.5×H60mm

Input

Input Voltage

Range:

Frequency:

Input Current(RMS):

Power Factor:

>0.9 (20%~100% Load)

Efficiency

:

>80% @ full load, 115VAC

Ripple & Noise :

1%

90-264VAC

47-63Hz

2.5A max.@ 90VAC

1A max.@ 264VAC

Features

1.

2.

3.

4.

5.

With Active PFC

Universal Input

AC Input : IEC 320-C14 Inlet

Two year warranty

Optional +5VSB @2A with 5% O/P regulation

and 50mV ripple

6.

High reliability

7.

100% burn-in tested

8.

40mm cooling fan with speed control

9.

100% hi-pot tested

10.

Short-circuit, over load, over voltage

protection

Output

Characteristic

5 Vdc

19 Vdc

Output Rating

Vo

Io (max)

+5Vdc

15A

+19Vdc

5A

DTE150-0519FWX-F-W

Po (Max.)

150

O/P Regulation

5%

Ripple & Noise(Vp-

p)

50mV

190mV

Note: 1. Peak–to–peak with 20MHz bandwidth with a tantalum 10uF

Hold–up time

>10ms typical at full load @ 115VAC

Output

Characteristic

12 Vdc

-12 Vdc

Output Rating

Vo

Io (max)

+12Vdc

12A

-12Vdc

1.5A

DTE150-1212FWX-F-W

Po (Max.)

150

O/P Regulation

5%

Ripple & Noise(Vp-

p)

120mV

Note: 1. Peak–to–peak with 20MHz bandwidth with a tantalum 10uF

Hold–up time

>10ms typical at full load @ 115VAC

Output

Characteristic

5 Vdc

12 Vdc

Output Rating

Vo

Io (max)

+5Vdc

15A

+12Vdc

8A

DTE150-0512FWX-F-W

Po (Max.)

150

O/P Regulation

5%

Ripple & Noise(Vp-

p)

50mV

120mV

Note: 1. Peak–to–peak with 20MHz bandwidth with a tantalum 10uF

Hold–up time

>10ms typical at full load @ 115VAC

ETA USA

16170 Vineyard Blvd. Suite 180, Morgan Hill, CA 95037

Phone: 1-800-ETA-POWR, (408) 778-2793 Fax: (408) 779-2753

Visit us at: www.eta-usa.com

email at: sales@eta-usa.com
