MS2200
RF AND MICROWAVE TRANSISTORS
UHF PULSED APPLICATIONS

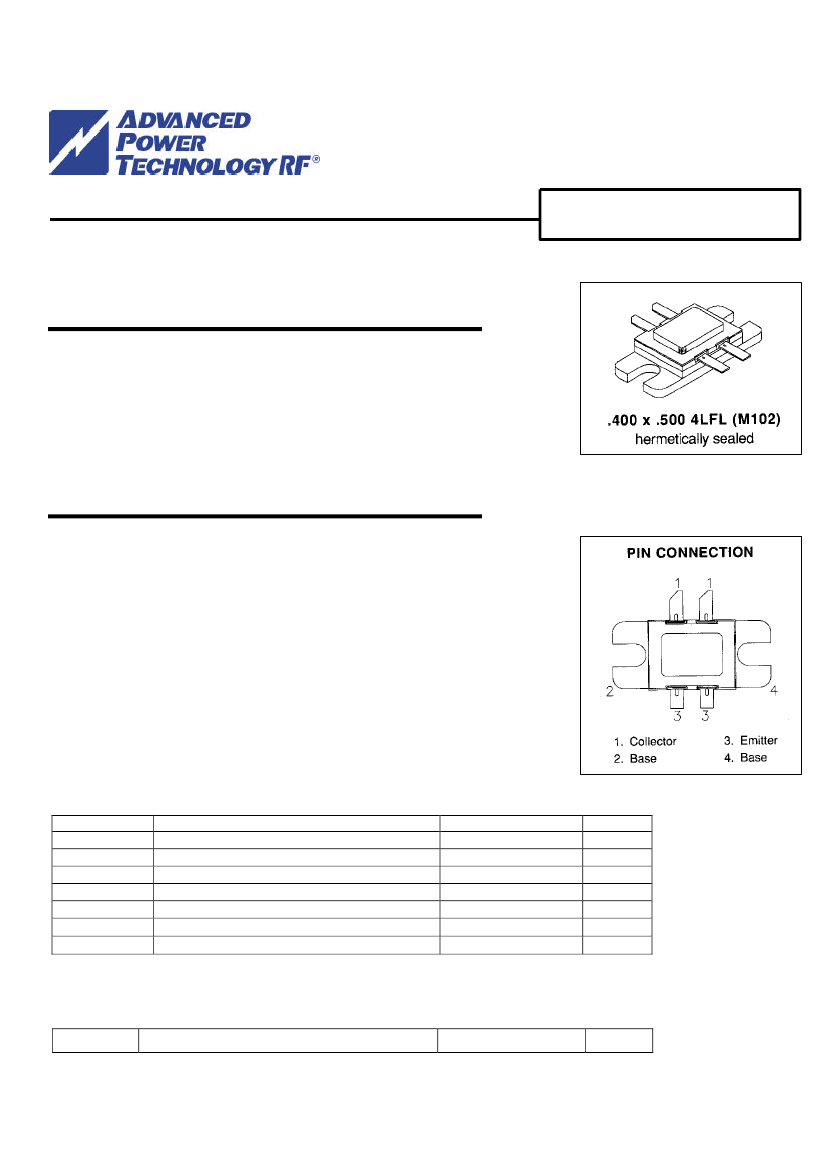

Features
•
•
•
•
•
•
500 Watts @ 250
µSec
Pulse Width, 10% Duty Cycle
Refractory Gold Metallization
Emitter Ballasting And Low Resistance For Reliability
and Ruggedness
Infinite VSWR Capability At Specified Operating
Conditions
Input Matched, Common Base Configuration
Balanced Configuration
DESCRIPTION:
The MS2200 is a hermetically sealed, gold metallized silicon NPN
pulse power transistor mounted in a common base balanced
configuration. The MS2200 is designed for applications requiring
high peak power and low duty cycles within the frequency range of
400 – 500 MHz.
ABSOLUTE MAXIMUM RATINGS (Tcase = 25°C)
Symbol
Parameter
Value
Unit
V
CBO
V
CES
V
EBO
I
C
P
DISS
T
J
T
STG
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Device Current
Power Dissipation
Junction Temperature
Storage Temperature
65
65
3.5
43.2
1167
+200
-65 to +150
V
V
V
A
W
°
C
°
C
Thermal Data
R
TH(j-c)
Junction-Case Thermal Resistance
0.15
°
C/W
Advanced Power Technology reserves the right to change, without notice, the specifications and information contained herein
Visit our website at
WWW.ADVANCEDPOWER.COM
or contact our factory direct.
MS2200
ELECTRICAL SPECIFICATIONS (Tcase = 25
°
C)
STATIC
Symbol
Test Conditions
Min.
Value
Typ.
Max.
Units
BV
CBO
BV
CES
BV
EBO
I
CES
h
FE
I
C
= 50 mA
I
C
= 50 mA
I
E
= 10 mA
V
CE
=30 V
V
CE
= 5 V
I
E
= 0 mA
V
BE
= 0 V
I
C
= 0 mA
I
E
= 0 mA
I
C
= 5 A
65
65
3.5
20
15
200
V
V
V
mA
DYNAMIC
Symbol
Test Conditions
Min.
Value
Typ.
Max.
Units
P
OUT
G
P
η
C
Note:
f = 425 MHz
f = 425 MHz
f = 425 MHz
P
IN
= 54 W
P
IN
= 54 W
P
IN
= 54 W
V
CE
= 40 V
V
CE
= 40 V
V
CE
= 40 V
500
9.7
50
W
Db
%
Pulse Width = 250µSec, Duty Cycle = 10%
This device is suitable for use under other pulse width/duty cycle conditions.
Please contact the factory for specific applications assistance.
Advanced Power Technology reserves the right to change, without notice, the specifications and information contained herein
Visit our website at
WWW.ADVANCEDPOWER.COM
or contact our factory direct.
MS2200

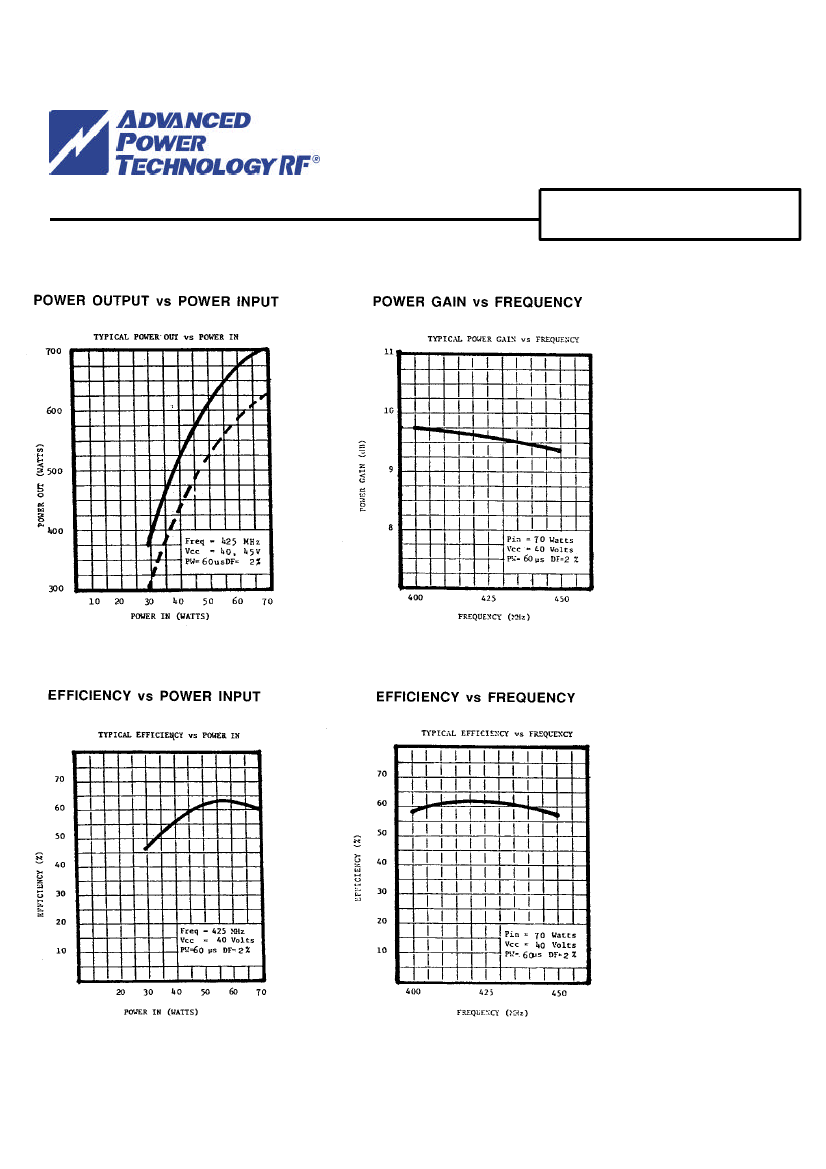

TYPICAL PERFORMANCE
Advanced Power Technology reserves the right to change, without notice, the specifications and information contained herein
Visit our website at
WWW.ADVANCEDPOWER.COM
or contact our factory direct.
MS2200

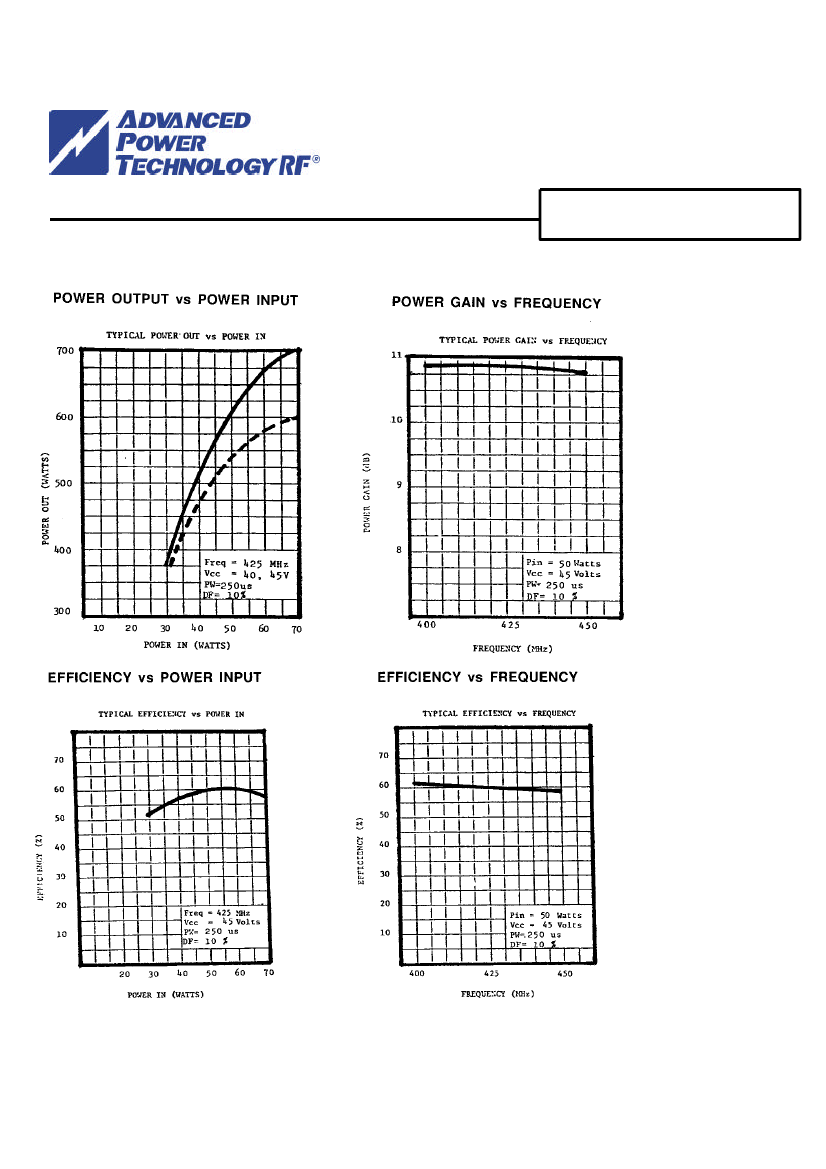

TYPICAL PERFORMANCE (CONTINUED)
(CONTINUED)
Advanced Power Technology reserves the right to change, without notice, the specifications and information contained herein
Visit our website at
WWW.ADVANCEDPOWER.COM
or contact our factory direct.
MS2200

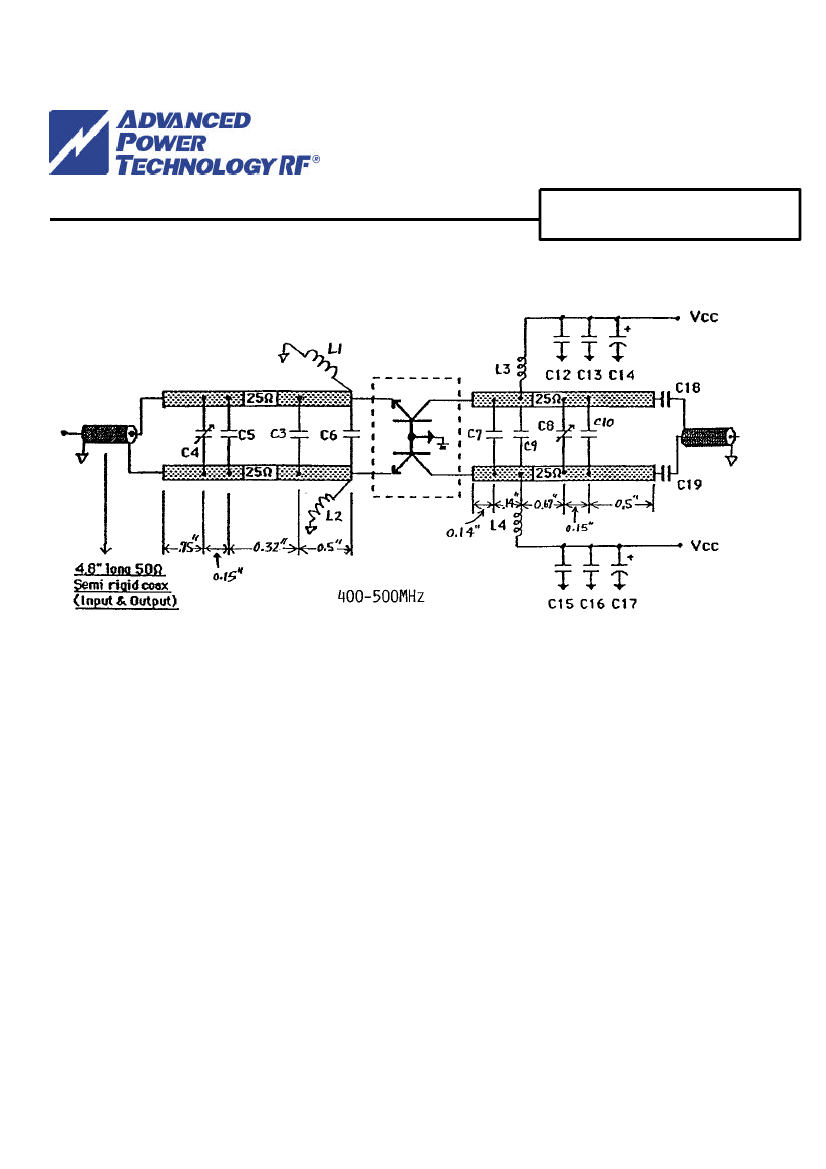

TEST CIRCUIT
Advanced Power Technology reserves the right to change, without notice, the specifications and information contained herein
Visit our website at
WWW.ADVANCEDPOWER.COM
or contact our factory direct.
