14A-30-515 datasheet, PDF - EEWORLD Datasheet

14A-30-515: DescriptionPower Transformers 50\60 Hz, Laminated Transformer; Categorysemiconductor Power management; File Size191KB，2 Pages; ManufacturerBel; Websitehttp://www.belfuse.com

Download Datasheet Parametric Compare View All

14A-30-515 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	14A-30-515	-	-	View	Buy Now

Power Transformers 50\60 Hz, Laminated Transformer

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Bel
Product Category	Power Transformers
RoHS	Details
Product	Laminated Transformers
Primary Voltage Rating	115 V/230 V
Secondary Voltage Rating	5 V/15 V
Power Rating	30 VA
Secondary Current Rating	1.25 A/200 mA
Mounting Style	Through Hole
Primary Winding	Dual Primary Winding
Secondary Winding	Dual Secondary Winding
Length	66.7 mm
Width	55.5 mm
Height	39.7 mm
Operating Frequency	50 Hz/60 Hz
Termination Style	Solder Pin
Type	International Series Transformer
Factory Pack Quantity	20
Unit Weight	1.146 lbs

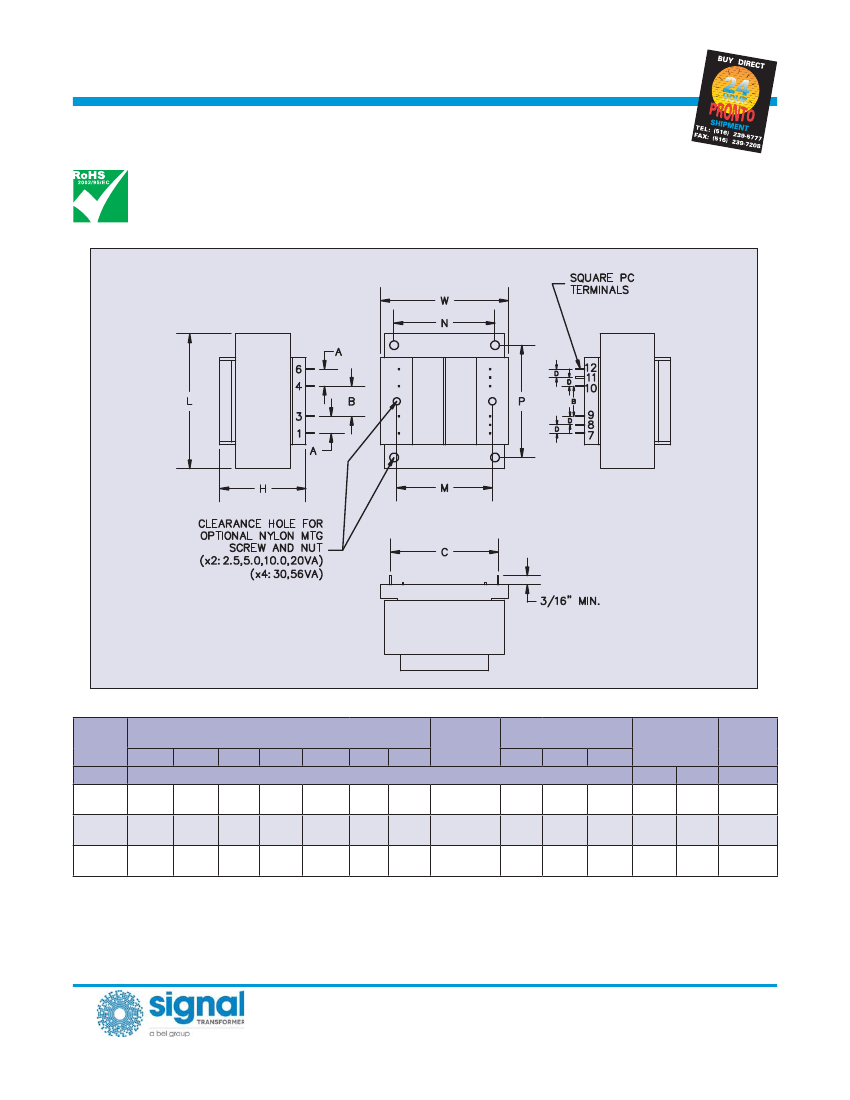

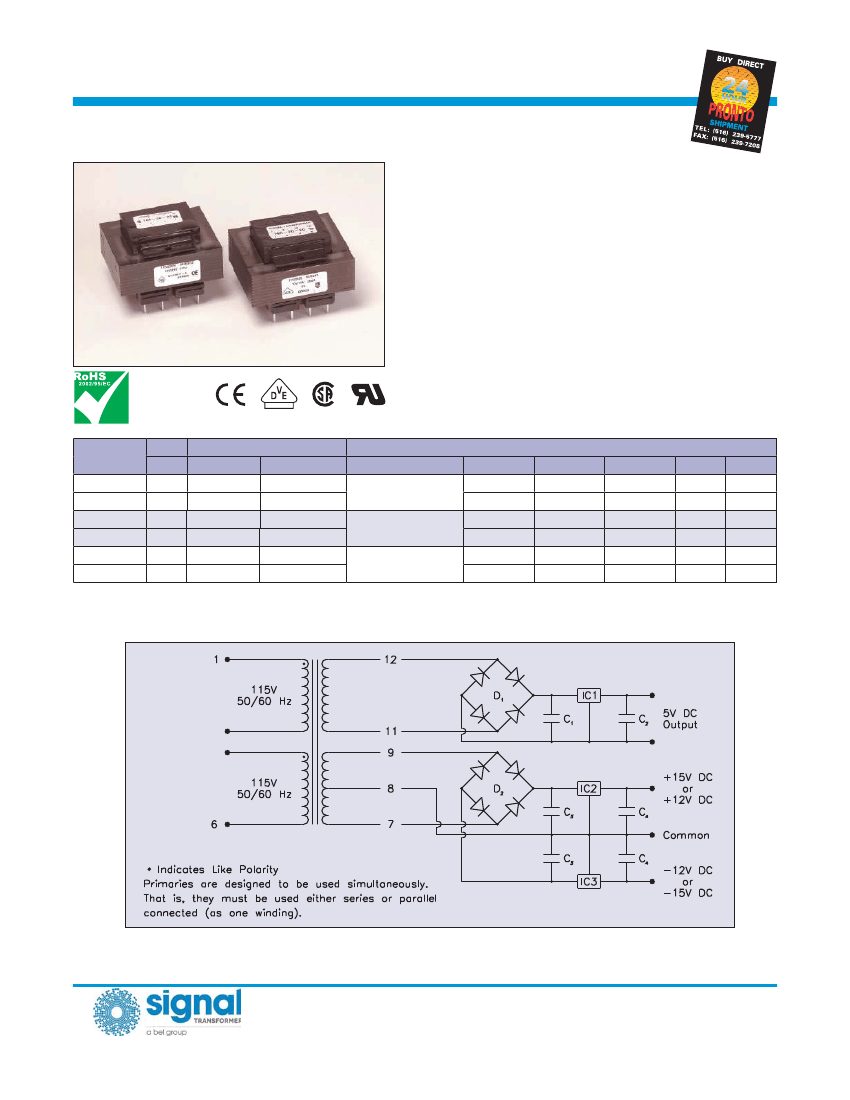

For 5 VDC and ±12 VDC or ±15 VDC Regulated Power Supllies

Requiring International Safety Certification

20

30

56

2

500 Bayview Avenue, Inwood, NY 11096

Toll Free 866-239-5777

Tel

Fax 516-239-7208

22

	14A-30-515	14A-20-512	14A-56-515
Description	Power Transformers 50\60 Hz, Laminated Transformer	Power Transformers 50\60 Hz, Laminated Transformer	Power Transformers 50\60 Hz, Laminated Transformer
Product Attribute	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Bel	Bel	Bel
Product Category	Power Transformers	Power Transformers	Power Transformers
RoHS	Details	Details	Details
Primary Voltage Rating	115 V/230 V	115 V/230 V	115 V/230 V
Secondary Voltage Rating	5 V/15 V	5 V/12 V	5 V/15 V
Power Rating	30 VA	20 VA	56 VA
Secondary Current Rating	1.25 A/200 mA	750 mA/200 mA	3 A/250 mA
Mounting Style	Through Hole	Through Hole	Through Hole
Primary Winding	Dual Primary Winding	Dual Primary Winding	Dual Primary Winding
Secondary Winding	Dual Secondary Winding	Dual Secondary Winding	Dual Secondary Winding
Length	66.7 mm	57.2 mm	76.2 mm
Width	55.5 mm	47.6 mm	63.5 mm
Height	39.7 mm	41.3 mm	46.5 mm
Operating Frequency	50 Hz/60 Hz	50 Hz/60 Hz	50 Hz/60 Hz
Termination Style	Solder Pin	Solder Pin	Solder Pin
Type	International Series Transformer	International Series Transformer	International Series Transformer
Factory Pack Quantity	20	25	20
Unit Weight	1.146 lbs	1 lb	1.698 lbs
Product	Laminated Transformers	Laminated Transformers	-
