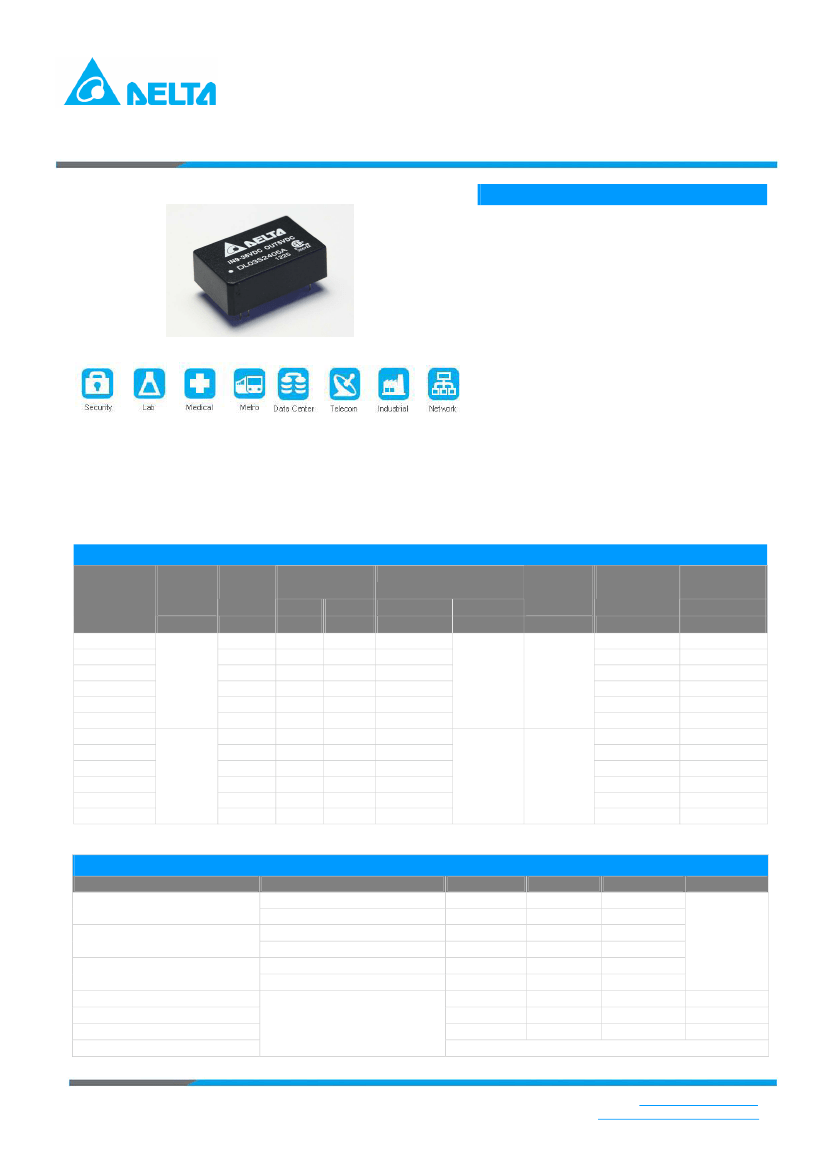

DL03S/D Series
3W DC/DC CONVERTER, DIP-Package, 4:1 Wide Input Range
FEATURES
Efficiency up to 84%
DIP Package with Industry Standard Pinout
Ultra-wide 4:1 Input Range
Isolation Volage 1500VDC
Operating Temperature Range –40°C to +85°C
Complies with EN55022 Class A
Short Circuit Protection
CSA 60950-1 Safety Approval
3 Years Product Warranty
The DL03S/D series are miniature, DIP Package, isolated 3W DC/DC converters with 1,500VDC isolation. The DL03S/D series
feature fully regulated output and ultra wide 4:1 input voltage ranges. It offers short circuit protection and allows a wide operating
temperature range of –40°C to +85°C. These isolated DC/DC converters are the latest offering from a world leader in power systems
technology and manufacturing
―
Delta Electronics, Inc. With creative design technology and optimization of component placement,
these converters possess outstanding electrical and thermal performance, as well as extremely high reliability under highly stressful
operating conditions.
Model List
Model
Number
Input
Voltage
(Range)
VDC
DL03S2403A
DL03S2405A
DL03S2412A
DL03S2415A
DL03D2412A
DL03D2415A
DL03S4803A
DL03S4805A
DL03S4812A
DL03S4815A
DL03D4812A
DL03D4815A
Output
Voltage
VDC
3.3
5
12
15
±12
±15
3.3
5
12
15
±12
±15
Output
Current
Max.
mA
750
600
250
200
±125
±100
750
600
250
200
±125
±100
Min.
mA
93
75
32
25
±16
±13
93
75
32
25
±16
±13
Input Current
@Max. Load
mA(typ.)
138
158
154
152
156
156
68
78
75
74
76
76
@No Load
mA(typ.)
Reflected
Ripple
Current
mA(typ.)
Max. capacitive
Load
µF
680
470
330
220
150*
100*
680
470
330
220
150*
100*
Efficiency
(typ.)
@Max. Load
%
75
79
81
82
80
80
76
80
83
84
82
82
* For each output
24
(9 ~ 36)
20
15
48
(18 ~ 75)
10
10
Input Characteristics
Parameter
Input Surge Voltage (1 sec. max.)
Start-Up Threshold Voltage
Under Voltage Shutdown
Reverse Polarity Input Current
Short Circuit Input Power
Internal Power Dissipation
Conducted EMI
Model
24V Input Models
48V Input Models
24V Input Models
48V Input Models
24V Input Models
48V Input Models
Min.
Typ.
Max.
Unit
-0.7
50
---
-0.7
100
---
6
7.5
9
VDC
12
15
18
---
---
8.5
---
---
16
---
---
0.5
A
---
---
2000
mW
---
---
2500
mW
Compliance to EN 55022,class A and FCC part 15,class A
All Models
DS_DL03S/D_07182012
E-mail: DCDC@delta.com.tw
http://www.delta.com.tw/dcdc
P1
Output Characteristics
Parameter
Output Voltage Setting Accuracy
Output Voltage Balance
Line Regulation
Load Regulation
Ripple & Noise (20MHz)
Transient Recovery Time
Transient Response Deviation
Temperature Coefficient
Over Load Protection
Short Circuit Protection
Conditions
At 50% Load and Nominal Vin
Dual Output, Balanced Loads
Vin=Min. to Max.
Io=Min. to Max.
25% Load Step Change
Foldback
Min.
---
---
---
---
---
---
---
---
110
Typ.
---
±0.5
±0.2
±0.3
40
150
±3
±0.01
300
Continuous
Max.
±2.0
±3.0
±1.0
±1.0
75
500
---
±0.02
---
Unit
%Vom.
%
%
%
mV
P-P
µsec
%
%/℃
%
General Characteristics
Parameter
I/O Isolation Voltage (rated)
I/O Isolation Resistance
I/O Isolation Capacitance
Switching Frequency
MTBF (calculated)
Safety Approvals
MIL-HDBK-217F@25℃, Ground Benign
Conditions
60 Seconds
500 VDC
100KHz, 1V
Min.
1500
1000
---
---
1,000,000
Typ.
---
---
380
350
---
Max.
---
---
500
---
---
Unit
VDC
MΩ
pF
KHz
Hours
UL/cUL 60950-1 recognition(CSA certificate), IEC/EN 60950-1
Recommended Iput Fuse
24V Input Models
1000mA Slow-Blow Type
48V Input Models
500mA Slow-Blow Type
Environmental Characteristics
Parameter
Operating Ambient Temperature Range (See Power Derating
Curve)
Case Temperature
Storage Temperature Range
Humidity (non condensing)
Cooling
Lead Temperature (1.5mm from case for 10Sec.)
Conditions
Natural Convection
Min.
-40
---
-50
---
Free-Air convection
---
260
℃
Max.
+85
+90
+125
95
Unit
℃
℃
℃
% rel. H
Power Derating Curve
100
80
Natural
convection
100LFM
60
200LFM
400LFM
40
20
0
-40
~
0
20
40
60
80
100 110
Ambient Temperature
C
DS_DL03S/D_07182012
E-mail: DCDC@delta.com.tw
http://www.delta.com.tw/dcdc
P2
Notes
1
2
3
4
5
6
7
Specifications typical at Ta=+25℃, resistive load, nominal input voltage and rated output current unless otherwise noted.
Transient recovery time is measured to within 1% error band for a step change in output load of 75% to 100%
Ripple & Noise measurement bandwidth is 0-20MHz.
These power converters require a minimum output loading to maintain specified regulation, operation under no-load conditions will not
damage these modules; however they may not meet all specifications listed.
All DC/DC converters should be externally fused at the front end for protection.
That “natural convection” is about 20LFM but is not equal to still air (0 LFM).
Specifications subject to change without notice.
Package Specifications
Mechanical Dimensions
10.2
[0.40]
Pin Connections
Pin
Single Output
2
-Vin
3
9
11
14
16
22
23
-Vin
No Pin
NC
+Vout
-Vout
+Vin
+Vin
Dual Output
-Vin
-Vin
Common
-Vout
+Vout
Common
+Vin
+Vin
0.50 [0.02]
2
3
9
11
15.22 [0.60]
20.3 [0.80]
4.5
[0.18]
NC: No Connection
Bottom View
23
22
16
14
2.54
[0.10]
15.24 [0.60]
31.8[1.25]
[0.20][0.18]
5.08
4.5
2.54
[0.10]
►All
dimensions in mm (inches)
►Tolerance:
X.X±0.25 (X.XX±0.01)
X.XX±0.13 ( X.XXX±0.005)
►Pin
diameter
⇔
0.5 ±0.05 (0.02±0.002)
Physical Outline
Case Size
Case Material
Pin Material
Weight
:
:
:
:
31.8x20.3x10.2mm (1.25x0.80x0.40 inches)
Non-Conductive Black Plastic (flammability to UL 94V-0 rated)
phosphor bronze
12.2g
DS_DL03S/D_07182012
E-mail: DCDC@delta.com.tw
http://www.delta.com.tw/dcdc
P3
Part Numbering System
D
Form factor
D-DIP
P-SIP
S-SMD
L
Family series
A~Z
03
Watt
01:1W
02:2W
03:3W
04:4W
06:6W
S
Number of
Outputs
S - Single
D- Dual
24
Input Voltage
03:3.3V
05: 5V
12:12V
24: 24V
48:48V
05
Output Voltage
03:3.3V
05: 5V
12:12V
15: 15V
24: 24V
A
Option Code
A - Std. Functions
WARRANTY
Delta offers a three(3) years limited warranty. Complete warranty information is listed on our web site or is available upon request from Delta.
