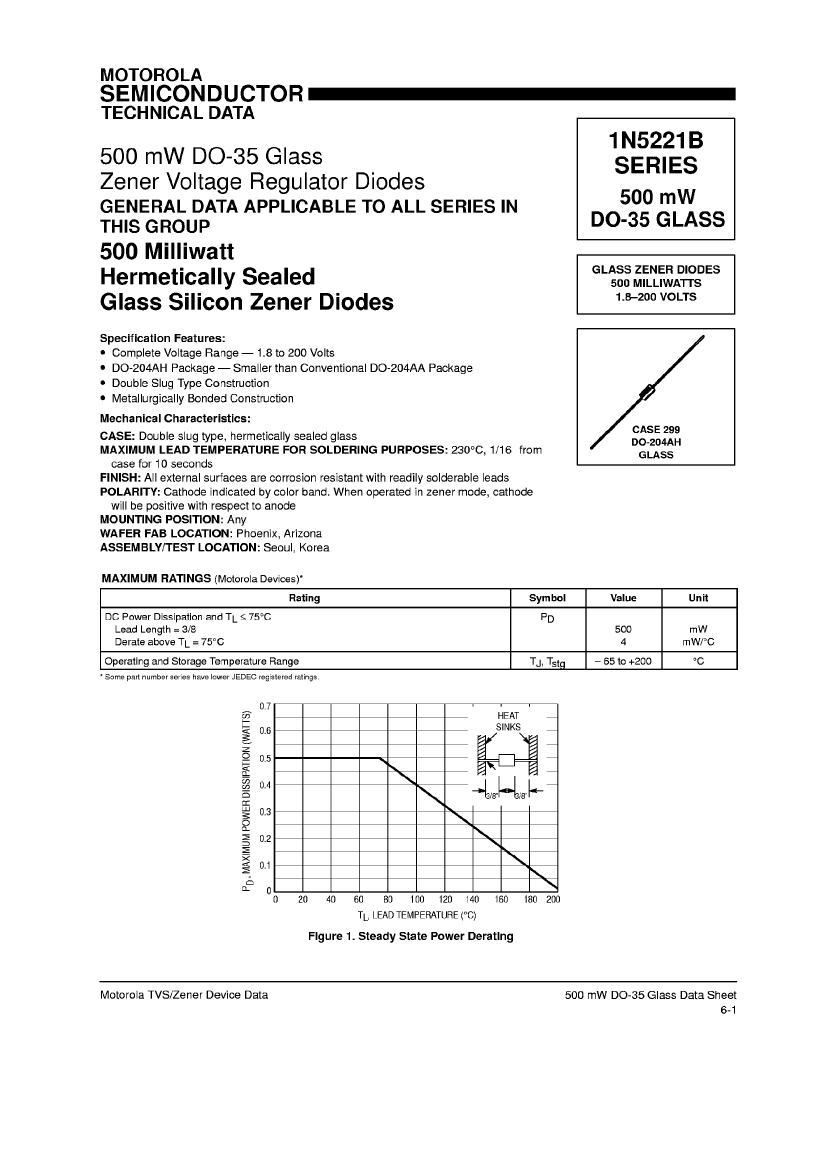

1N5221B datasheet, PDF - EEWORLD Datasheet

1N5221B: DescriptionZENER DIODE,SINGLE, TWO TERMINAL,2.4V V(Z),5%,DO-35; CategoryDiscrete semiconductor diode; File Size439KB，9 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric View All

1N5221B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1N5221B	-	-	View	Buy Now

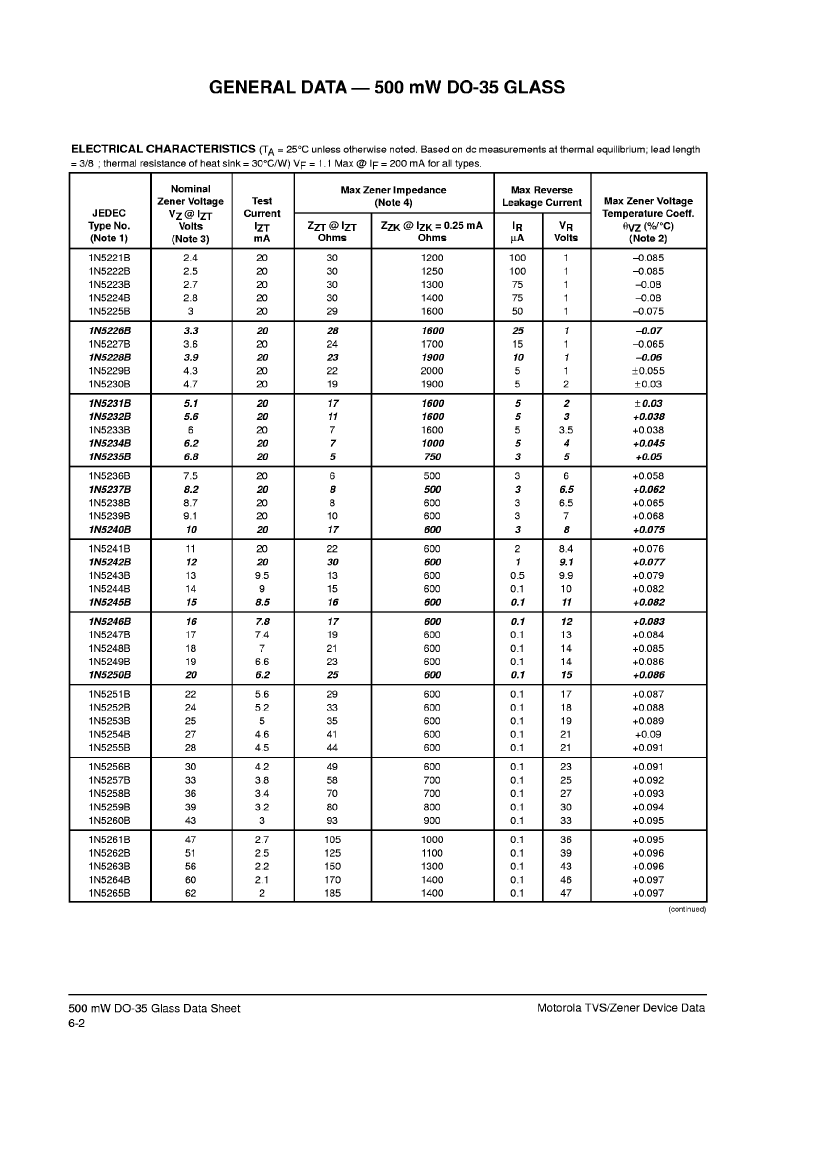

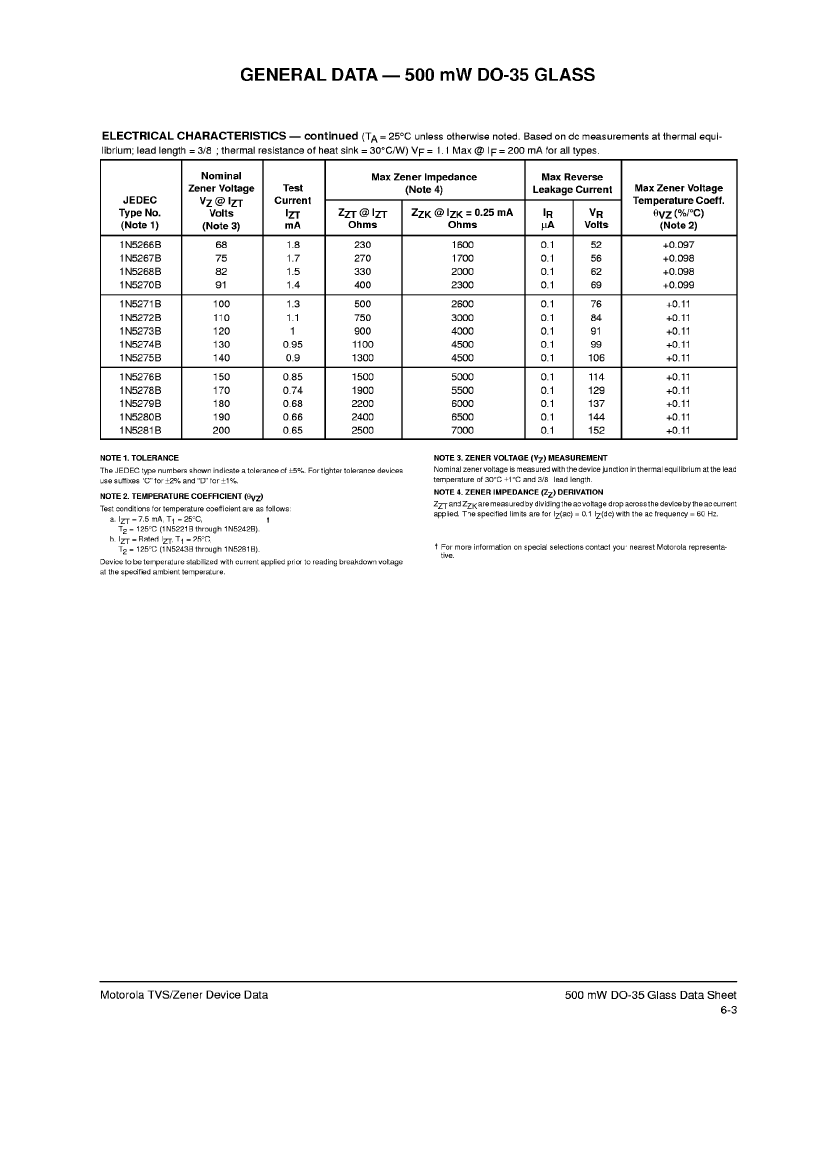

ZENER DIODE,SINGLE, TWO TERMINAL,2.4V V(Z),5%,DO-35

Parameter Name	Attribute value
Maker	Motorola ( NXP )
Parts packaging code	DO-35
package instruction	O-LALF-W2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JEDEC-95 code	DO-204AH
JESD-30 code	O-LALF-W2
JESD-609 code	e0

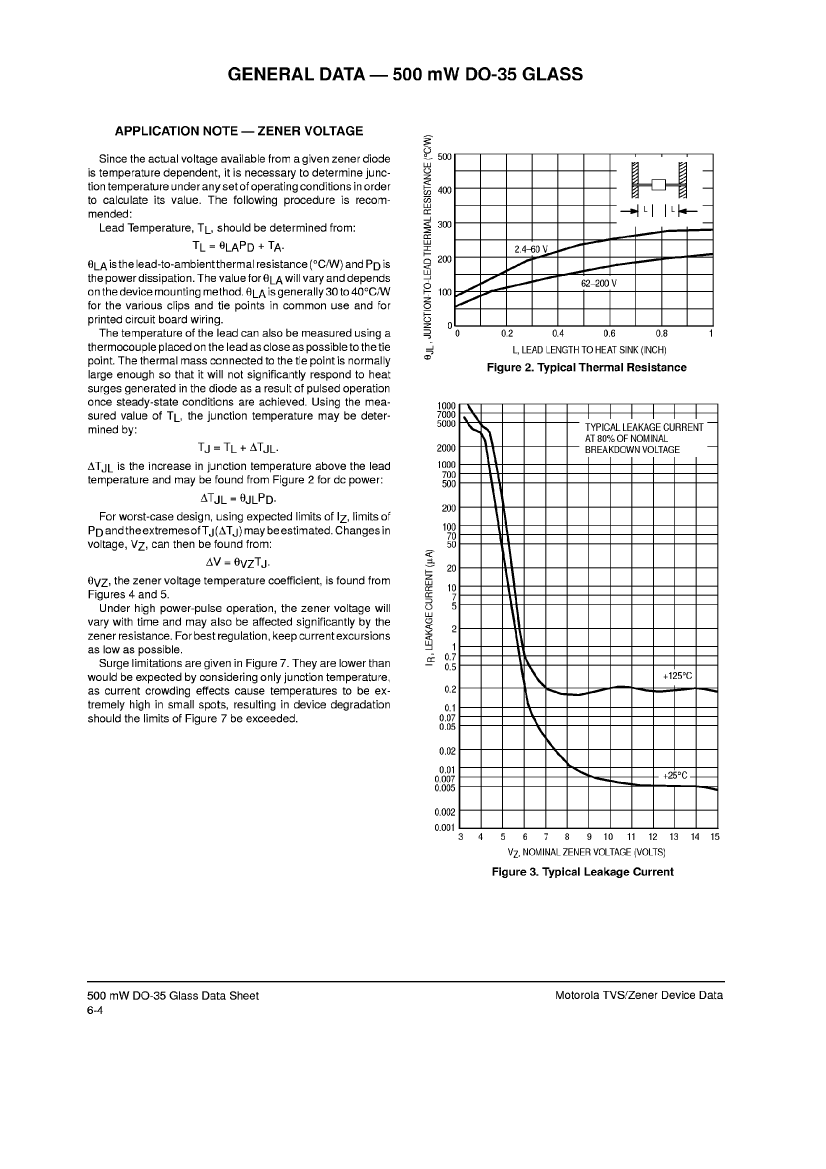

Maximum knee impedance	1200 Ω
Number of components	1
Number of terminals	2
Maximum operating temperature	200 °C
Minimum operating temperature	-65 °C
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.5 W
Certification status	Not Qualified
Nominal reference voltage	2.4 V
Maximum reverse current	100 µA
surface mount	NO
technology	ZENER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	AXIAL

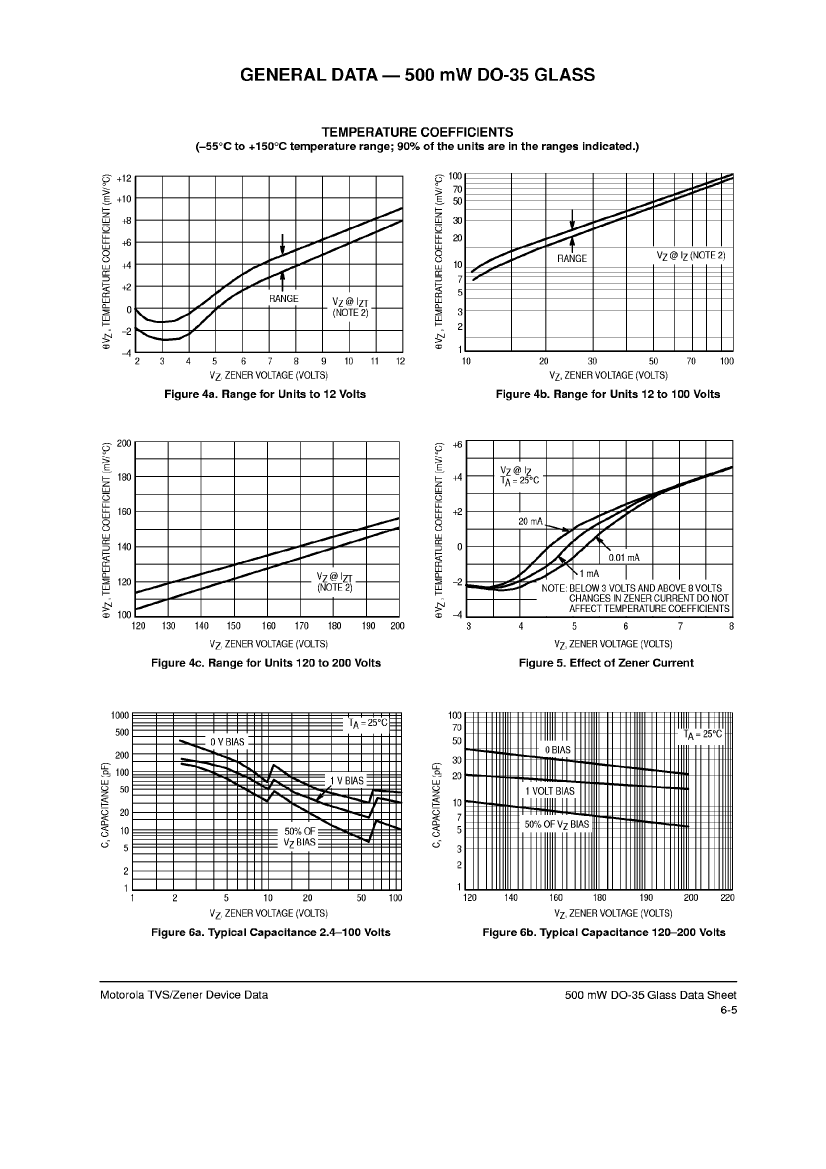

Voltage temperatureCoeff-Max	-2.04 mV/°C
Maximum voltage tolerance	5%
Working test current	20 mA
Base Number Matches	1
