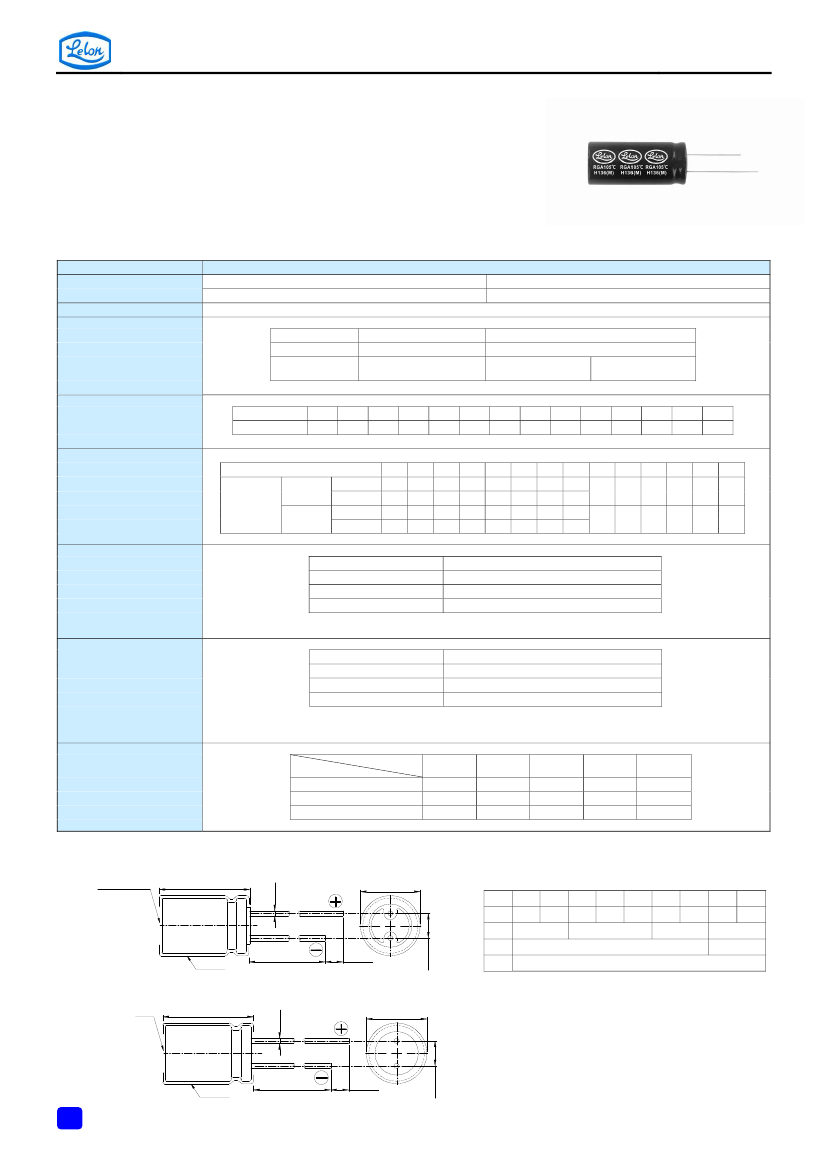

Aluminum Electrolytic Capacitors
RGA Series
Features
‧
105℃, 2,000 hours assured
‧
105℃ standard series for general purposes
‧
RoHS Compliance
‧
If there is any requirement on ESR, it’s suggested to use low
ESR series instead of RGA. Please consult us for any inquiry.
Sleeve & Marking Color:
RGA
Black & White
Specifications
Items
Category Temperature Range
Capacitance Tolerance
Rated voltage
Time
≦100V
Performance
6.3~400V
-40℃ ~ +105℃
±20%
＞100V
450V
-25℃ ~ +105℃
(at 120Hz, 20℃)
Leakage Current (at 20℃)
after 2 minutes
after 5 minutes
CV
≦
1,000
CV
＞
1,000
I = 0.01CV or 3 (μA)
Leakage Current
whichever is greater
I = 0.03CV + 15(μA)
I = 0.02CV + 25(μA)
Where, C = rated capacitance in
μF
V = rated DC working voltage in V
Rated Voltage
Tanδ (max)
6.3
10
16
25
35
50
63
100 160 200 250 350 400
0.23 0.20 0.16 0.14 0.12 0.10 0.09 0.08 0.12 0.14 0.17 0.20 0.25
When the capacitance exceeds 1,000μF, 0.02 shall be added every 1,000μF increase.
450
0.25
Tanδ (at 120 Hz, 20℃)
Low Temperature
Characteristics (at 120Hz)
Impedance ratio shall not exceed the values given in the table below.
Rated Voltage
6.3 10
16
25
35
50
63 100 160 200 250 350 400 450
Z(-25℃)
φD＜16
4
3
3
2
2
2
2
2
3
6
8
12
14
16
Impedance /Z(+20℃)
φD≧16
6
4
4
3
3
3
3
3
Ratio
8
6
6
4
4
3
3
3
Z(-40℃)
φD＜16
4
8
10
16
18
-
/Z(+20℃)
φD≧16
12
10
8
8
8
8
6
6
Endurance
Test Time
2,000 Hrs
Capacitance Change
Within ±20% of initial value
Tanδ
Less than 200% of specified value
Leakage Current
Within specified value
* The above Specifications shall be satisfied when the capacitors are restored to 20℃ after the rated voltage applied with rated
ripple current for 2,000 hours at 105℃.
Test Time
1,000 Hrs
Capacitance Change
With in ±20% of initial value
Tanδ
Less than 200% of specified value
Leakage Current
Within specified value
* The above Specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1,000 hours at 105
℃
without voltage applied. The rated voltage shall be applied to the capacitors before the measurements for 160 ~ 450V (Refer
to JIS C 5101-4 4.1).
Freq. (Hz)
Cap. (μF)
Under 100
100
＜
C
≦
1,000
1,000 up above
60 (50)
0.70
0.75
0.80
120
1.00
1.00
1.00
500
1.30
1.20
1.10
1k
1.40
1.30
1.12
10k up
1.50
1.35
1.15
Shelf Life Test
Ripple Current &
Frequency Multipliers
Diagram of Dimensions
φ
d
Vent
≧
6.3
φ
L+
α
max
φ
D+
β
max
Lead Spacing and Diameter
φD
P
φd
α
β
5
2.0
0.5
6.3
2.5
8
3.5
10
5.0
0.6
L<20: 1.5, L≧20: 2.0
0.5
12.5
5.0
16
7.5
0.8
18
7.5
Unit: mm
22
10
1.0
2.0
25
12.5
Sleeve
15 min
4 min
The case size of 12.5×16, 16×16, 16×20, 18×16, 18×20 and 18×25 are suitable for below diagram:
φ
d
Vent
L+
α
max
φ
D+
β
max
Sleeve
15 min
4 min
80
All product specifications in the catalog are subject to change without notice. (CAT. 2015E1)
P
±
0.5
P
±
0.5
Aluminum Electrolytic Capacitors
RGA
Dimension:
φD
× L(mm)
Ripple Current: mA/rms at 120 Hz, 105℃
Dimension & Permissible Ripple Current
V. DC
μF
2.2
3.3
4.7
10
22
33
47
100
220
330
470
1,000
2,200
3,300
4,700
6,800
10,000
15,000
22,000
33,000
2R2
3R3
4R7
100
220
330
470
101
221
331
471
102
222
332
472
682
103
153
223
333
V. DC
μF
1
2.2
3.3
4.7
10
22
33
47
68
100
150
220
330
470
010
2R2
3R3
4R7
100
220
330
470
680
101
151
221
331
330
8×11.5
10×12.5
10×16
10×20
12.5×20
12.5×25
16×25
16×31.5
18×35.5
22×40
65
110
150
195
275
355
470
660
820
1,130
6.3×11
6.3×11
6.3×11
8×11.5
10×16
10×20
12.5×16
12.5×20
16×16
16×20
18×16
18×20
18×31.5
18×40
22×40
30
39
43
65
140
170
215
265
290
365
360
510
750
965
1,130
6.3×11
6.3×11
8×11.5
10×12.5
10×16
12.5×16
12.5×20
16×16
16×20
16×25
18×20
16×31.5
18×25
18×35.5
22×40
25×40
35
40
45
92
140
175
230
245
320
425
415
550
535
760
1,140
1,325
6.3×11
8×11.5
8×11.5
10×12.5
10×16
12.5×20
12.5×25
16×16
16×20
18×25
16×31.5
18×31.5
16×35.5
18×40
25×40
22×45
25×45
35
43
45
55
95
220
215
205
255
360
370
460
430
600
865
850
1,070
6.3×11
8×11.5
10×16
10×20
12.5×16
12.5×20
16×16
12.5×25
16×20
230
380
690
5×11
140
6.3×11
6.3×11
8×11.5
10×12.5
10×20
175
200
290
460
760
5×11
6.3×11
8×11.5
8×11.5
10×16
12.5×16
110
190
270
310
560
780
5×11
6.3×11
8×11.5
8×11.5
10×12.5
10×12.5
10×20
12.5×16
12.5×25
97
142
236
310
335
380
5×11
5×11
6.3×11
8×11.5
10×12.5
10×16
75
90
150
270
350
460
6.3V (0J)
mA
10V (1A)
φD×L
mA
16V (1C)
φD×L
mA
25V (1E)
φD×L
mA
35V (1V)
φD×L
mA
50V (1H)
φD×L
5×11
5×11
5×11
5×11
5×11
5×11
6.3×11
8×11.5
10×12.5
10×16
mA
20
30
33
50
78
90
120
188
300
410
63V (1J)
φD×L
mA
100V (2A)
φD×L
5×11
5×11
5×11
6.3×11
6.3×11
8×11.5
8×11.5
10×12.5
10×20
12.5×16
12.5×25
16×16
16×25
16×31.5
18×25
18×40
25×45
mA
30
31
36
54
93
99
130
165
265
290
440
420
620
715
745
1,275
2,400
Contents
φD×L
6.3×11
6.3×11
6.3×11
8×11.5
10×12.5
10×16
10×20
12.5×16
12.5×20
16×16
16×25
18×40
22×40
25×40
86
100
130
141
235
335
510
460
640
665
930
2,280
2,510
3,000
840 12.5×20 1,100 12.5×25 1,170 16×25
850
16×16
940
16×16
950
18×20
1,090 12.5×25 1,260 16×20 1,185 16×31.5
1,010 16×16 1,060 18×16 1,290 18×25
1,460
16×31.5 1,930 16×40
16×20 1,270
1,190
18×20 1,585 18×35.5
16×31.5 2,220 16×35.5 2,210 22×40
16×20 1,340
18×25 1,800 18×31.5 2,330 18×45
16×31.5 2,365 18×31.5 2,620
18×40 2,950 25×40 3,200
18×25 2,290 16×35.5 2,590
16×40 2,800
18×40 3,230 22×40 3,460
18×35.5 2,930
18×45 3,080 22×40 4,090 25×45 4,500
10×20
530
12.5×16 425
680 12.5×20 810 12.5×25 950
590
16×16
720
16×20
830
16×25 1,260 16×35.5 1,470
1,110
18×20 1,110 18×31.5 1,520
1,440 16×31.5 1,420
18×35.5 1,770
1,220 18×25 1,570
1,650
18×35.5 1,900 22×40 2,340
1,550
2,000
18×40 2,250 25×40 2,530
2,160
2,720
2,410
160V (2C)
mA
200V (2D)
φD×L
mA
250V (2E)
φD×L
mA
350V (2V)
φD×L
mA
400V (2G)
φD×L
6.3×11
8×11.5
8×11.5
8×11.5
10×12.5
10×16
12.5×20
16×20
16×25
18×25
16×31.5
18×35.5
22×40
22×45
mA
21
39
45
50
55
95
160
225
295
360
375
540
730
930
450V (2W)
φD×L
8×11.5
8×11.5
8×11.5
8×11.5
10×12.5
10×20
12.5×20
16×20
18×16
16×25
18×20
16×35.5
18×31.5
18×40
22×40
mA
27
39
45
50
55
105
160
225
220
280
285
400
420
560
770
Contents
φD×L
Part Numbering System
RGA series
470μF
±20%
6.3V
Bulk Package
Gas Type
6.3φ×11L
Pb-free and PET
sleeve
Lead Wire and
Sleeve type
RGA
Series
471
Capacitance
M
Capacitance
Tolerance
0J
Rated
Voltage
BK
Lead Configuration
& Package
-
Rubber
Type
0611
Case Size
Note: For more details, please refer to “Part Numbering System (Radial Type)” on page 10.
All product specifications in the catalog are subject to change without notice. (CAT. 2015E1)
81
Aluminum Electrolytic Capacitors

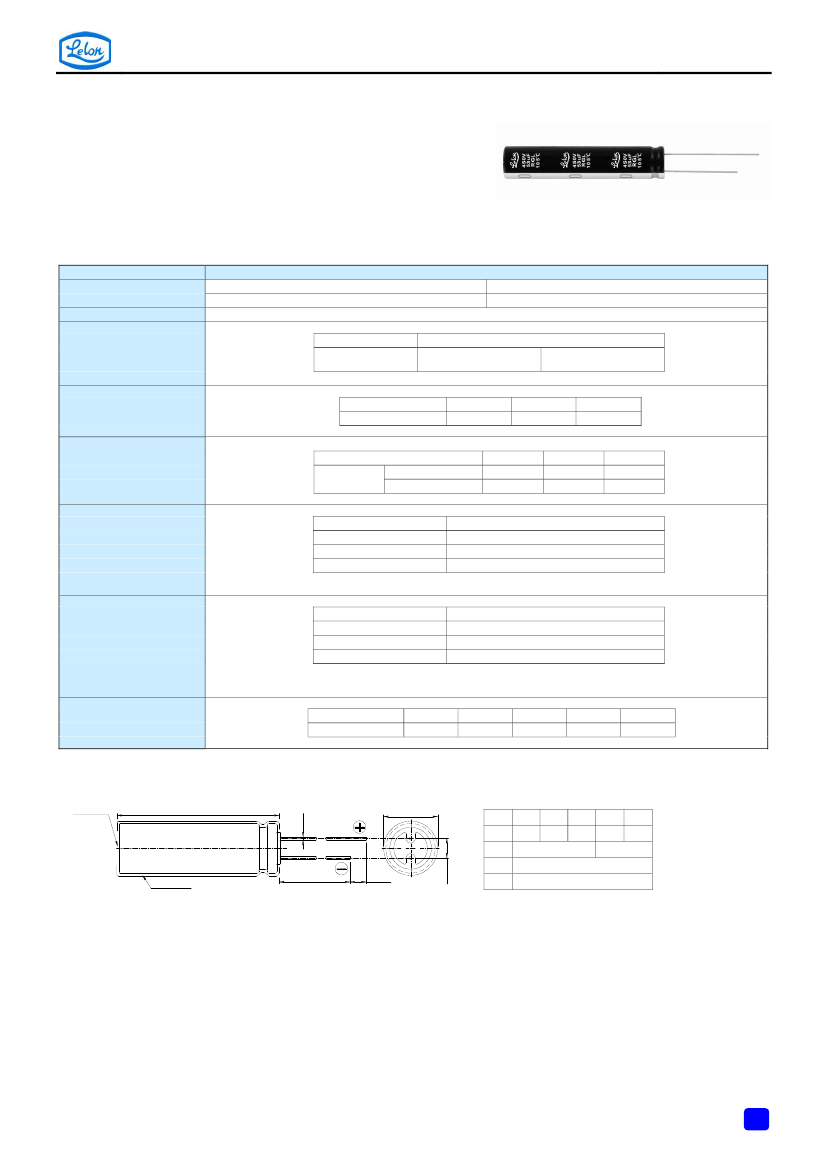

RGL Series
Features
‧
105℃, for general purposes
‧
8φ ~ 18φ with large permissible ripple current
‧
Slim type included
‧
RoHS Compliance
RGL
Specifications
Items
Category Temperature Range
Capacitance Tolerance
Time
Leakage Current (at 20℃)
Leakage Current
Performance
400V
-40℃ ~ +105℃
±20%
after 5 minutes
Sleeve & Marking Color: Black & Golden
420 ~ 450V
-25℃ ~ +105℃
(at 120Hz, 20℃)
CV
≦
1,000
CV
＞
1,000
I = 0.03CV + 15(μA)
I = 0.02CV + 25(μA)
Where, C = rated capacitance in
μF
V = rated DC working voltage in V
Rated Voltage
Tanδ (max)
400
0.24
420
0.24
450
0.24
Tanδ (at 120Hz, 20℃)
Low Temperature
Characteristics (at 120Hz)
Impedance ratio shall not exceed the values given in the table below.
Rated Voltage
400
420
450
Impedance
5
6
6
Z(-25℃)/Z(+20℃)
Ratio
Z(-40℃)/Z(+20℃)
6
-
-
Endurance
Test Time
2,000 Hrs
Capacitance Change
Within ±20% of initial value
Tanδ
Less than 200% of specified value
Leakage Current
Within specified value
* The above Specifications shall be satisfied when the capacitors are restored to 20°C after the rated voltage applied with rated
ripple current for 2,000 hours at 105°C.
Test Time
1,000 Hrs
Capacitance Change
With in ±20% of initial value
Tanδ
Less than 200% of specified value
Leakage Current
Within specified value
* The above Specifications shall be satisfied when the capacitors are restored to 20°C after exposing them for 1,000 hours at
105°C without voltage applied. The rated voltage shall be applied to the capacitors before the measurements (Refer to JIS C
5101-4 4.1).
Frequency (Hz)
Multipliers
60
0.8
120
1.00
500
1.25
1k
1.45
10k up
1.50
Shelf Life Test
Ripple Current &
Frequency Multipliers
Diagram of Dimensions
φ
d
Vent
≧
8
φ
L+
α
Max
φ
D+
β
Max
Lead Spacing and Diameter
φD
P
φd
α
β
8
3.5
10
5.0
0.6
2.0
0.5
12.5
5.0
16
7.5
0.8
18
7.5
Unit: mm
PET Sleeve
15 min
4 min
P
±
0.5
All product specifications in the catalog are subject to change without notice. (CAT. 2015E1)
107
Aluminum Electrolytic Capacitors
RGL
Dimension:
φD
× L(mm)
Ripple Current: mA/rms at 105°C
Dimension & Permissible Ripple Current
8φ
V. DC
Cap.
(μF)
15
22
27
33
39
47
φD×L
8×30
8×35
8×40
8×45
8×50
Ripple Current
120 Hz 100k Hz
190
250
300
350
390
285
375
450
525
585
10×30
10×35
10×40
10×45
10×50
245
295
345
400
450
370
445
515
600
675
12.5×30
12.5×35
12.5×40
470
540
620
705
810
930
16×35.5
16×40
16×45
16×50
8×30
8×35
8×45
8×50
195
255
320
370
293
383
480
555
10×30
10×35
10×40
10×45
10×50
245
295
345
400
450
370
445
515
600
675
12.5×30
12.5×35
12.5×45
12.5×50
470
540
630
730
705
810
945
1,095
16×35.5
16×40
16×45
16×50
φD×L
10φ
Ripple Current
120 Hz 100k Hz
φD×L
12.5φ
Ripple Current
120 Hz 100k Hz
φD×L
16φ
Ripple Current
120 Hz 100k Hz
φD×L
18φ
Ripple Current
120 Hz 100k Hz
400V
(2G)
56
68
82
100
120
150
180
220
15
22
27
33
39
47
800
840
940
1,050
1,200
1,260
1,410
1,575
18×35.5
18×40
18×45
920
1,060
1,200
1,380
1,590
1,800
420V)
(2P)
56
68
82
100
120
150
180
220
15
22
27
33
39
8×30
8×40
8×45
8×50
195
270
320
370
293
405
480
555
730
840
885
1030
1,095
1,260
1,330
1,545
18×35.5
18×35.5
18×40
18×45
18×50
850
920
960
1,100
1,220
1,275
1,380
1,440
1,650
1,830
10×30
10×35
10×40
10×45
10×50
225
265
315
360
420
330
400
475
545
625
12.5×30
12.5×35
12.5×40
12.5×45
12.5×50
400
460
520
580
660
600
690
780
870
990
16×35.5
16×40
16×45
16×50
660
750
840
980
990
1,125
1,260
1,470
18×35.5
18×45
18×50
820
995
1,140
1,230
1,490
1,710
450V
(2W)
47
56
68
82
100
120
150
180
Remark: Other sizes and specification are available, please contact us for detail.
Part Numbering System
RGL series
22μF
±20%
450V
Bulk Package
Gas Type
10φ×30L
Pb-free and PET
sleeve
Lead Wire and
Sleeve type
RGL
Series
220
Capacitance
M
Capacitance
Tolerance
2W
Rated
Voltage
BK
Lead Configuration
& Package
-
Rubber
Type
1030
Case Size
Note: For more details, please refer to “Part Numbering System (Radial Type)” on page 10.
108
All product specifications in the catalog are subject to change without notice. (CAT. 2015E1)
Microcontroller MCU
京公网安备 11010802033920号
EEWORLD
