MF1-4CL5491F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> MF1-4CL5491F

MF1-4CL5491F: DescriptionMetal Film Resistors - Through Hole 5.49K 1% 50PPM; CategoryPassive components; File Size205KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/

Download Datasheet Parametric View All

MF1-4CL5491F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MF1-4CL5491F	-	-	View	Buy Now

MF1-4CL5491F Overview

Metal Film Resistors - Through Hole 5.49K 1% 50PPM

MF1-4CL5491F Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	KOA Speer
Product Category	Metal Film Resistors - Through Hole
RoHS	No -; RoHS Version Available
Resistance	5.49 kOhms
Power Rating	250 mW (1/4 W)
Tolerance	1 %
Temperature Coefficient	50 PPM / C
Voltage Rating	250 V
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 155 C
Diameter	2.3 mm
Length	7.1 mm
Termination Style	Axial
Qualification	AEC-Q200
Packaging	Bulk
Product	Metal Film Resistors General Purpose
Type	Semi-Precision General Purpose Metal Film Leaded Resistor
Package / Case	2.3 mm x 7.1 mm
Lead Diameter	0.6 mm
Factory Pack Quantity	1000

Preview

Download Datasheet

View All

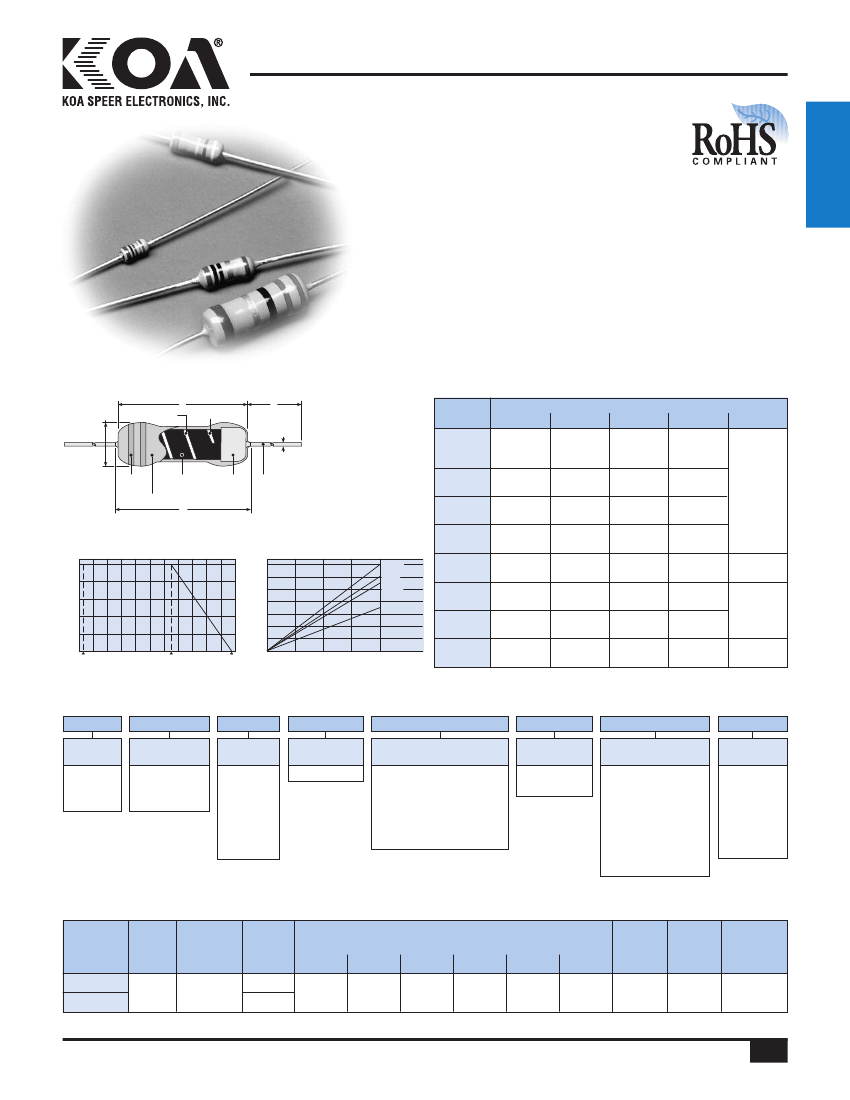

MF, MFS, RK

general purpose metal film leaded resistor

features

Semi-precision metal film resistors

Meets requirements of MIL-R-22684

Suitable for automatic machine insertion

MFS two times the power rating of the standard body type

Products with lead-free terminations meet EU RoHS

and China RoHS requirements

•

AEC-Q200 Qualified: MF1/4, MFS1/4, MFS1/2

•

resistors

dimensions and construction

Trimming Line

Ceramic Core

Type

MFS1/4

L (ref.)

.126±.008

(3.2±0.2)

.248±.02

(6.3±0.5)

.248±.02

(6.3±0.5)

.354±.04

(9.0±1.0)

.610±.02

(15.5±0.5)

.248±.02

(6.3±0.5)

.374±.04

(9.5±1.0)

.610±.04

(15.5±1.0)

Dimensions

inches

(mm)

C (max.)

d (nom.)

.133

(3.4)

.280

(7.1)

.280

(7.1)

.437

(11.1)

.721

(18.3)

.280

(7.1)

.437

(11.1)

.720

(18.3)

.066

(1.7

+.007

-.004

+0.2

)

-0.1

.018

(0.45)

.024

(0.6)

.024

(0.6)

.024

(0.6)

.031

(0.8)

.024

(0.6)

.024

(0.6)

.031

(0.8)

1.50±.118

(38.0±3.0)

0.94 min.

(24.0 min.)

1.50±.118

(38.0±3.0)

1.10±.118

(28.0±3.0)

Marking

Resistive

Film

End

Cap

Lead

Wire

MF1/4

MFS1/2

.091±.012

(2.3±0.3)

.091±.012

(2.3±0.3)

.138±.016

(3.5±0.4)

.217±.02

(5.5±0.5)

.091±.012

(2.3±0.3)

.138±.016

(3.5±0.4)

.217±.02

(5.5±0.5)

Insulation Coating

Derating Curve

100

% Rated Power

-60 -40 -20

-55

Surface Temperature Rise

Temperature Rise (°C)

MF1/2

MF1

RK1/4

RK1/2

MFS1/2

MF1/2

MF1

MFS1/4

MF1/4

80 100 120 140 160

155

Ambient Temperature

(°C)

100

RK1

% Rated Power

* Lead length changes depending on taping and forming.

ordering information

Type

MFS

1/4

Power

Rating

1/4: 0.25W

1/2: 0.50W

1: 1W

T.C.R.

E: ±25

C: ±50

D: ±100

L: ±200

G: ±250

B: ±350

Termination

Material

C: SnCu

T52

Taping and Forming

1/4: T26, T52, VT, VTP,

VTE, MT, M, U,

M10, M12.5

1/2: T26, T52, VTP,

VTE, M12.5, M15

1: T521

Packaging

A: Ammo

R: Reel

R20

Nominal

Resistance

+2%: 2 significant

figures + 1 multiplier

+0.5%,+1%:

3 significant figures

+ 1 multiplier

“R” indicates

decimal on value

<100Ω

Tolerance

B: ±0.1%

C: ±0.25%

D: ±0.5%

F: ±1%

G: ±2%

J: ±5%

For further information on

packaging, please refer to

Appendix C.

applications and ratings

Minimum

Absolute Absolute

Resistance Range (Ω)

Power

Operating

Part

Dielectric

T.C.R.

Maximum Maximum

Rating

Temperature

Designation

Withstanding (ppm/°C)

(B±0.1%) (C±0.25%) (D±0.5%) (F±1.0%) (G±2.0%) (J±5.0%)

Working Overload

@ 70°C

Range

Voltage

E-24

E-96

E-24 E-192 E-24 E-96

E-24

-55°C

MFS1/4C

C: ±50

49.9 -

300V

—

0.25W

10 - 1M

250V

500V

562k

MFS1/4D

D: ±100

+155°C

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

11/15/17

KOA Speer Electronics, Inc.

• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
